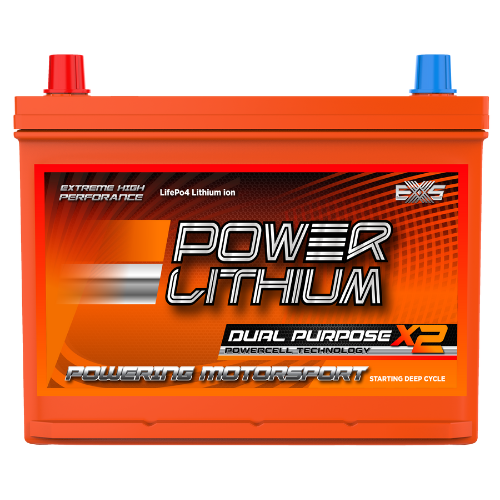

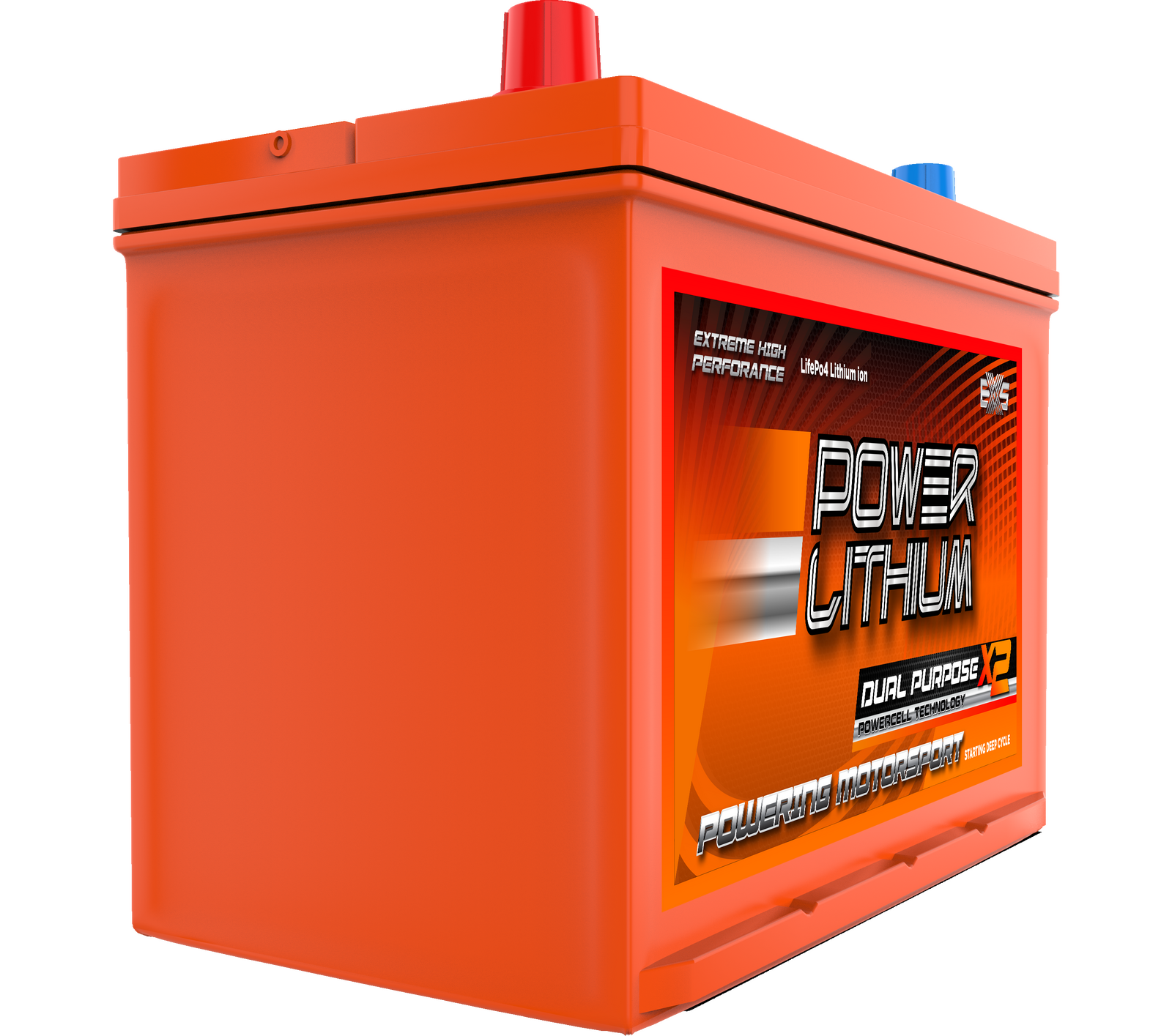

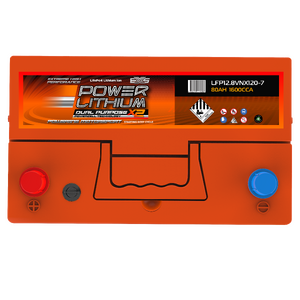

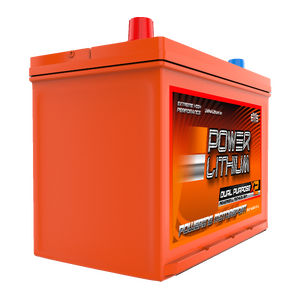

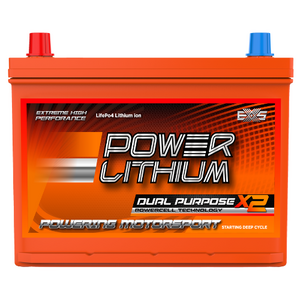

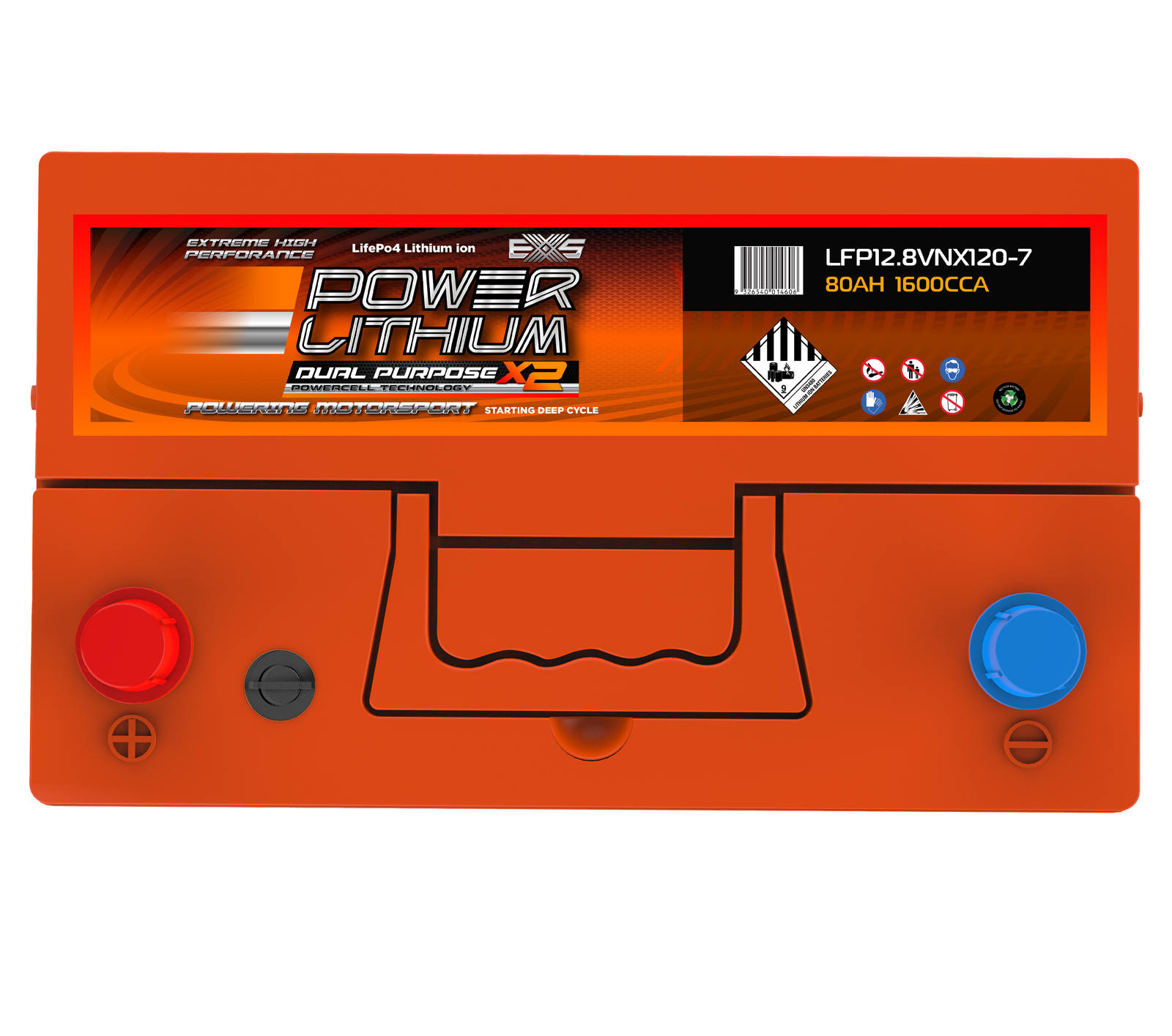

Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Right Hand Positive
SKU: LFP12.8VNX120 Learn More»Product Description

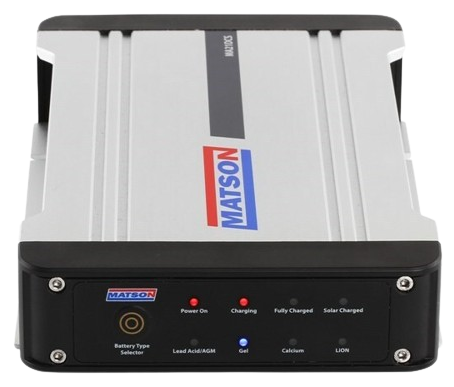

Currently FREE with the Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Optional Positive is a Matson 12V 20A In-Vehicle DC-DC Battery Charger with Solar Input (RRP $239)!
Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Optional Positive, 5 Year Warranty.
Location of Installation Option:
- Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Right Hand Positive, LFP12.8VNX120-7
- Power Lithium 12V 80Ah 1600CCA Dual Purpose Lithium Starting Battery, Left Hand Positive, LFP12.8VNX120-7L
Features:
- Longer Cycle Life: LiFePO4 batteries would be is five times than SLA batteries on cycle life
- High Power & Light weight: LiFePO4 batteries performance twice power of SLA batteries, while half weight helpful for transport and installation
- Intelligent management control: Intelligent BMS system covered by LFP batteries to ensure that batteries work on safety and perfect condition
- Lower Self-discharge rate: Lower Self-discharge rate to guarantee LFP batteries be stored more longer than SLA batteries
Specifications:
ElectricalCharacteristics:
- Chemistry: LiFePO4
- Nominal Voltage: 12.8V
- Nominal Capacity: 80Ah
- Energy: 1024Wh
- Cold Cranking Amps: 1600CCA
- Internal Resistance: ≤1.9 mΩ
- Cycle Life: ≥1500 cycles
- Self Discharge Rate: ≤30uA
- Efficiency of Charge: 100% @0.5C
- Efficiency of Discharge: 96-99% @1C
Standard Charge:
- Charge Voltage: 14.6±0.2V
- Charge Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
- Rated Charge Current: ≤40A
- Max. Charge Current: ≤80A
- BMS Charge Cut-off Voltage: 15.6V
- Over Charge Recovery Voltage: 15.2V
Standard Discharge:
- Continuous Discharge Current: ≤180A
- Instantaneous Discharge Current: 1600A(5S)
- BMS Discharge Cut-off Voltage: 8V
- Over Discharge Recovery Voltage: 9.2V
- Charge Temperature: 0 °C to 45 °C (32Fto 113F) @60±25% Relative Humidity
- Discharge Temperature: -20 °C to 60 °C (-4F to 140F) @60±25% Relative Humidity
- Storage Temperature: 0 °C to 40 °C (32Fto 104F) @60±25% Relative Humidity
- Water Dust Resistance: IP56
Mechanical:
- BMS Withstand voltage value: 30V
- Plastic Case: ABS
- Dimensions (in./mm.): 303*170*201*222mm ± 2mm
- Weight (lbs./kg.): 9.8kg(21.56Ibs)
- Terminal: Brass
LFP12.8VNX120-7 Information
LFP12.8VNX120-7L Information
Specifications
SKU LFP12.8VNX120
Brand Power Lithium
Warranty Period: 5 Years
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 80
Battery Length (mm) 303
Battery Width (mm) 170
Battery Height (mm) 201
Battery Weight (kg) 9.8
