Powerlite 35kVA Tractor Generator

SKU: TPL37.5 Learn More»
POA

Accessories

POA

POA

Express Shipping Price Match Guarantee Customer Reviews

Product Description

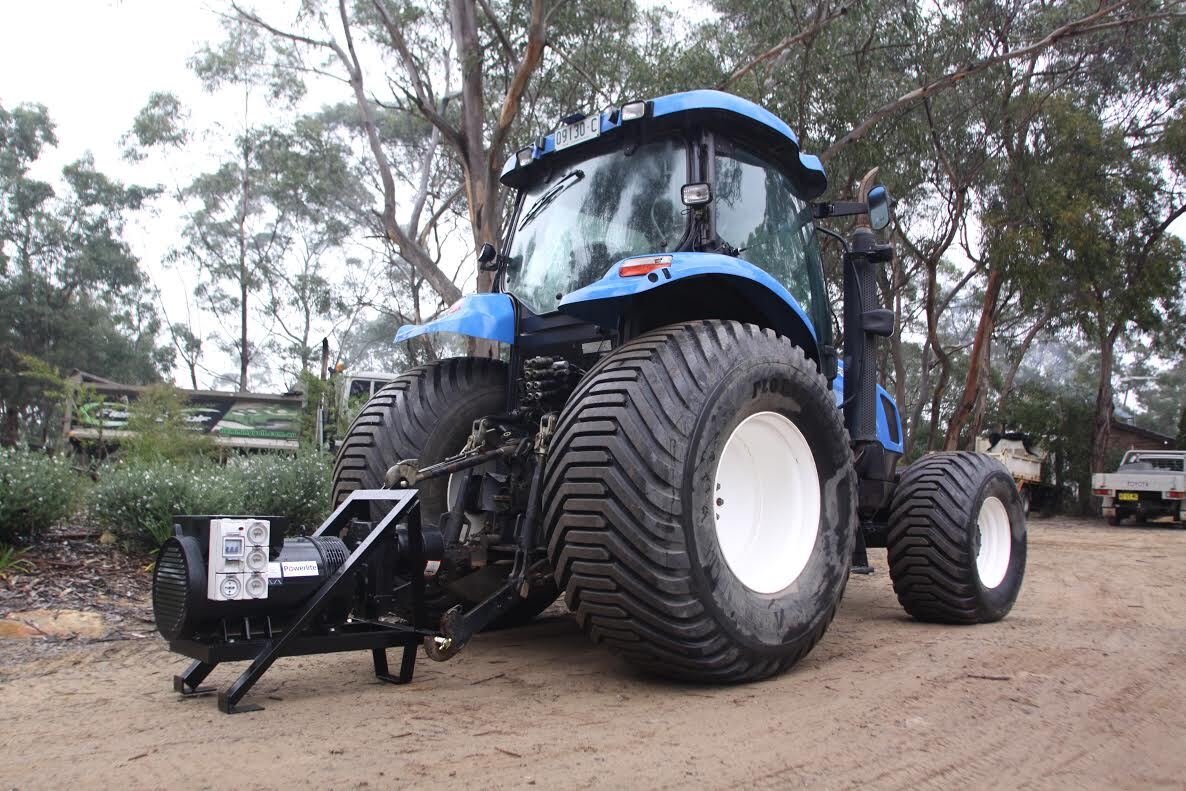

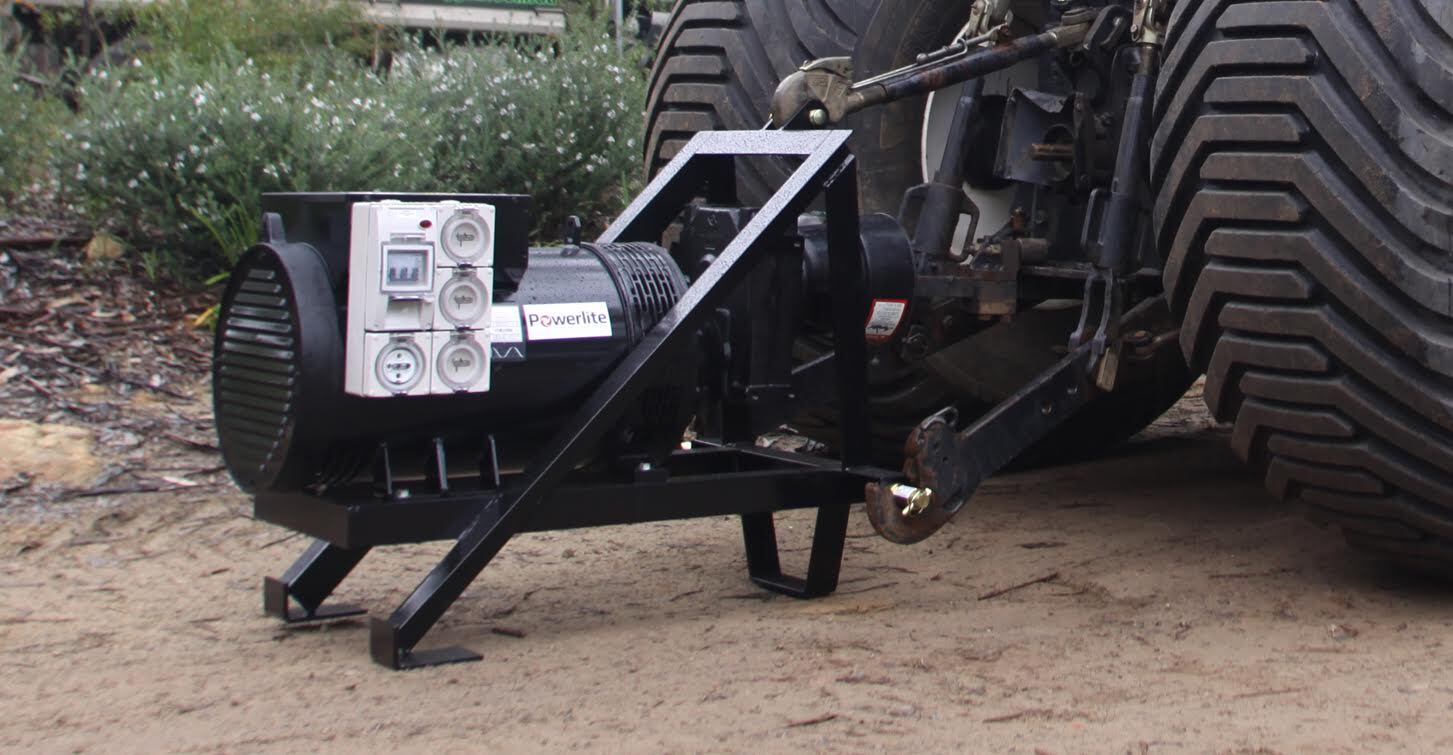

Powerlite 35kVA Tractor Generator. The 1500rpm alternator has a flange mounted reduction gear box with PTO drive shaft spline.

These generators offer reliable, simple and practical source of power when a tractor is available. Input power required 46hp to run generator with PTO / Tractor.

Options include:

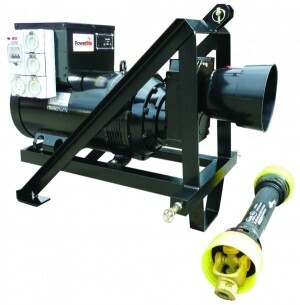

  • Heavy duty 3 point linkage frame
  • Weatherproof outlets
  • Rated weatherproof circuit breaker
  • Category 1 & 2 linkage pins
  • Category 3 linkage pins

 Powerlite PTO Tractor Generators Product Brochure


Specifications

SKU TPL37.5

Brand Powerlite

Warranty Period: 2 Years

Product Category Tractor Generators

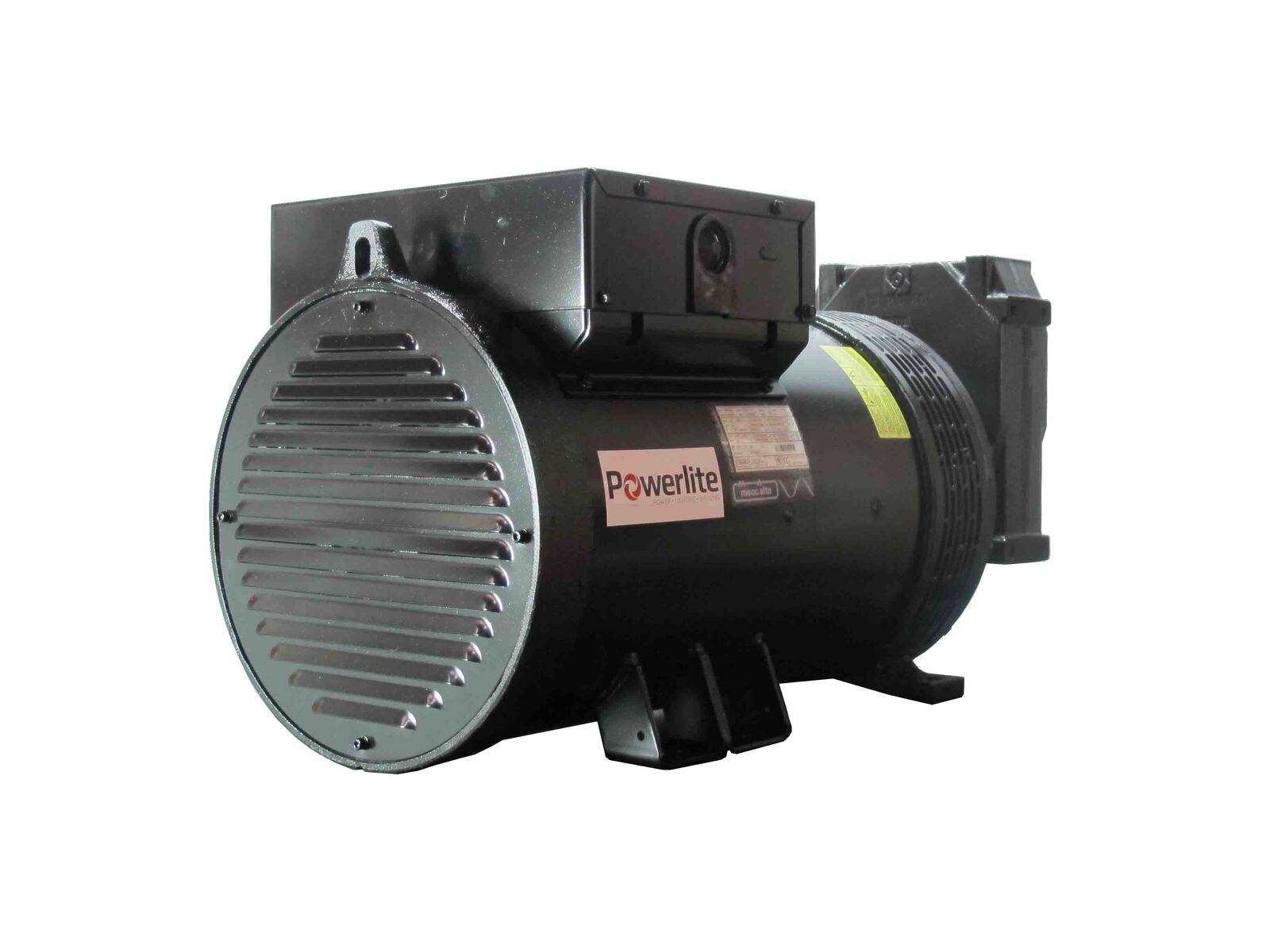

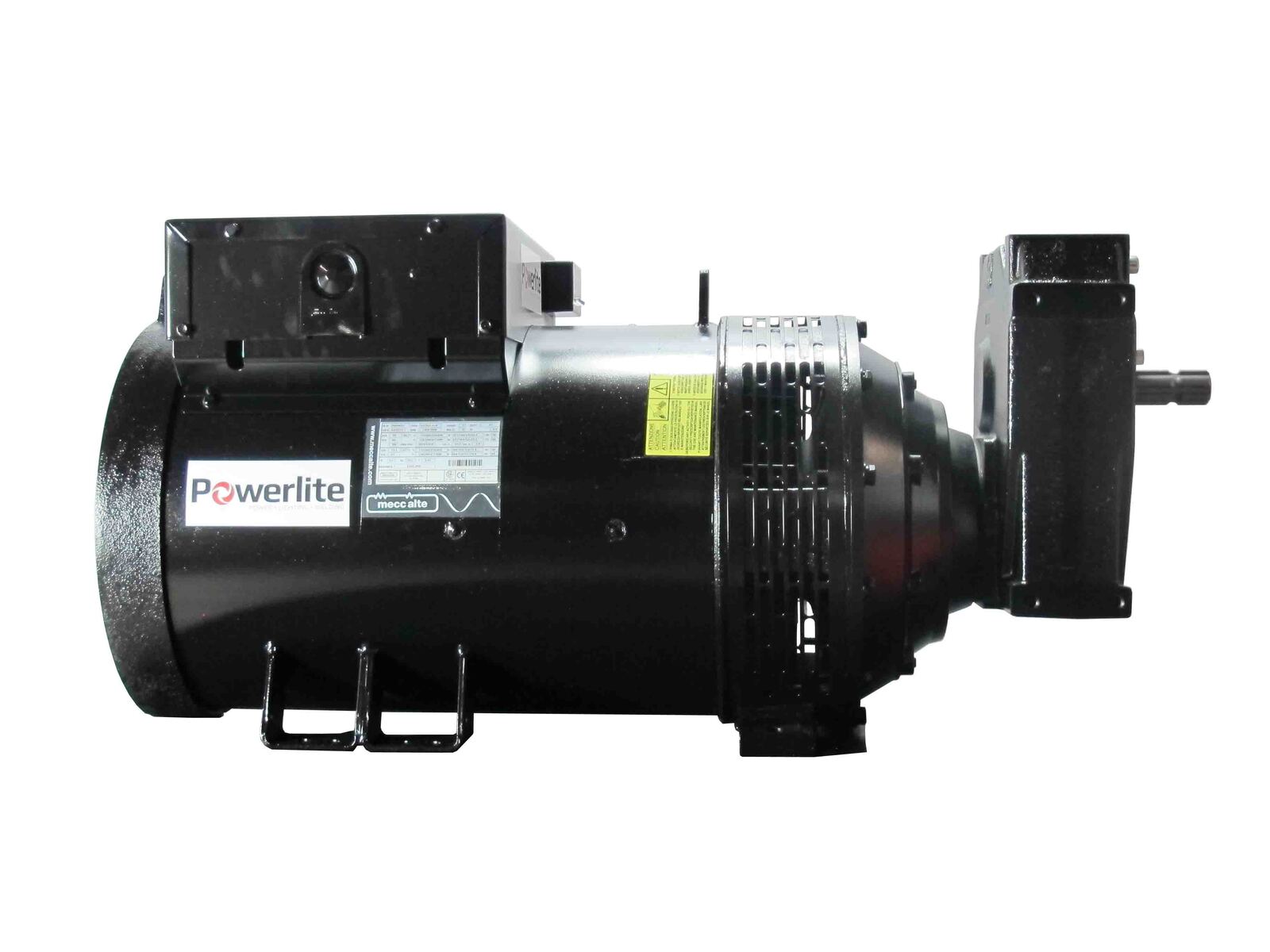

Alternator Type 2 bearing 1500rpm heavy duty brushless alternator

NOTE Options include: Heavy duty 3 point linkage frame Weatherproof outlets Rated weatherproof circuit breaker Category 1 & 2 linkage pins Category 3 link

Dimensions (LxWxH mm) 748x395x420

Prime Output 35kVA

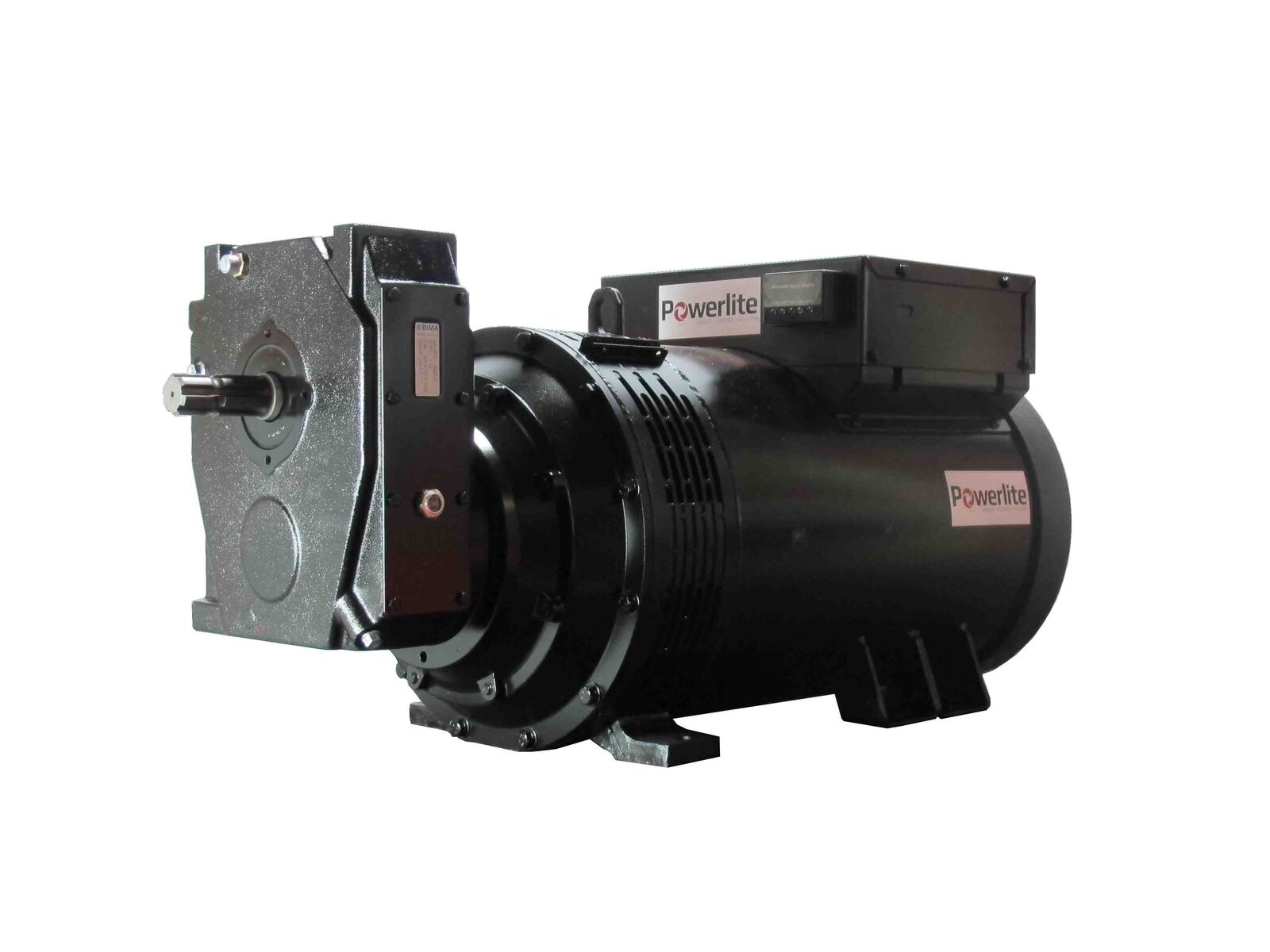

Gearbox Heavy duty PTO gear box

Tractor Size Required 46hp or greater

Net Weight (kg) 271


Videos

Powerlite - PTO Tractor Generator



Product Q&A

Ask Us a Question
  • Hi, how do i calculate what size tractor engine is required to run a specific size of PTO generator?

    The general rule is that you multiply the kva by 1.25 to give a minimum engine Horse Power rating to run the generator.

    For example: 60kva x 1.25 = 75HP. In this instance you would need a tractor engine that produces a minimum of 75HP to run a 60kva three phase PTO generator.

    The generator uses a 3 to 1 gear box and draws 500rpm from the PTO.

  • Could you advise place of manufacture? And durability compared to good quality generator?

    Hi Tom, the Powerlite PTO Tractor Generators are assembeld in Sydney, Australia.

    In our experience, they are extremely durable and because they have less componentry than a typical stationary diesel generator, the PTO's have excellent longevity. Customers will often get 20 years of use from a quality PTO Tractor Generator if looked after. Thank you.
