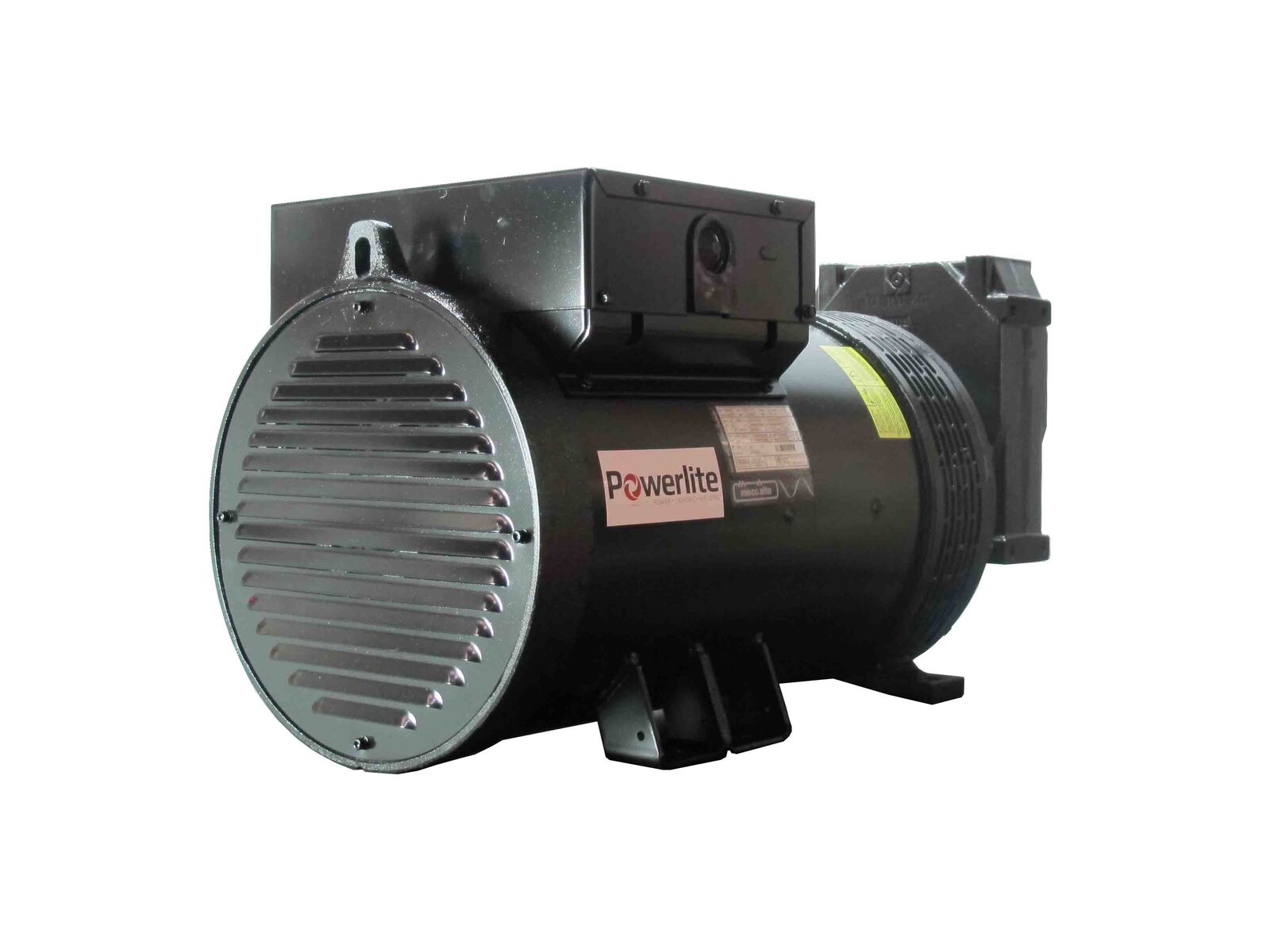

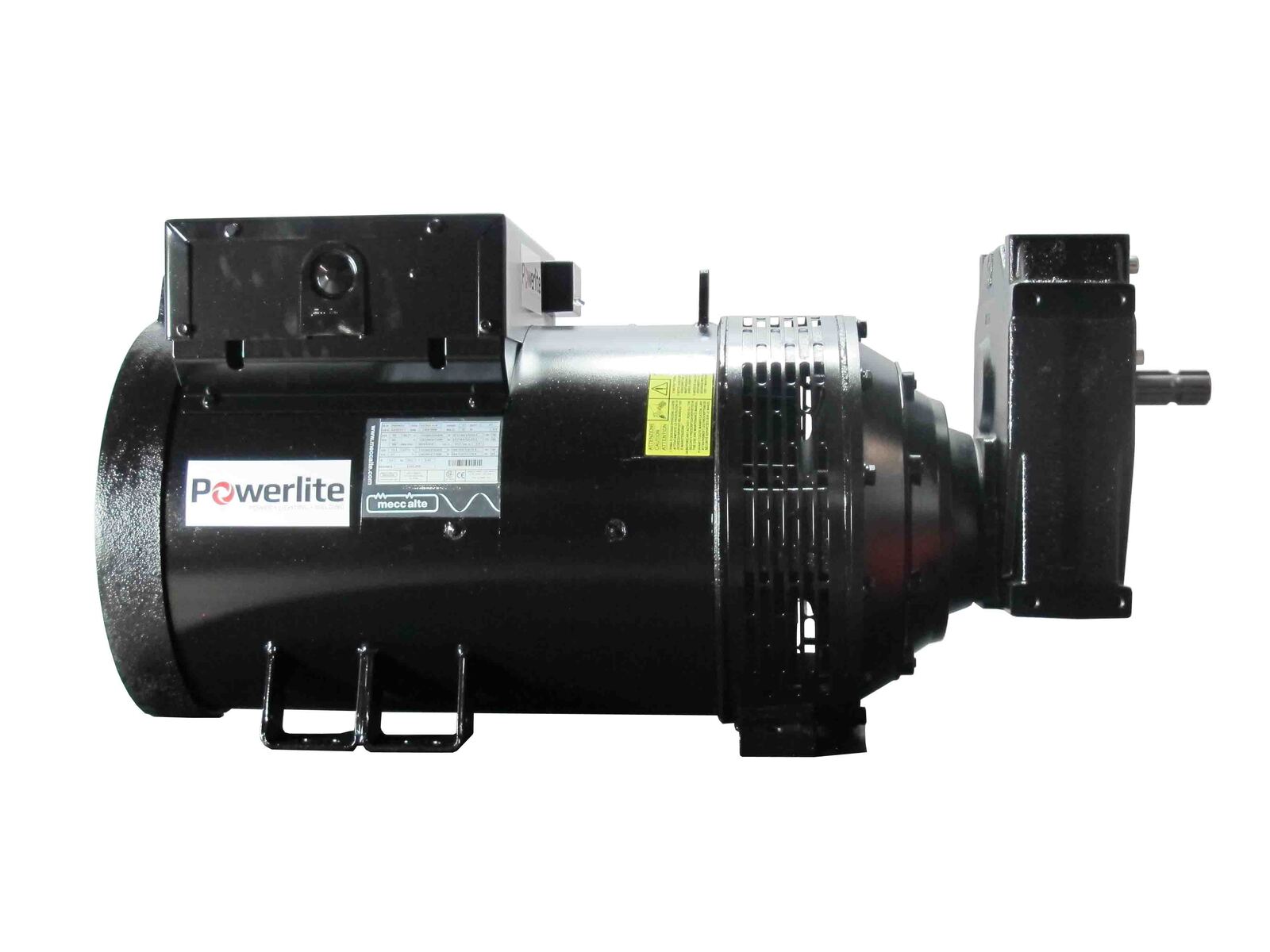

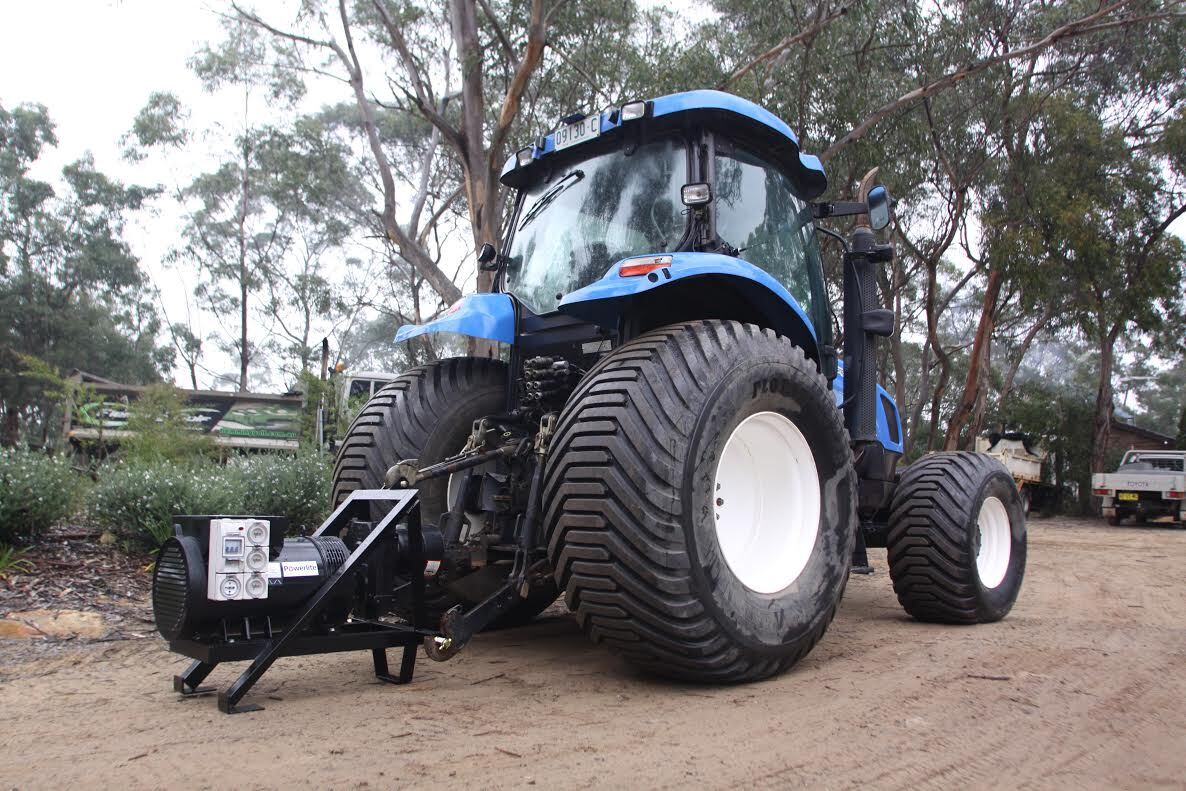

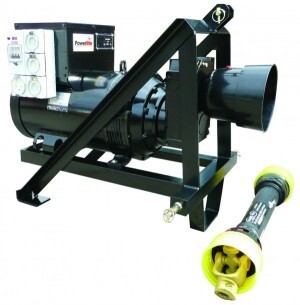

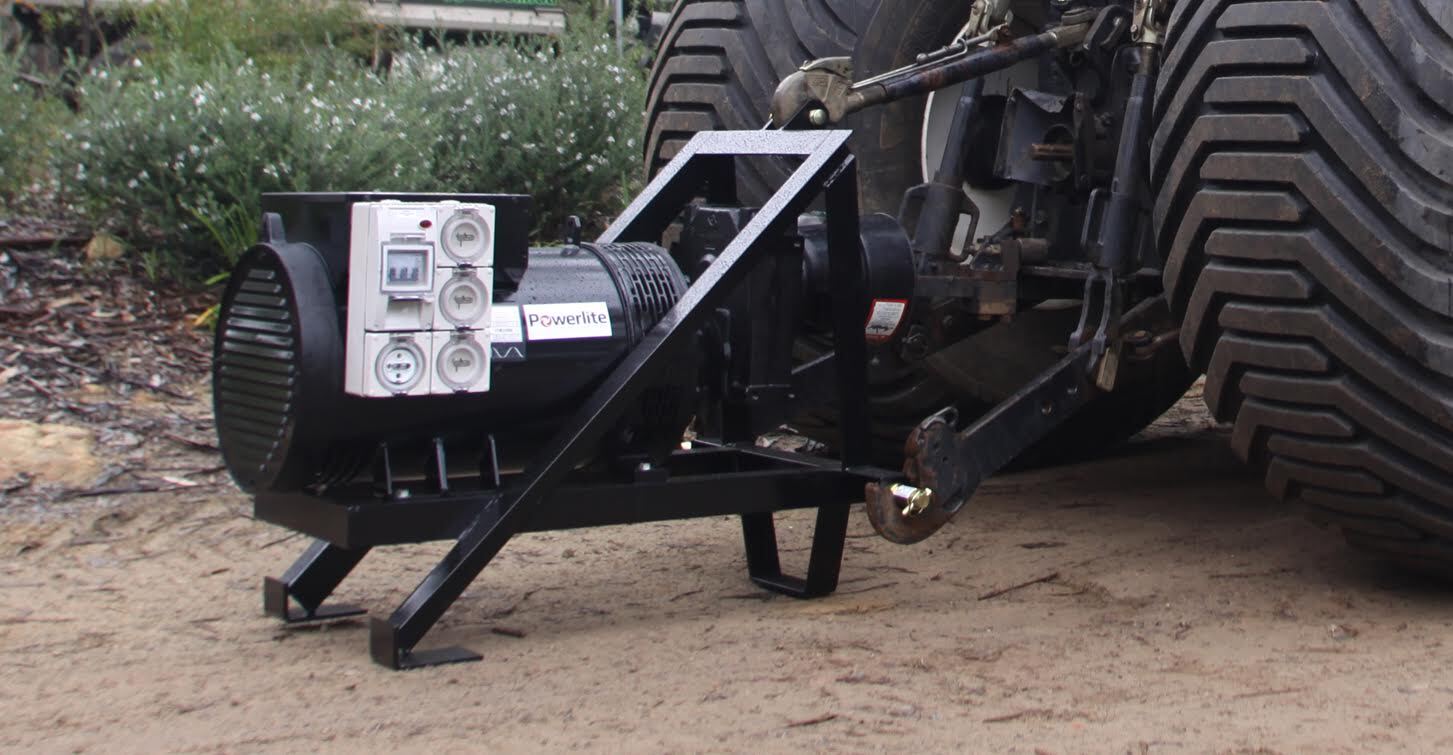

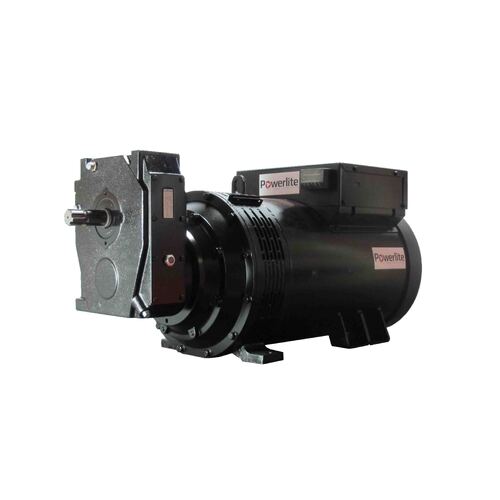

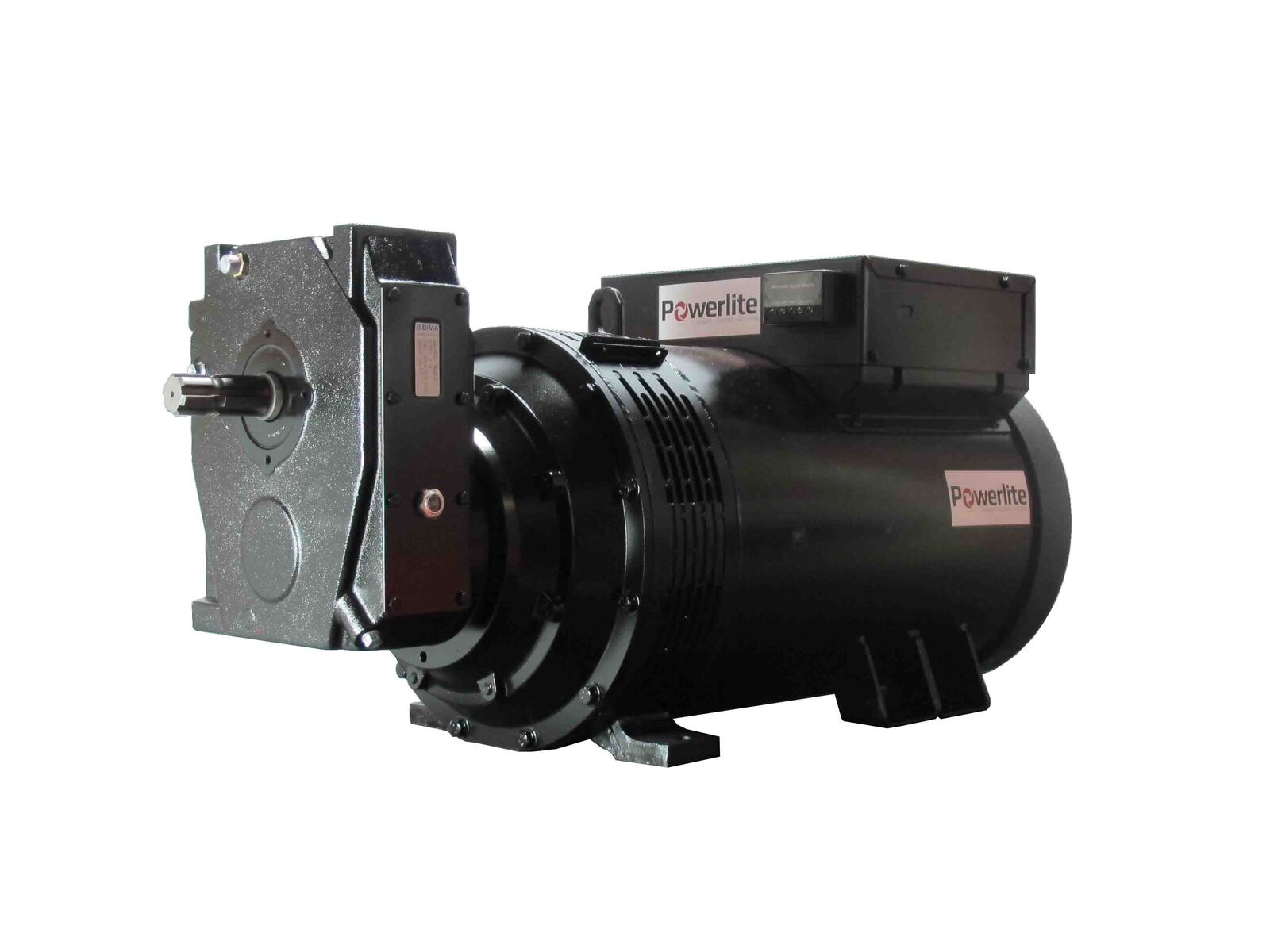

Powerlite 50kVA Tractor Generator

Specifications

SKU TPL50

Brand Powerlite

Warranty Period: 2 Years

Product Category Tractor Generators

Alternator Type 2 bearing 1500rpm heavy duty brushless alternator

NOTE Options include: Heavy duty 3 point linkage frame Weatherproof outlets Rated weatherproof circuit breaker Category 1 & 2 linkage pins Category 3 link

Dimensions (LxWxH mm) 760x395x480

Prime Output 50kVA

Gearbox Heavy duty PTO gear box

Tractor Size Required 66hp or greater

Net Weight (kg) 320

Videos

Powerlite - PTO Tractor Generator

Product Q&A

• Hi, how do i calculate what size tractor engine is required to run a specific size of PTO generator?

  The general rule is that you multiply the kva by 1.25 to give a minimum engine Horse Power rating to run the generator.

  For example: 60kva x 1.25 = 75HP. In this instance you would need a tractor engine that produces a minimum of 75HP to run a 60kva three phase PTO generator.

  The generator uses a 3 to 1 gear box and draws 500rpm from the PTO.

• Could you advise place of manufacture? And durability compared to good quality generator?

  Hi Tom, the Powerlite PTO Tractor Generators are assembeld in Sydney, Australia.

  In our experience, they are extremely durable and because they have less componentry than a typical stationary diesel generator, the PTO's have excellent longevity. Customers will often get 20 years of use from a quality PTO Tractor Generator if looked after. Thank you.
