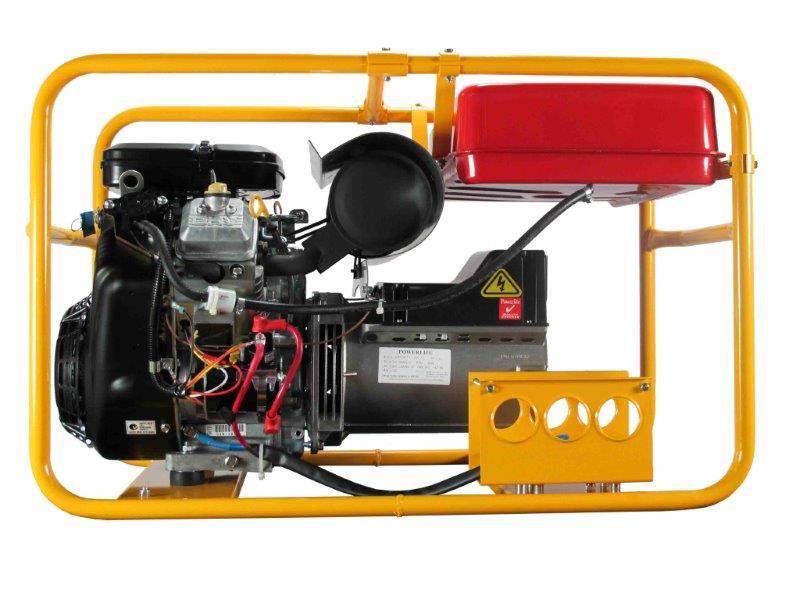

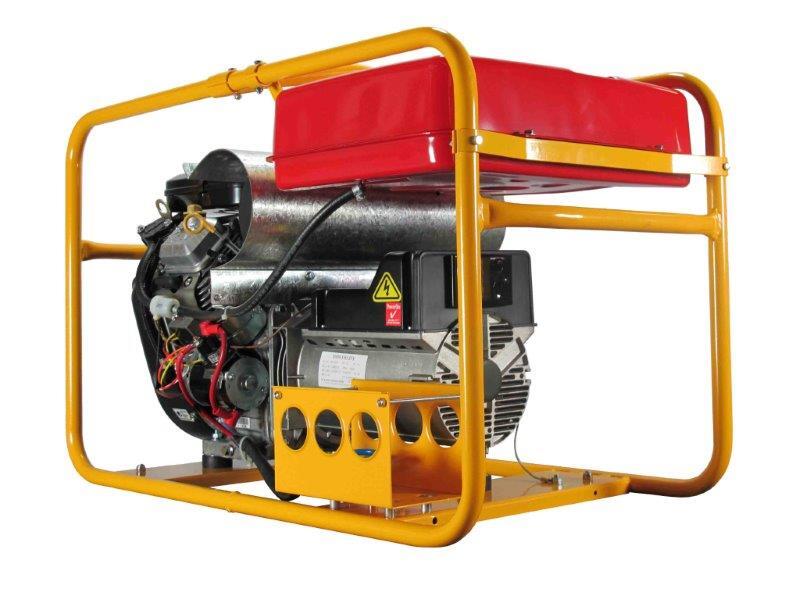

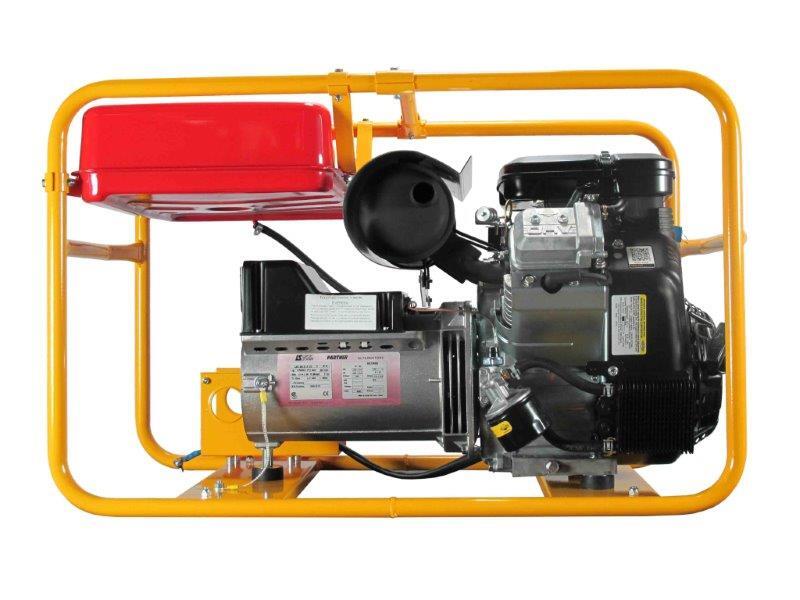

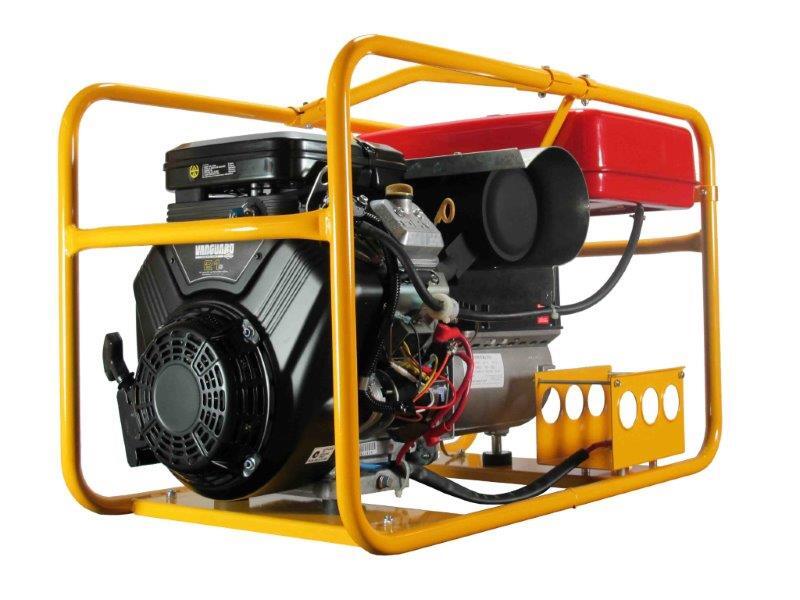

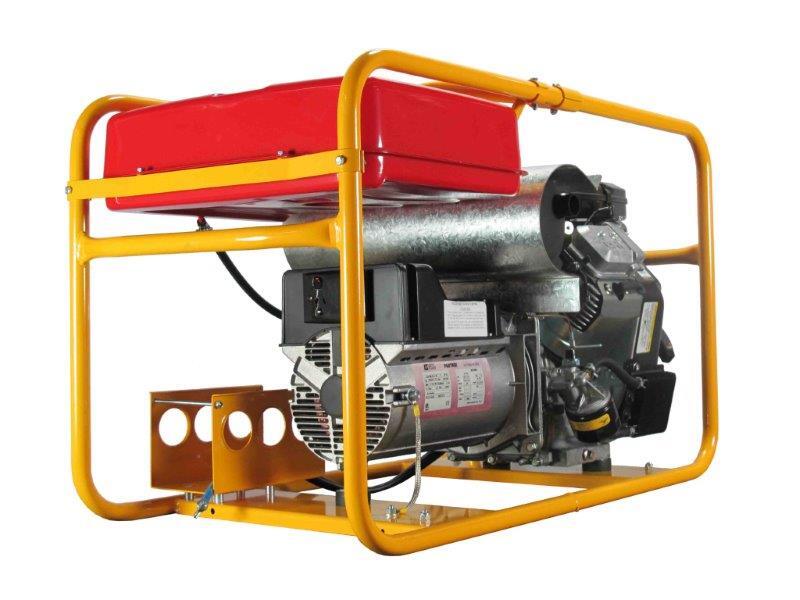

Powerlite Briggs & Stratton Vanguard 12kVA Generator

Specifications

SKU PB120ET

Brand Powerlite

Warranty Period: 2 Years + 1 Year Alternator

Product Category Portable Generators

kVA 12

Continuous Output (kW) 10

Continuous Output (Watts) 10000

Fuel Petrol

Fuel Tank Capacity 20L

Starting Method Electric & Recoil

Voltage 240V

Alternator Type Mecc Alte

Frequency 50Hz

Engine 20HP Vanguard Twin

NOTE Product specifications provided by Manufacturer. This is a portable air-cooled petrol generator designed for short term/standby applications - for pri

Product Dimensions (mm) LxWxH 960x500x600mm

Engine Warranty 1 year warranty

Output Type 2 x 15A

Cont. Working Time 3.5hr

Net Weight (kg) 105

Videos

Powerlite Generators Australia

Powerlite Petrol Generator User Guide:

Product Q&A

• In terms of warranty, where can I find details of service agents for Powerlite Generators?

  Powerlite use premium grade components in all their generators. Starting with the engine, all of the engine manufacturers have national service agent and spare parts networks. The links below will help you with details of their respective service agents:

  For their petrol range, Powerlite mostly use Honda engines from Honda Australia. The Honda service agent network is listed HERE.

  Some petrol models have Briggs & Stratton / Vanguard engines, with their service agents listed HERE.

  For their diesel range, they use both Yanmar Engines and Hatz Engines.

  For specific generator/alternator warranty, servicing and spare parts inquiries for Powerlite Generators, you can find information HERE.

• How is it that this generator has 15Amp outlets, but the generator's power rating is greater than 15Amps? (as 15Amps equates to 3600watts on a 240Volt appliance). Presumably you can get more than 15Amps out of the outlets then?

  Yes, that is correct. A 15 Amp outlet can deliver more power than 15 Amps for a short period, as there is no circuit breaker fitted to the generator as standard. You can briefly pull the full rated power amount of the generator (continuous and maximum) through the 15 Amp outlet.. noting that this is only for a short time - i.e. when you are first starting up an appliance such as a comprossor, drop saw, air conditioner etc. it may draw around 30 Amps (as an example) to start up, and then drop back down to 10 Amps to keep running.

  However, if your appliance draws more than 15 Amps continuously, it is not recommended you run it for prolonged periods from a 15 Amp outlet, as it is likely to result in overheating issues. It may be prudent to consider re-fitting the outlets to a larger size to fit your continuous power requirement (i.e. 20 Amp, or 32 Amp outlet for example) - this can be configured upon request at extra cost. Thank you.

• Hi, what is the build time for a unit like this?

  Hi - the build time for a unit of this size is around 4-5 days.

  Many thanks

• Can I use this generator to charge my power tool batteries?

  Hi there,

  Charging battery packs is fine from a conventional generator, we'd recommend having a steady load on the generator and don't connect appliances that will cause the load to jump around during charging.

  Thanks.

• What DB is this generator rated at?

  Hi There

  The db rating would be at least 75dBA/7m

• Can I change this alternator to avr control? If I can what is the price?

  Yes, AVR can be fitted to this unit by the manufacturer - its is an option within the accessory list on the product page which has the price listed. Thanks
