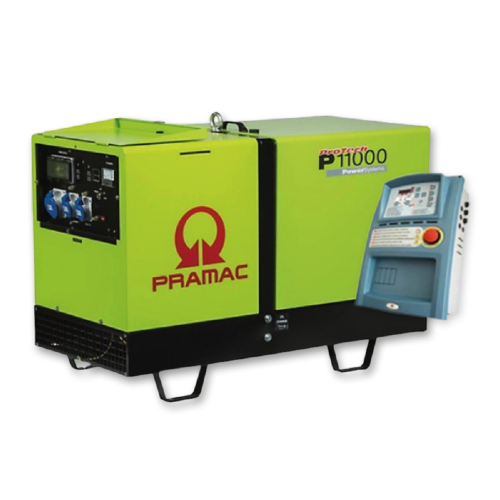

Pramac 10.8kVA Three Phase Silenced Auto Start Diesel Generator, P11000-AMF 3ph
SKU: PF113TY4002 Learn More»
Product Description
The Pramac P11000-AMF 3ph Generator comes with an Automatic Mains Failure Panel included (RRP $1,299):
The Pramac AMF is required for automatic mains backup. Also referred to as the 'Automatic Transfer Switch', this controller permits to transfer the user’s load onto the generator when the mains voltage fails. Conversely, as soon as AMF system detects the power grid, it stops the generator.
DESCRIPTION:
With a very low noise level, the Pramac P11000 Three Phase unit is the ideal generator for use in residential areas or outside normal working hours. It's equipped with an ever reliable Yanmar Diesel engine, first class components and complete instrumentation, including the AMF panel required for automatic power backup to mains power.
The water-cooled engine features an electric start to provide continuous output of 9000 watts in Three Phase form. Add to this the long-run 24L fuel tank and it’s no wonder this generator is such a sort after diesel genset for residential and small business back-up power.
To complete the package, a 36-month warranty with a national service network has your backup power needs covered.
**Please note that there are no outlets fitted to this generator.**
Specifications
SKU PF113TY4002
Brand Pramac
GTIN 8018539052362
Warranty Period: 3 Years
Product Category Portable Generators
kVA 10.8
Max Output (kW) 8.6
Continuous Output (kW) 8
Max Output (Watts) 8600
Continuous Output (Watts) 8000
Model P11000-AMF 3ph
Phase Three Phase
Fuel Diesel
Fuel Tank Capacity 24 Litres
Starting Method Electric
Voltage 400
Net Weight (kg) 325
Noise @ 7m 68 dB(A)
Running Time (Rated Output) @75% PRP : 9.06 hrs | @100% PRP : 6.96hrs
Engine Type Water cooled
Voltage Regulation Compound
Frequency 50Hz
Outlets Hard Wired with Automatic Mains Transfer Panel
NOTE Product specifications provided by Manufacturer. This is a portable Water Cooled diesel generator designed for short term/standby applications. For pr
Engine Yanmar 3TNV70-HGE
Fuel Consumption @ 75% PRP : 2.65 l/h ; @100% PRP : 3.45 l/h
Engine Speed 3000rpm
Oil Capacity 3.8 Litres
Displacement 854 cm³
Product Q&A
-
I can see that with an auto-start generator, an “AMF Panel†is required for mains power backup, and for solar back up a “2 wire auto start controller†is needed. But if I'm on solar and mains, do I need both to go with my auto-start generator?
Hi, firstly you are completely correct; to use your auto-start generator for automatic power backup, you need either:
- An AMF panel for automatic backup to mains power, or
- A Two-wire auto start controller for automatic backup to off-grid solar systems
For homes on solar and on mains power:
In this case, the solar charge is either used within the household consumption or fed back into the grid, meaning there are no storage batteries like there is for an off-grid solar system. So,if you require an auto-start generator to automatically start up to restore power to your home (which is on solar and mains power), you would need an accompanying AMF panel - an electrician would undertake the connection. When a blackout occurs, the AMF panel would signal for the generator to start and restore power to your home.For homes with an off-grid solar system:
The Two-Wire auto start controller is only for off-grid solar systems, whereby the controller is connected to generator and the solar battery system. When the batteries run low on power, the controller signals to the generator to start up and restore power to the batteries. -
What engine oil should I use with this Generator?
Hi - the generator requires standard engine oil; either 10W-30 or 10W-40.
This is available from any local service station. Many thanks
-
what are the physical dimensions of this generatorthanks
Hi Andrew,
The dimensions are as follows:
Length (L) mm 1400
Width (W) mm 650
Height (H) mm 975
Dry weight Kg 325
