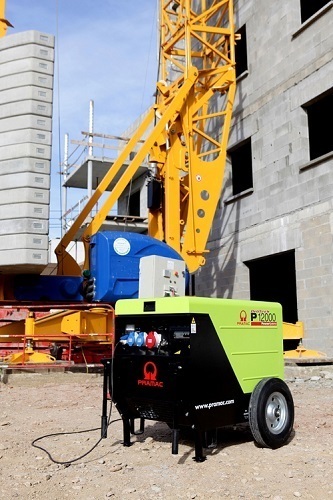

Pramac 11.9kVA Petrol Electric Start Silenced Generator, P12000 HONDA
SKU: PF103SH200B Learn More»
CALCULATE SHIPPING:
Accessories
Product Description
Pramac 11.9kVA Petrol Electric Start Silenced Generator, P12000 HONDA, 3 Year Warranty. The P12000 with a 3 Year Honda Australia Engine Warranty operates at extremely low noise levels (61dBA), making it the ideal generator for use in residential areas or outside normal working hours. Built in Europe, this unit is equipped with a genuine Honda GX630, first class components and complete instrumentation. It is popular for backup to off-grid solar systems or backup to mains power;
PRIMARY APPLICATIONS FOR THIS GENERATOR:
1) Backup to Off-Grid Solar: For backup power to off-grid solar systems, this generator requires a Pramac 2 Wire Auto Start Controller (see Accessories List above to add to your order). This controller connects between your Pramac generator and your solar system for automatic charging of your solar batteries when battery charge is low. A qualified solar installer / electrician is required to undertake the install and connection. Click on below image for a video demonstration:
ACCESSORY: 2 WIRE AUTO START CONTROLLER REQUIRED FOR SOLAR SYSTEM BACKUP
CLICK HERE for the 2 Wire Generator Bundle
2) Backup to Mains Power: For backup power to your home/building when there is a mains power blackout, this generator requires an Automatic Mains Failure (AMF) Panel (see Accessories List above to add to your order). This panel is also referred to as an 'Automatic Transfer Switch'. This AMF detects when there is a mains power failure, and signals to the generator to automatically start up to restore power to your home/building. Conversely, as soon as the AMF detects mains power returns, it stops the generator. A qualified electrician is required to undertake the install and connection.
ACCESSORY: AUTOMATIC MAINS FAILURE PANEL REQUIRED FOR MAINS POWER BACKUP
CLICK HERE for the AMF Generator Bundle
The P12000 is equipped with a control panel that allows you to integrate either of the above accessories depending on your backup power requirement. The generator comes a 36 month warranty backed by a national service network for your maintenance needs. Optional accessories also include Wheel-Handle kit and Remote Start Kit.
Specifications
SKU PF103SH200B
Brand Pramac
GTIN 8018539071240
Warranty Period: 3 Years
Product Category Portable Generators
kVA 11.9
Max Output (kW) 10.7
Continuous Output (kW) 9.1
Max Output (Watts) 10700
Continuous Output (Watts) 9100
Model P12000 1ph
Phase Single
Fuel Petrol
Fuel Tank Capacity 24 L
Starting Method Electric
Displacement 688
Oil Capacity 1.9 L
Engine Speed 3000 rpm
Engine Honda GX630 model
Fuel Consumption @75% PRP : 4.07 l/h, @100% PRP : 5.43 l/h
Frequency 50Hz
NOTE Product specifications provided by Manufacturer. This is a portable air-cooled petrol generator designed for short term/standby applications - for pri
Outlets 2 x 15A 1ph Australian Retail & 1 x 32A 1ph CEE Form outlets
Voltage 230 V
Engine Warranty 3 Year Honda Australia Engine Warranty
Product Dimensions (mm) LxWxH 990x602x826
Noise @ 7m 61
Cont. Working Time @75% PRP: 5.90 h, @100% PRP : 4.42 h
Net Weight (kg) 188
Videos
Pramac Two Wire Auto Start Control Box
Product Q&A
-
I can see that with an auto-start generator, an “AMF Panel†is required for mains power backup, and for solar back up a “2 wire auto start controller†is needed. But if I'm on solar and mains, do I need both to go with my auto-start generator?
Hi, firstly you are completely correct; to use your auto-start generator for automatic power backup, you need either:
- An AMF panel for automatic backup to mains power, or
- A Two-wire auto start controller for automatic backup to off-grid solar systems
For homes on solar and on mains power:
In this case, the solar charge is either used within the household consumption or fed back into the grid, meaning there are no storage batteries like there is for an off-grid solar system. So,if you require an auto-start generator to automatically start up to restore power to your home (which is on solar and mains power), you would need an accompanying AMF panel - an electrician would undertake the connection. When a blackout occurs, the AMF panel would signal for the generator to start and restore power to your home.For homes with an off-grid solar system:
The Two-Wire auto start controller is only for off-grid solar systems, whereby the controller is connected to generator and the solar battery system. When the batteries run low on power, the controller signals to the generator to start up and restore power to the batteries. -
What engine oil should I use with this Generator?
Hi - the generator requires standard engine oil; either 10W-30 or 10W-40.
This is available from any local service station. Many thanks
-
Can I use this generator to charge my power tool batteries?
Hi there,
Charging battery packs is fine from a conventional generator, we'd recommend having a steady load on the generator and don't connect appliances that will cause the load to jump around during charging.
Thanks.
