Projecta 12V 35A Power Management Board

Product Description

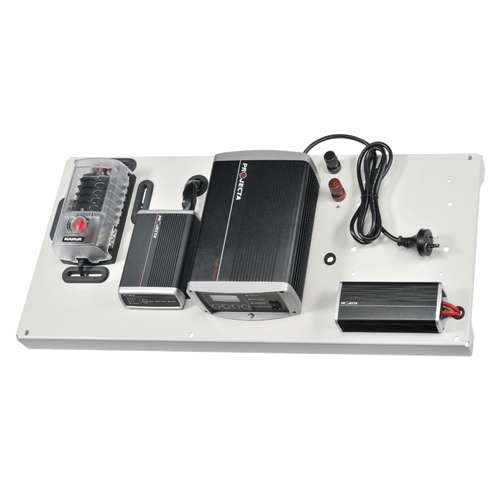

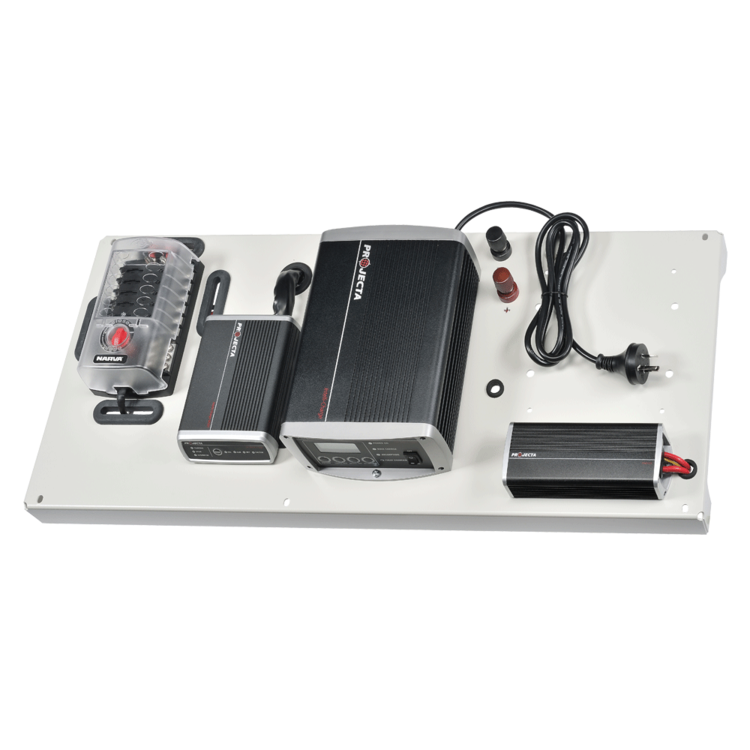

Projecta 12V 35A Power Management Board, 1 Year Warranty. Utilising the latest range of premium ‘Intelli’ power management equipment, these 35 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

Features:

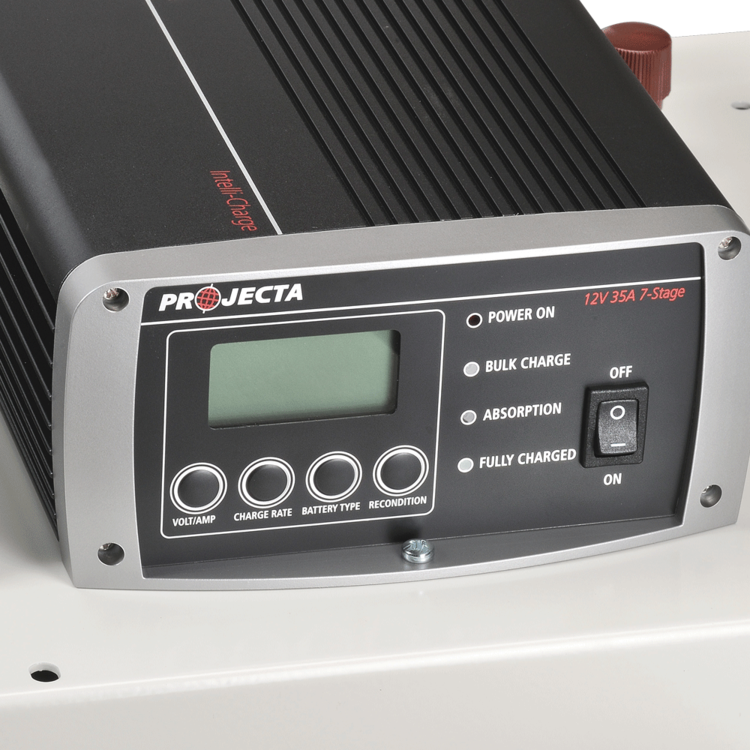

• 7 stage charger: A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type

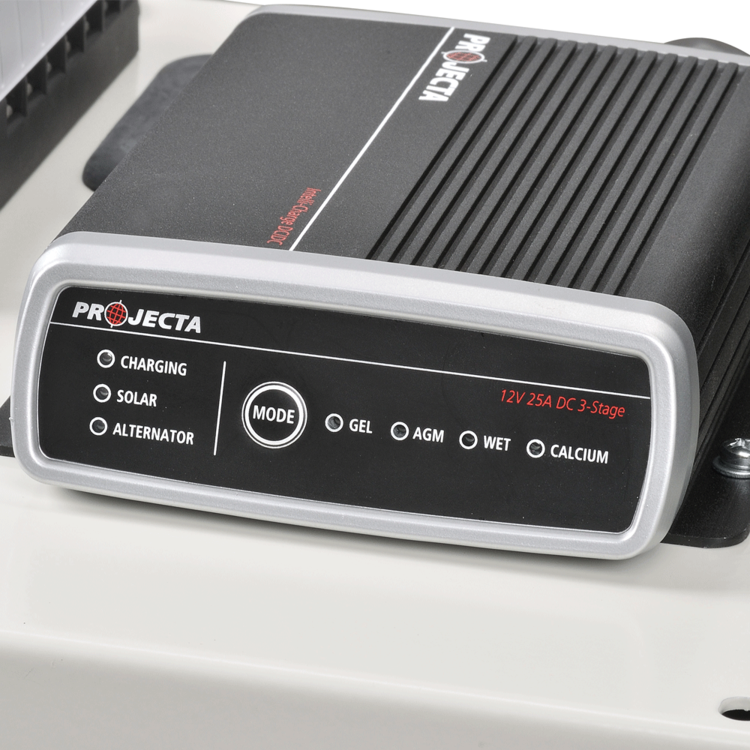

• DC/solar controller: Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge

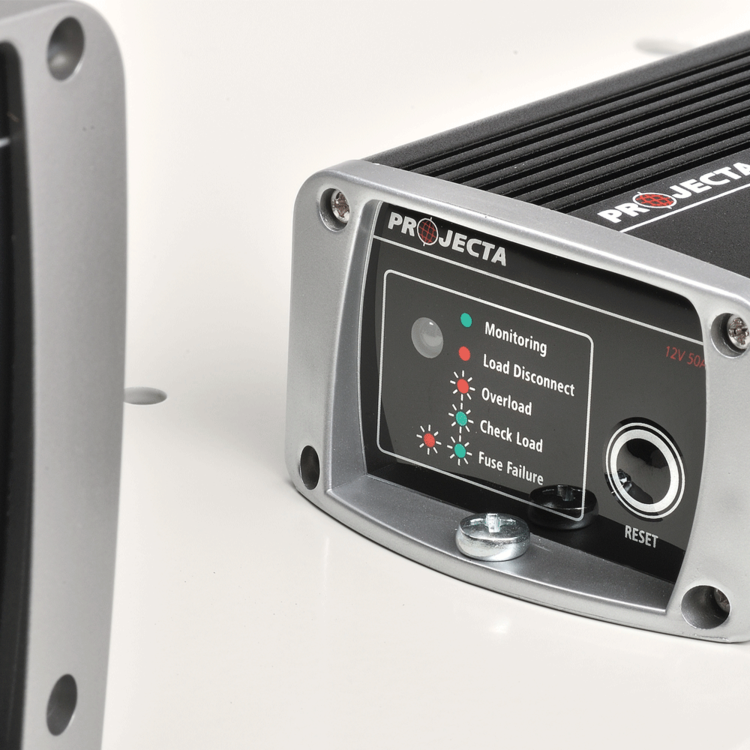

• Low voltage disconnect: A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge

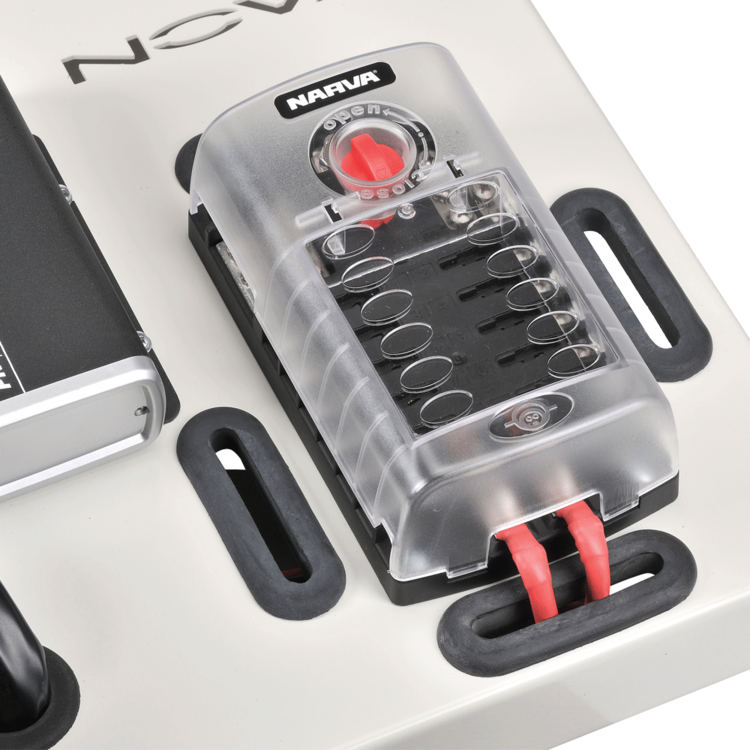

• Fuse distribution box: A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs

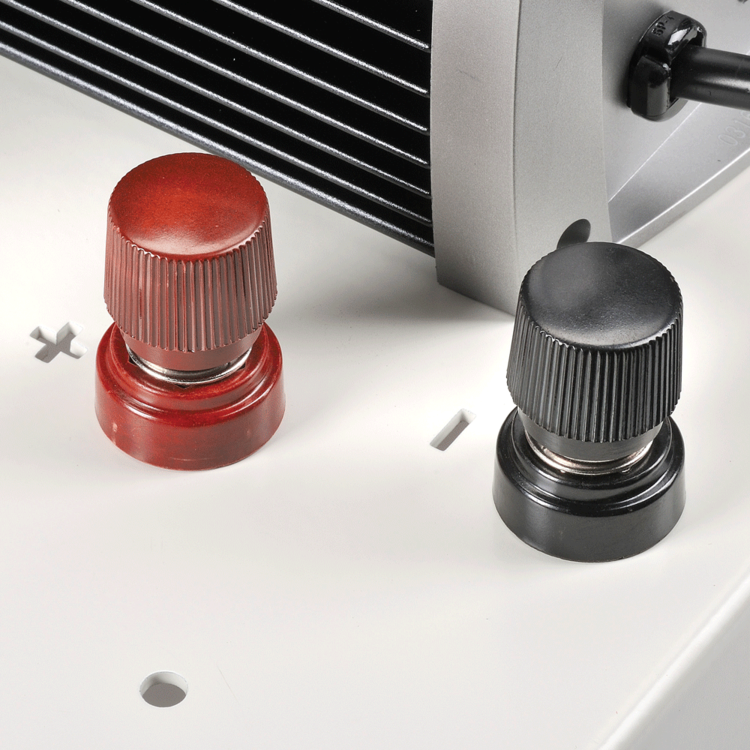

• Direct battery connection: Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries (P/No. INVPOSTS)
• Dimensions: Height: 860mm Width: 345mm Thickness 45mm

240V Charging:

• Charge Type: 7 Stage Automatic
• Input: 240VAC, 50Hz, 570W
• Output: 12V
• Output Current: 2, 8,16, 35A
• Batteries Supported: Gel, AGM, Wet & Calcium

Solar Controller:

• Charge Type: 3 Stage
• Input: 9-32Vdc
• Max Solar Input: 23Vdc, 385W
• Batteries Supported: GEL, AGM & WET
• Alternator type: Smart & Conventional

LVD CONTROL:

• Input Voltage: 10-16V
• Output Current: 50A
• Disconnect Voltage Setpoints: 10.0V, 10.5V, 11.0V, 12.0V
• Reconnect Voltage: 13.0V

Fuse Block:

• Load: 30A per circuit, 120A per block at 12V
• Circuits: 6-Way ATS Blade Fuses
