Projecta 12V Automatic 15A 7 Stage Battery Charger

SKU: IC1500 Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Projecta 12V Automatic 15A 7 Stage Battery Charger, 1 Year Warranty. The perfect charger for large batteries found in boats, camper trailers and caravans, the IC1500 is ideal for permanent fixture offering a fast and comprehensive charge when off the beaten track.

Features:

Multi-Chemistry: Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel
Adjustable Output: Adjustable for different battery sizes for precise charging
Power Supply Mode: Retains vehicle computer settings when changing a battery or can run 12V appliances
Safer Charging: Spark free and polarity protected
Shock & Dust Proof: Durable construction and safer charging with spark free and polarity protected connection

Adjustable output:

Suitable for a wide range of different size batteries, Intelli-Charge battery chargers feature an adjustable charge rate that can be set as low as 2A to deliver optimum and safe charging for all your batteries (IC700 & IC700W can be set as low as 1A).

Power supply mode:

Sets the charger to power supply mode giving a constant voltage of 13.8VDC. This mode is best used where appliances, like a fridge, are drawing power from the battery. The complete range can work without a battery connected.

Multi-chemistry:

Intelli-Charge is designed for use on all types of batteries including Gel, AGM, Wet and Calcium. This allows you to have one battery charger for all your battery charging needs.

7 Stage Automatic Charging:

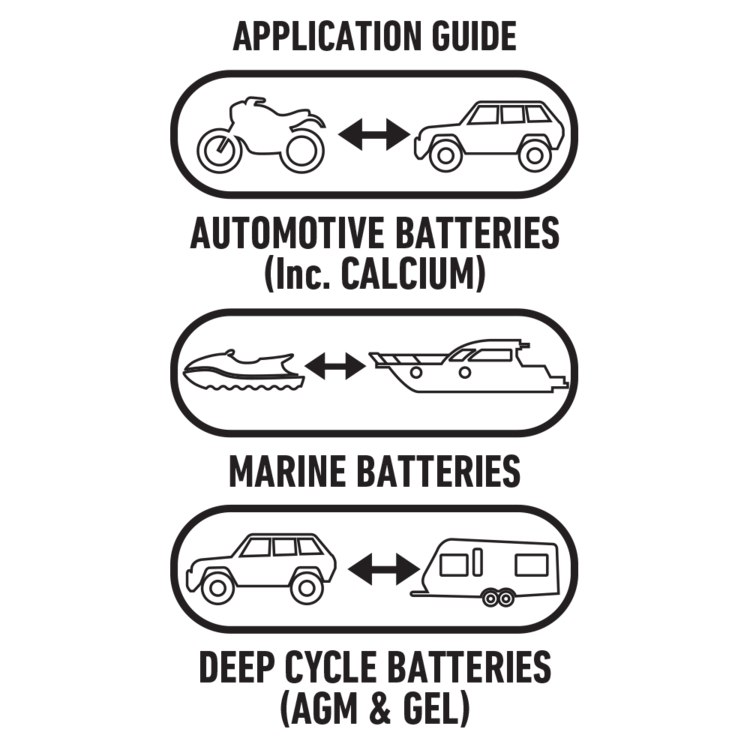

Intelli-Charge incorporates the latest technology in battery charging to deliver a charge suitable for automotive, calcium, marine and all types of deep cycle batteries including Gel and AGM.

The 7 stages of charging ensure maximum battery life and performance are delivered with a faster charging time and ensure a complete charge is achieved by testing and reconditioning the battery if needed. World leading electronics guarantee the battery receives the ultimate charge.

Intelli-Charge remote:

A sleek and modern controller that can be flush or surface mounted depending on the requirement. Supplied as standard with the 25A, 35A, 50A and 8A 24V chargers, it is equipped with a fully functional control panel and LCD screen, providing the same functions as found on
the charger itself. Its key advantage is it permits the user to control and monitor the chargers performance remotely, allowing the charger to be mounted out of sight. The remote is able to display the voltage when power is off, with the backlit screen dimming after 2 minutes.

Go to: Product Details

Go to: Videos

Specifications

SKU IC1500

Brand Projecta

GTIN 9315219015013

Warranty Period: 1 Year

Product Category Battery Chargers

Output Current Rating (Amps) 15

Product Type Battery Charger, Intelli-charge

Voltage 12V

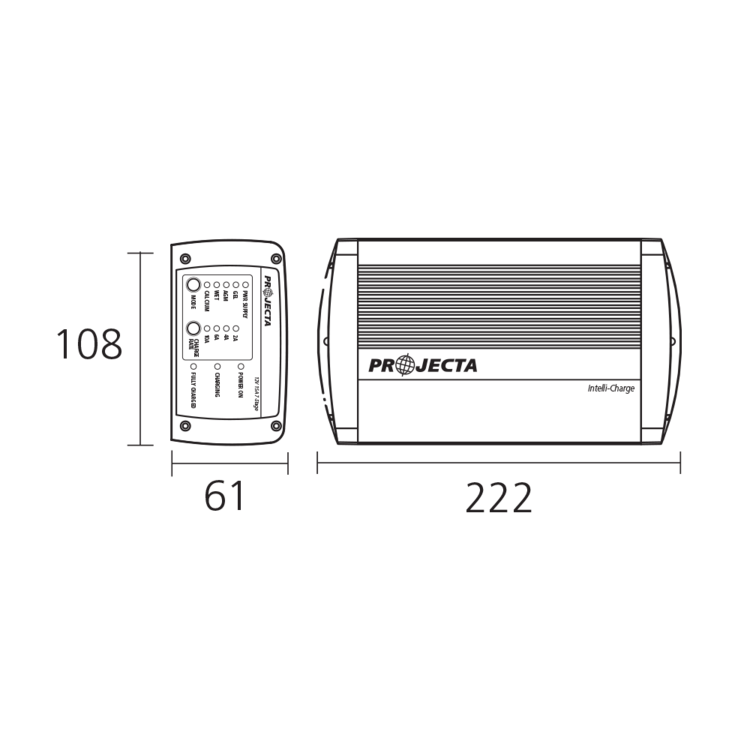

Dimensions 222 x 61 x 108 mm (L x W x H)

Output 12V

Input 240VAC, 50Hz, 240w

Output System Voltage 12V

Charger Type 7 stage

Back Current Drain 1mA

Start Voltage 2.0V

Approvals Electrical Safety, EMC

Output Current Rating 2, 4, 8, 15A

Net Weight (kg) 1.54

Charger Voltage 12V

Go to: Specifications

Go to: Q & A

Videos

Projecta - Some Things You May Not Know About Us!

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

What size battery charger do I need for my lead acid battery I have in my camper?

A good battery charger rule of thumb for charging a lead acid battery, is using a charger with output current (amps) of 10-20% of the battery total stored capacity (Ah).

So, for example if the battery is 12V 100Ah, the charger need to be minimum of 10A and maximum of 20A. Often splitting the difference at 15% (so a 12V ~15A charger) is a good option. Happy charging!
