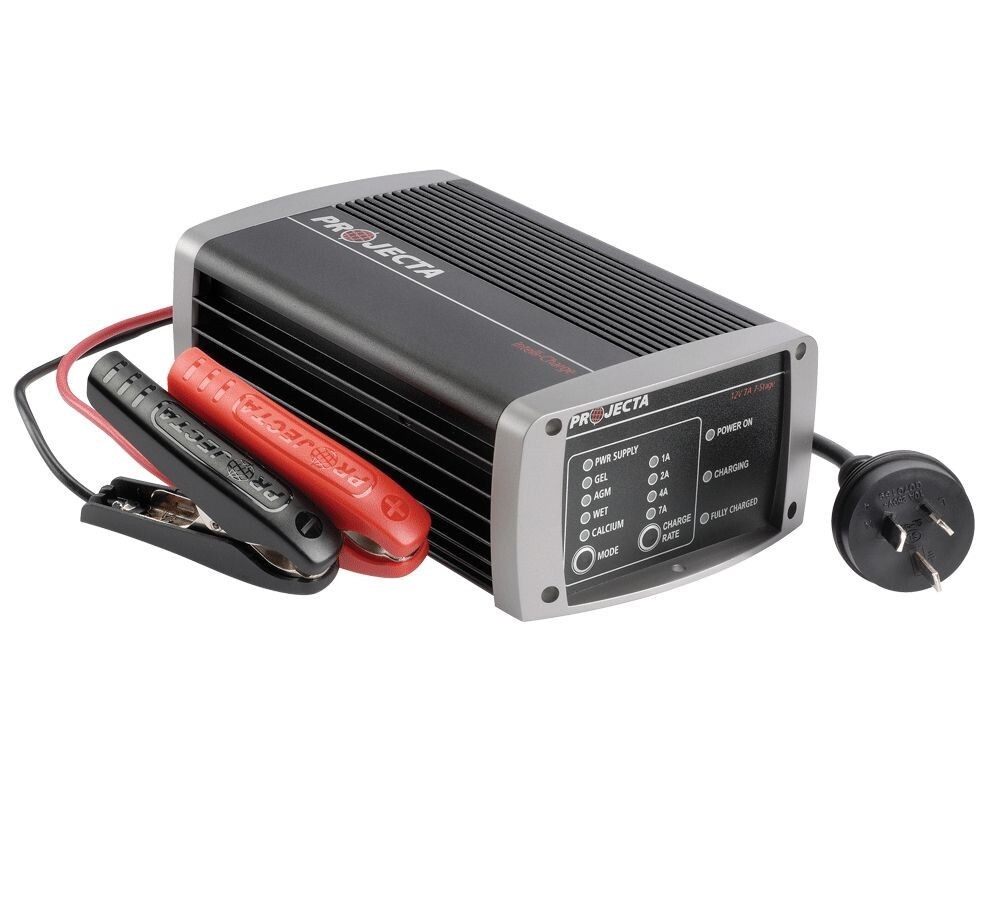

Projecta 12V Automatic 7A 7 Stage Battery Charger

SKU: IC700 Learn More»
$245
$543

CALCULATE SHIPPING:

Express Shipping Price Match Guarantee Customer Reviews

Product Description

Projecta 12V Automatic 7A 7 Stage Battery Charger, 1 Year Warranty. Delivers a high quality charge tailored to suit all battery chemistry types. Ideal for use on smaller passenger vehicles through to 4WDs.

Features:

  • Multi-Chemistry: Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel
  • Adjustable Output: Adjustable for different battery sizes for precise charging
  • Power Supply Mode: Retains vehicle computer settings when changing a battery or can run 12V appliances
  • Fused Wiring Harness: Allows permanent connection for concealed batteries
  • Shock & Dust Proof: Durable construction and safer charging with spark free and polarity protected connection
Adjustable output:

Suitable for a wide range of different size batteries, Intelli-Charge battery chargers feature an adjustable charge rate that can be set as low as 2A to deliver optimum and safe charging for all your batteries (IC700 & IC700W can be set as low as 1A).

Power supply mode:

Sets the charger to power supply mode giving a constant voltage of 13.8VDC. This mode is best used where appliances, like a fridge, are drawing power from the battery. The complete range can work without a battery connected.

Multi-chemistry:

Intelli-Charge is designed for use on all types of batteries including Gel, AGM, Wet and Calcium. This allows you to have one battery charger for all your battery charging needs.

7 Stage Automatic Charging:

Intelli-Charge incorporates the latest technology in battery charging to deliver a charge suitable for automotive, calcium, marine and all types of deep cycle batteries including Gel and AGM.

The 7 stages of charging ensure maximum battery life and performance are delivered with a faster charging time and ensure a complete charge is achieved by testing and reconditioning the battery if needed. World leading electronics guarantee the battery receives the ultimate charge.

Intelli-Charge remote:

A sleek and modern controller that can be flush or surface mounted depending on the requirement. Supplied as standard with the 25A, 35A, 50A and 8A 24V chargers, it is equipped with a fully functional control panel and LCD screen, providing the same functions as found on
the charger itself. Its key advantage is it permits the user to control and monitor the chargers performance remotely, allowing the charger to be mounted out of sight. The remote is able to display the voltage when power is off, with the backlit screen dimming after 2 minutes.



Projecta Product Manual

Specifications

SKU IC700

Brand Projecta

GTIN 9315219070005

Warranty Period: 1 Year

Product Category Battery Chargers

Output Current Rating (Amps) 7

Product Type Battery Charger, Intelli-charge

Voltage 12V

Dimensions 182 x 61 x 108 mm (L x W x H)

Output 12V

Input 240VAC, 50Hz, 110W

Output System Voltage 12V

Charger Type 7 stage

Back Current Drain 1mA

Start Voltage 2.0V

Approvals Electrical Safety, EMC

Output Current Rating 1, 2, 4, 7A

Net Weight (kg) 1.02

Charger Voltage 12V


Videos

Projecta - Some Things You May Not Know About Us!



Product Q&A

Ask Us a Question
  • What size battery charger do I need for my lead acid battery I have in my camper?

    A good battery charger rule of thumb for charging a lead acid battery, is using a charger with output current (amps) of 10-20% of the battery total stored capacity (Ah).

    So, for example if the battery is 12V 100Ah, the charger need to be minimum of 10A and maximum of 20A.  Often splitting the difference at 15% (so a 12V ~15A charger) is a good option. Happy charging!
