Projecta 25A Intelli-Charge DC-DC Charger with IQ Screen

SKU: IDC25XIQ Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

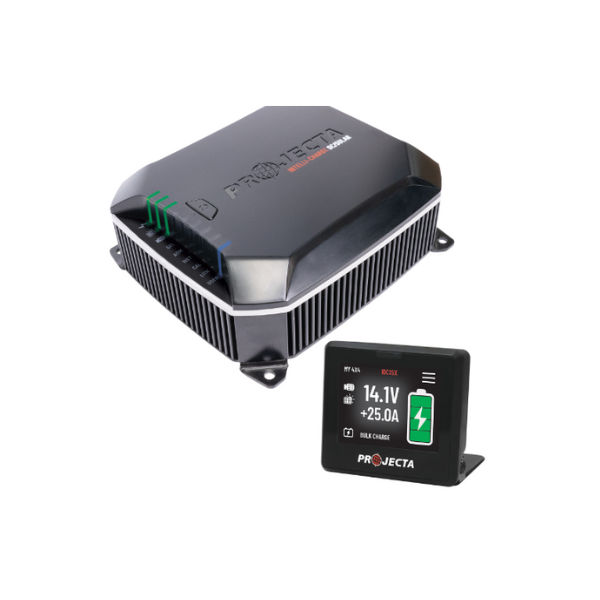

Projecta 25A Intelli-Charge DC-DC Charger with IQ Screen, 5 Year Warranty. IDC25XIQ is now available, containing an IDC25X with an IQD2 Intelli-IQ Smart Display. It's perfect for 4WD and camper trailers. Charge from solar and alternator inputs simultaneously, with market-leading temperature compensation for any climate. Control and monitor remotely via smartphone or Intelli-IQ interface, with easy setup and firmware upgrades for future-proof performance. Experience the ultimate in power management for your adventures with IDC25XIQ.

Features:

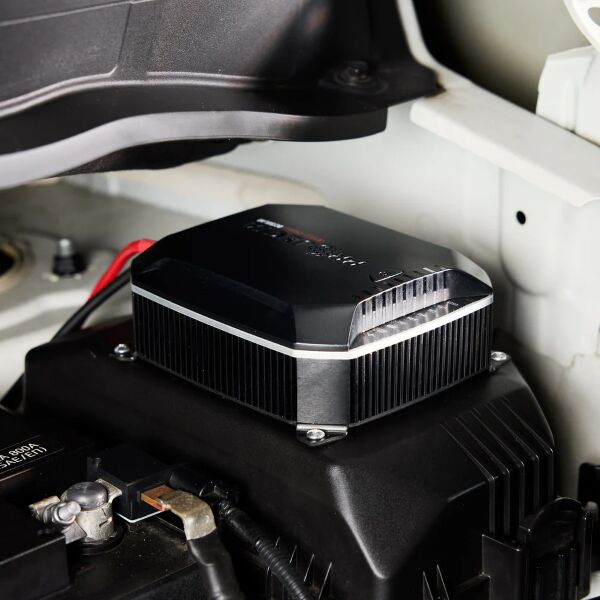

WORKS HARDER IN TOUGHER CONDITIONS. This super-efficient design is engineered to perform reliably in hot conditions, with a maximum charging capacity of 75°C. It operates up to 90°C, ideal for under-the-bonnet use. It offers the highest level of protection against dust, water, and pressure washing (IP68 & IP69K). Fully potted with thermal epoxy resin, it ensures durability and resistance..
WILL NOT LET YOU DOWN IN REMOTE LOCATIONS. Proudly designed and tested in Australia, this product offers high quality and reliability. It utilizes top-notch electronic components for an extended lifespan. Its ultra-efficient power conversion maximizes battery charging while reducing strain on the charger, ensuring longevity. Engineered to meet heavy vehicle standards, it is resistant to vibration and shock. Backed by a 5-year warranty, it provides peace of mind.
PROVIDES THE BEST POSSIBLE CARE FOR YOUR BATTERY. Utilizes 3 and 5 stage charging for fast and effective charging. It adjusts the charge with automatic temperature compensation, optimizes performance in different climates. Voltage drop compensation ensures accurate charge voltage. It supports simultaneous charging with solar and alternator inputs. The charger employs efficient MPPT solar charging for optimal performance, even in shaded areas. It also includes a convenient lithium wake-up mode for one-button charging activation, even if the battery's BMS is off.

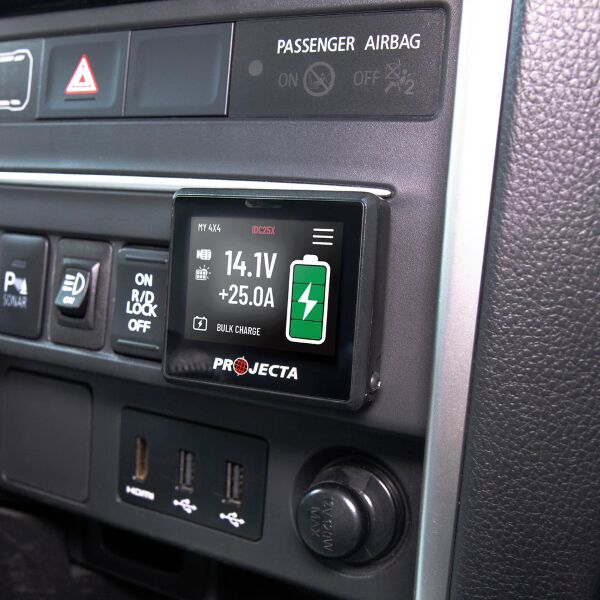

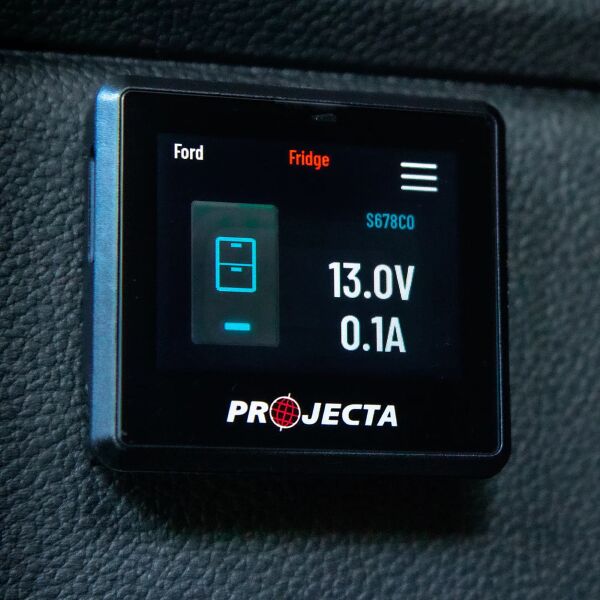

MOST CONNECTED DC/DC CHARGER. The Projecta Intelli-IQ is a compatible companion for this product. It enables users to conveniently set up, monitor, and control the device remotely. Accessible through a smartphone or the Intelli-IQ interface, it offers a user-friendly experience. The setup process is made simple with single wire connectivity. Additionally, the app provides the option for firmware upgrades, ensuring the device stays up-to-date with the latest features and improvements.

Go to: Product Details

Go to: Reviews

Specifications

SKU IDC25XIQ

Brand Projecta

GTIN 9315219005908

Warranty Period: 5 Years

Output Current Rating (Amps) 25

Charger Voltage 12/24V

Low Voltage Mode Turn off <11.9Vdc (12Vdc), <23.8Vdc (24Vdc)

Low Voltage Mode Turn on 12.2-16.5Vdc (12Vdc), 24.4-32.0Vdc (24Vdc)

VSR Mode Turn off <12.8Vdc (12Vdc), <25.6Vdc (24Vdc)

VSR Mode Turn on 13.4-16.5Vdc (12Vdc), 26.8-32.0Vdc (24Vdc)

Solar Controller Type MPPT

Max Solar Input Voltage 32Vdc

Product Cateogry Battery Chargers

Height 42mm

Battery Types AGM, Gel, Calcium or Wet, LiFePO4

Depth 122mm

Output Current INPUT:9-11Vdc 20A INPUT:11-32Vdc 25A

Charger Type 5 Stage (Battery Charger)

Standby Current 8mA

Input Voltage 9-32Vdc

Operating temperature range -10°C to +90°C

Weight (kg) 1.18

Length 149mm

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

I Want to Install This Under my Bonnet in my 4WD, Will it be Okay in Water Crossings?

The IDC25X is IP69K rated and can be submerged up to 1m depth.
Can you charge from solar and alternator at the same time?

The IDC25X will allow for solar input and alternator input at the same time. However it will prioritise the solar, with the alternator assisting to boost to 25a when required.
How many solar panels can I connect?

The IDC25X can have an arry of up 360W and a maximum of 32VDC
Is The IDCX Waterproof?

The IDCX was designed and engineered to the stringent ingress protection rating of IP68 & IP69K. This allows the IDCX to meet the toughest of challenges whether that be river crossings, engine bay washing or direct high pressure washing of the unit.
Is The IDCX Safe to Use With Modern ‘Electronic’ Vehicles?

The IDCX has been designed to work with all vehicles, including new vehicles with EFI and computer management systems. The charger utilises sophisticated electronics that ensures complete safety for you and your vehicle.
Why is LED Flashing Amber Although My Battery is Connected?

While IDCX is in the process of recognizing (about 2minutes) the battery, LED is in amber state. It is also in the same color if battery is not present or battery voltage is very low. To regain charging a battery that is very deeply depleted, press and hold the IDCX button for about 10 seconds
Why do the Positive Cables from the Batteries need to be Fused?

High-Capacity batteries can produce large amounts of power and are capable of melting cable insulation and catching fire in the case of a short circuit. Each positive (+) cable connected to the battery must be protected by a fuse located in close proximity to the battery.
How Do I Know if the Battery is Charged?

Refer to diagram “LED BATTERY CHARGE STATUS INDICATORS” on page 13 to identify when the IDCX is indicating battery charging is complete.
Why is Battery not Getting Charged Though Solar Input Voltage is Within Range?

Solar input voltage is not an indicator of the Solar panel capability. Weather may be cloudy or solar panel is under the shade and the input current is not enough to commence charging
Why Does the IDCX Indicate the Battery is Fully Charged Straight Away?

There are three possible reasons why the IDCX indicated the battery is fully charged. 1. The battery is fully charged. 2. The battery has taken a surface charge. 3. The battery has a faulty cell.
What is a “Surface Charge”?

Batteries unused or left discharged for some time build up a resistance to being recharged. When the charger is first connected, these batteries will take a surface charge, and the IDCX LED’s will indicate the auxiliary battery is fully charged within a short period of time. The battery however is not fully charged. The charger is voltage sensitive and cannot differentiate between a surface charge and a fully charged battery. After a few hours, the battery may start to accept some charge but most batteries with this condition may not recover.
What is a “Faulty Cell”?

12 Volt batteries contain 6 cells, and one faulty cell is enough to ruin your battery. If after twelve hours of charging your battery is still accepting charge, you should test the cells using a hydrometer. If one reading is lower than the rest, it indicates a faulty cell. It is pointless to continue charging; the battery needs replacing.
