Projecta PH125 12V Portable Power-Hub & IDC25 Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger Pack

SKU: PH125-IDC25 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Projecta PH125 12V Portable Power-Hub & IDC25 Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger Pack, 1 Year Warranty.

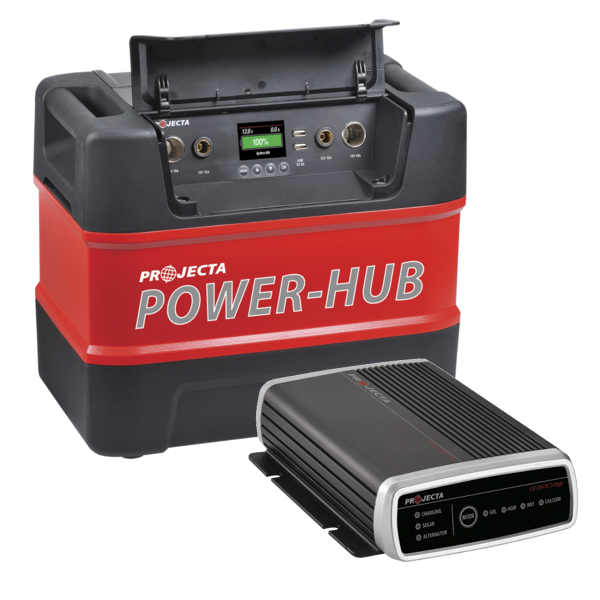

Included in bundle:

Projecta 12V Portable Power-Hub, PH125
Projecta Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger, IDC25

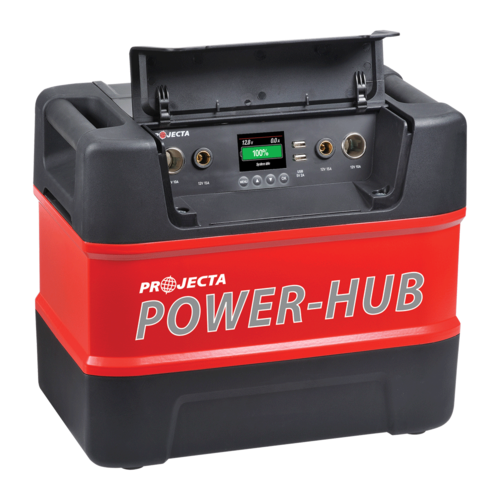

Projecta 12V Portable Power-Hub

Power-Hub turns your battery into a versatile user friendly option for powering and charging a wide range of accessories and appliances while you are ‘off the grid’. It is the ideal alternative to a conventional dual battery system, giving you the freedom to take power away from your vehicle.

Projecta’s PH125 Portable Power-Hub is designed to make power available anywhere at any time. Power-Hub turns your 12 volt battery into a convenient, versatile and user friendly device allowing you to venture further off the beaten track than ever before while still having power available to charge and run all your devices and appliances.

With a staggering 10 power outlets, the Power-Hub allows you total freedom to charge or power multiple devices simultaneously. Power outlets include a 240V AC socket providing clean ‘Pure Sine Wave’ power, USB, Cigarette Lighter, Engel, 50A Heavy Duty and Merit sockets as well as DC Terminals.

The Power-Hub is an ideal alternative to a conventional dual battery system with the added bonus of allowing you to take power away from your vehicle and its versatility makes it ideal for a wide range of applications including camping, caravanning, on the work site, in the backyard or on 4WD expeditions.

The Power-Hub is ergonomically designed for outdoor applications with gutters moulded into the top housing to allow water to drain away from vital electrics, weatherproof covers to shield the plugs and sockets with a slot allowing the cords to remain plugged in while the cover is closed. Soft touch over-moulded handles provide maximum grip comfort and double as tie down points to secure it from moving around your vehicle.

10 Power Outlets:

2 x 15A Merit Sockets
2 x 2A USB Sockets
2 x 10A Cigarette Lighter Sockets
1 x 10A Engel Type Socket
1 x 50A Heavy Duty Socket
1 x 240V AC Outlet
1 x DC Terminals

Features:

Smart Battery Gauge: 2.4” colour LCD monitor utilises patented ‘self-learning’ technology to provide comprehensive battery status information
300W Inverter: 300 Watt pure sine wave inverter for powering sensitive electrical equipment

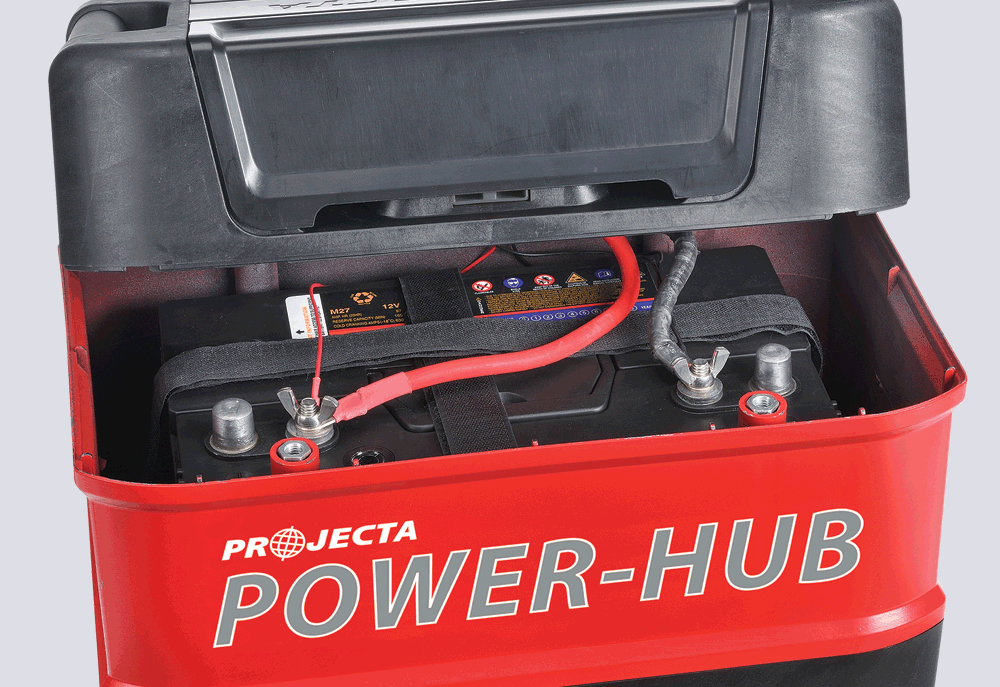

Easy Battery Fitment: Compatible with a wide range of battery sizes and chemistry types. Simply fit your chosen battery and you’re good to go

Ideal for:

Camping and caravanning
4WD and Leisure
On the worksite

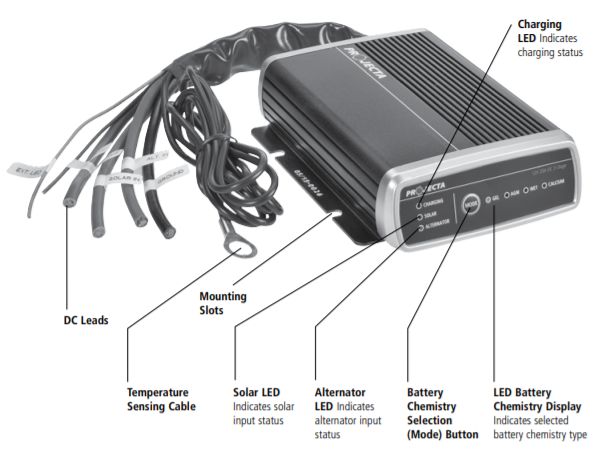

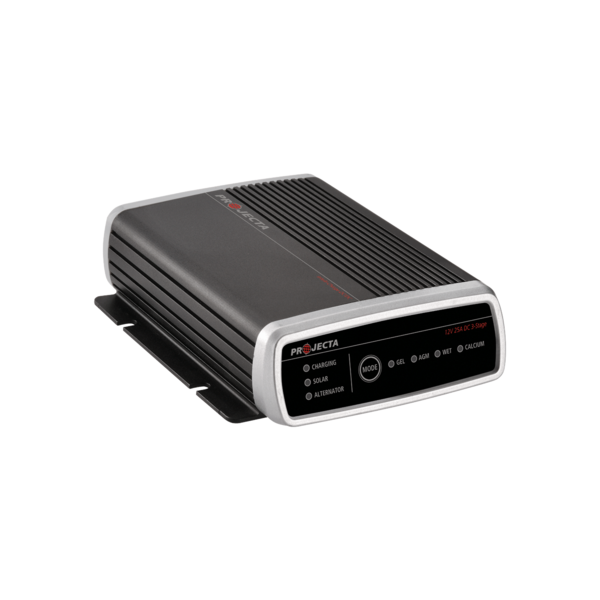

Projecta Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger

A truly sophisticated dual battery management system ideal for 4WD and camper trailer applications. Provides an advanced 3 stage charge simultaneously from both solar and alternator inputs.

New from Projecta, the Intelli-Charge IDC25 is the toughest and most advanced dual battery management system available on the market today. Allowing you to charge your 12V second/auxiliary deep cycle battery on the go, the IDC25 is shock, vibration and dust proof. The unit is also water resistant, making it suitable for both in-vehicle and under-bonnet installation.

Able to charge simultaneously from both solar and alternator (9–32V) inputs, IDC25 can also function as an MPPT solar controller and features dual charging modes for compatibility with both smart and conventional alternators. Loaded with a host of safeguard features, the easy to install unit includes over/under voltage, anti-sparking, reverse connection and over temperature protection systems to ensure peace of mind.

The IDC25 sets a new benchmark for DC-DC battery management.

Features:

Engine bay installation: Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C.
Dual charging modes: Engineered to work with both smart and conventional alternators.
Multi-chemistry: Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel.
Dual input operation: Simultaneous dual battery charging from both solar and alternator inputs.
Total safeguard protection: Over temperature, reverse connection, over/under and spark free protection.
Dual Input Operation: Simultanous dual battery charging from both solar and alternator inputs, no manual switching required.
Dust, Splash & Shock Proof: Sealed to IP67, IDC25 will resist dust, water and shock damage, making it ideal for under bonnet installation.
80 Degrees Celsius: IDC25 can safely operate (at a reduced charge rate) in extreme temperatures up to 80° C, as found in engine bays in hotter climates.
Temperature Compensation: IDC25 will continually adjust its charge rate to suit the battery temperature, protecting it from overcharge and overheating.
Push Button Chemistry: Adjust battery chemistry at the touch of a button for optimum charging.

Dual input operation:

Simultaneous dual battery charging from both solar and alternator inputs (9–32V) with no manual switching required. The unit prioritises solar charging as its default and automatically adjusts to the alternator if sunlight is insufficient, reducing the power usage placed on the vehicle’s electrical system.

Dual charging modes:

Engineered to work with both smart and conventional alternators. The introduction of smart alternators has resulted in many conventional dual battery systems being ineffective. The advanced switch-mode technology of the IDC range enables greater efficiency, exceeding 94% at typical full load conditions, converting your vehicles alternator power to a more complete charge.

25A solar MPPT:

Using sophisticated Maximum Power Point Tracking (MPPT) solar regulator technology, the IDC range of chargers operate as advanced solar controllers, maximising the power generated from the panels to provide a comprehensive and total charge to your auxiliary battery.

Multi-chemistry charging:

The IDC range of chargers suit todays different battery technologies, including everyday automotive batteries and the newer Lithium battery technology. For automotive batteries, multi-chemistry technology enables the user to tailor the charging profile to suit the battery type: Gel, AGM, Wet and Calcium batteries.

Multi-stage charging:

Utilising sophisticated electronics, the IDC range of DC/SOLAR chargers provide an advanced multi-stage charging process to produce a safe and comprehensive charge, a must for deep cycle and lithium batteries.

Go to: Product Details

Go to: Videos

Specifications

SKU PH125-IDC25

Brand Projecta

Warranty Period: 1 Year

Product Category Battery Boxes

Output Current Rating (Amps) 25

Temperature range -10°C to +80°C (Battery Charger)

Charger Type 3 Stage (Battery Charger)

Suitable For Batteries up to N70

Ideal Battery Type Century: N70T, C12-105DA, C12-120DA | Exide: LCS31-110, LCG27-110, LCG31-120 | Full River: DC105-12, DC120-12 | Ritar: RA12-100SD, RA12-120SD | Ultima

Recommended Battery Capacity 100-123Ah

Number Of Battery Outlets 2 x 15A Merit, 2 x 2A USB, 1 x 10A Engel, 1 x DC Terminal, 1 x 50A Heavy-Duty, 2 x 10A Cigarette Lighter Sockets, 1 x 240V AC Outlet with on/off switc

Back Current Drain 9.5-10.5mA (on AUX Battery) (Battery Charger)

NOTE Supported: Gel, AGM, Wet & Calcium

Charging Control Gel: 14.1V | AGM: 14.4V | WET: 14.7V | Calcium: 15.4V (Battery Charger)

Quality Features Glass Reinforced Plastic

Maximum Solar Watt Input 23Vdc, 385W (Battery Charger)

Output System Voltage 9-32V (Battery Charger)

LCD Display Yes, 2.4"

Battery Capacity 75-300Ah (Battery Charger)

Input Voltage 9-32VDC (Battery Charger)

Dimensions External: 390 x 235 x 337 | Battery Compartment: 338 x 177 x 230 (Portable Power-Hub) | 149 x 122 x 42 mm (L x W x H) (Battery Charger)
