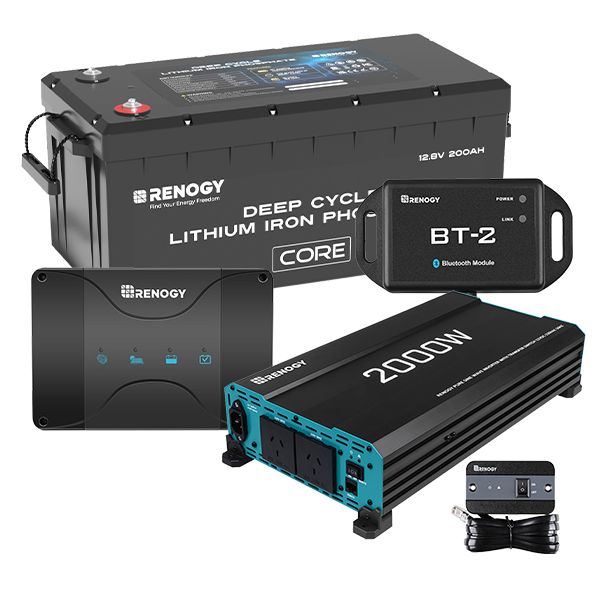

Renogy 200Ah Lithium Battery, 50A DC-DC Charger, 2000W Inverter & Bluetooth Module
SKU: RBT12200LFP-INVT-50DC Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Renogy 200Ah Lithium Battery, Charger and Inverter Bundle, Warranty Varies Depending On Component.
Included in bundle:
- Renogy 12/24/48V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery - RBT12200LFP
- Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT - RBC50D1S
- Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port - RCM-BT2
Optional Power Inverters:
- Renogy 2000W 12V to 230V/240V Pure Sine Wave Inverter (with UPS Function) - R-INVT-PUH1-201235
- Renogy 3000W 12V to 230V/240V Pure Sine Wave Inverter (with UPS Function) - R-INVT-PUH1-301235
Note: This bundle includes 1 x Renogy Bluetooth Module (BT-2). You can connect this to the Renogy DCDC charger for monitoring via The Renogy DC Home App, One core or Renogy M1.

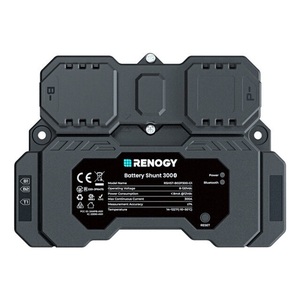

The Renogy Core batteries do not come with Bluetooth. To monitor these via the Renogy app/ One Core or M1 you would need to purchase and connect the Renogy Battery Shunt 300 and connect to it via bluetooth.
To effectively manage your power system with a Renogy 200Ah Lithium battery, a 50A DC2DC charger, 200W / 3000W Pure Sine Wave Inverter, and a Bluetooth Module, it's important to know how these components interact in your energy setup.

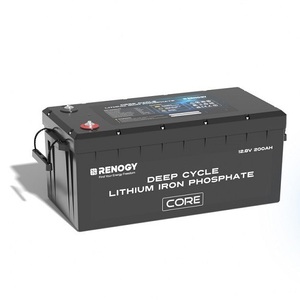

- 200Ah Lithium Battery: Meet Renogy 12V 200Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues. With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor. Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles. Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

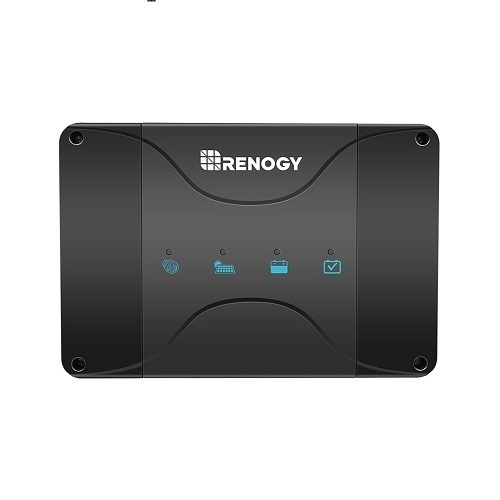

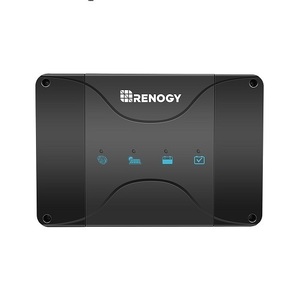

- 50A DC2DC Charger: Renogy's DC to DC MPPT onboard Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real-time.

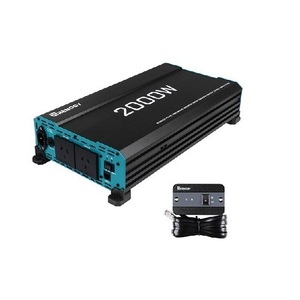

- 200W / 3000W Pure Sine Wave Inverter: The perfect addition to any off-grid system, whether for a van or a cabin, the Renogy 2000W or 3000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 2000W or 3000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to power everyday electronics and this one includes multiple protections to help things run smoothly and safely. The AC priority switch function enables the inverter automatically switch from the battery (DC) to the mains (AC) and vice-vercer whenever the utility company takes/loses power!

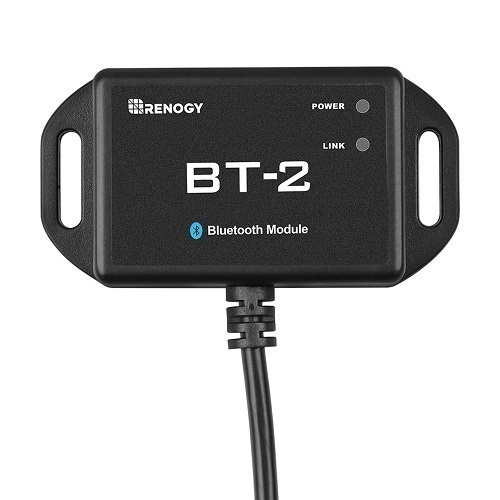

- BT-2 Bluetooth Module: The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App. The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet. Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).
Battery Information:
.png)
50A DC2DC Charger Information:
Pure Sine Wave Inverter Information:
Bluetooth Module Infomation:
Specifications
SKU RBT12200LFP-INVT-50DC
Brand Renogy
Warranty Period: Varies depending on component
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 200
Battery Length (mm) 522
Battery Width (mm) 240
Battery Height (mm) 219
Battery Weight (kg) 21.4
DC Charger Output Current Rating (Amps) 50
Voltage Range 10V-14.8V
Operating temperature range 0°C to 55°C (charge) | -20°C to 60°C (discharge)
Max. Continuous Discharge 200A
Storage Temperature -25°C to 65°C
Life Cycle @ 80% DoD (Cycle) 5000 Cycles
Maximum Continuous Charge Current 100A
Videos
Introducing Renogy 12V 100Ah/200Ah Core LiFePO4 Battery
Renogy 12V 50A DC-DC On-Board Battery Charger with MPPT
The Upgraded DC-DC On-Board Battery Charger with MPPT - Coming Soon!
BT-1 & BT-2 Bluetooth Module | DC HOME APP
Renogy BT2 Bluetooth module & RVRE Monitor screen & DC-HOME APP
Product Q&A
-
Would this bundle be sufficient for my caravan?
This will be a good starting point, offering a Battery, DC-DC charger with Solar and an Inverter. However to ensure this battery is large enough, you will need to get an understanding of what appliances you want to run and how much they draw per day. From there you can work out what size battery/batteries you require and how much charge you will need to replenish the battery each day.
-
If I am wanting more battery capacity, can I increase the amps?
With this Renogy Battery you can extend your overal amps by paralleling batteries. The Renogy batteries allow you to run 8 batteries in parallel.
-
Can this battery connect to my phone?
No, the battery doesn't have Bluetooth. However you can connect the Renogy Bluetooth Mdule BT-2 via the RS485 port on the DC-DC charger to monitor your system.
-
Will this DC-DC charger work with smart alternators?
Yes, the Renogy DC-DC range work with both standard and newer smart alternators. You will need a connection to your ignition. The charger will include a IGN Signal Wire for ignition connection.
-
What information does the Bluetooth module tell me?
Effectively manage real-time operational data for solar power generation, energy storage and inverter.
-
Can I hook up solar panels to this kit?
Yes! The DC-DC charger has an inbuilt MPPT regulator for solar. You will have to keep the panels within 660w and 25 VOC.
-
How long will the battery in this bundle last?
This battery is capable of delivering 5000 cycles at the recommended 80% discharge.
