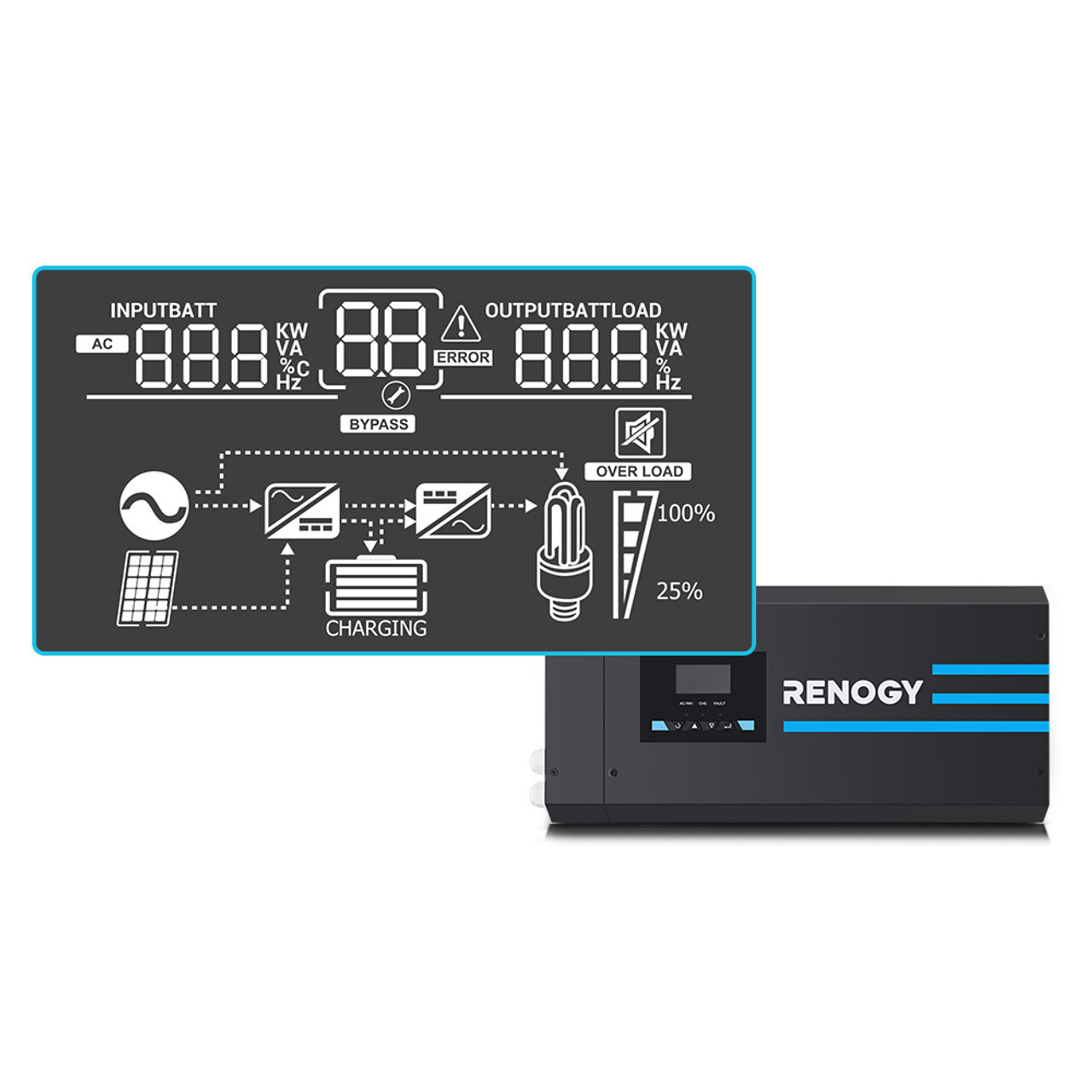

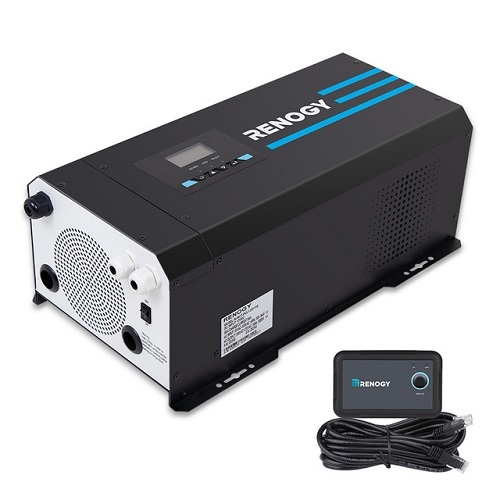

Renogy 3000W 12V Pure Sine Wave Inverter Charger with LCD

Specifications

SKU R-INVT-PCL1-30123S

Brand Renogy

GTIN 00810009711834

Warranty Period: 1 Year

Product Category Power Inverter Chargers

Wattage (W) 3000

Surge Power 9000W

Voltage 12V

Transfer Rating 30A

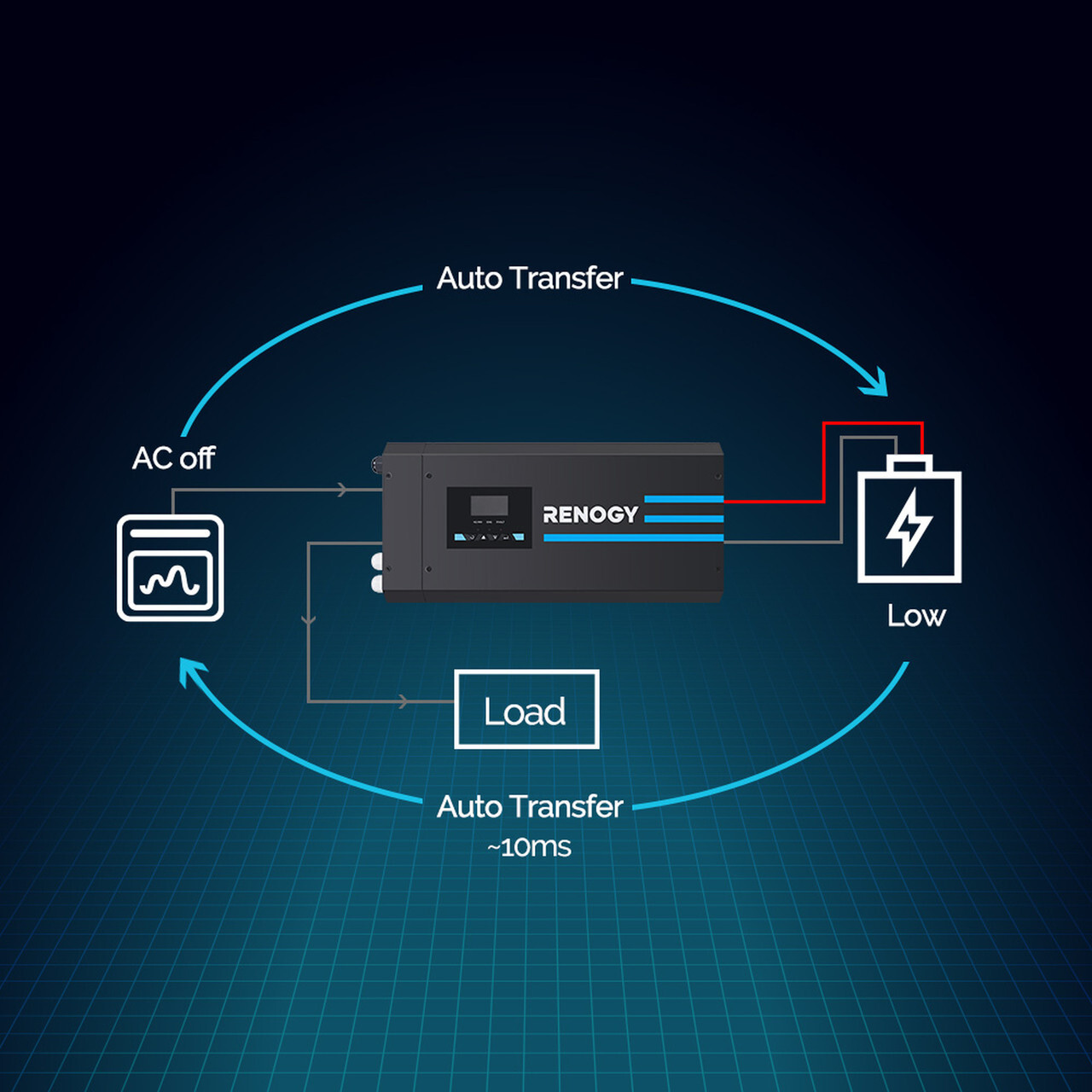

Transfer Time ~ 10ms

Input Frenquency Range 40Hz - 70Hz

Nominal Input Voltage 230 VAC

Optimal Efficiency >85%

Nominal Efficiency > 90% Peak

Output Frequency 50/60 Hz

Nominal Output Voltage 230VAC (200~240VAC, 10V interval)

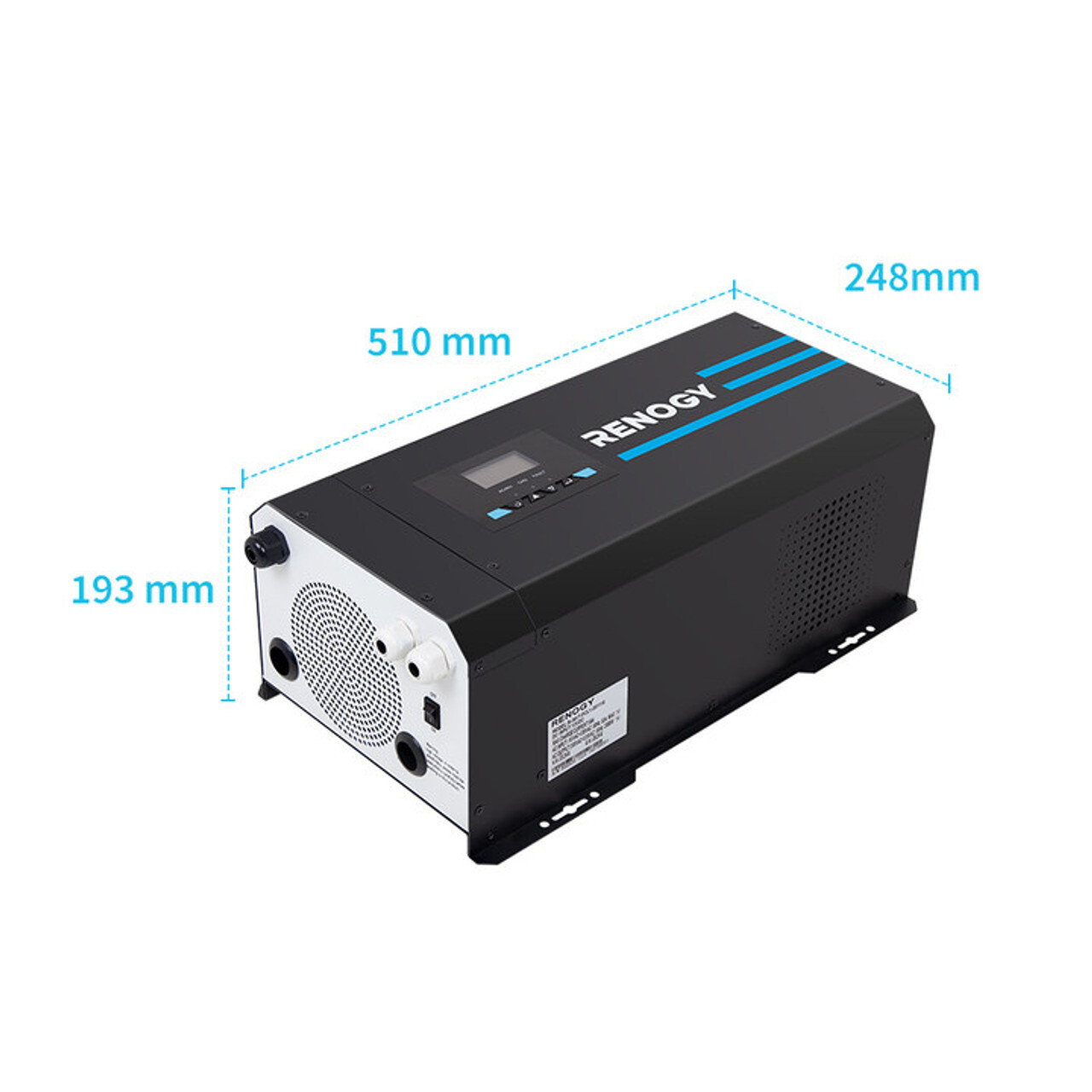

Dimensions 510 x 285 x 193 mm

Output Current 5-75A; configurable, 5A intervals

Input voltage range 10~16 VDC

Rated Power Output 3000W

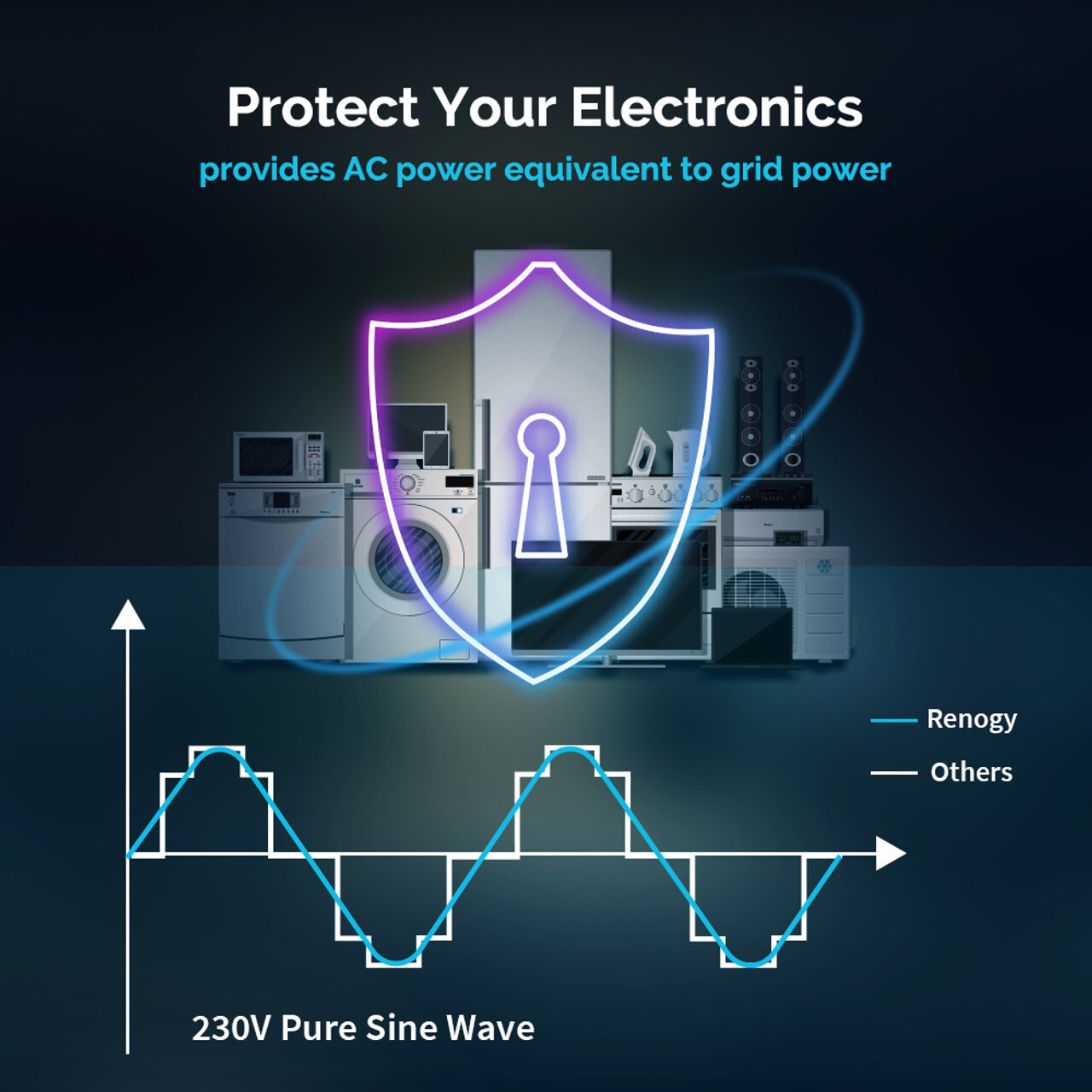

Output Waveform Pure Sine Wave

No load power consumption Normal: <30W; Power Saving: <15W

Operating temperature range 0 - 40°C

Weight (kg) 28.8

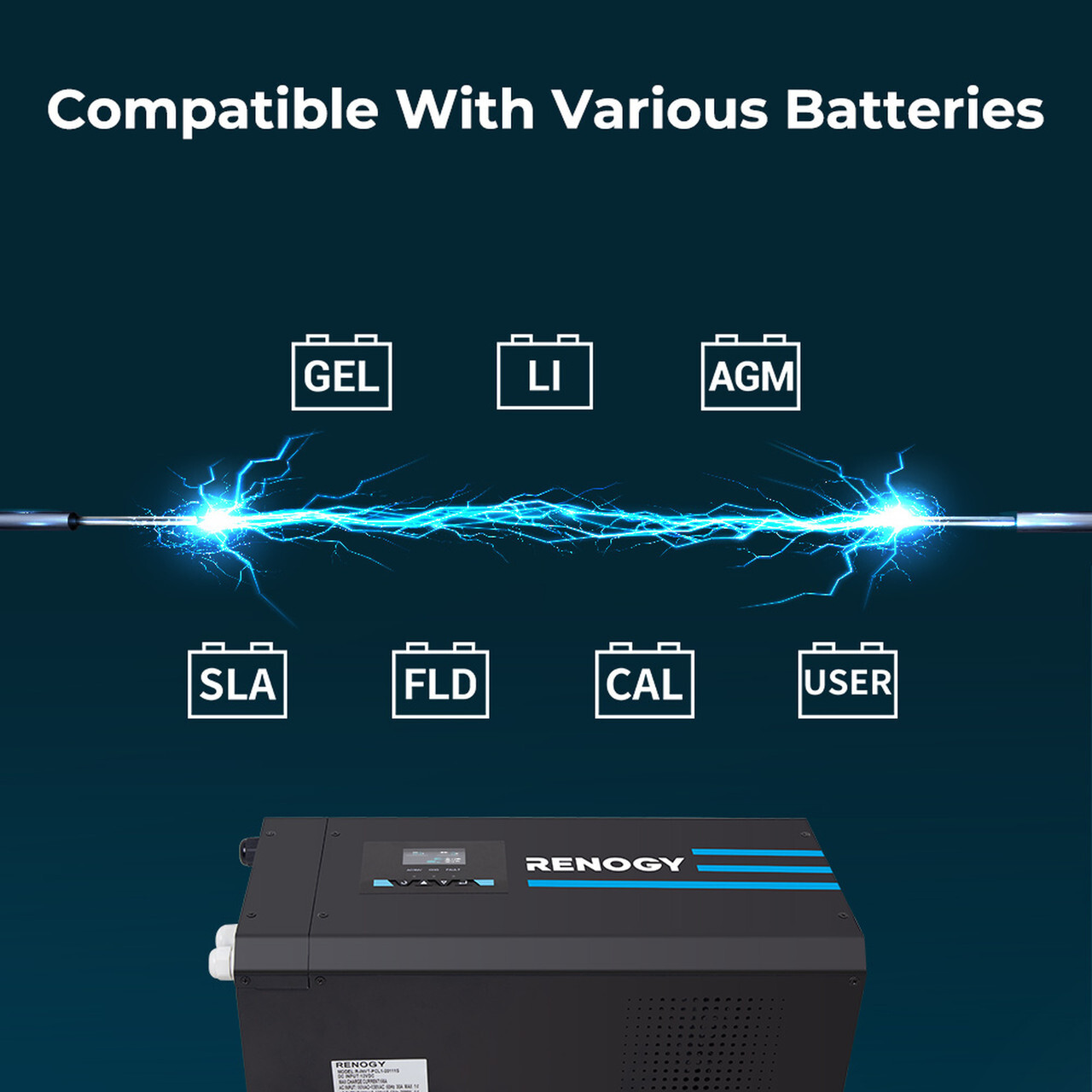

Battery Types GEL, AGM, SLA, FLD, CAL, LI, USER

Videos

Troubleshooting Renogy 12V Pure Sine Wave Inverter Charger

Renogy 2KW & 3KW 12V Pure Sine Wave Inverter Charger w/ LCD Display

Product Q&A

• What's the difference between an inverter charger and an inverter?

  An Inverter Charger not only converts DC battery power to AC power but also functions as a battery charger when connected to shore power (240v) .

• Can I operate the inverter with a 24V system?

  No, this inverter is designed for a 12V battery system only.

• Can I utilize this 12V inverter to charge my batteries?

  No, inverter is meant solely for converting DC power to AC power. To charge your battery, you would need to consider a Inverter Charger.

• What size inverter should I purchase?

  1. Check your appliances: Identify the wattage rating of each appliance you plan to power. For example, a standard kettle might be 1500W.

  2. Calculate total wattage: If you intend to run multiple 240V appliances simultaneously, add their wattage ratings together. For instance, if you plan to run a kettle (1500W) and a microwave (900W), your total would be 2400W. Therefore, you'd need a minimum 2400W inverter.

  3. Consider usage: If you can stagger the use of appliances to avoid running them all at once, it can reduce the load on the inverter.

  4. Match battery voltage: Ensure the inverter matches the voltage of your battery system. If you have a 12V battery system, choose a 12V inverter. If it's a 24V system, opt for a 24V inverter.

  5. Check dimensions: Verify that the physical size of the inverter fits your installation space. Some inverters can be quite large, so measure your available space accordingly.

  By following these steps, you can determine the appropriate size of inverter to meet your power needs while considering practical factors like battery voltage compatibility and physical installation space.

• How do I connect a 12V to 240V inverter? What cable size is recommended, and is it included?

  When connecting the power inverter to the battery, Renogy recommend to use the thickest wire available in the shortest practical length. The package includes 20mm²*6m cables with battery terminals.

• I want something that can charge my battery, can this inverter do this?

  No, this inverter is designed solely for 12V to 230/240V conversion. Consider an Inverter Charger for battery charging purposes.

• Will this 12V to 240V inverter work with lithium batteries?

  Yes, as long as the lithium battery is rated for 12V applications.

• Can I use the Bluetooth Module to monitor the Inverter from my phone? Which Bluetooth Module would you recommend?

  Unfortunately, there is no Bluetooth Module compatible with this inverter. We apologize for any inconvenience.
