Runva 3.5P 12V Winch with Steel Cable

Specifications

SKU 35P-VS

Brand Runva

Warranty Period: Limited Lifetime

Product Category Winches

Dimensions Steel Cable: 5.4mm x 12.8mm

Product Material Steel Cable

Finish Red Powder Coat

Remote control 2.3M Handheld Remote/Rocker Switch

Gear Ratio 170:1

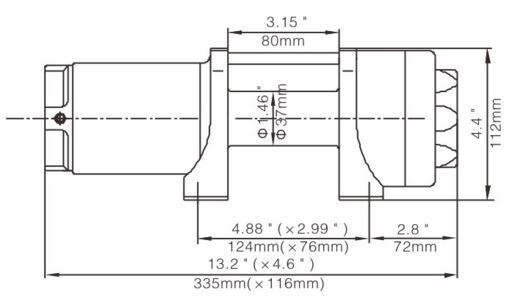

Mounting Options Mounting Bolt Pattern: 79mm x 124mm (12V option) | 76mm x 112mm (24V option)

Drum Diameter (mm) 37mm x 80mm

Gear Train Full Steel Planetary

Rated Line Pull 3500lb (1588kg)

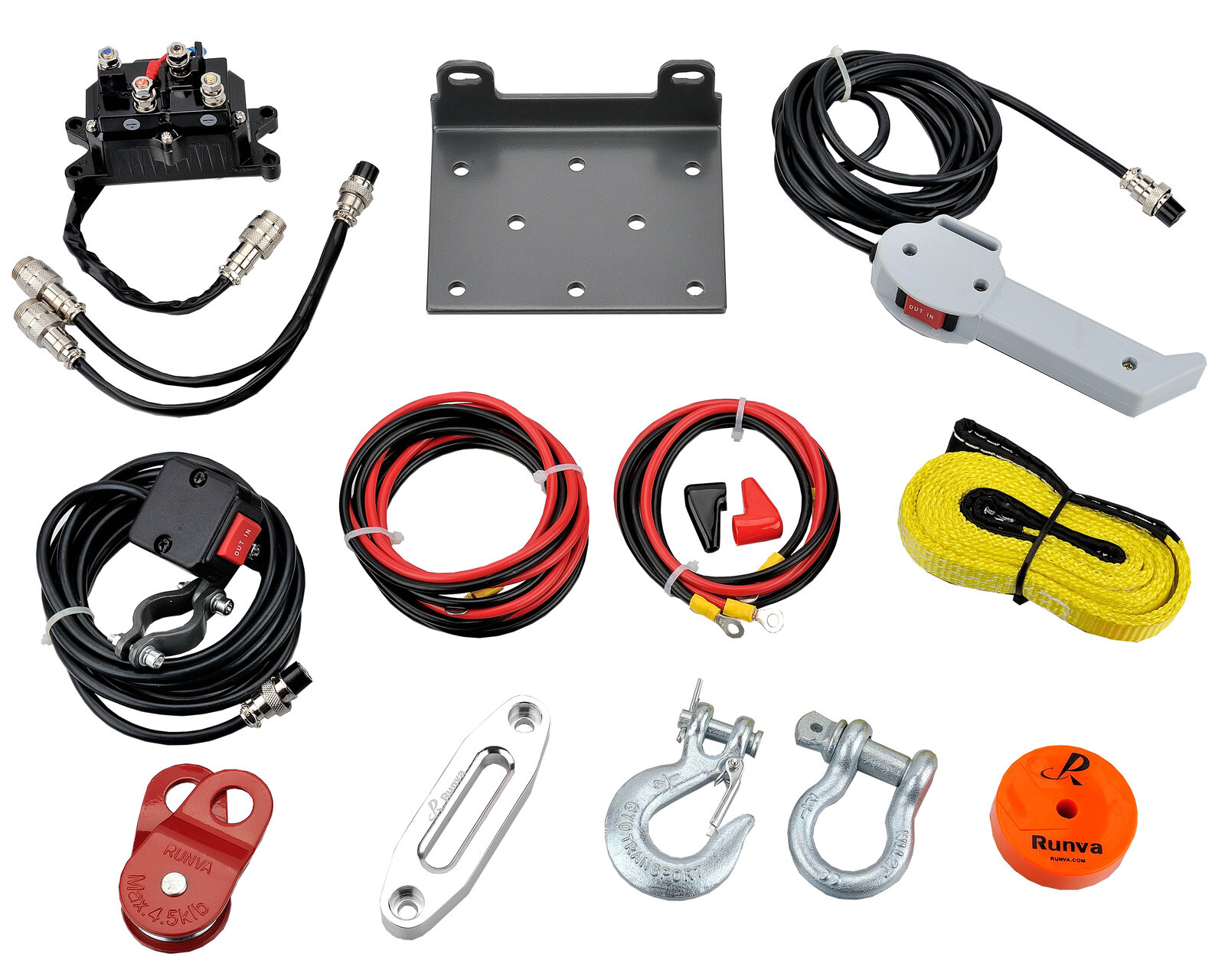

Battery Leads Included. 2 X 2.3M Leads (200A)

Brake Automatic Load Holding

Motor Permanent Magnet (12V) 2.4kW / 3.2 HP | Permanent Magnet (24V) 2.9KW/3.9HP

Winch Capacity (Kg) 1588

Net Weight (kg) 10

Product Q&A

• What size battery should I use with the Runva winches?

  Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

  The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

  The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.

• Which Runva Winch should I choose?

  It depends on your individual needs. Some factors to consider are:

  • Which features you are looking for in a winch
  • The rating of the winch bar or plate you are planning to use it on
  • The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
• Are the Runva Winches all IP67 Ingress Tested?

  No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
