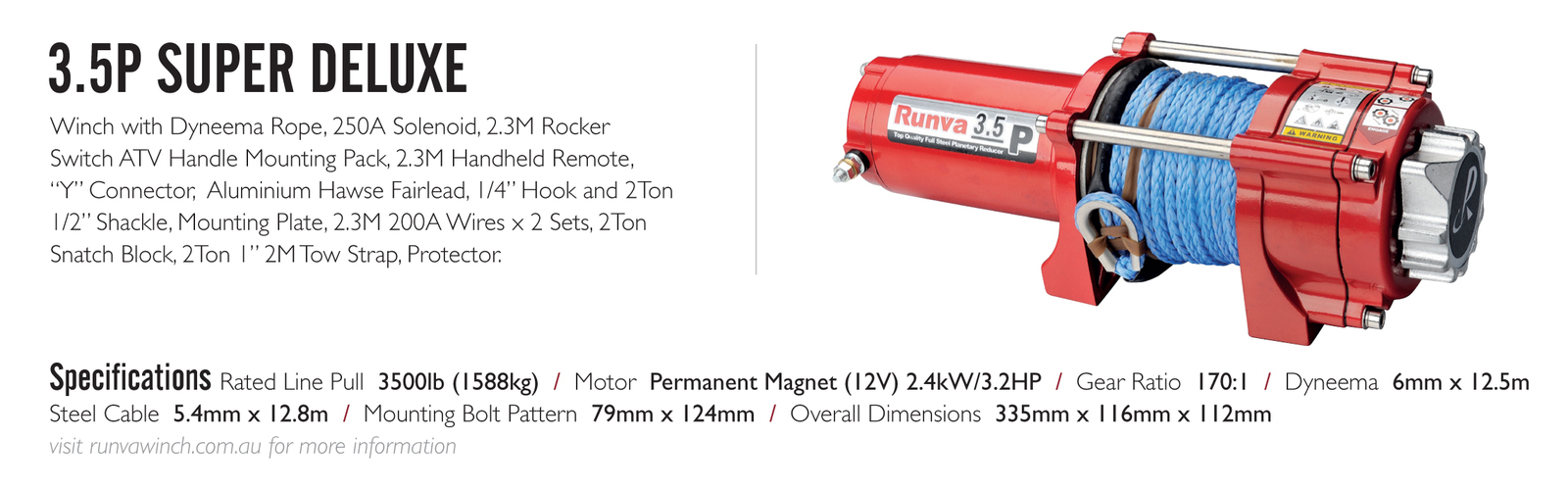

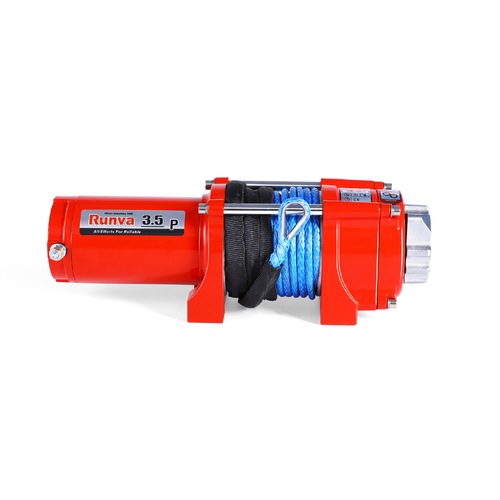

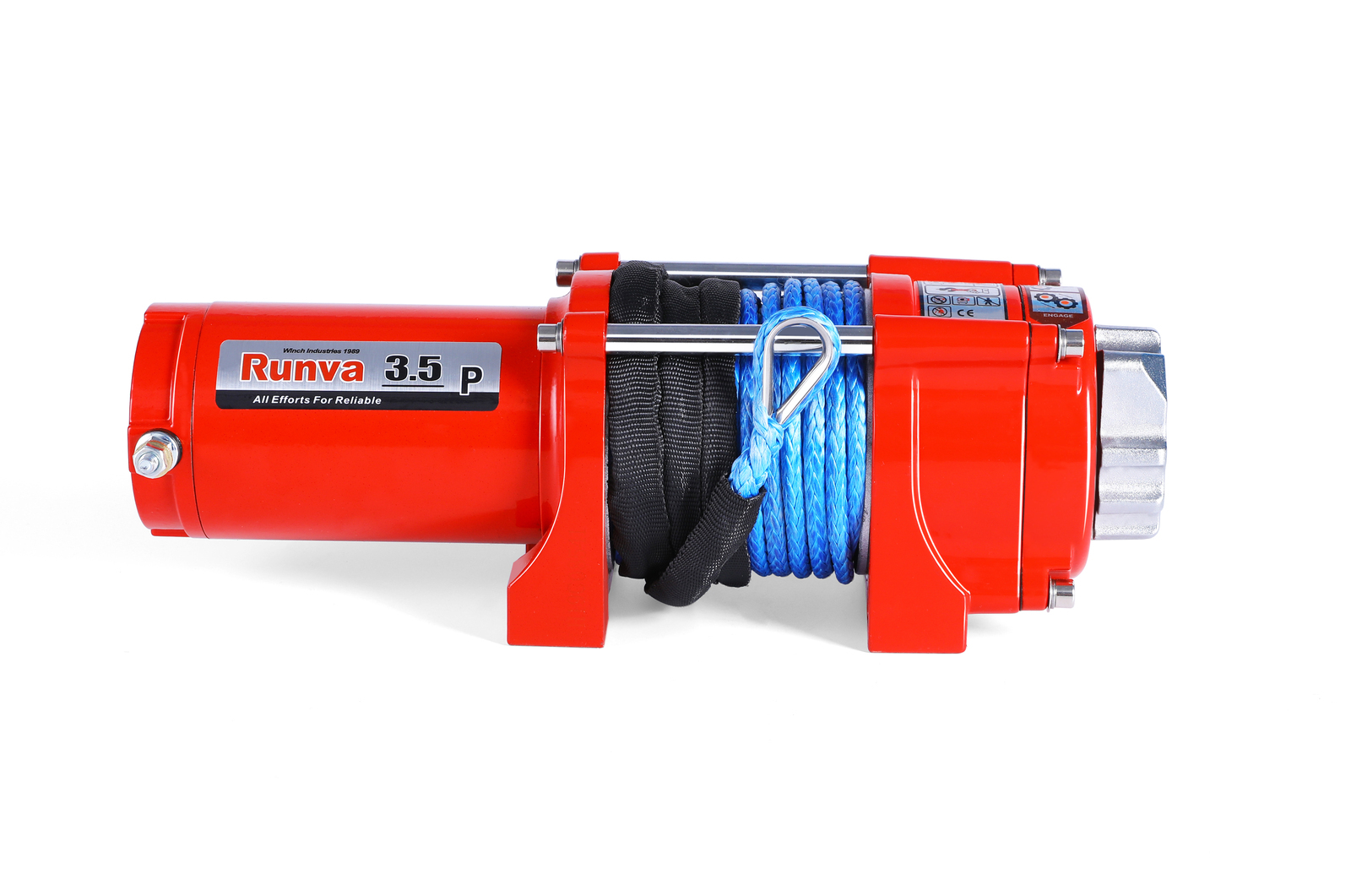

Runva 3.5P 12V Winch with Synthetic Rope
SKU: 35P-VD Learn More»
Product Description
Runva 3.5P Winch with Synthetic Rope, Limited Lifetime Warranty. The Runva ATV Series has a wide range of application possibilities. The most common uses are on ATV’s and UTV’s. These are also perfect for trailers and much more.
The Runva 3.5P Winch is a small and compact winch ideal for ATV / Trailers. It is wireless remote compatible. This product comes with a steel cable you have the option of either 12V or 24V.
Winch Voltage Options:
- Runva 3.5P 12V with Steel Cable - 35P12VS
- Runva 3.5P 24V with Steel Cable - 35P24VS

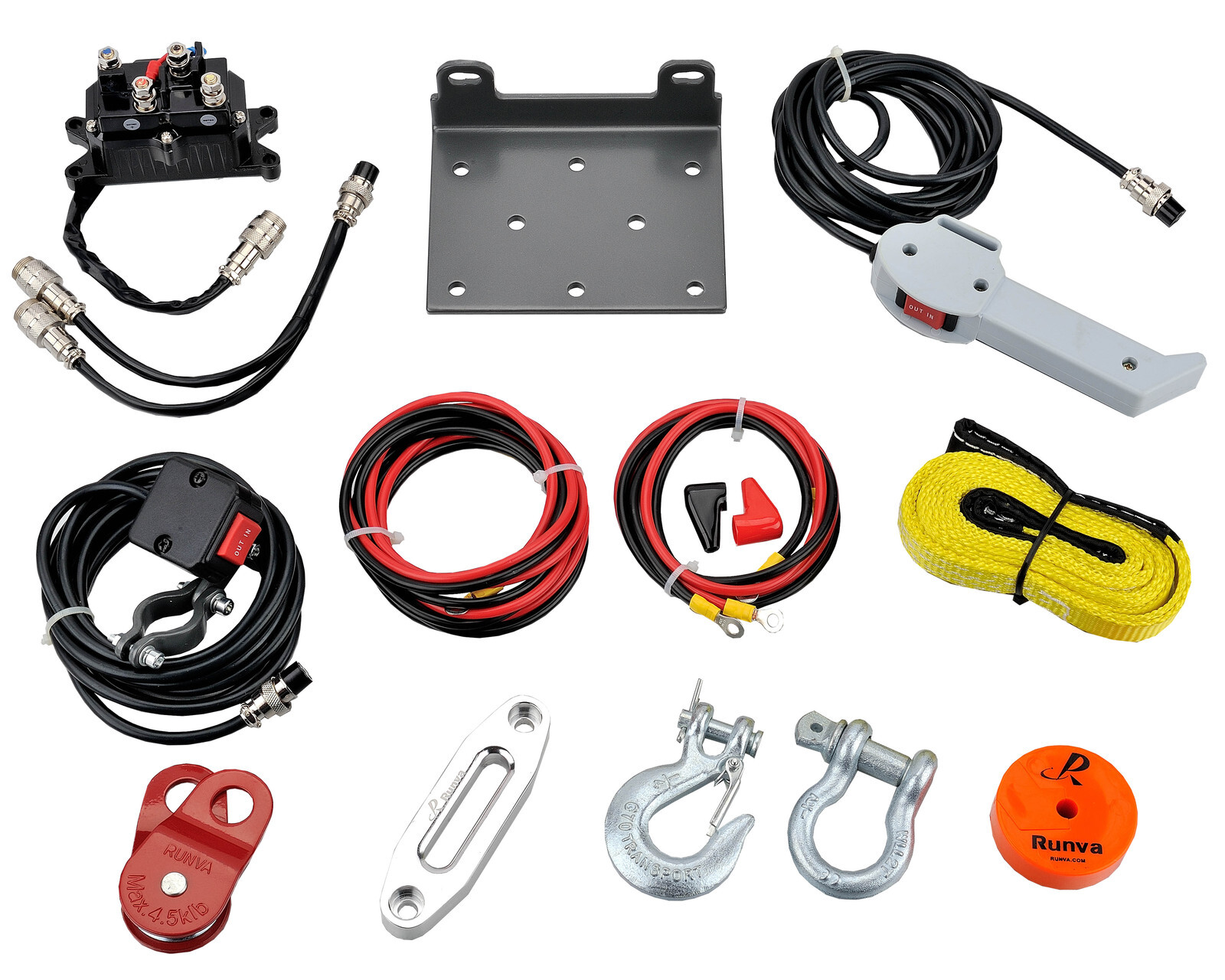

Included:
- Winch with steel cable
- Solenoid with connector
- Handheld remote & rocker switch
- Winch mounting plate
- Recovery hook & shackle
- Snatch block
- Aluminium hawse fairlead
- Battery cables
- Recovery strap & winch saver
- Mounting bolts
Specifications
SKU 35P-VD
Brand Runva
Warranty Period: Limited Lifetime
Product Category Winches
Battery Included. 2 X 2.3m Leads (200A)
Net Weight (kg) 8
Winch Capacity (Kg) 1588
Motor Permanent Magnet (12V) 2.4kW/3.2HP (12V model) | Permanent Magnet (24V) 2.9kW/3.9HP (24V model)
Brake Automatic Load Holding
Battery Leads Included- 2 x 2.3m Leads (200A)
Rated Line Pull 3500lb (1588kg)

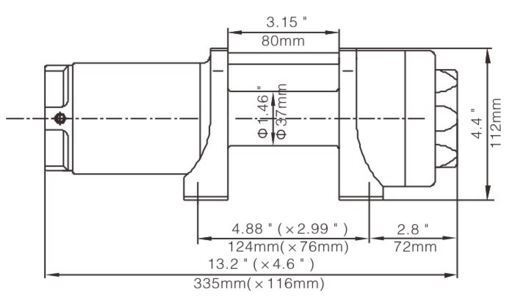

Dimensions 335mm x 116mm x 112mm
Synthetic Rope / Steel Cable 5mm x 15m (12V model) | 6mm x 12.5m (24V model)
Gear Train Full Steel Planetary
Drum Diameter (mm) 37mm x 80mm
Mounting Options Mounting Bolt Pattern - 76mm X 124mm
Gear Ratio 170:1
Remote control 2.3M Handheld Remote/Rocker Switch
Finish Red Powder Coat
Product Q&A
-
What size battery should I use with the Runva winches?
Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.
The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.
The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
-
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
-
Are the Runva Winches all IP67 Ingress Tested?
No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
