Runva 4.5X 12V Winch with Synthetic Rope

SKU: 45X-VD Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Runva 4.5X Winch with Synthetic Rope, Limited Lifetime Warranty. The Runva ATV Series has a wide range of application possibilities. The most common uses are on ATV’s and UTV’s. These are also perfect for trailers and much more.

The Runva 4.5X Winch is a small and compact winch ideal for ATV / Trailers. It is wireless remote compatible. This product comes with a synthetic rope you have the option of either 12V or 24V.

Winch Voltage Options:

Runva 4.5X 12V with Synthetic Rope - 45X12VD
Runva 4.5X 24V with Synthetic Rope - 45X24VD

Included:

Winch with Synthetic Rope
Solenoid with connector
Handheld remote & rocker switch
Winch mounting plate
Recovery hook & shackle
Snatch block
Aluminium hawse fairlead
Battery cables
Recovery strap & winch saver
Mounting bolts

Go to: Product Details

Go to: Reviews

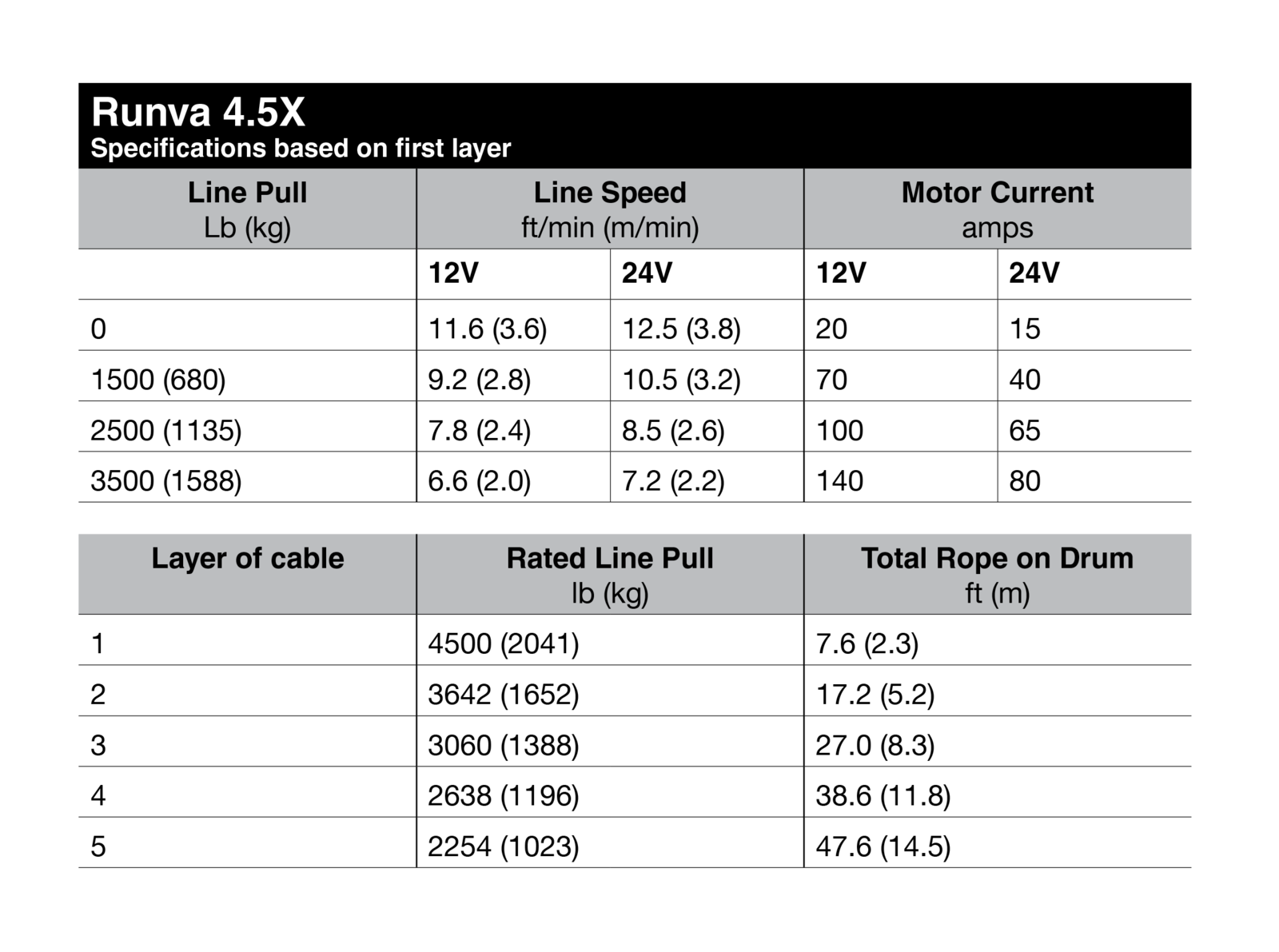

Specifications

SKU 45X-VD

Brand Runva

Warranty Period: Limited Lifetime

Product Category Winches

Battery Included. 2 X 2.3m Leads (200A)

Net Weight (kg) 11

Winch Capacity (Kg) 2041

Motor Permanent Magnet (12V) 2.4kW/3.2HP (12V model) | Permanent Magnet (24V) 2.4kW/3.2HP (24V model)

Brake Automatic Load Holding

Battery Leads Included- 2 x 2.3m Leads (200A)

Rated Line Pull 4500 lb (2041 kg)

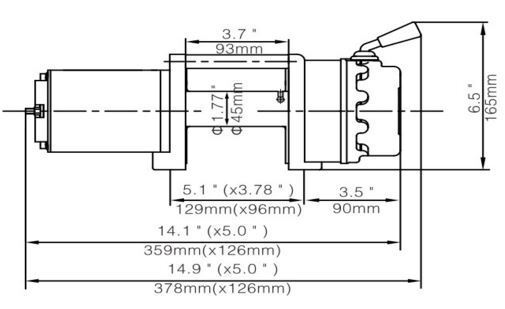

Dimensions 378mm X 126mm X 165mm

Synthetic Rope / Steel Cable 6mm X 14.5m (12V model) | 6mm x 14.5m (24V model)

Gear Train Full Steel Planetary

Drum Diameter (mm) 45mm x 93mm

Mounting Options Mounting Bolt Pattern - 96mm X 129mm

Gear Ratio 172:1

Remote control 2.3M Handheld Remote/Rocker Switch

Finish Black Powder Coat

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

What size battery should I use with the Runva winches?

Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
Are the Runva Winches all IP67 Ingress Tested?

No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
