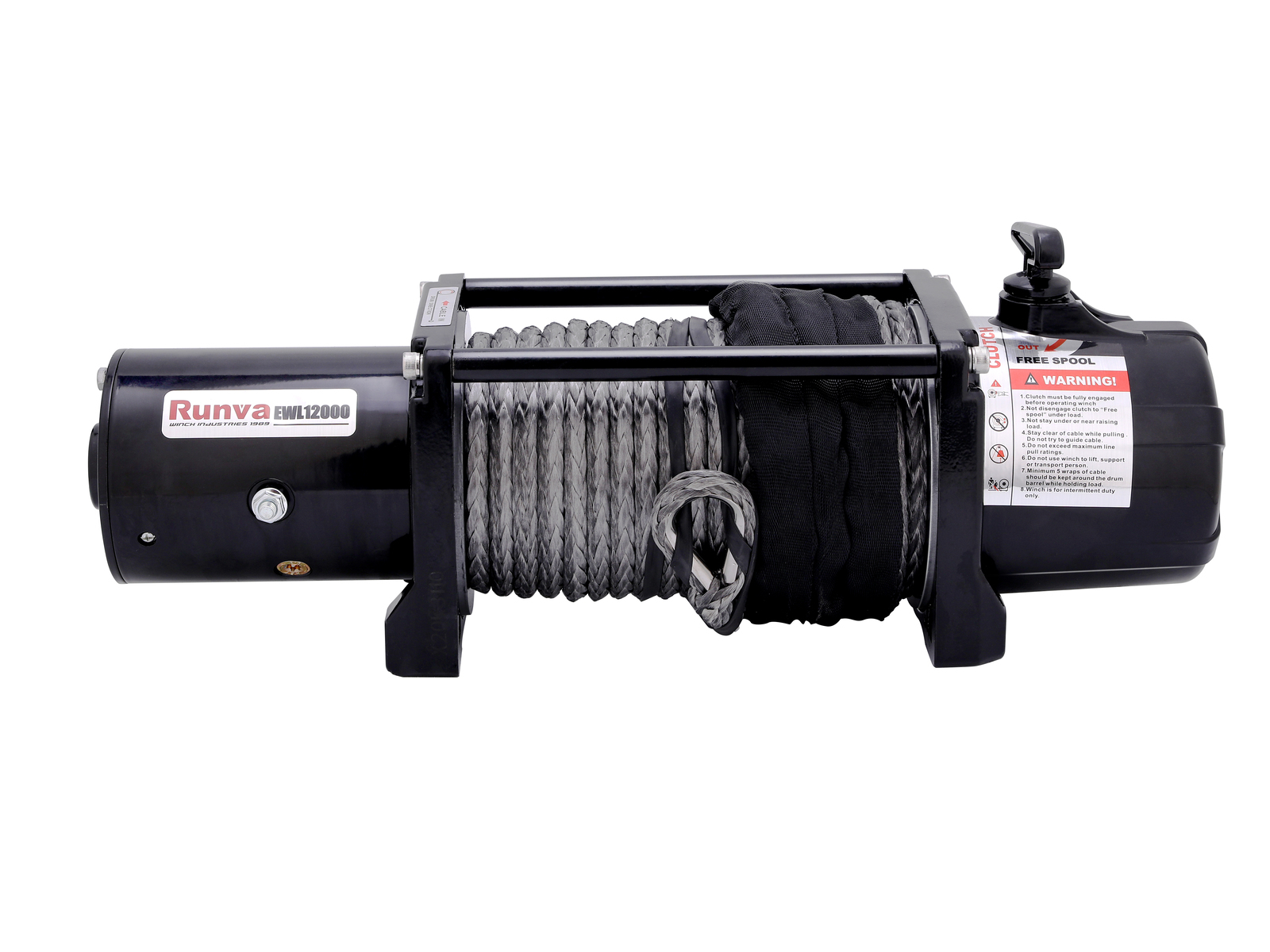

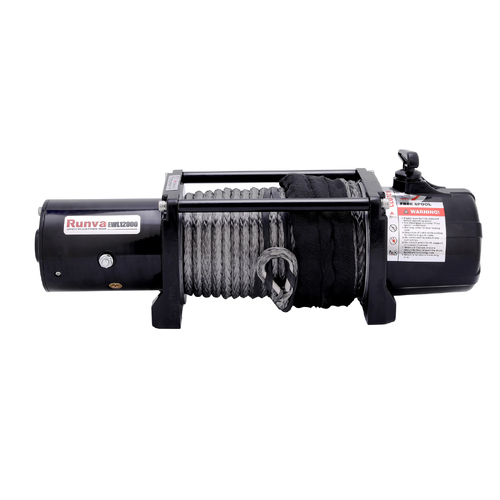

Runva EWL12000 12V Winch with Synthetic Rope

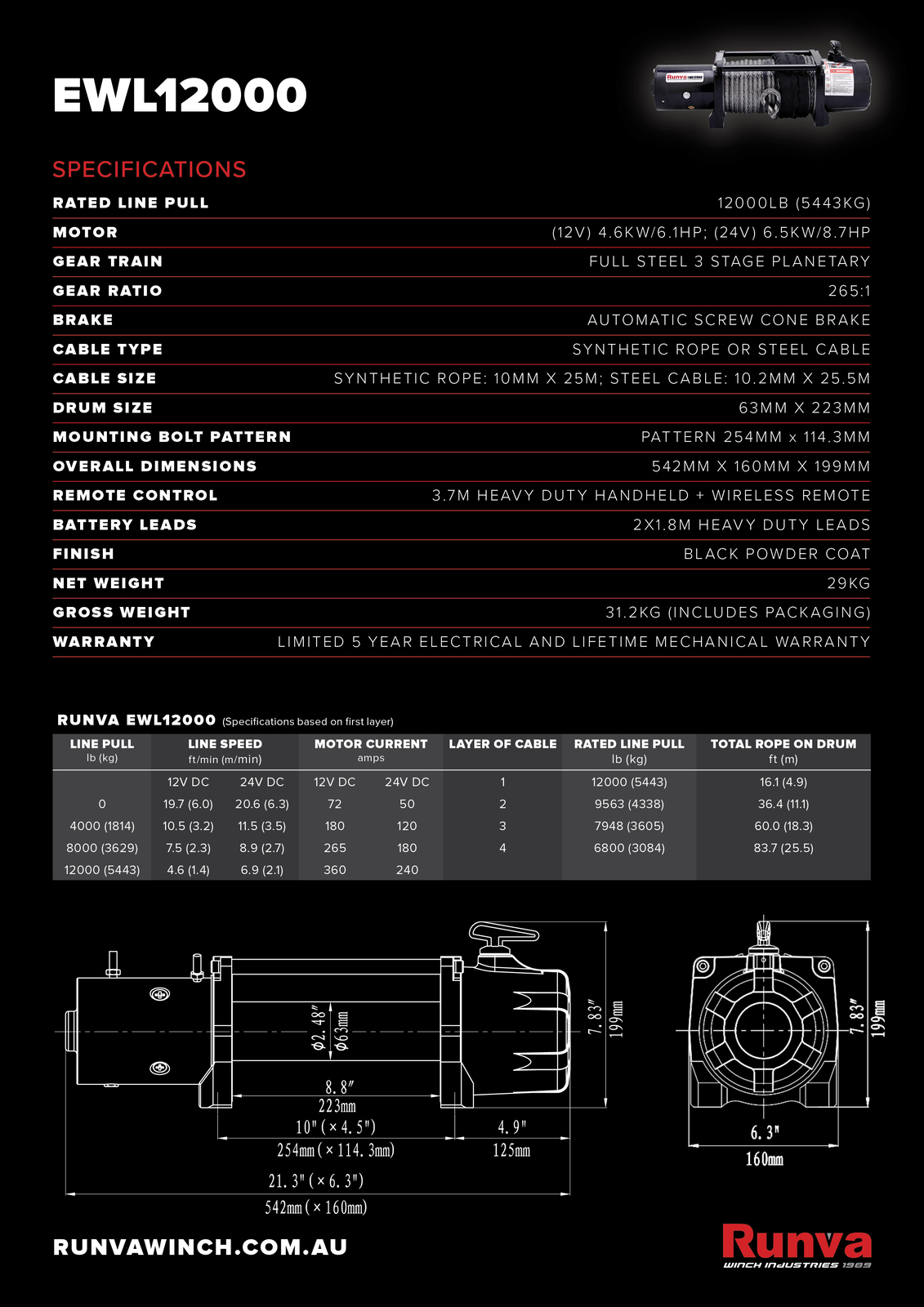

Specifications

SKU EWL12000-VD

Brand Runva

Warranty Period: Limited Lifetime

Product Category Winches

Synthetic Rope / Steel Cable 10mm X 25m (12V model)

Net Weight (kg) 31.5

Winch Capacity (Kg) 5443

Motor Permanent Magnet (12V) 4.6kW/6.1HP (12V model)

Brake Automatic Load Holding

Battery Leads 2 x 1.8m Leads (200A)

Rated Line Pull 12000lb (5443 Kg)

Dimensions 542mm x 160mm x 199mm

Gear Train Full Steel 3 Stage Planetary

Drum Diameter (mm) 63mm X 223mm

Mounting Options Mounting Bolt Pattern - 254mm X 114.3mm (4x M10 Bolts)

Gear Ratio 265:1

Remote control 3.7m Heavy Duty Handheld Remote + Wireless Remote

Finish Black Powder Coat

Weight (kg) 31.5 kg

Product Q&A

• What size battery should I use with the Runva winches?

  Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

  The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

  The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.

• Which Runva Winch should I choose?

  It depends on your individual needs. Some factors to consider are:

  • Which features you are looking for in a winch
  • The rating of the winch bar or plate you are planning to use it on
  • The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
• Are the Runva Winches all IP67 Ingress Tested?

  No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
