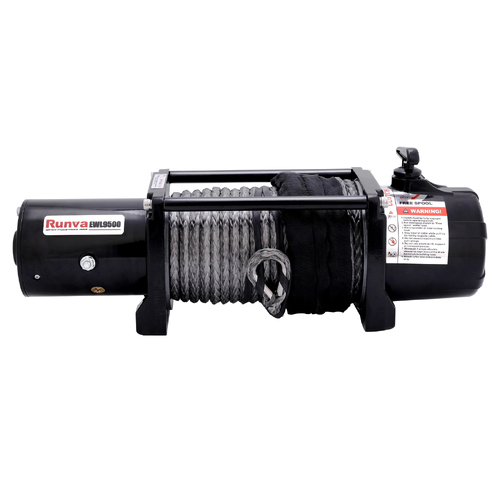

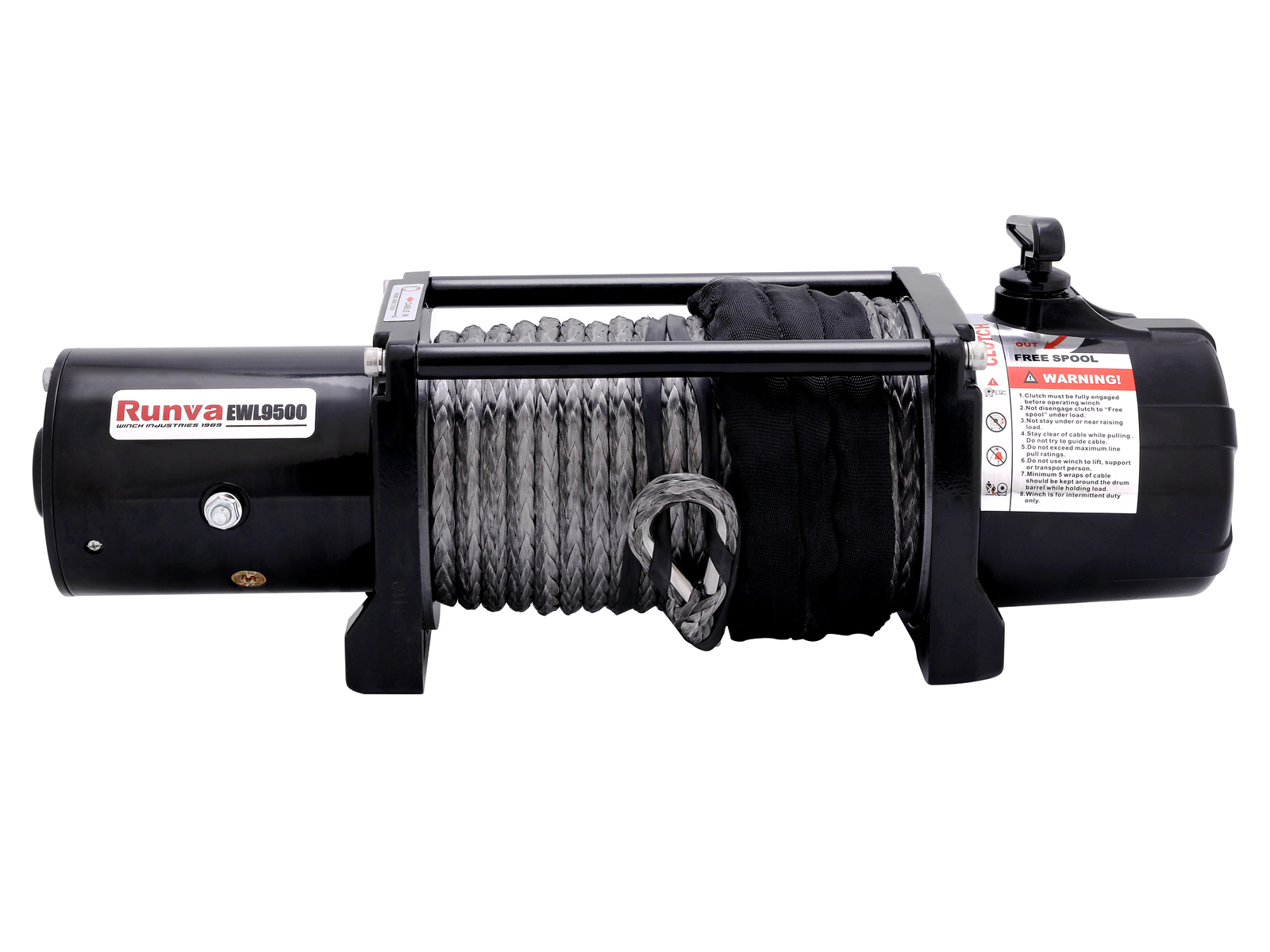

Runva EWL9500 12V Winch with Synthetic Rope

SKU: EWL9500-VD Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Runva EWL9500 Winch with Synthetic Rope, Limited Lifetime Warranty. The Runva ATV Series has a wide range of application possibilities. The most common uses are on ATV’s and UTV’s. These are also perfect for trailers and much more.

The Runva EWL9500 Winch is a small and compact winch ideal for UTV sidexside, Trailers and much more. It is wireless remote compatible. This product comes with a synthetic rope and 12V.

Winch Voltage:

Runva EWL9500 12V with Synthetic Rope - EWL950012VD

Included:Included:

Winch with steel cable
Control box with power cabled plus multiple brackets for easy fitting
Handheld remote & rocker switch
Large Recovery hook & shackle
2in1 Hawse Fairlead (offset + standard)
Power Isolator Switch + Bracket + Power Cable
Mounting bolts

Go to: Product Details

Go to: Reviews

Specifications

SKU EWL9500-VD

Brand Runva

Warranty Period: Limited Lifetime

Product Category Winches

Dimensions 542mm x 114.3mm x 199mm

Finish Black Powder Coat

Remote control Heavy Duty Handheld Remote + Wireless Remote

Gear Ratio 184:1

Mounting Options Mounting Bolt Pattern - 254mm X 114.3mm (4x M10 Bolts)

Drum Diameter (mm) 63mm X 226mm

Gear Train Full Steel 3 Stage Planetary

Synthetic Rope / Steel Cable 6mm x 14.5m (12V model)

Rated Line Pull 9500lb (4309kg)

Battery Leads 2 x 1.8m Leads (200A)

Brake Automatic Load Holding

Motor Permanent Magnet (12V) 4.6kW/6.1HP (12V model)

Winch Capacity (Kg) 4309

Net Weight (kg) 11

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

What size battery should I use with the Runva winches?

Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
Are the Runva Winches all IP67 Ingress Tested?

No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
