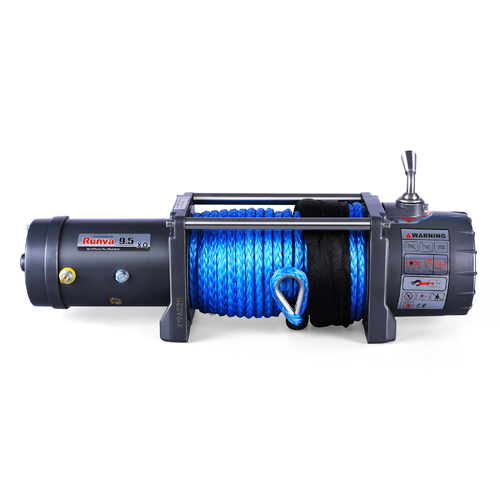

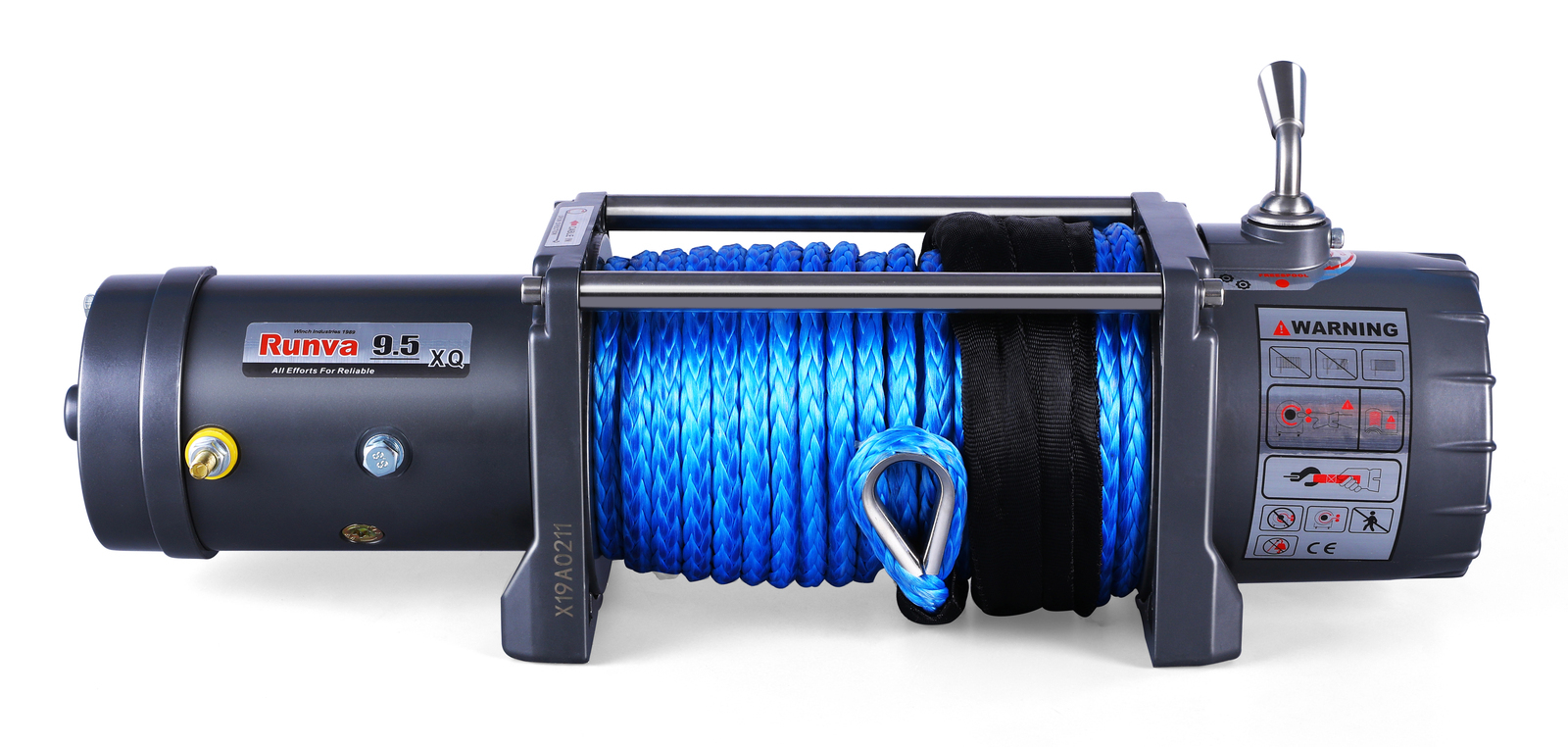

Runva EWX9500-Q EVO 12V Winch with Synthetic Rope

SKU: EWX9500QEVO-VD Learn More»

EWX9500QEVO12VD

$1,025

CALCULATE SHIPPING:

Built To Order 6 Weeks Express Shipping Price Match Guarantee Customer Reviews

Product Description

Runva EWX9500-Q Winch with Synthetic Rope, Limited Lifetime Warranty. The Runva ATV Series has a wide range of application possibilities. The most common uses are on ATV’s and UTV’s. These are also perfect for trailers and much more.

The Runva EWX9500-Q Winch fits all 4x4 winch bras. This product comes with a steel cable and 12V.

Winch Voltage:

  • Runva EWX9500-Q 12V with Synthetic Rope - EWX9500Q12VD
Included:
  • Winch with steel cable
  • Control box with power cabled plus multiple brackets for easy fitting
  • Handheld remote & rocker switch
  • Large Recovery hook & shackle
  • 2in1 Hawse Fairlead (offset + standard)
  • Power Isolator Switch + Bracket + Power Cable
  • Mounting bolts

Specifications

SKU EWX9500QEVO-VD

Brand Runva

Warranty Period: Limited Lifetime

Product Category Winches

Colour Option Black

Finish Grey Powder Coat

Remote control 3.7M Handheld Remote/ Wireless Remote

Gear Ratio 110:1 – Extra Low for Extra Speed

Mounting Options Mounting Bolt Pattern - 254mm X 114.3mm

Drum Diameter (mm) The drum diameter on this model is larger than all the others for increased line speed. You need to use a minumum battery size of 1000cca with this wi

Gear Train Full Steel 2 Stage Planetary

Synthetic Rope / Steel Cable 10mm X 26.5m (12V model)

Synthetic Rope / Steel Cable 10mm X 26.5m (24V model)

Rated Line Pull 9500lb (4309kg)

Battery Leads 2 X 1.8M Heavy Duty Leads

Brake Automatic Load Holding Screw Cone

Motor Permanent Magnet (12V) 6.4kW/8.6HP (12V model)

Winch Capacity (Kg) 4309

Net Weight (kg) 31


Product Q&A

Ask Us a Question
  • What size battery should I use with the Runva winches?

    Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.

    The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.

    The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.

  • Which Runva Winch should I choose?

    It depends on your individual needs. Some factors to consider are:

    • Which features you are looking for in a winch
    • The rating of the winch bar or plate you are planning to use it on
    • The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
  • Are the Runva Winches all IP67 Ingress Tested?

    No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
