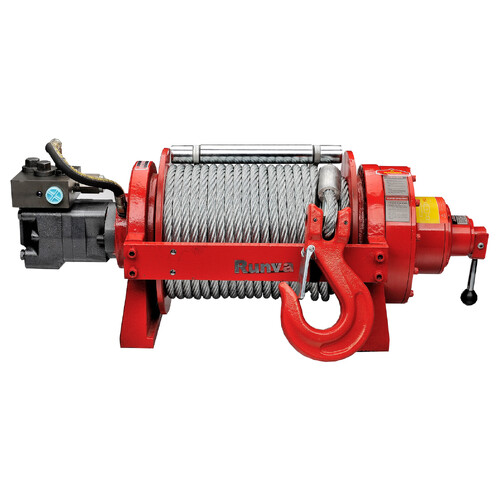

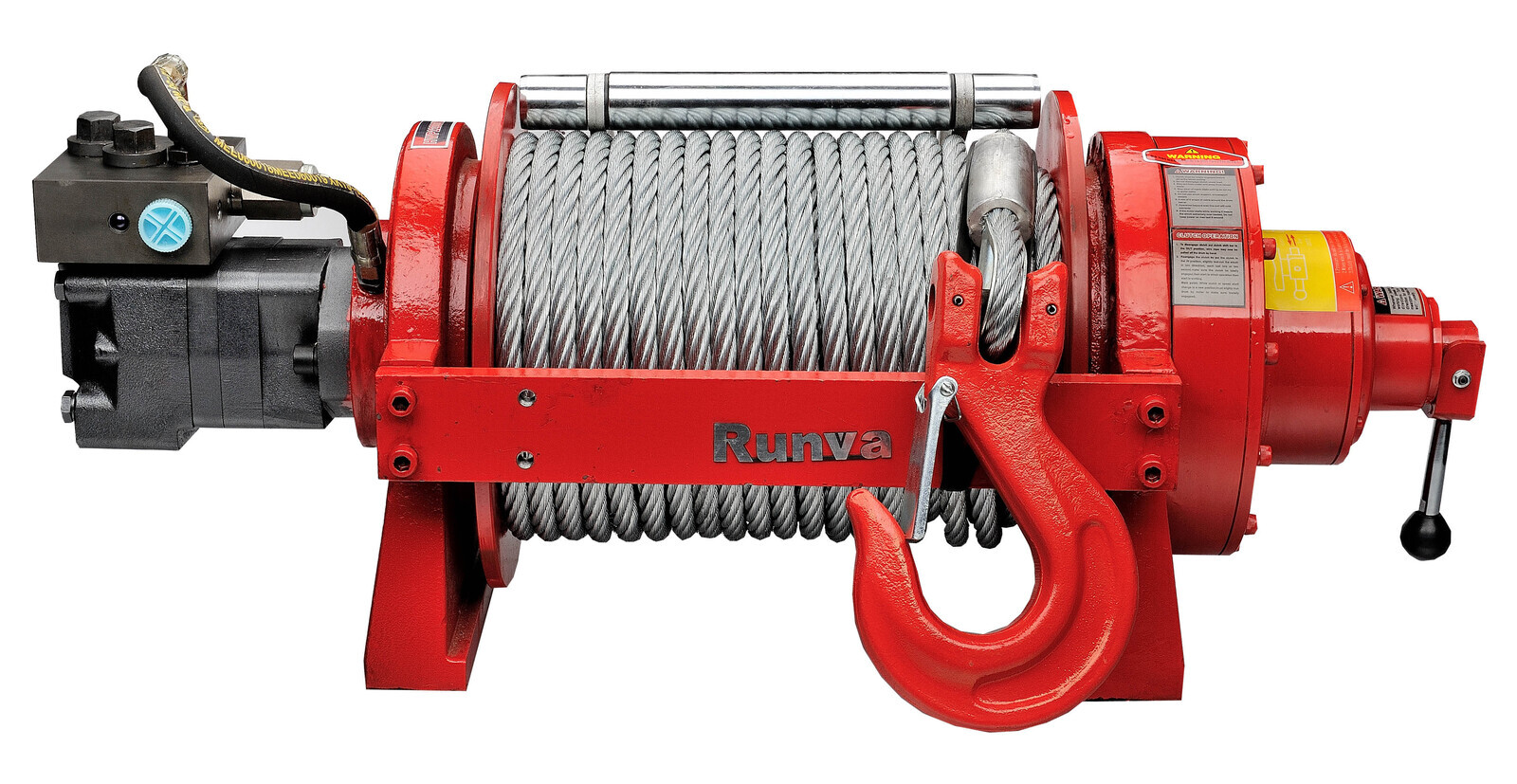

Runva HWP20000Y2P Single Speed Winch with Steel Cable
SKU: HWP20000Y2P Learn More»
Product Description
Runva HWP20000Y2P Single Speed with Steel Cable, Limited Lifetime Warranty. The Runva Lifting Series have been designed for applications requiring a winch that is rated for lifting purposes. There are many applications and industries that require winches used for lifting. Winches designed for pulling applications are generally not suitable for lifting due to many design and safety factors.
All of Runva's hydraulic winches featured here have been designed for Industrial/Commercial applications. From barges in the marine industry through to tow trucks, these have been carefully designed for reliability and durability. Check with your hydraulic specialist to see which model would best suit your application. Knowing your hydraulic setup including oil flow and pressure availability is important when selecting a winch.
Specifications
SKU HWP20000Y2P
Brand Runva
GTIN 9333330000114
Warranty Period: Limited Lifetime
Product Category Winches
Dimensions 723mm x 312mm x 304mm
Weight (kg) 175kg (includes packaging)
Finish Red Powder Coat
Gear Ratio 39:1
Drum Diameter (mm) 138mm x 316mm
Gear Train Heavy Duty – Full Steel Planetary
Synthetic Rope / Steel Cable Galvanised Steel Cable
Rated Line Pull 20000lb (9072kg)
Brake Automatic Heavy Duty Brake System
Motor 160ml/r
Winch Capacity (Kg) 9072
Net Weight (kg) 165
Product Q&A
-
What size battery should I use with the Runva winches?
Runva states that the ATV Series models can run off an ATV/UTV battery. For other applications a small car battery would be sufficient.
The minimum requirement for the Compact Series, Electric Series and Lifting Series is 750CCA. Using a too small battery can damage your winch.
The minimum requirement for the Competition Series is a battery setup of no less than 1000CCA.
-
Which Runva Winch should I choose?
It depends on your individual needs. Some factors to consider are:
- Which features you are looking for in a winch
- The rating of the winch bar or plate you are planning to use it on
- The size of the winch you are considering - you need to make sure it will fit the application. Some models state that they would fit all bars so they would be a good choice if you do not want to measure prior to buying a winch
-
Are the Runva Winches all IP67 Ingress Tested?
No, all models are not IP67 rated. The 'Premium' models are the only ones that are IP67 Ingress tested, along with a select other models. Runva states that their quality engineering is a standard across all of their products and only the Premium range is tested, but that does not mean the rest of the ranges are any less watertight.
