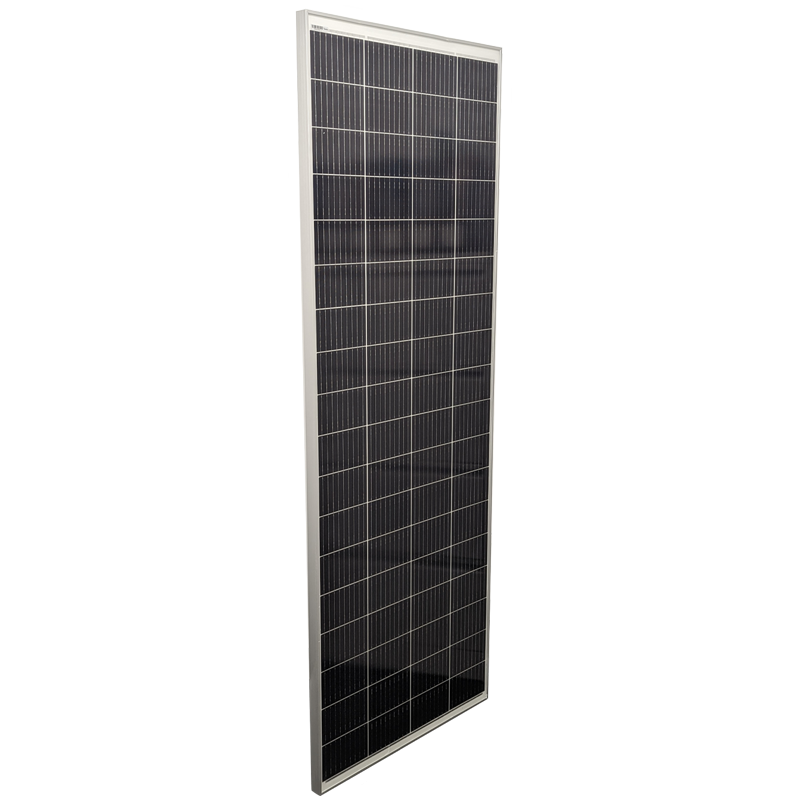

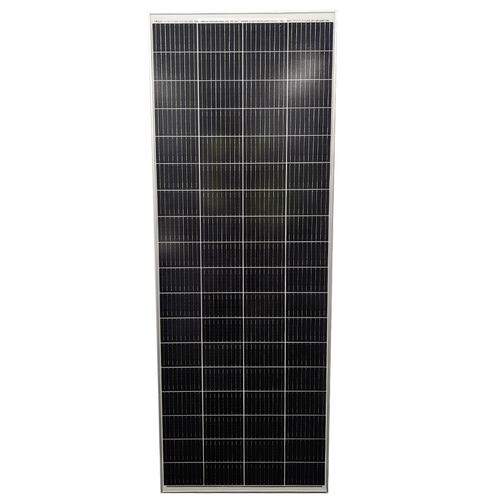

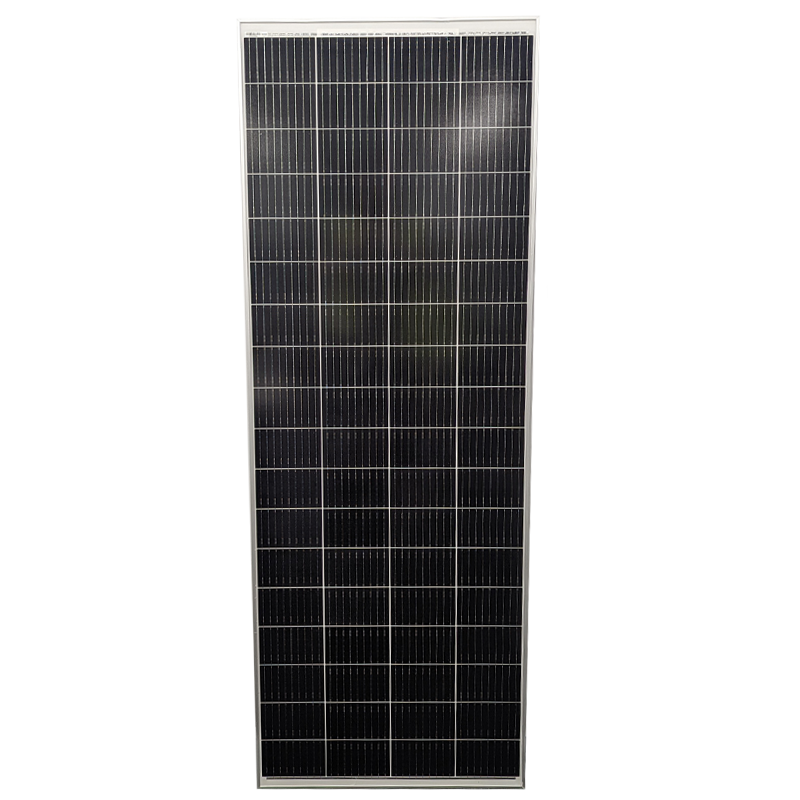

Sphere 250w Mono Crystalline Solar Panel with Twin Cell Technology 670x1850x35mm
SKU: 500-06252 Learn More»
Product Description
Sphere 250w Mono Crystalline Solar Panel with Twin Cell Technology 670x1850x35mm, 5 Year Warranty. Partial shading caused by rooftop-mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.
Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.
Features:
- Sphere Twin Cell Solar Technology for improved performance in partial shade.
- By-passed diodes to improve reliability and further minimize power drops caused by shade.
- An anodized aluminium frame to withstand rust with pre-drilled mounting holes for a versatile range of applications.
- Antireflective, high transparency tempered glass for durability
- IP65-rated junction box provides complete protection against dust and water.
Specifications
SKU 500-06252
Brand Sphere
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 250
Dimensions 35mm x 1850mm x 670mm
Weight (kg) 14.0000
Open Circuit Voltage Voc(V) 24.1
Max System Voltage (VDC) 1000V/DC
Junction Box 0.9 m 4mm 2 solar cable fitted with MC 4 IP65
Product Q&A
Customer Reviews
250w fixed solar panels Review by Jeffrey CurlingSales person, Scott, was very professional & helpful. Product is of very good quality & is performing very well. Delivery was extremely quick . Totally satisfied with the product & the excellent service provided by Scott who was so easy to deal with & very professional. I highly recommend this company.(Posted on 10 January 2024)
Preparing for free camping Review by Theo And Jan RickardI’ve replaced my original solar 120W panels with two 250W Sphere Twin cell Technology Solar panels. They are only slightly longer with twice the capacity. They are holding full charge even though th e van is in a shed with just a couple of skylights so the twin cell technology is already showing its worth Very happy so far looking forward to free camping(Posted on 7 December 2023)
PRODUCT WORKS Review by Tel FraserThe sun shines on it and it works(Posted on 29 January 2023)
