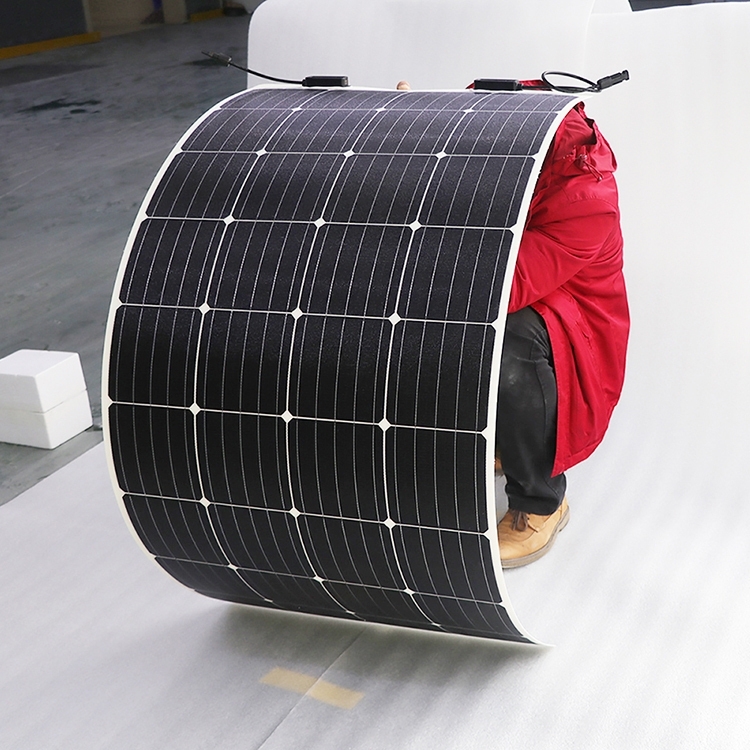

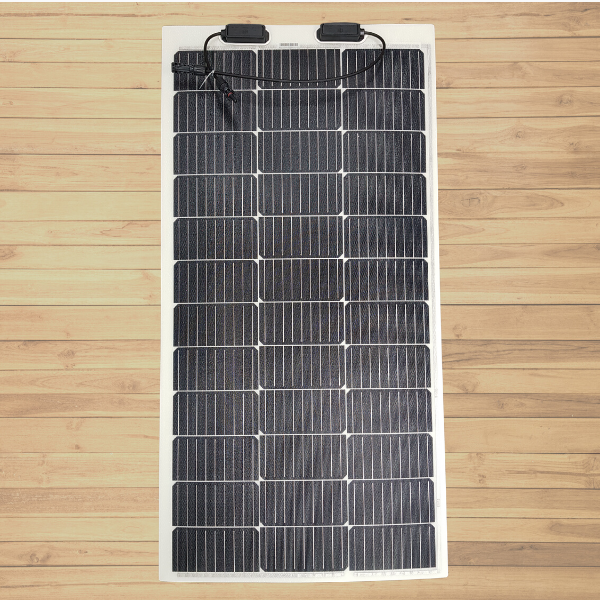

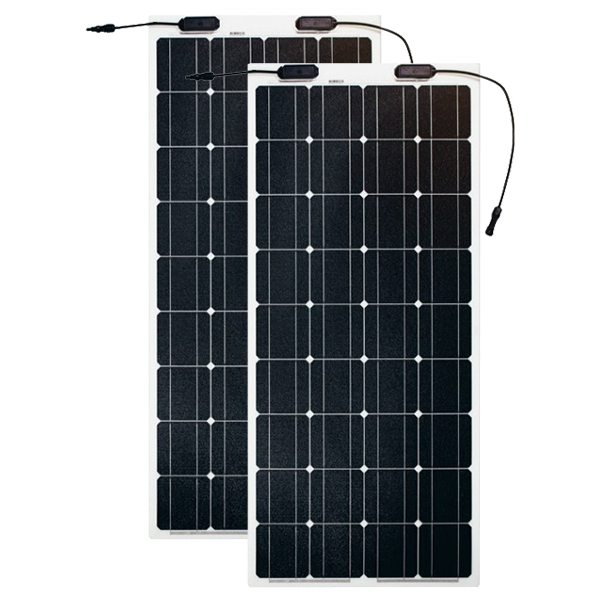

Sunman eArc 2 x 100W Flexible Solar Panel

Solar 4 RVs Eyelet for Flexible Solar Panels

Eyelets for the Solbian & Sunman eArc Flexible solar panles.

Please add 1 eyelet to cart with one panel, as we will send the correct amount for your solar panel size.

• Please note: You will only require one of the mounting option! Please choose one of the option in the list.

Solar 4 RVs Bi-Adhesive Backing for Flexible Solar Panels

The Bi-Adhesive Backing includes a continuous sheet of 1mm bi-adhesive material over the whole back of the panel for mounting on smooth surfaces with no bumps or dips. Installation then becomes a simple peel and stick.

Important: The backing is mounted in factory to panel prior to shipping. You'll need to remove thin plastic covering prior to mounting in place.

• Please note: You will only require one of the mounting option! Please choose one of the option in the list.

Solar 4 RVs Roll of Very High Bond (VHB) Double Sided Tape - 12mm x 2.3mm x 16.5m. This very high bond acrylic foam tape is strong and conformable. The strength of this tape has been tested in-house under a variety of conditions including extreme cold and heat. Solar 4 RVs recommend using very high bond tape to ensure the thermal expansion between the panels and the substrate is accommodated.

Please note: You will only require one of the mounting option! Please choose one of the mounting option in the list.

Features:

• Fast and easy
• High adhesion and shear properties
• Great conformability and stretching
• Good performance in dynamic shear
• Good moisture and chemical resistance, ideal for exterior use
• Creates an environment-friendly seal when bonding
• Resists UV light for long term outdoor durability
• Each roll has 16m of tape

FixTech White Fix8 Transparent Structural Silicone 300ml. Fix8 cures to a high performing colourfast flexible rubber sealant. Suitable for bonding and sealingand glazing applications. Excellent weather-ability and UV resistance. Permanently elastic. Colour fast. Sutable for marine exposure.

A single component medium modulus anti mould, construction silicone that exhibits excellent physical properties in both internal and external applications and displays excellent weather-ability and UV resistance.

Fix8 may discolour with age under certain conditions. Can not be overpainted.

Please note: You will only require one of the mounting option! Please choose one of the options in the list.

Features:

• Colour: clear
• Neutral cure, with a medium modulus structure
• 12 - 30min working time depending on colour. Refer to the TDS for more information
• Free of isocyanates and solvents
• Primerless bonding to most common substrates
• UV stable, with superior resistance to mould and weather
• Permanently elastic, with excellent stability
• 1.0MPa - Equivalent to holding 10Kg per cm².

Solar 4 RVs Vented Gap Kit for 100W Panels (Poly Carbonate Strips + Roll of VHB Tape)

The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:

• One roll of very high bond double sided adhesive tape
• Polycarbonate strips

• Please note: You will only require one of the mounting option! Please choose one of the option in the list.

Cable Entry Cover - 1 Gland White with 2 Cable Grommet Lightweight ABS.

• IP66 waterproof when adhered with silicone
• ideal for marine and RV; roof or wall mounting
• for all cable types 6mm to 12mm in diameter
• strong UV stable
• Hides entry holes and protects against leaks
• low profile.

Includes both 1 and 2 rubber insert grommet so it can accomodate a single cable or two cables such as 4 or 6mm2 PV1-F.

Cable-Entry-Cover-2-Gland-White-Lightweight-ABS.

• IP66 waterproof
• ideal for marine and RV
• roof or wall mounting
• for all cable types 6mm to 12mm in diameter
• strong UV stable
• Hides entry holes and protects against leaks
• Low profile

Solar Cable PV1-F 6mm2 twin, thin sheath, 1 Year Warranty.These cables are developed according to PV1-F requirements and designed to meet the rigours of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation.

• Outside diameter of each core 6mm
• Inner insulation: XLPE (Black, Red)
• Sheath insulation: XLPE (Crosslinked Polyethylene)
• Nominal voltage: U0 / U: 0,6 / 1 kV AC / max. 1.5 kV DC
• Test voltage according to EN 50395-6: 6,5 kV AC / 15 kV DC (5 min.)
• Rated current: 55 A (4.0 mm²), 70 A (6.0 mm²)
• Insulation resistance of the complete cable: ≥ 1000 MΩkm in accordance to EN 50395-8.2
• Ambient temperature:  –40°C ...+90°C
• Bending radius: Dynamic: >4 × OD

Constructed using fine stranded tinned copper conductors insulated with a temperatureresistant, halogen-free cross-linked copolymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer.

• Rated voltage AC 1000V, DC 1500V (max)
• Temperature range Ambient –40°C ...+90°C
• Approvals EN 50618 H1Z2Z2-K IEC 62930
• Minimum bending radius Flexing: 5 x cable diameter
• Fixed: 4 x cable diameter
• Marking Meter marked

Solar 4 RVs FixTech Black Fix8 Transparent Structural Silicone 300ml, 1 Year Warranty. Fix8 Black stands out as an architectural-grade, single-component, high modulus structural silicone sealant. This neutral-cure sealant boasts exceptional physical properties, making it perfect for a wide range of sealing and structural bonding tasks, particularly in glazing applications involving metal, aluminium, Corian®, most plastics, and fibreglass substrates.

Key Features:

• Primerless Adhesion: Effective on most substrates, excluding Teflon, PE, and PP.
• Exceptional UV Resistance: Ensures longevity and durability under sun exposure.
• Superior Filling Capacities: Ideal for various sealing requirements.
• Neutral Cure and Colour Fast: Maintains stability and appearance over time.
• Long-Lasting Weather Resistance: Offers up to 20 years of superior weather resistance.
• Compatibility with Other Sealants: Ensures versatile application possibilities.
• Permanently Elastic: Maintains flexibility, adapting to structural movements.
• Marine Exposure Suitability: Perfect for applications exposed to marine environments.

Diverse Applications in Construction and Transportation:
Fix8 Black is ideally suited for the installation of glass windows, sealing roof constructions, and bonding in the automotive industry. It excels in mounting and sealing window frames, bonding and sealing coachwork within the transportation industry, and attaching flexible solar panels, making it a versatile choice for professionals.

Special Remarks for Optimal Use:

• Fix8 Black is not suitable for overpainting.
• Potential discoloration with age under specific conditions.
• Chemically neutral (pH=7), ensuring safety and compatibility.
• Wide substrate applicability; however, compatibility tests are recommended due to varying substrate properties.

Choose Fix8 Black for Architectural Integrity and Performance:
Whether for glass curtain wall construction, weatherproofing applications, or structural tasks in challenging environments, Fix8 Black delivers top-tier performance and reliability. Its blend of flexibility, durability, and resistance to environmental factors positions it as a leading choice in the architectural, automotive, and transportation industries.
