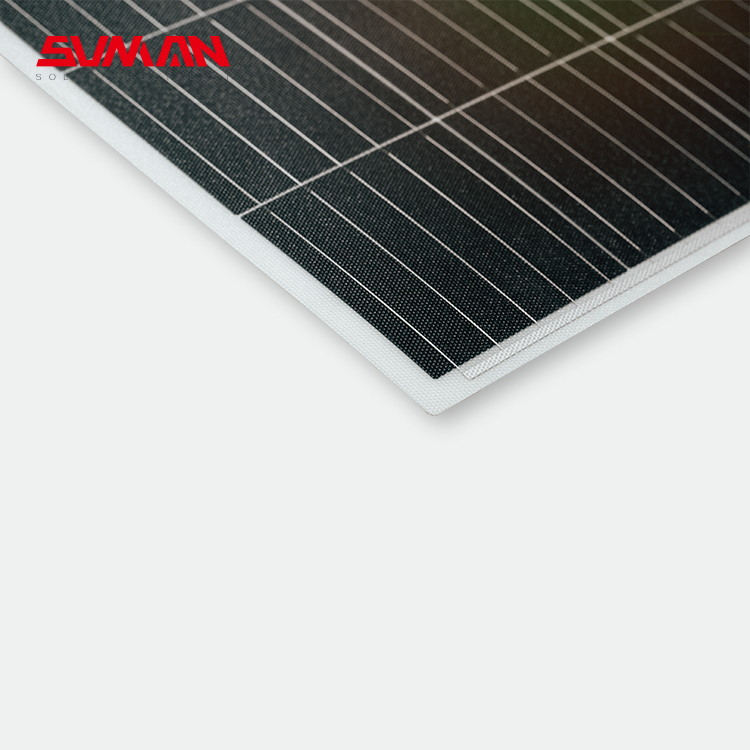

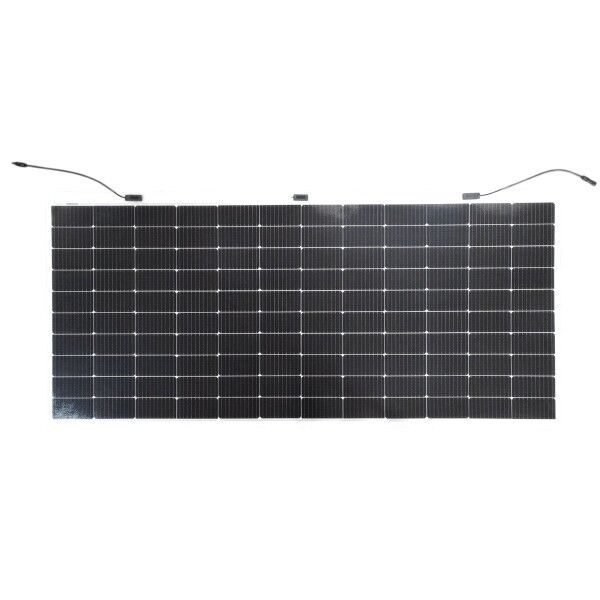

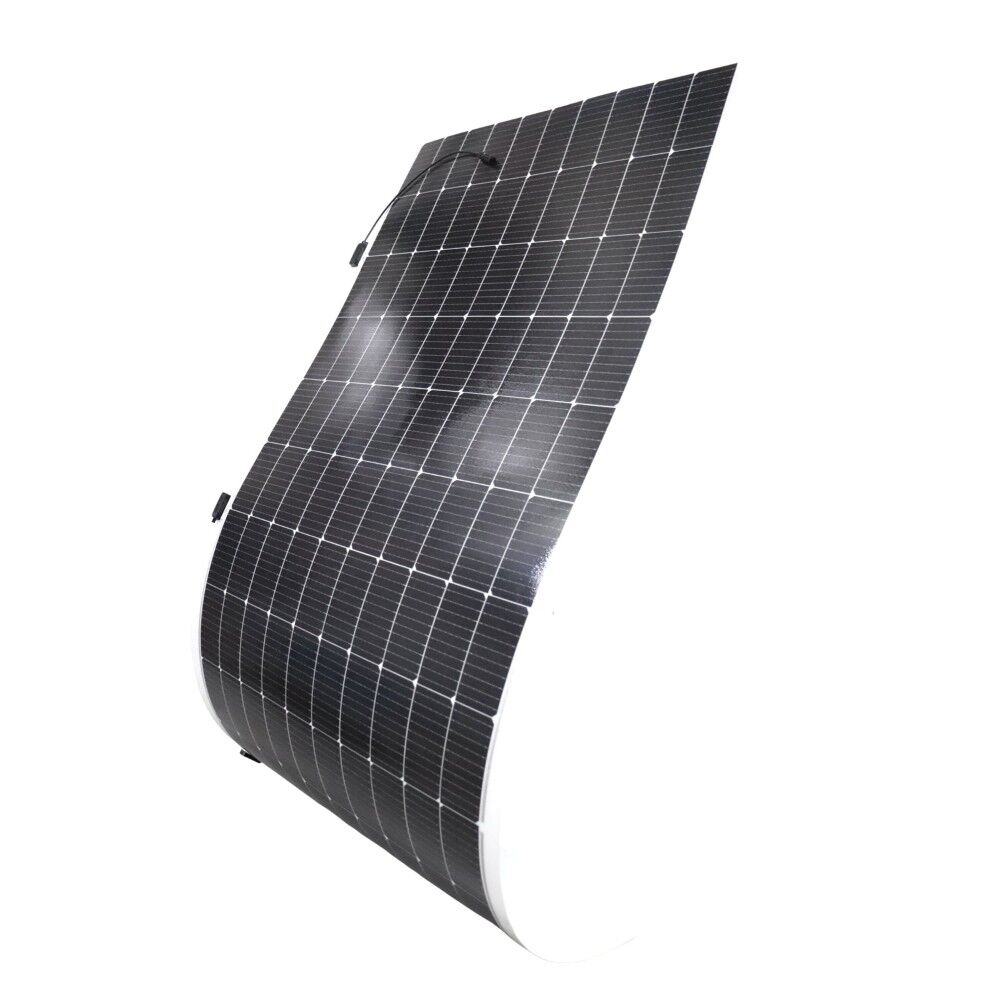

Sunman eArc 430W Flexible Solar Panel - with Butyl Tape
SKU: eASMF430-12X12UW-BT Learn More»
Product Description

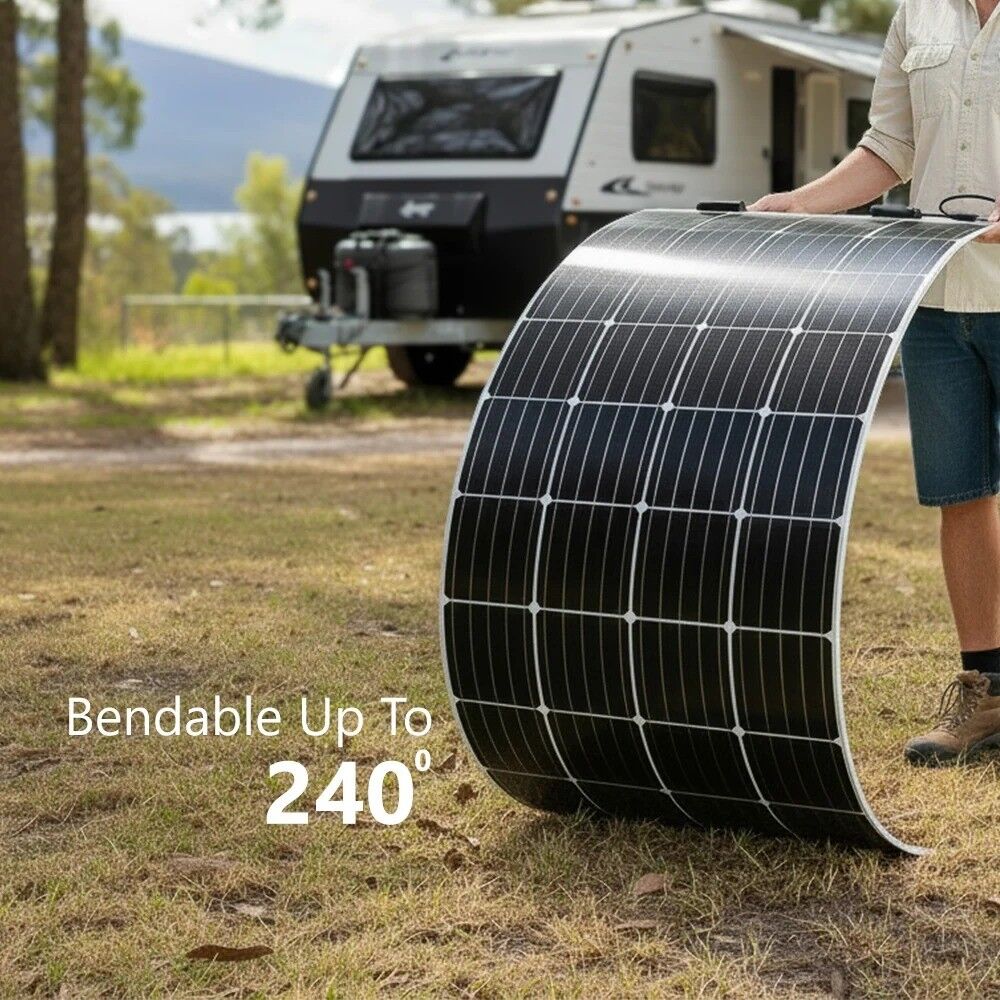

Sunman eArc 430W Flexible Solar Panel - with Butyl Tape, 10 Year Warranty. These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications. Panels include factory fitted butyl tape.
Made with a Patent Pending composite material similar to those used in airplane windows. These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass. Click the Features tab for more information.

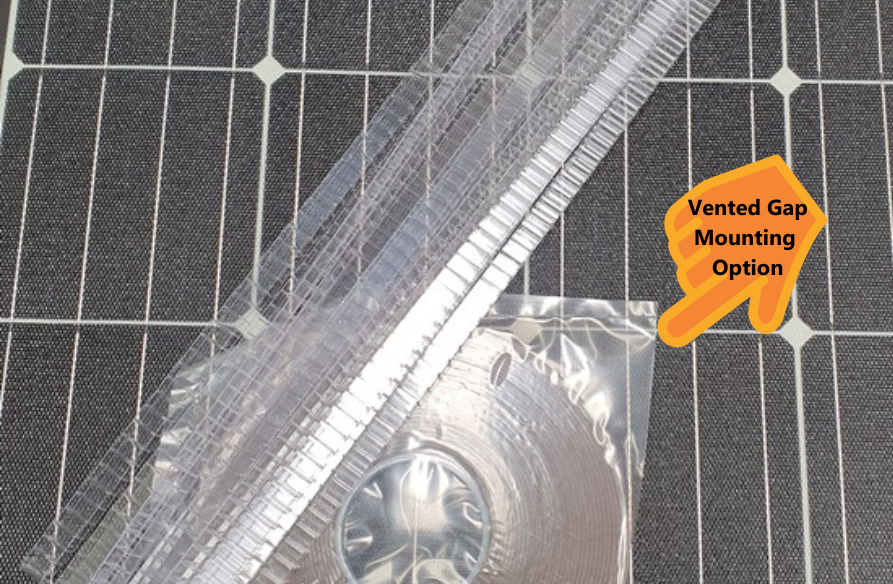

Mounting Options:

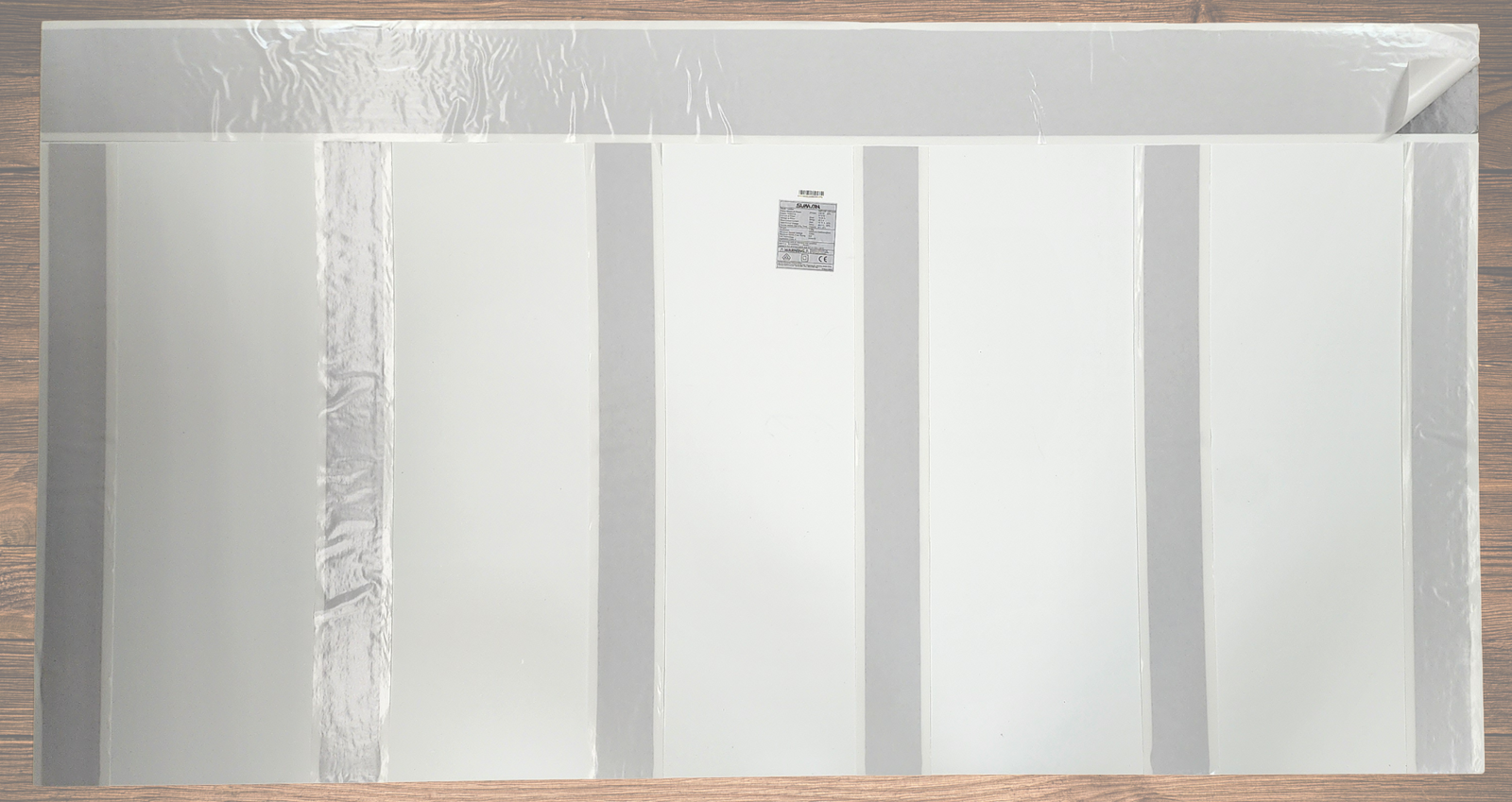

- Installation via very high bond double sided adhesive tape provides a low profile secure bond. This is preinstalled on the back of the panel ready for fitment
- Tougher, lighter, thinner and more durable - eArche thin lightweight solar panels have a tough top layer
- Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
- This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
- Light - 100W frameless is 1.8kg

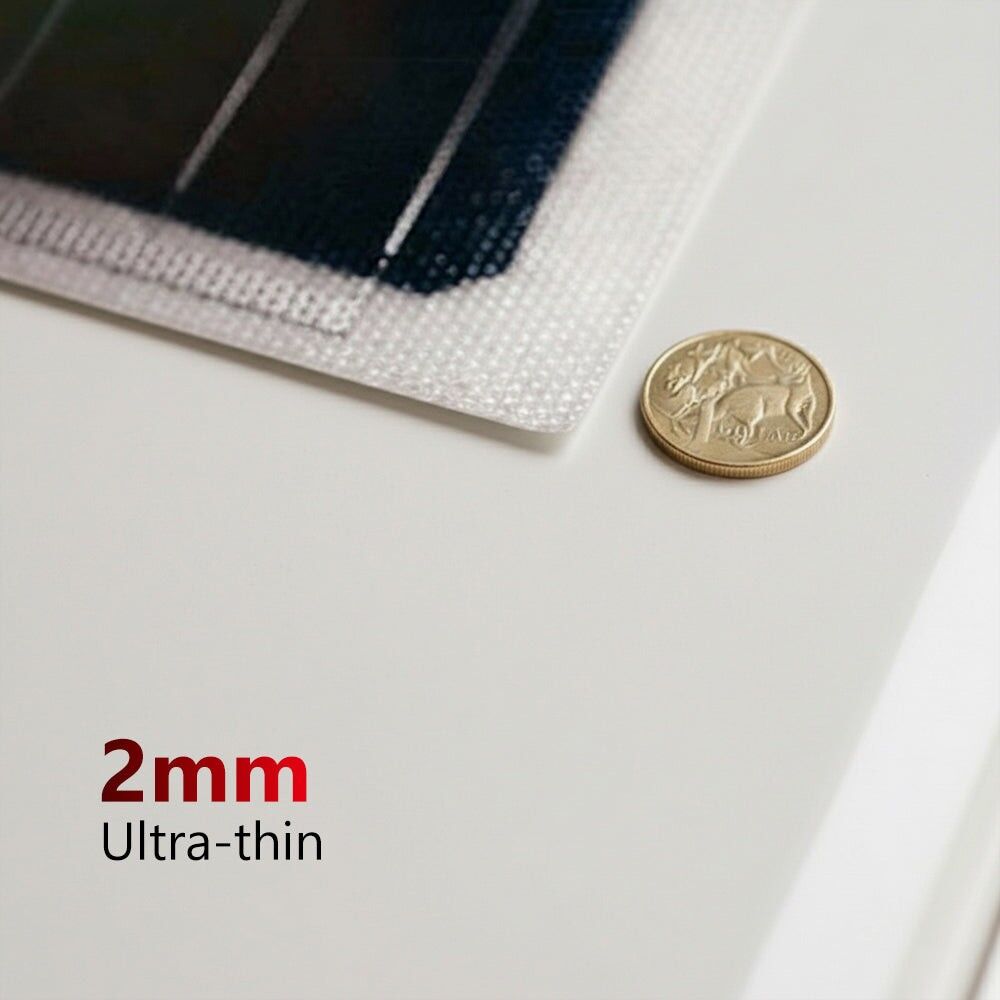

- Thin - 2mm
- Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
- Strong - rated 2400 pascals for wind and 2400 pascals for load
- Durable - 10 year product warranty for building and 5 years for mobile application
- 25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
- Output - Efficient monocrystalline cells, 25 year performance guarantee
- The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation
NOTE: Although the panel has a thin frame around the edge, the panel is flexible and requires supports at least every 156mm (every cell gap)
Specifications
SKU eASMF430-12X12UW-BT
Brand Sunman
Warranty Period: 10 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 430
Operating temperature range -40 ℃ to 85 ℃
Connector MC4 Compatible
Output Cables Photovoltaic technology cable 4.0 mm 2 , (+)150 / (-)450 mm

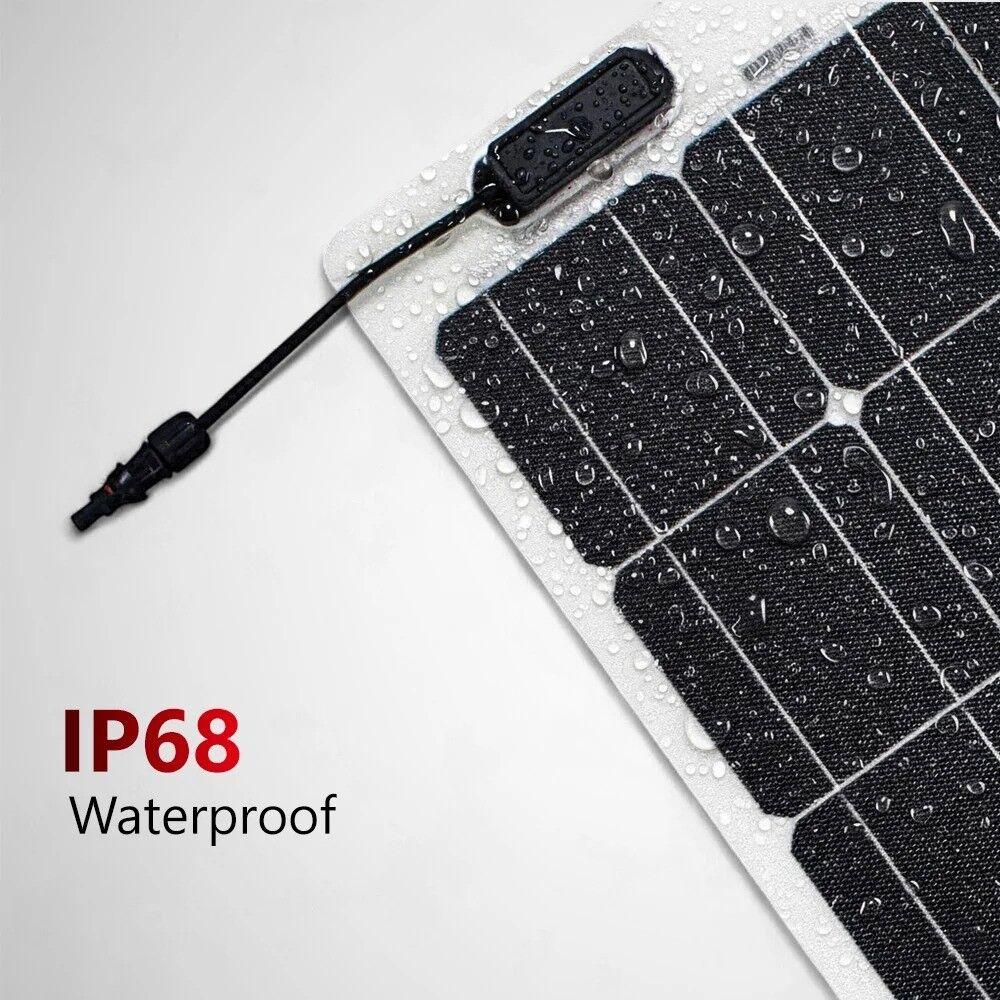

Junction Box IP 68 rated

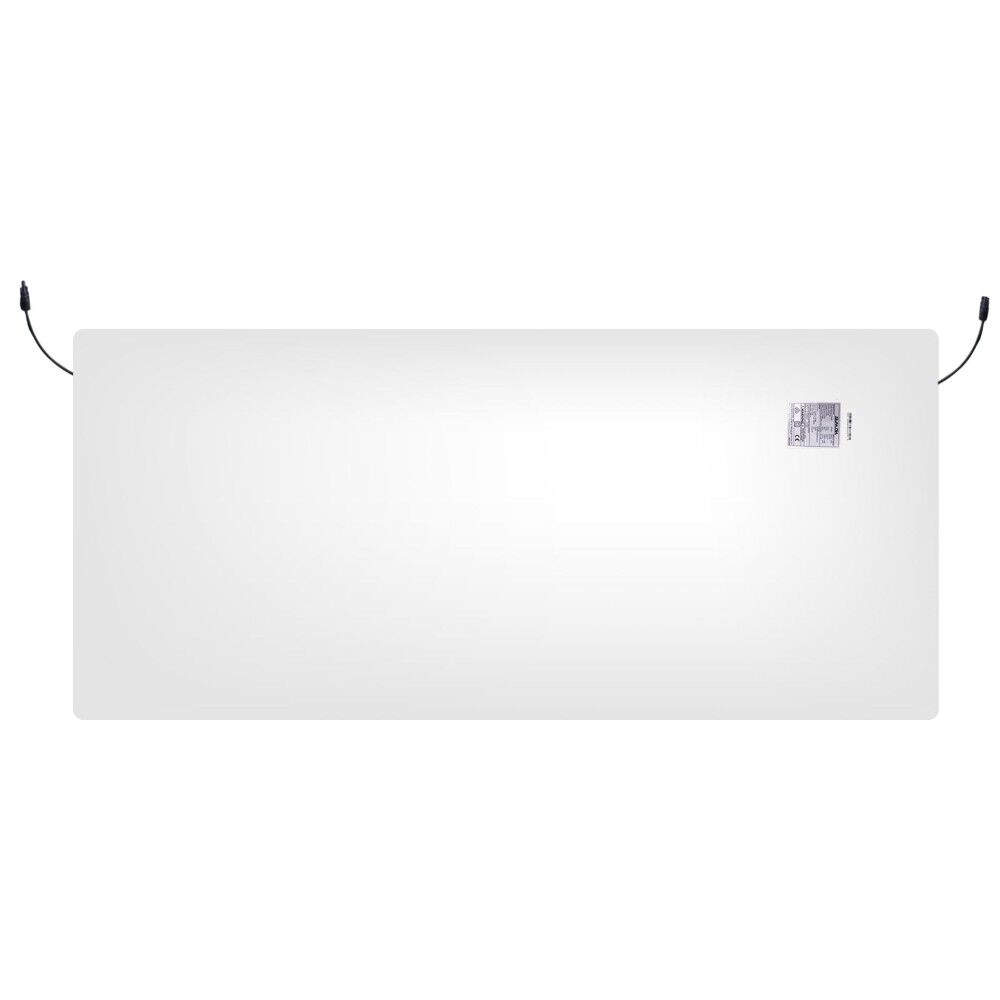

Backsheet Colour White
Max System Voltage (VDC) 1000 V DC (IEC)
Open Circuit Voltage Voc(V) 49.8
Max Power Current Im(A) 10.24 Imp
Max Power Voltage Vm(V) 40.2 Vmp
Weight (kg) 7.3
Short Circuit Current Isc(A) 10.74
Dimensions 2054mm x 1080mm x 2mm
