Product Description

Sunman eArc 4 x 100W Flexible Solar Panel with Victron SmartSolar MPPT 100/30 Charge Controller & Wiring Kit, 5 Year Warranty.

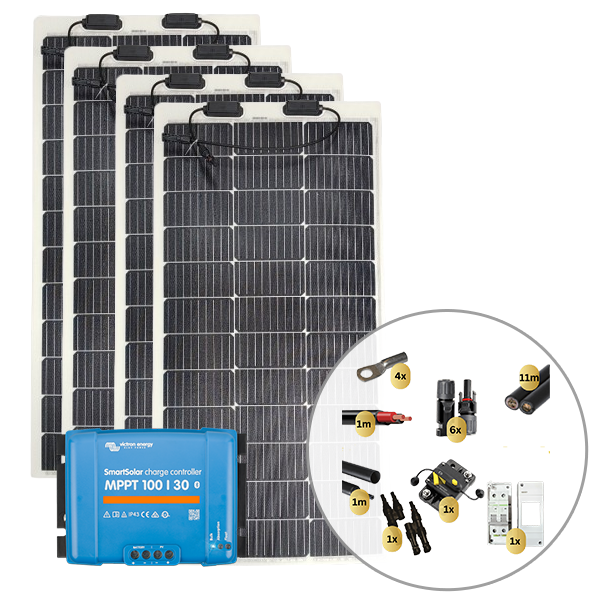

Pack Includes:

  • 4 x Sunman eArc 100W Flexible Solar Panel, SMF100M-3x12UW
  • 4 x Solar 4 RVs Vented Gap Kit for 100W Panels (Poly Carbonate Strips + Roll of VHB Tape, RP-PK-VGK-100W
  • 1 x Victron SmartSolar MPPT 100/30 Charge Controller, SCC110030210
  • Wiring Kit:
    • 6x MC4s
    • 1x 'h' Branch MC4
    • 11m 4mm2 PV1-F Solar Cable
    • 1m 8 B&S Twin Cable
    • 1x 40A Resetable Circuit Breaker
    • 2x M6 10mm2 Lugs
    • 2x M8 10mm2 Lugs
    • 1m Heatshrink 9-3mm
    • 1x Noark Solar Circuit Breaker and 2 DIN Enclosure

Product Drawing

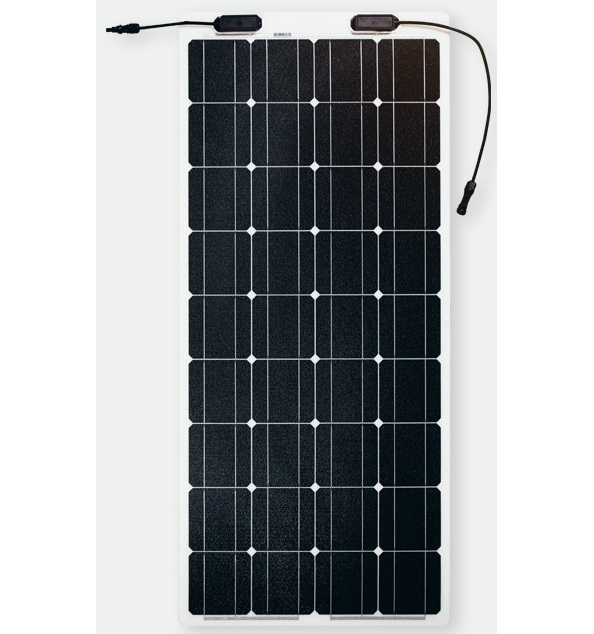

Sunman eArc 100W Flexible Solar Panel.

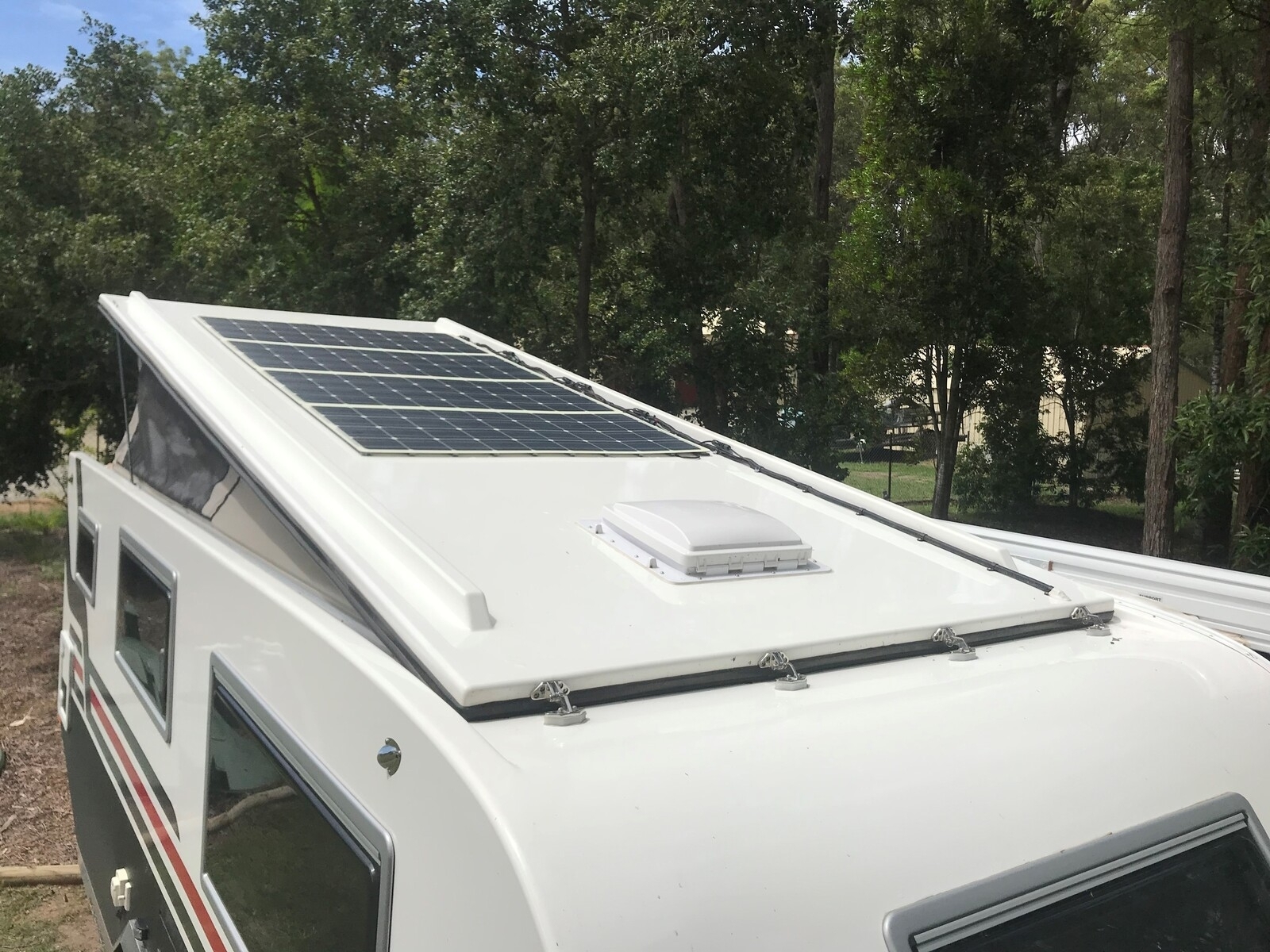

These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.

Made with a Patent Pending composite material similar to those used in airplane windows.  These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass.

Mounting Options:

  • The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
    • One roll of very high bond double sided adhesive tape
    • Polycarbonate strips
  • Installation via very high bond double sided adhesive tape provides a low profile secure bond.
  • The Bi-Adhesive Backing includes a continuous sheet of 1mm bi-adhesive material over the whole back of the panel for mounting on smooth surfaces with no bumps or dips.  Installation then becomes a simple peel and stick. Mounted in factory to panel prior to shipping. You'll need to remove thin plastic covering prior to mounting in place.
  • A structural silicone (Fix8) can be used to adhere the panel to a surface.
  • The panel can be secured using bolts or screws through eyelets in the panel. You will get the correct amount for the size of the panel.
  • Please note: You will only require one mounting option! Please choose one of the mounting options in the Accessory List above.

eArc are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.

Tougher, lighter, thinner and more durable

  • Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
    • This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
  • Light - 100W frameless is 1.8kg
  • Thin - 2mm
  • Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
  • Strong - rated 2400 pascals for wind and 2400 pascals for load
  • Durable - 10 year product warranty for building and 5 years for mobile application
    • 25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
  • Output - Efficient monocrystalline cells, 25 year performance guarantee
  • The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation
Note: The eArc panels don't come with a solar regulator. We recommend to use quality Victron solar charge controllers with all eArc solar panels. Please Click HERE to find our Victron range

Product Brochure

Product Drawing

Mounting Instructions



Solar 4 RVs Vented Gap Kit for 100W Panels (Poly Carbonate Strips + Roll of VHB Tape)

The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:

  • One roll of very high bond double sided adhesive tape
  • Polycarbonate strips

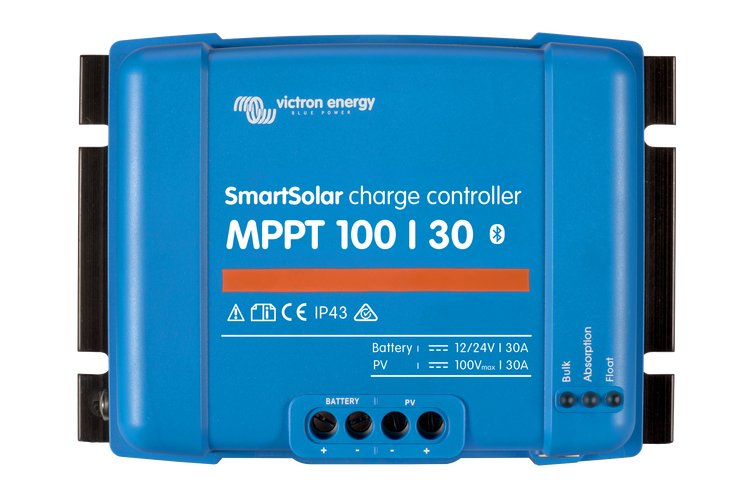

Victron SmartSolar MPPT 100 VOC / 30A Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Bluetooth Smart built-in: dongle not needed:

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct:

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT):

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions:

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency:

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm:

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection:

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor:

Compensates absorption and float charge voltage for temperature.

Real-time data display options:

  • Apple and Android smartphones, tablets and other devices.
  • Color Control GX and other GX products.

Victron PI12/2000 Product Card

Product Manual

Specifications

SKU Loom-4x100F-100-30-WK

Brand Sunman

Warranty Period: 5 Years

Product Category Solar Bundles

Solar Panel Type Flexible Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 400

Dimensions 1093 x 552 x 2 mm (per Solar Panel) | 70 x 186 x 130 mm (Solar Controller)

Amps 30

Short Circuit Current Isc(A) 5.12

Weight (kg) 10.5

Max Power Voltage Vm(V) 21.2

Max Power Current Im(A) 4.75

Open Circuit Voltage Voc(V) 25.2

Max System Voltage (VDC) 1000

AC Input Operating Range -40 °C to 85 °C
