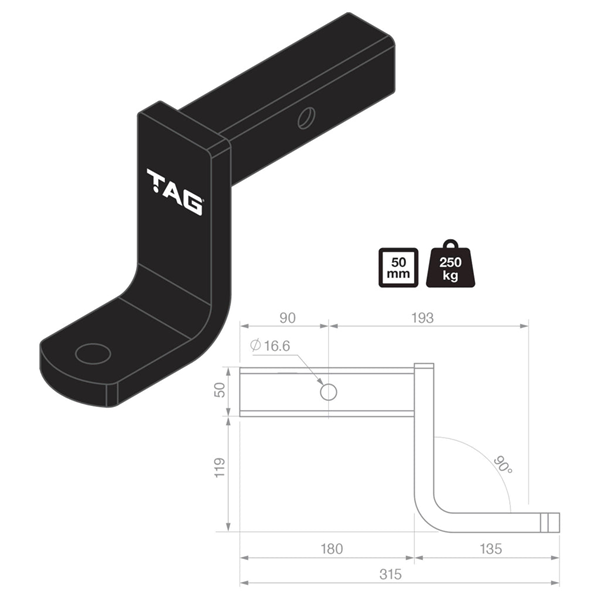

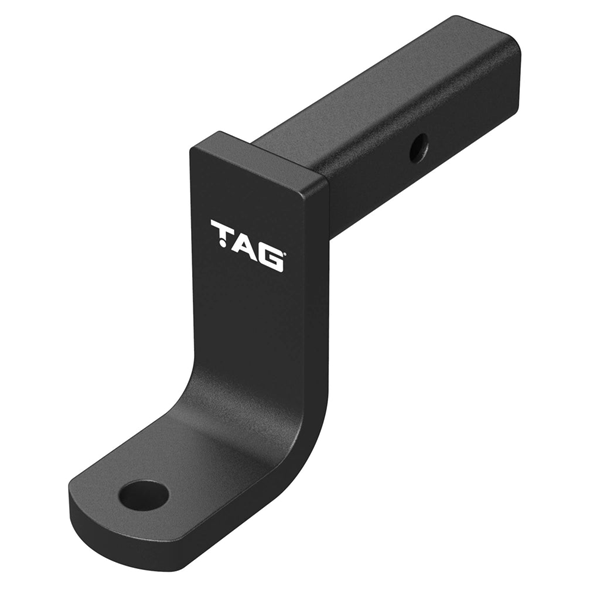

TAG Class 4 Tow Ball Mount - 193mm Long, 125/150mm Drop, 50mm Square Hitch
SKU: L4183 Learn More»
Product Description
TAG Class 4 Tow Ball Mount - 193mm Long, 125/150mm Drop, 50mm Square Hitch, Limited Lifetime Warranty. TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

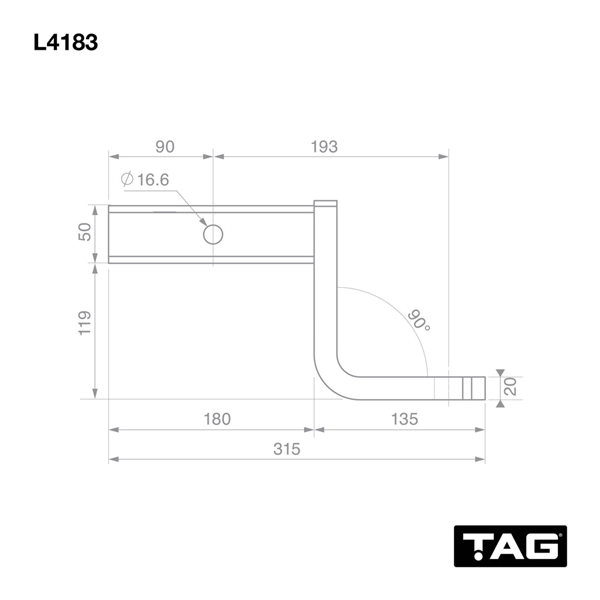

- 193mm Long (Pin to Ball)
- 90° Tongue Face
- Drop: 125mm
- Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
- 2500kg Gross Trailer Weight
- 250kg Ball Weight
- Durable Powder-Coated Finish
- ADR 62/02 Compliant
- TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
Specifications
SKU L4183
Brand TAG
Warranty Period: Limited Lifetime
Product Category Towballs, Hitches and Couplings
Length 315
Towing Capacity 2500 kg
Drop 125mm
Tow Ball Weight (kg) 250
Length (pin To Ball) 193mm
Front To Pin 225mm
Back To Pin 90mm
