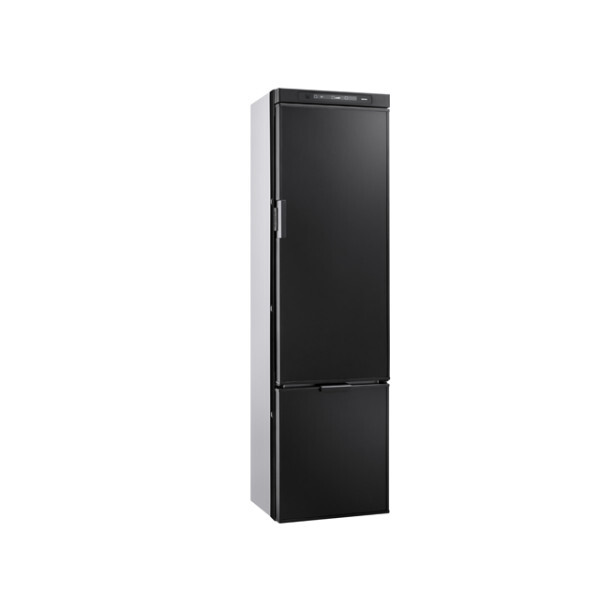

Thetford N4141 134 Litre 3 Way Slimline Fridge

Specifications

SKU 693262SP

Brand Thetford

GTIN 8710315002225

Warranty Period: 3 Years

Product Category Upright RV Absorption Fridges

Certified By AGA

Gas Certification Number AGA 8085 G

Product Type Absorption refrigerator for 12 volts, 240 volts and gas

Total Capacity (Litres) 134

Freezer Compartment (Litres) 15.4

Fridge Depth (mm) 561

Fridge Width (mm) 438.5

Fridge Height (mm) 1510

Energy consumption 12V/240V 2.8kWh/24h (@ 16C) | 5.5kWh/24h (@ 32C)

Net Weight (kg) 38

Energy Source Selection Automatic

Cooling Fans 3 (2 external fans, 1 internal fan)

Energy Consumption Gas 290g/24h (@ 16C) | 540g/24h (@ 32 C)

Usable Power Source DC / AC / Gas

Ignition Type Electric

Size Door Panel (H x W) 950 x 394 mm (cabinet) | 453 x 394 mm (drawer)

NOTE There is no exterior door skin. The door is silver coloured coated foam, with black plastic trim. A laminate panel or ply can be fitted to the door to

Door Hinge Position Right, reversible

Door Flat framed

Cut Out Required W424 x H1504 x D570 mm

Digital Display LCD display with touch screen

Installation Needs to be installed and certified by a qualified & licensed gas-fitter. Incorrect install will void warranty. Ensure you also refer to the Manufact

Capacity (Litres) 118.4 Litres

Colour Black

Videos

How To: Moving The Storage Shelves In A Thetford 3 Way Fridge

How To: Operating The Thetford Fridge Control Panel

N4000 new absorption fridges Thetford

N4000 How to set up N4000 A refrigerator LCD NL

Product Q&A

• How do I clean my fridge?

  Cleaning tips
  • A good time to clean your refrigerator is straight after you have defrosted it.
  • Clean the refrigerator with a soft cloth and mild detergent.
  • Dust the refrigerator with a soft, moistened cloth.
  • Use a brush or soft cloth once a year to remove any dust from the condenser at the inside of the refrigerator.

  Important - Do not use soap or aggressive detergents that are abrasive or soda-based. The removable interior components of the refrigerator are not dishwasher safe.

• How do I defrost my refrigerator?

  Frost will gradually build up on the condenser of the refrigerator. You should defrost the refrigerator as soon as the frost layer is about 3 mm thick. Frost reduces the refrigerating capacity and life of your refrigerator.

  • Remove the ice cube tray and all food.
  • Switch off the refrigerator.
  • Leave the refrigerator door open.
  • Place dry towels in the refrigerator to absorb the water.
  • Place trays containing hot water in the freezer compartment.
  • After defrosting (when the freezer compartment and condenser are frost-free), remove the towels and the water trays and use a cloth to dry off the refrigerator.
  • Switch the refrigerator on again.


  Important
  • Do not use force or sharp objects to remove frost.
  • Do not try to accelerate defrosting by using a hairdryer for example.

• How do I check if my refrigerator door closes properly?

  If the door is not closed properly, frost will form in the refrigerator. Close the door with a piece of paper between the door and the refrigerator, to determine whether the door closes properly. Pull at the piece of paper. If you feel resistance, the refrigerator door closes properly. If you feel no resistance, the door does not close properly.

  Perform this test regularly on all four sides of the refrigerator door. If you find that the door does not close properly, check whether the door locking mechanism keeps the door properly shut.

• Is it okay to defrost my fridge/freezer using a hair dryer, heat gun or boiling water?

  No, the sudden change in temperature will cause the inner surface of the fridge/freezer to distort. This will not be covered under warranty.

• The blue fault light flashes on the display.

  The blue LED is a fault diagnosis tool. It should be accompanied by a ‘spanner’ symbol and a number. Please refer to owner’s manual for a list of diagnostic codes.

• When operating on gas, do I need my caravan or motorhome to be level?

  Yes, this is a critical detail to ensure the refrigerator operates correctly.

• What do I do if my Thetford refrigerator breaks down?

  Thetford has over 350 service representatives across Australia, ready to meet your service needs.
