Toyota Hilux (2005-2015) Load Bar Kit / Track AND Feet - by Front Runner
SKU: KRTH012 Learn More»Product Description

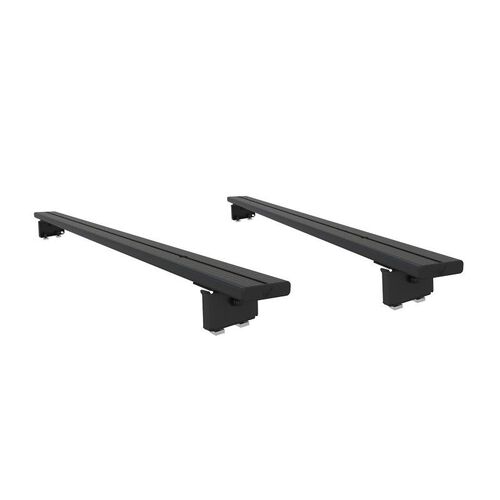

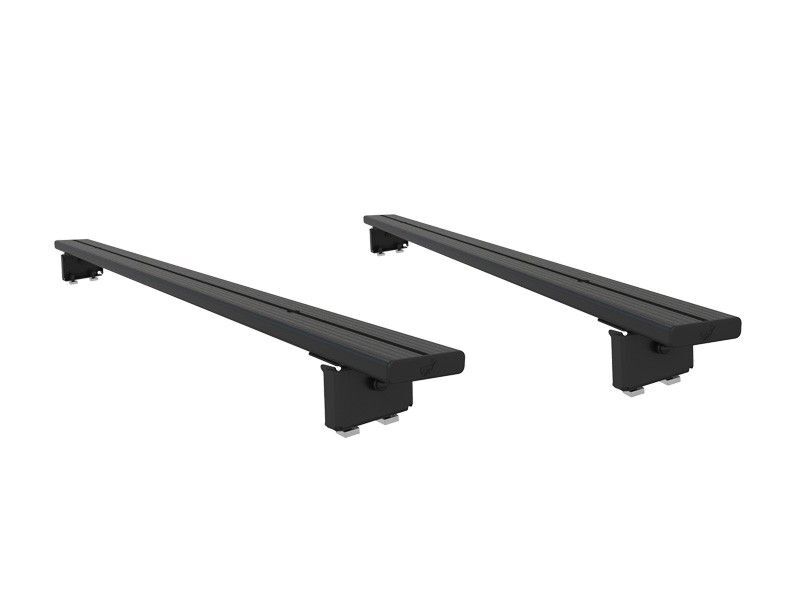

Toyota Hilux (2005-2015) Load Bar Kit / Track AND Feet - by Front Runner, Limited Lifetime Warranty. A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 2 40mm Feet, 2 65mm Feet, 2 1165mm Load Bars, 2 Toyota Hilux 1240mm Tracks, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle.
Features:
- You may not have the need for a full roof rack and find that you can get by using a set of Front Runner Load Bars.
- These Load Bars are mounted to the vehicle’s roof via a set of supplied Tracks and Track Mounted Feet.
- Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
- Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
- The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
- The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.
- Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
- Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Installation Instructions for FASS012
Installation Instructions for FASS014
Installation Instructions for TRTH001
Installation Instructions for WDLB001
Specifications
SKU KRTH012
Brand Front Runner
GTIN 6009542232447
Warranty Period: Limited Lifetime
Product Category Roof Racks and Platforms
Product Material Black epoxy powder-coated T6 aluminium | High strength steel
Weight (kg) 8.9kg
Dimensions (WxHxL mm) 115mm x 240mm x 1290mm
Included 1 x FASS012 - Foot Set / 40mm-50mm | 1 x FASS014 - Foot Set - Angled / 65mm | 1 x LBSK013 - Load Bar Pair 1165mm(W) | 1 x TRTH001 - Toyota Hilux (2005
Net Weight (kg) 8
Product Q&A
-
What is the load rating of the Toyota Hilux (2005-2015) Load Bar Kit / Track & Feet (KRTH012)?
The Toyota Hilux (2005-2015) Load Bar Kit / Track & Feet (KRTH012) can take up to 100kg (220lbs) evenly dispersed over 2 load bars.We recommend referring to the vehicle manufactures guide as to what would be a safe load rating for your particular vehicle.
-
I have heard that roof racks/platforms have different on road and off-road rating. What is the load rating for the Front Runner roof racks?
Great question! Front Runner Outfitters will always have the same on road and off-road load rating on all their roof racks.
However, there are certain weight you will need to consider with any platform/roof rack:
- What is your load capacity of your car roof?
- What is the load rating of the roof rack/platform?
- What is the weight of the roof racks/platform?
- What is the weight of everything you want to add on your racks/platform?
So, for example:
If we use the 2011 Toyota Prado 150 Series as an example vehicle. The roof load rating is 100kg. If you choose to buy the Front Runner Slimline II Roof Rack (KRTP011T), it weighs 32kg. Therefore, you will have 68 kg left of your roof load rating, which means you can continue to load your roof rack with an additional 68kg
-
How much height does the Toyota Hilux (2005-2015) Load Bar Kit / Track & Feet (KRTH012) add to the roof?
The Toyota Hilux (2005-2015) Load Bar Kit / Track & Feet (KRTH012) adds a minimum height of 110mm measured from the highest point of the roof.
