Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount - by Front Runner

SKU: KRTL036 Learn More»
Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount - by Front Runner
Free Shipping
$521
$537

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$20

$95

$235

$115

$294

$129

$21

$85

$970

$132

$58

$74

$365

Click '+' to show more accessories
1 Day Dispatch Express Shipping Price Match Guarantee Customer Reviews

Product Description

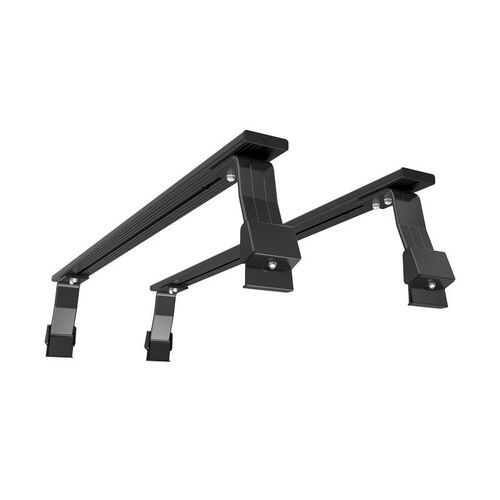

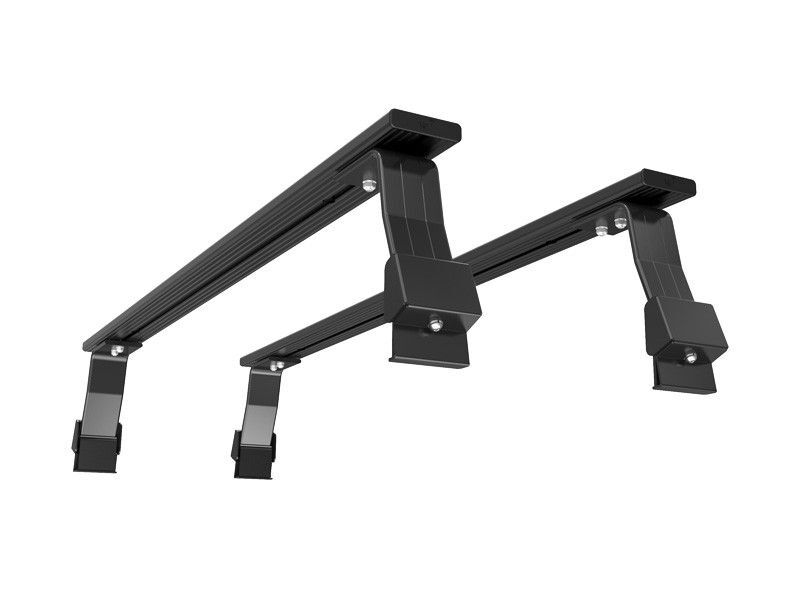

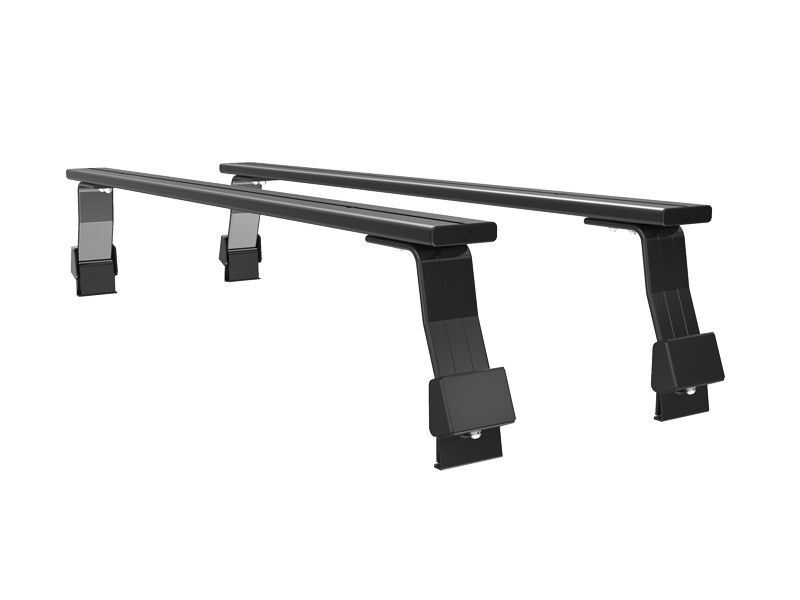

Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount - by Front Runner, Limited Lifetime Warranty. A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 130mm Gutter Mount legs, 2 1425mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

Features:

  • You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
  • Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
  • The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
  • Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
  • The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
  • The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.
  • Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
  • Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Installation Instructions for LASS102

Installation Guide

Installation Instructions for WDLB001

Installation Guide

Specifications

SKU KRTL036

Brand Front Runner

GTIN 6009542232515

Warranty Period: Limited Lifetime

Product Category Roof Racks and Platforms

Product Material Black epoxy powder-coated T6 aluminium | 3CR12 Stainless Steel

Weight (kg) 8.4kg

Dimensions (WxHxL mm) 115mm x 180mm x 1555mm

Included 2 x LASS102 - No 2 Leg 130mm (Pair) | 1 x LBSK016 - Roof Load Bar Pair 1425mm(W) | 1 x WDLB001 - Load Bar Wind Deflector / 10mm

Net Weight (kg) 7


Product Q&A

Ask Us a Question
  • I have heard that roof racks/platforms have different on road and off-road rating. What is the load rating for the Front Runner roof racks?

    Great question! Front Runner Outfitters will always have the same on road and off-road load rating on all their roof racks.

    However, there are certain weight you will need to consider with any platform/roof rack:

    • What is your load capacity of your car roof?
    • What is the load rating of the roof rack/platform?
    • What is the weight of the roof racks/platform?
    • What is the weight of everything you want to add on your racks/platform?

    So, for example:

    If we use the 2011 Toyota Prado 150 Series as an example vehicle. The roof load rating is 100kg. If you choose to buy the Front Runner Slimline II Roof Rack (KRTP011T), it weighs 32kg. Therefore, you will have 68 kg left of your roof load rating, which means you can continue to load your roof rack with an additional 68kg

  • How much height will the Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount (KRTL036) add to my car?

    The Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount (KRTL036) adds a minimum height of 180mm measured from the highest point on the gutter of the roof.

  • What is the load rating of the Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount (KRTL036)?

    The Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount (KRTL036) can take up to 100kg (220lbs) evenly dispersed over 2 load bars.We recommend referring to the vehicle manufactures guide as to what would be a safe load rating for your particular vehicle.
