Victron 100Ah 4x4 Off-Grid Bundle

Product Description

Victron 100Ah 4x4 Off-Grid Bundle, 3 Year Warranty.

Experience unparalleled efficiency, control, and unlock the true potential of your energy system like never before. Elevate your energy storage and management capabilities with our cutting-edge high-performance bundle. Revolutionise the way you harness and optimise energy with these exceptional components:

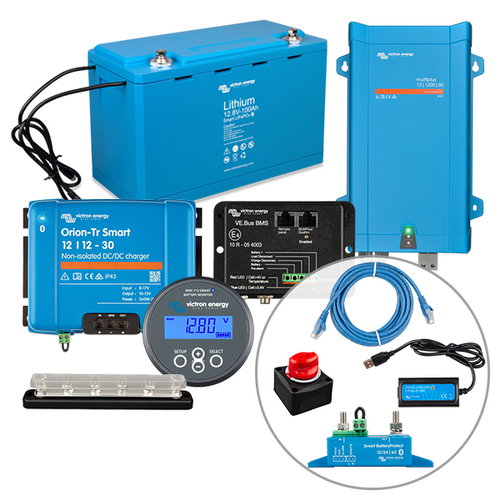

Bundle Includes:

• Victron LiFePO4 Lithium Battery 12.8V/100Ah – Smart - BAT512110610
• Victron MultiPlus Inverter Charger 12/1200/50-16 - PMP122120000
• Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger - ORI121236140
• Victron VE.Bus BMS - BMS300200000
• Victron Smart Battery Protect 12/24V-65A - BPR065022000
• Victron Battery Monitor BMV-712 Smart - BAM030712000R
• Victron Battery Switch ON/OFF 275A - VBS127010010
• 2 x Victron Busbar 150A 6P + Cover - VBB115060020
• Victron RJ45 UTP Cable 0.9 m - ASS030064920
• Victron Interface MK3-USB - VE.Bus to USB - ASS030140000

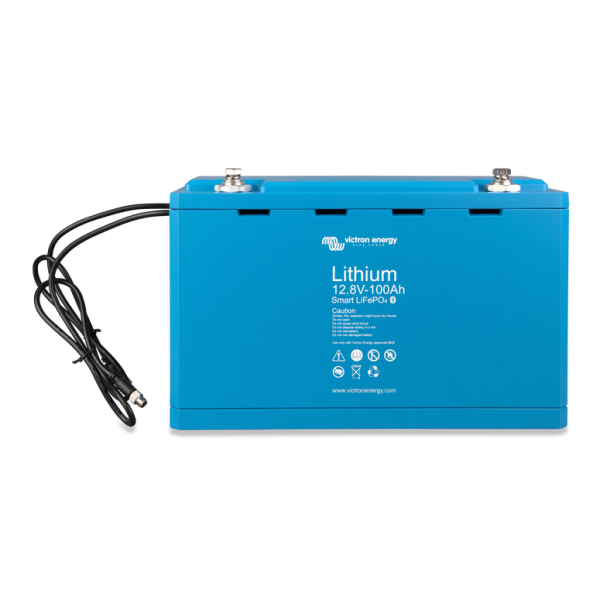

Victron LiFePO4 Lithium Battery 12.8V/100Ah - Smart

• With integrated cell balancing
• Can be parallel and series connected
• Bluetooth app available to monitor cell voltage and temperature

Victron LFP batteries have integrated cell balancing and cell monitoring. Up to 5 batteries can be paralleled and up to four batteries can be series connected,so that a 48V battery bank of up to 1500Ah can be assembled. The cell balancing/monitoring cables can be daisychained and must be connected to a Battery Management System (BMS).

Battery Management System (BMS): The BMS will:

1. Generate a pre-alarm whenever the voltage of a battery cell decreases to less than 3,1V (adjustable 2,85 - 3,15 V).
2. Disconnect or shut down the load whenever the voltage of a battery cell decreases to less than 2,8V (adjustable 2,6 V - 2,8 V).
3. Stop the charging process whenever the voltage of a battery cell increases to more than 3,75 V or the temperature increases to more than 60°C

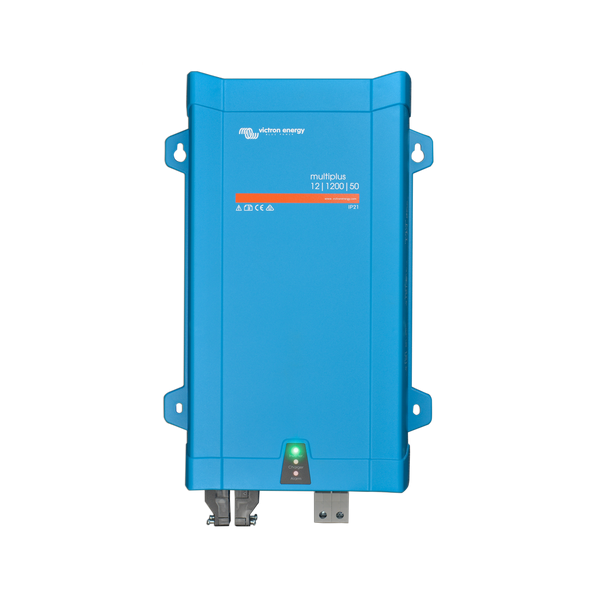

Victron Multi Inverter Charger 12V / 1200VA /50A Battery Charger with 16A AC Transfer Switch

The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Uninterrupted AC power (UPS function): In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control: When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

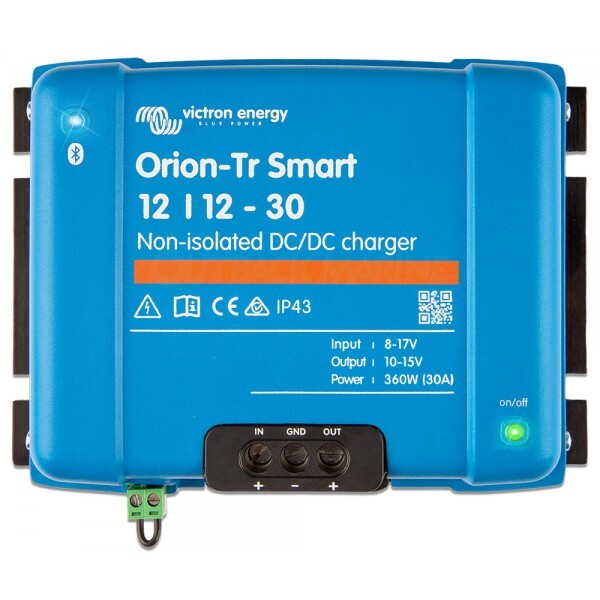

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

Bluetooth Smart enabled: Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

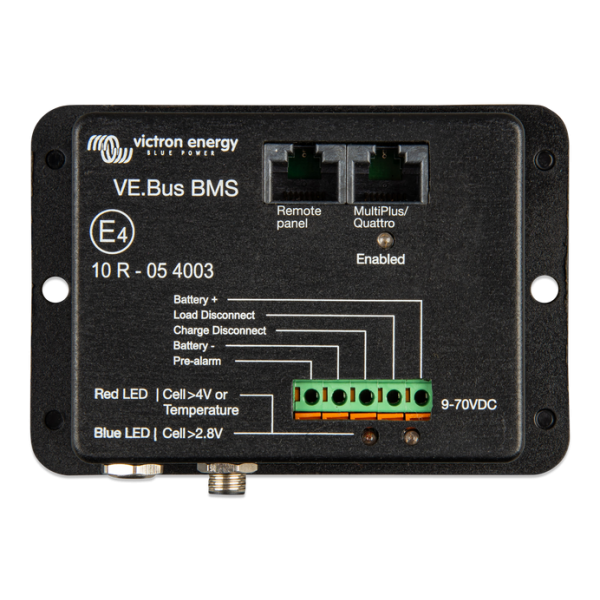

Victron VE.Bus BMS

The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery. Each individual cell of a LiFePO4 battery must be protected against over voltage, under voltage and over temperature. Victron LiFePO4 batteries have integrated Balancing, Temperature and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets. The BTVs of several batteries can be daisy chained. Please see our LiFePO4 battery documentation for details.

The BMS will:

• Shut down or disconnect loads in case of imminent cell under voltage.
• Reduce charge current in case of imminent cell overvoltage or over temperature.
• Shut down or disconnect battery chargers in case of imminent cell overvoltage or over temperature.

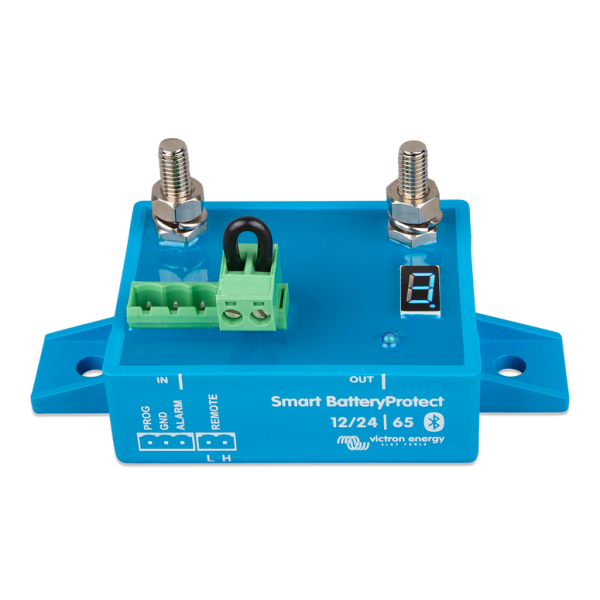

Victron Smart Battery Protect 12/24V-65A

The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).

If required, Bluetooth can be disabled.

The Smart BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.

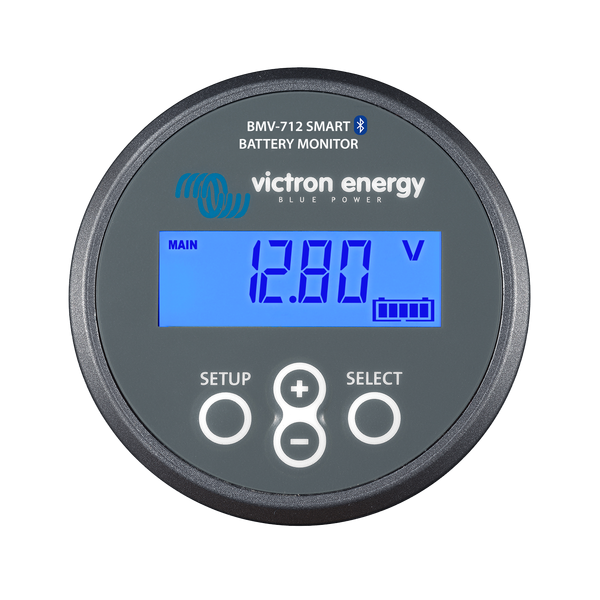

Victron Battery Monitor BMV-712 Smart

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

Victron Battery Switch ON/OFF 275A

Battery Switch ON/OFF 275A

2 x Victron Busbar 150A 6P + Cover

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

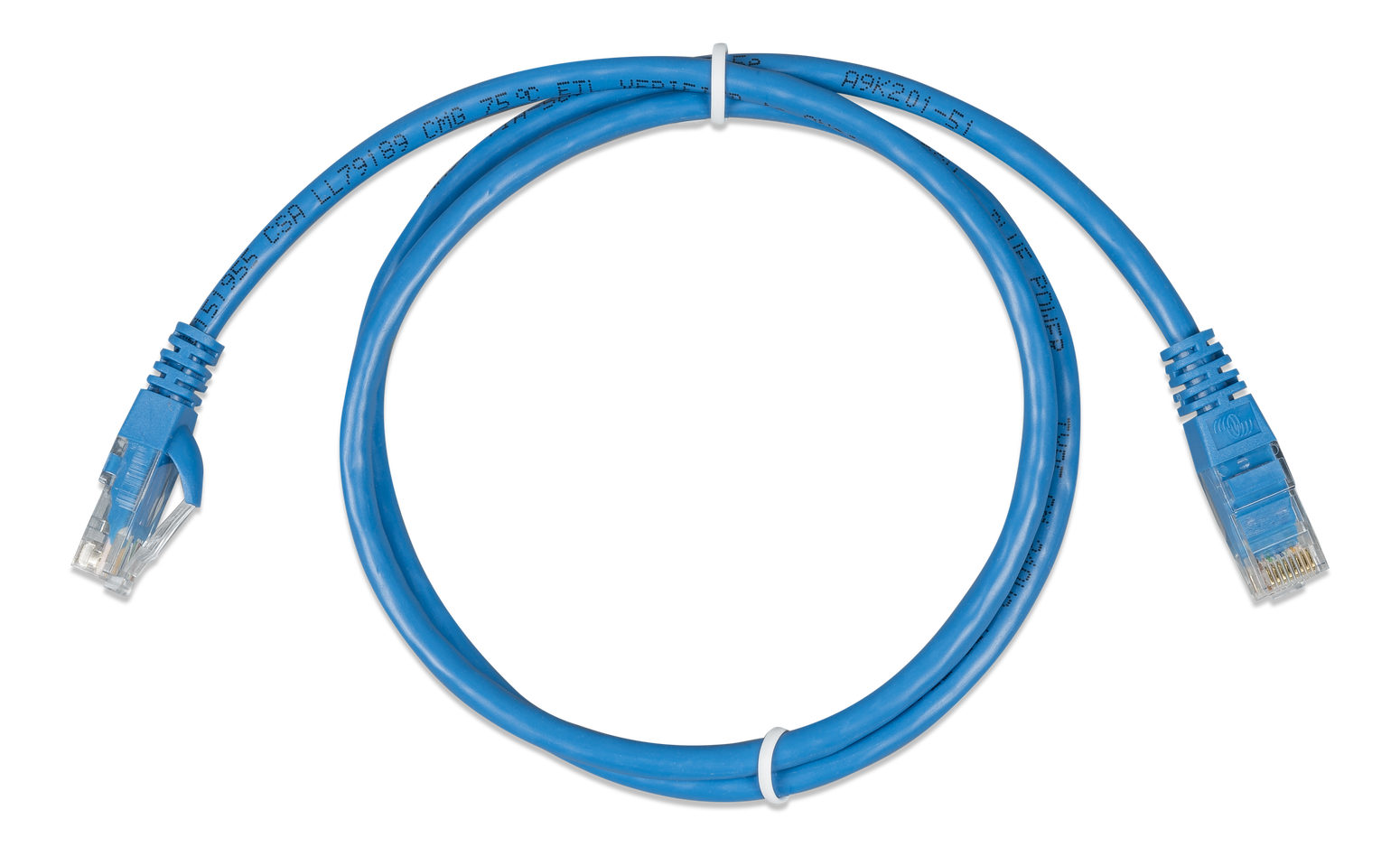

Victron RJ45 UTP Cable 0.9m

A cable to connect Digital Multi Control, Phoenix Inverter Control, Interface MK3-USB, VE.Bus connections between multiple VE.Bus devices and to make VE.Bus and VE.Can connections to a GX device.

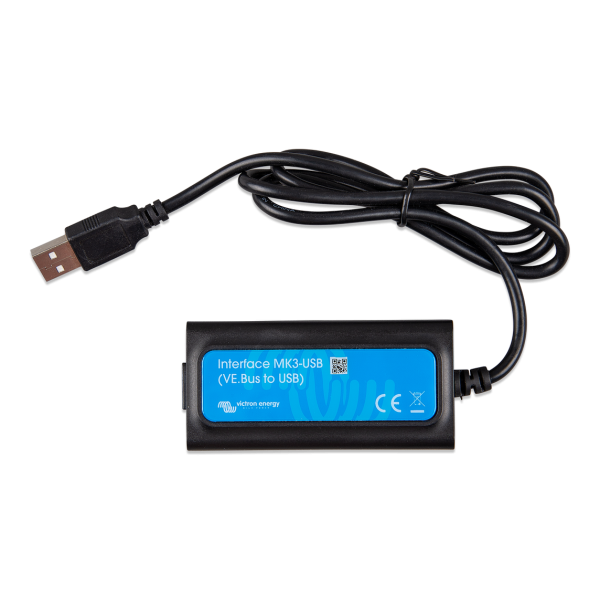

Victron Interface MK3-USB - VE.Bus to USB

The MK3-USB allows the products to connect to a computer for configuration and firmware updates.

Compatable with:

• Multi
• MultiGrid
• MultiPlus
• MultiPlus-II
• Quattro
• Inverter/Charger settings in ECOmulti
• EasySolar
• EasyPlus
• Inverters with a VE.Bus communication port.
