Victron 30A Battery Management System Bundle

SKU: BDL006 Learn More»
Victron 30A Battery Management System Bundle
Free Shipping
$1,019
$1,292
EXTRA $40 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron 30A AC-DC & DC-DC Charger, 30A MPPT SmartSolar Charge Controller & Monitor Bundle, 5 Years Warranty.

Elevate Your Travel Experience with the Victron 30A Battery Management System Bundle. Seamlessly power your 12V appliances, extend your stay, and explore new horizons. Get the Victron 30A Battery Management System Bundle today and fuel your next thrilling escapade off the beaten path!

This bundle pack is designed to help facilitate 'off-grid' travel in your 4WD/Caravan/Camper Trailer. Use in conjunction with your solar panels and batteries to run your favourite 12v appliances and stay longer.

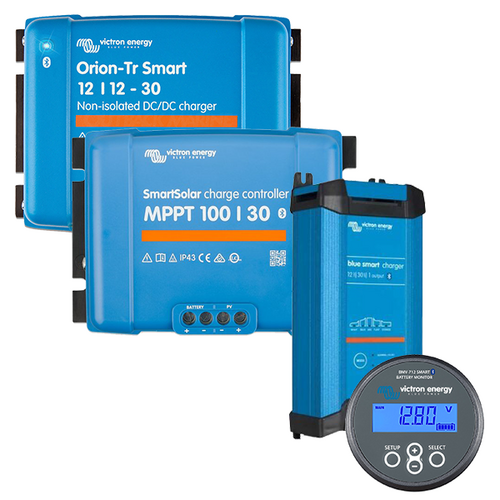

Pack Includes:

  • Victron Blue IP22 Smart Charger 12/30, 1 Output - BPC123047012
  • Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger - ORI121236140
  • Victron SmartSolar MPPT 100/30 Charge Controller SCC110030210
  • Victron Battery Monitor BMV-712 Smart - BAM030712000R

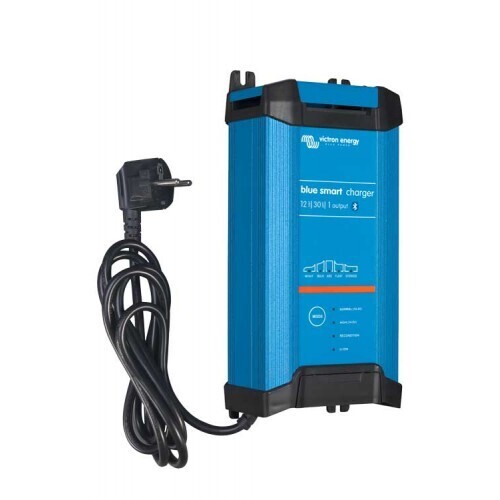

Victron Blue IP22 Smart Charger 12/30 (1 output) - BPC123047012

Power up with confidence and convenience. The Blue IP22 Smart Charger offers intelligent and reliable charging for your batteries. With a 12V/30A output and advanced features, it ensures efficient charging and extends battery lifespan.

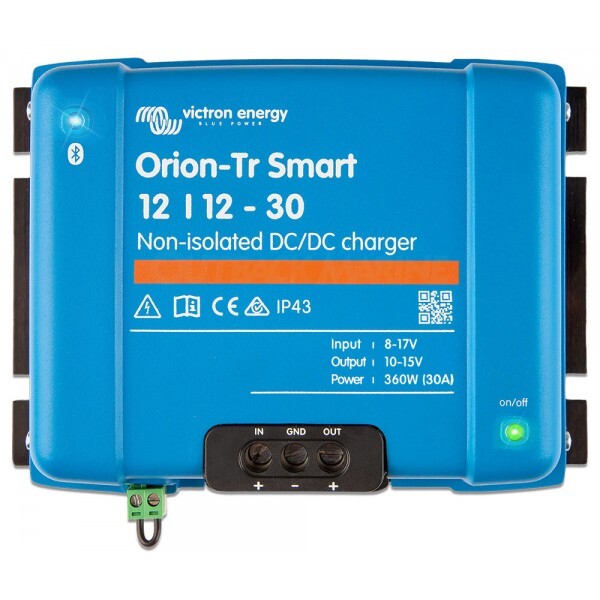

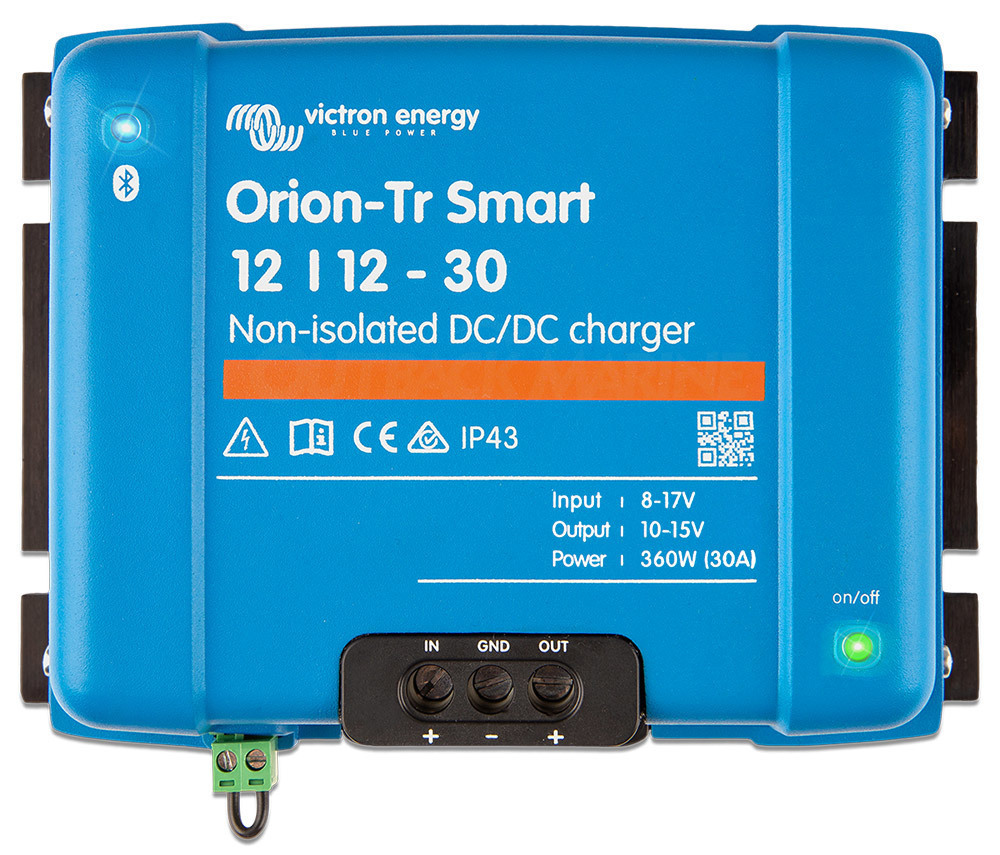

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger - ORI121236140

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. This Victron battery charger can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

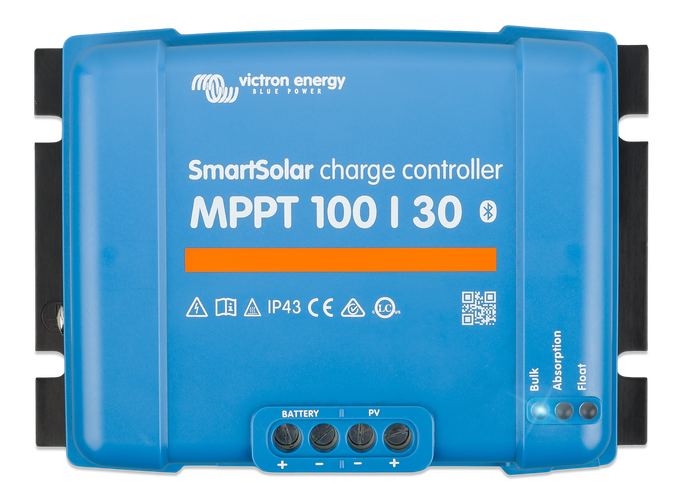

Victron SmartSolar MPPT 100/30 Charge Controller: SCC110030210

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



Victron Battery Monitor BMV-712 Smart - BAM030712000R

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. The BMV-712 Smart battery monitor provides comprehensive real-time information about your battery bank's status. Monitor essential data such as voltage, current, capacity, and state of charge, allowing you to make informed decisions and optimize battery usage.

Specifications

SKU BDL006

Brand Victron

Warranty Period: 5 Years

Product Category Battery Management System

Output Current Rating (Amps) 30

Maximum Charge Current 40A (DC/DC Charger)

Temperature range -20 +50°C (Battery Monitor)

Standby Current Less than 1 mA (DC/DC Charger)

Charger Voltage 12V

Charge current in low current mode 15 A (Smart Charger)

No load power consumption <80 mA (DC/DC Charger) | 0.5 W (Smart Charger)

Under Voltage Shutdown 7V (DC/DC Charger)

Charge Algorithm 6-stage adaptive (Smart Charger)

Charge voltage 'storage' Normal: 13,2V | High: 13,2V | Li-ion: 13,5V (Smart Charger)

Charge voltage 'absorption' Defult setting: 14.4V / 28.8V (Adjustable) (Charge Controller) | Normal: 14,4V | High: 14,7V | Li-ion: 14,2V (Smart Charger)

Charge Voltage Float - Wet (25 degrees)** Normal: 13,8V | High: 13,8V | Li-ion: 13,5V (Smart Charger)

Protection category IP22 (Smart Charger)

Efficiency 98% (Max) (Charge Controller) | 87% (DC/DC Charger) | 93% (Smart Charger)

Charge current 30 A (Smart Charger)

Voltage ± 0,01V (Battery Monitor) | 12/24V Auto Select (Charge Controller)

DC Output Voltage 12,2V (DC/DC Charger)

DC Input Voltage 10-17V (DC/DC Charger)

Output System Voltage 12V (DC/DC Charger) | 12V (Smart Charger)

Operating Range (temp) -40 +50°C (-40 - 120°F) (Battery Monitor) |

Battery Capacity 1 - 9999 Ah (Battery Monitor)

Output 1

Input Voltage 6,5 - 70 VDC (Battery Monitor) | 180 – 265 VAC (Smart Charger)

Operating temperature range -30 to +60°C (full rated output up to 40°C) (Charge Controller) | -20 to +55°C (derate 3% per °C above 40°C) (DC/DC Charger) | -20 to +50°C (Smart Cha

Battery-connection Screw terminals 13 mm² / AWG6 (Smart Charger)

Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature (Charge Controller)

Humidity 95%, non-condensing (Charge Controller) | Max. 95% non-condensing (DC/DC Charger) | Max 98% (Smart Charger)

Short Circuit Current Isc(A) 60 (DC/DC Charger)

Dimensions Front: 63 mm diameter | Front bezel: 69 x 69 mm | Body diameter: 52 mm | Body depth: 31 mm (Battery Monitor) | 70 x 186 x 130 (Charge Controller) | 13
