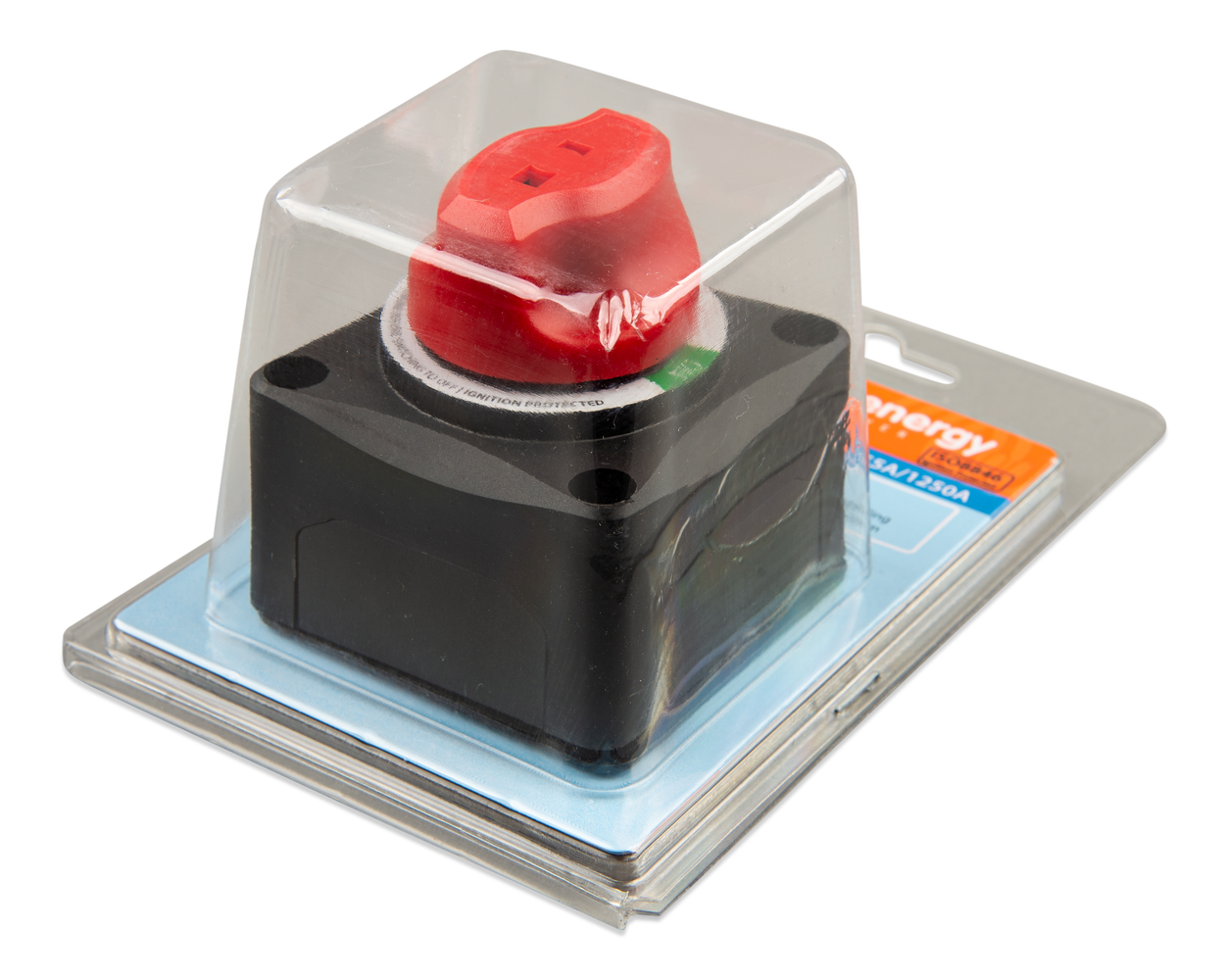

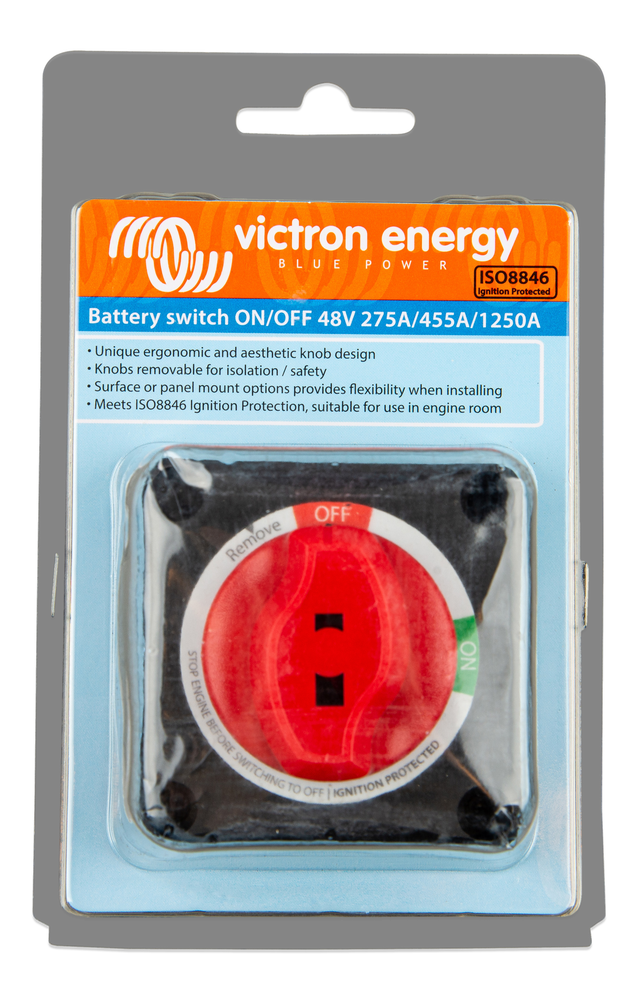

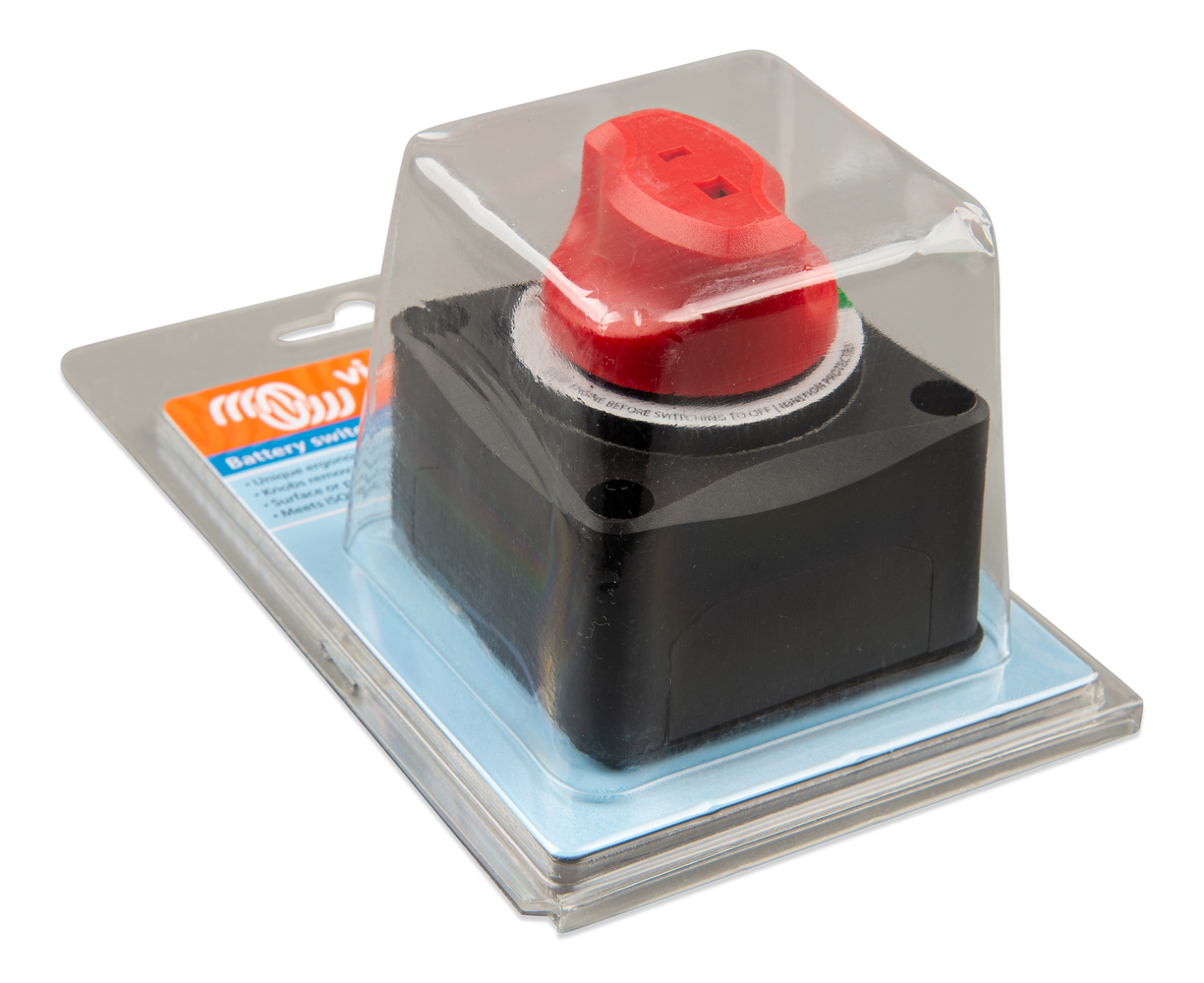

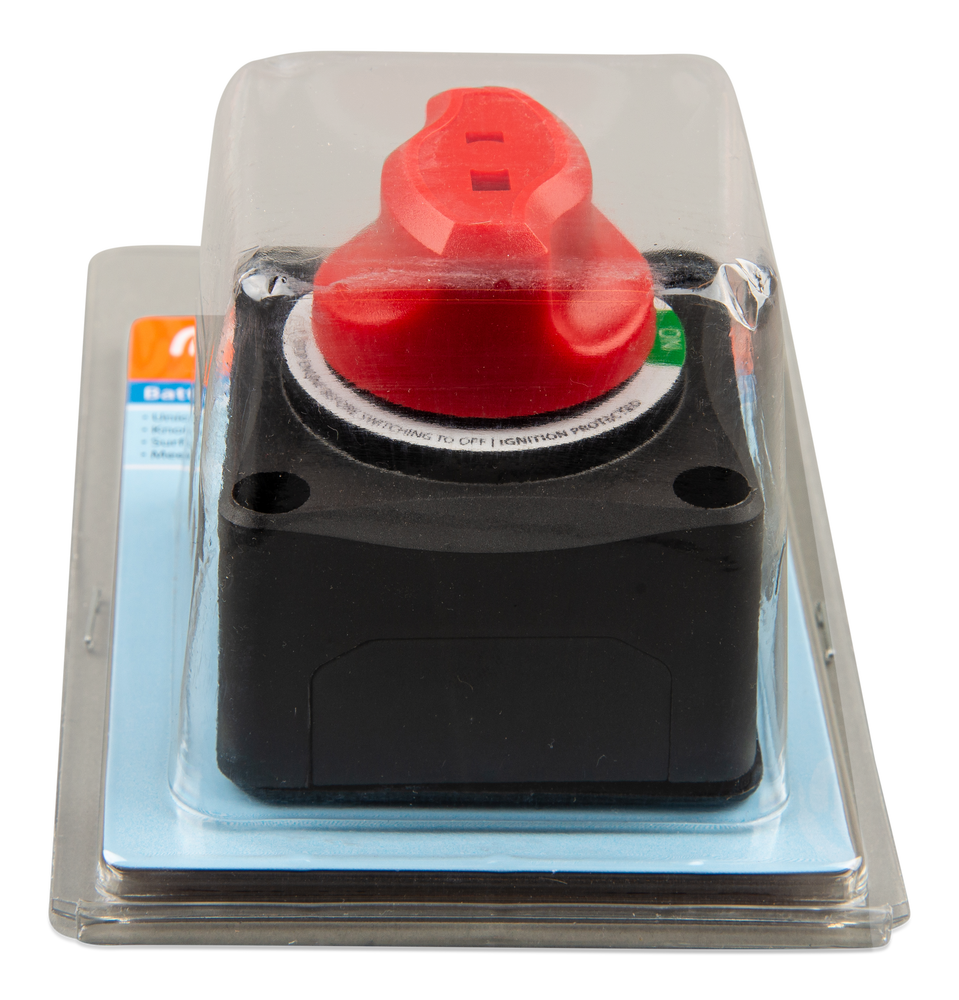

Victron Battery Switch On/Off 275A

SKU: VBS127010010 Learn More»
$69

CALCULATE SHIPPING:

Dispatch 5 to 7 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

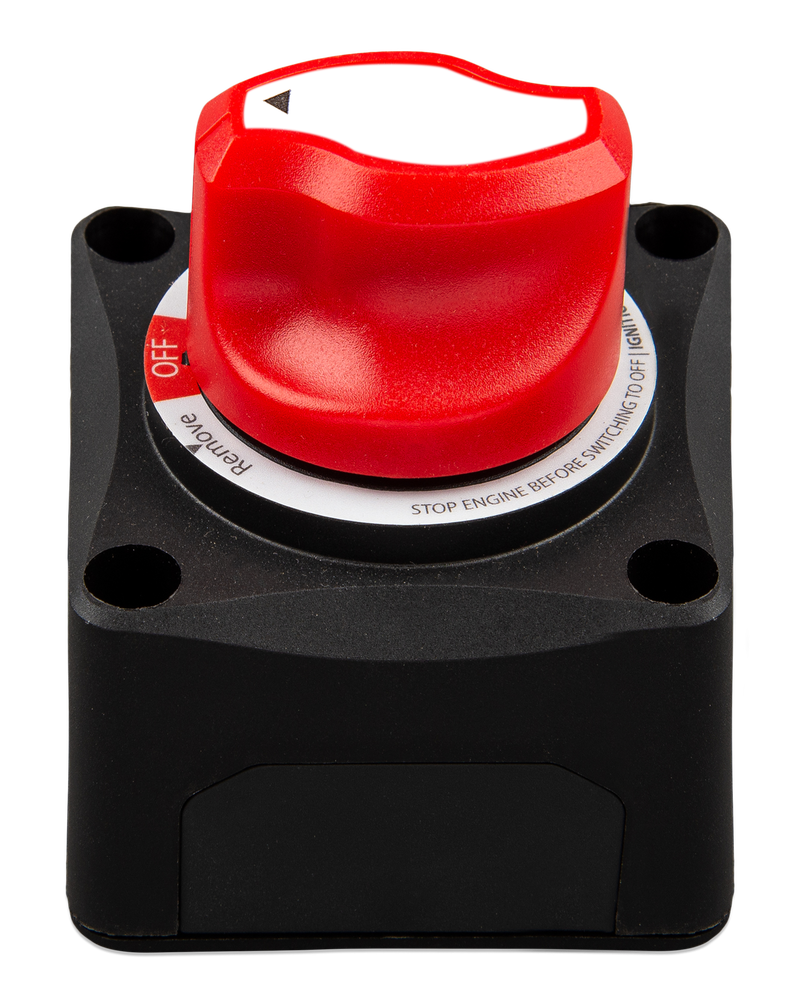

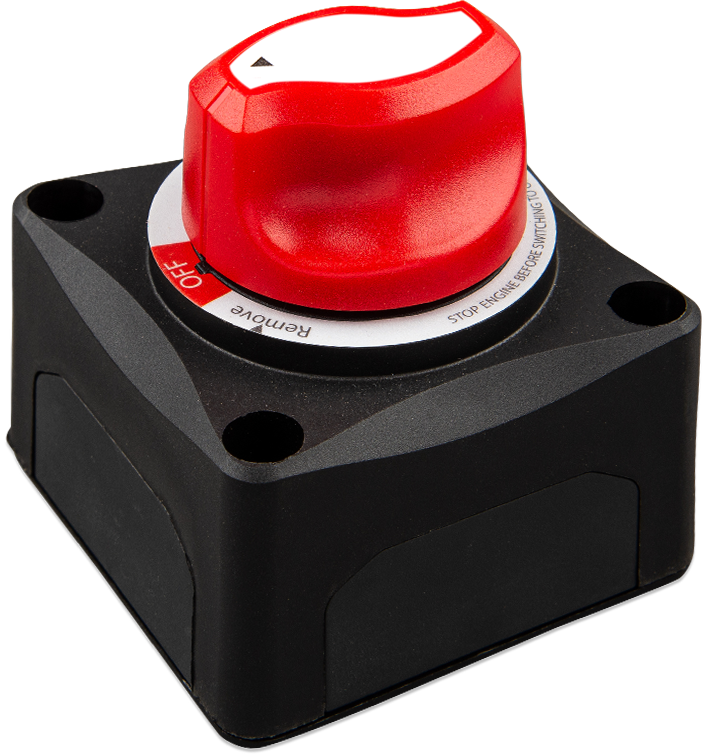

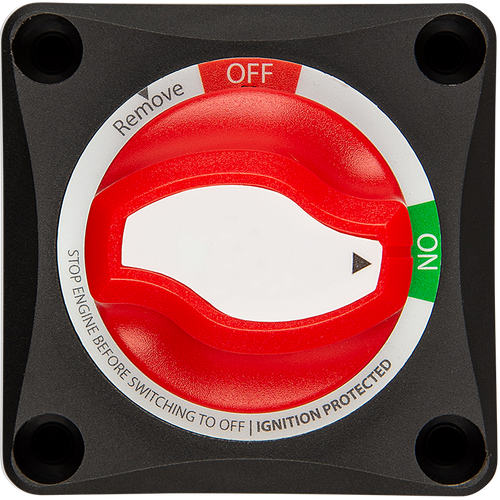

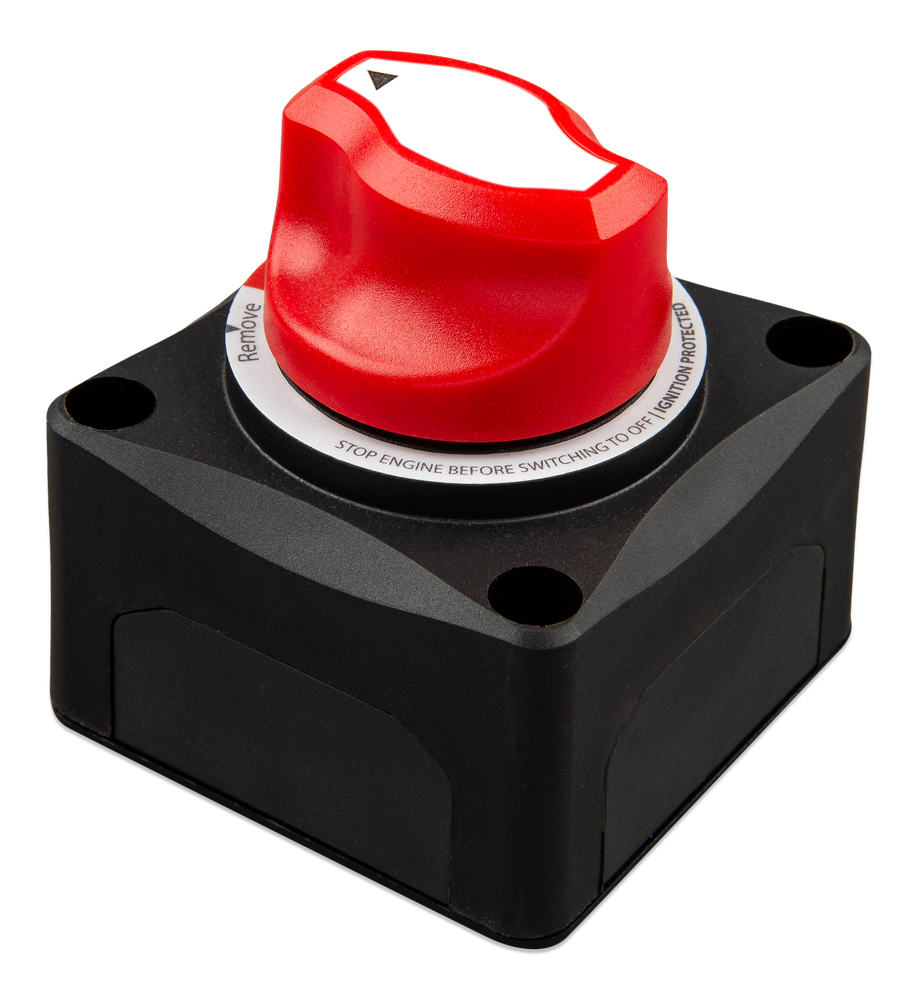

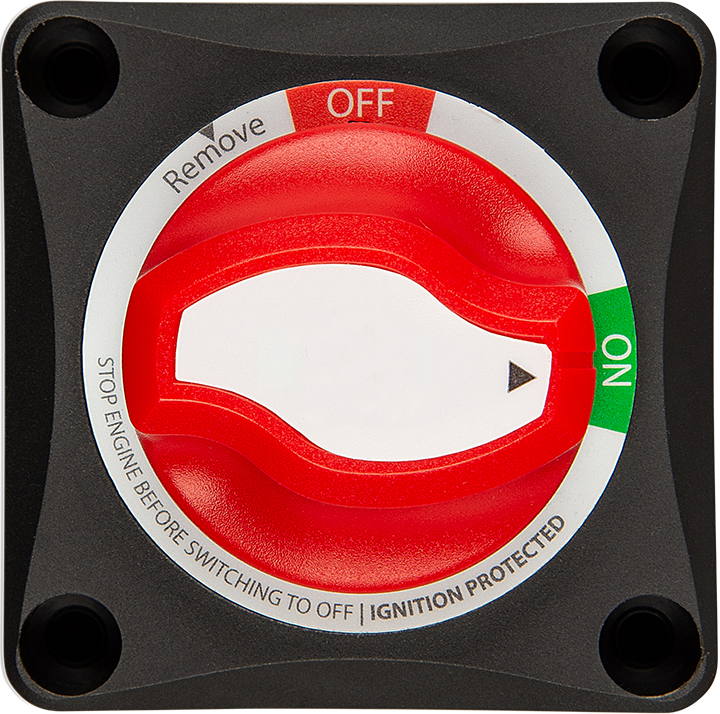

Victron Battery Switch On/Off 275A, 5 Years Warranty. The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.

The Battery Switch can be either surface or panel mounted, providing flexibility during install.

The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

Specifications

SKU VBS127010010

Brand Victron

GTIN 8719076052258

Warranty Period: 5 Years

Product Category Electrical Accessories

Weight (kg) 0.2

Dimensions (L x W x H) 69.5 x 76.3 x 69.5mm

Max. continuous current 275 A

One minute rating 455 A

Cranking rating 1250 A

Voltage rating 48V

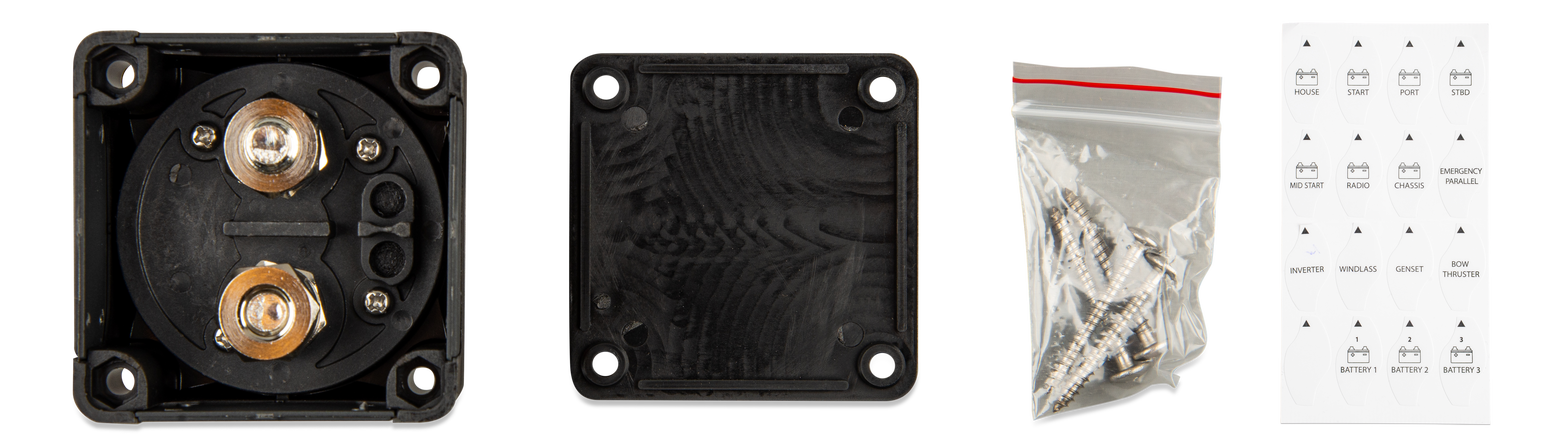

Terminal material Tin-plated copper

Hex nut material Tin-plated copper

Terminal diameter 9.53mm

Recommended Torque 8 N·m

Base material Glass fiber reinforced nylon

Mounting Surface or rear panel mount
