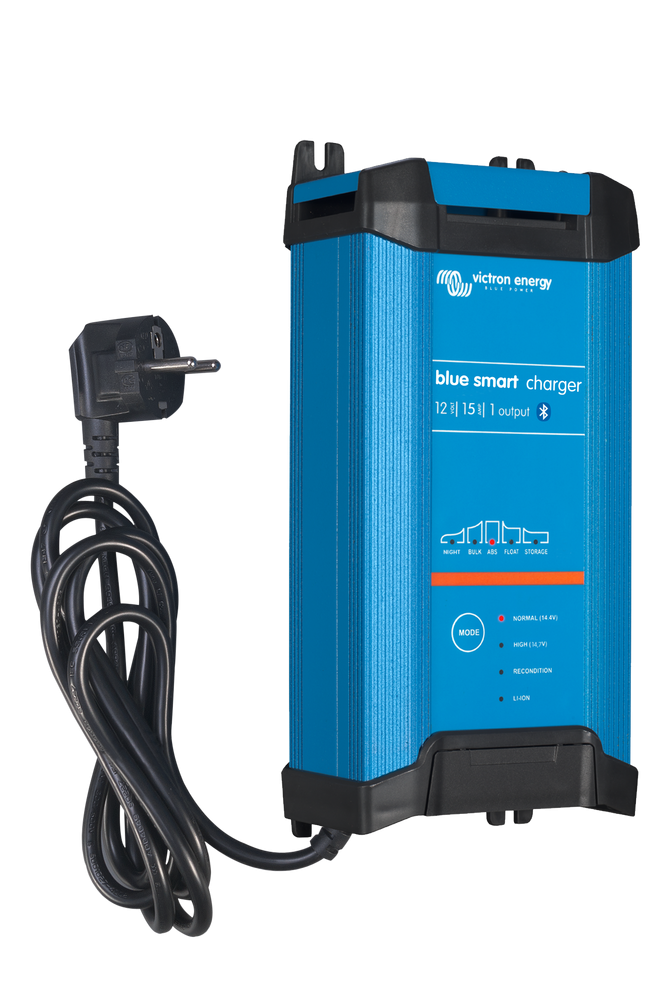

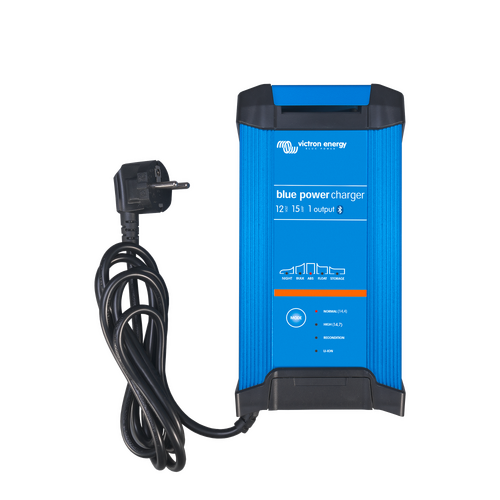

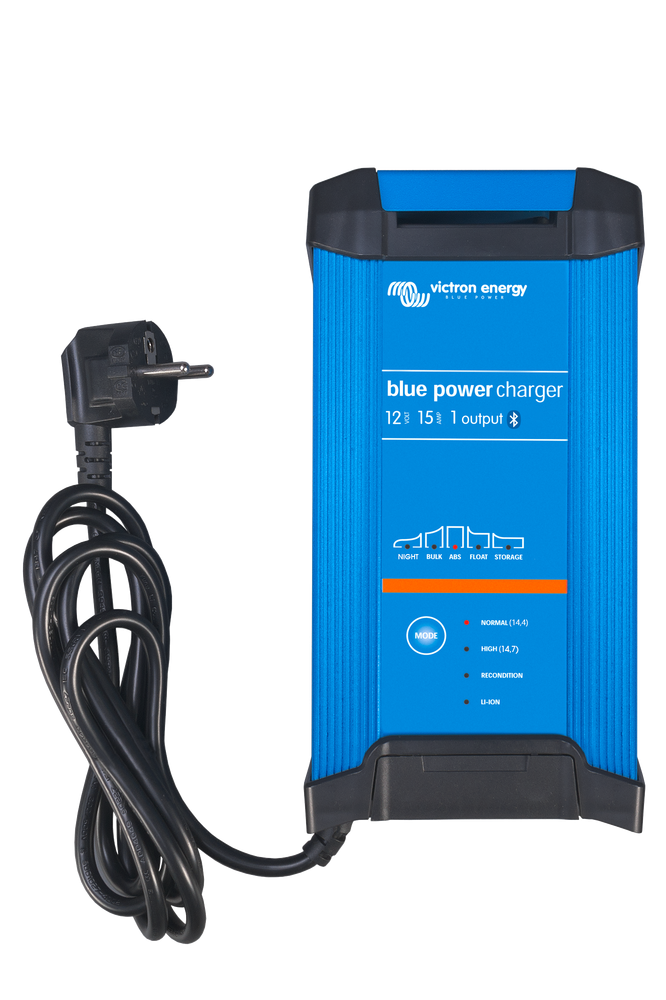

Victron Blue Smart IP22 Charger 12/15 (1) 240V

Specifications

SKU BPC121542012

Brand Victron

GTIN 8719076055280

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 15

Protection category IP22

Charger Voltage 12V

Net Weight (kg) 1.3

Charge current in low current mode 15A

No load power consumption 0.5W

Charge voltage 'storage' Normal: 13.2 V High: 13.2 V Li-ion: 13.5 V

Charge voltage 'absorption' Normal: 14.4 V High: 14.7 V Li-ion: 14.2 V

Charge Voltage Float - Wet (25 degrees)** Normal: 13.8 V High: 13.8 V Li-ion: 13.5 V

Dimensions 235 x 108 x65 mm (H x W x D)

Efficiency 93%

Charge current 15A

Output System Voltage 12V

Output 1 Output

Input Voltage 180 - 265 VAC

Operating temperature range -40 to +60 °C (full rated output up to 40 °C)

Battery-connection Screw terminals 16 mm² / AWG6

Protection Battery reverse polarity (fuse) | Output short circuit | Over temperature

Humidity Max 98%
