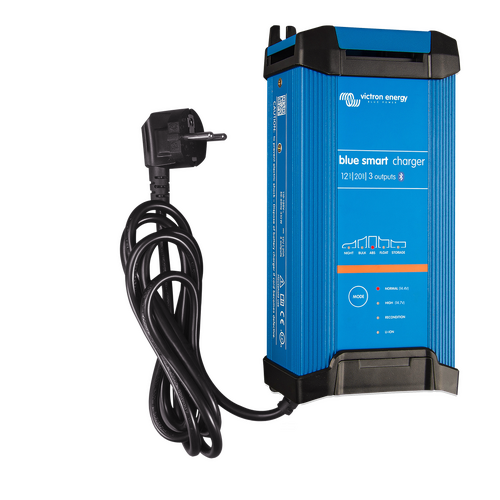

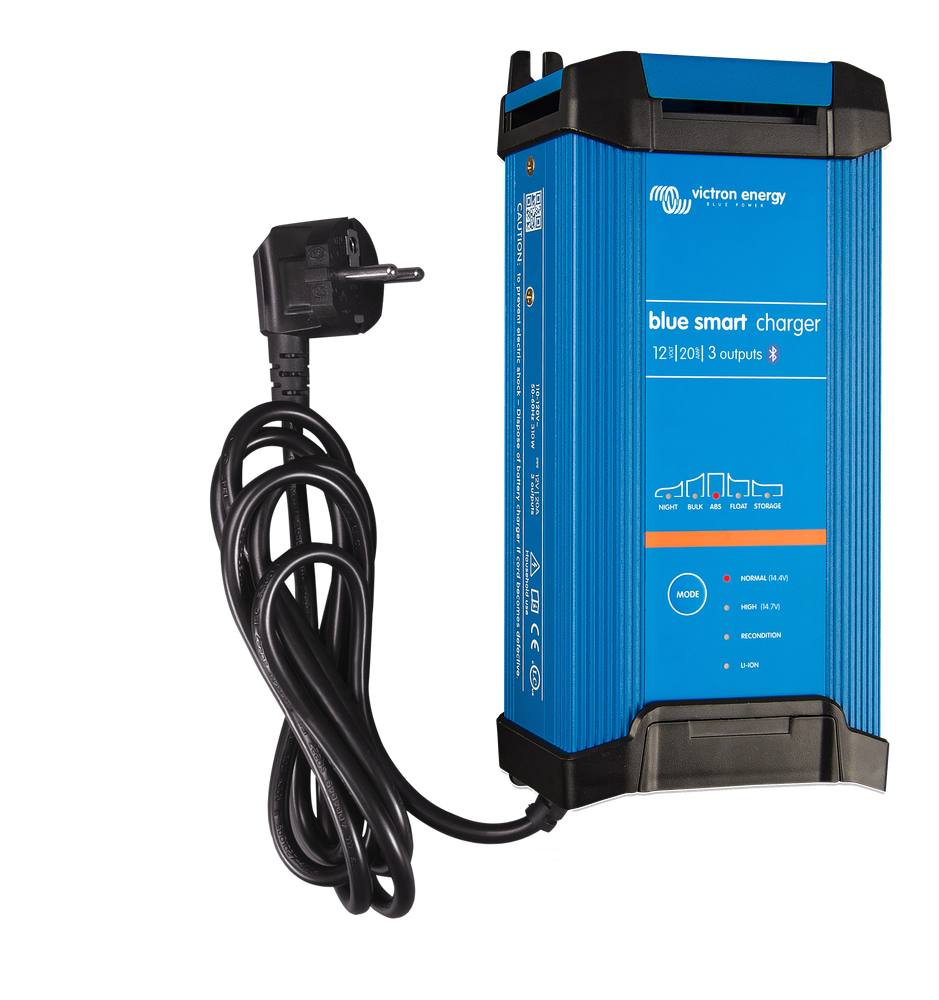

Victron Blue Smart IP22 Charger 12/20 (3) 240V

Specifications

SKU BPC122044012

Brand Victron

GTIN 8719076055327

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 20

Charge voltage 'absorption' Normal: 14.4 V High: 14.7 V Li-ion: 14.2 V

Efficiency 93%

Output 3 Outputs

Battery-connection Screw terminals 16 mm² / AWG6

Dimensions 235 x 108 x65 mm (H x W x D)

No load power consumption 0.5W

Charge Voltage Float - Wet (25 degrees)** Normal: 13.8 V High: 13.8 V Li-ion: 13.5 V

Charge current 20A

Input Voltage 180 - 265 VAC

Protection Battery reverse polarity (fuse) | Output short circuit | Over temperature

Charger Voltage 12V

Net Weight (kg) 1.3

Charge voltage 'storage' Normal: 13.2 V High: 13.2 V Li-ion: 13.5 V

Protection category IP22

Output System Voltage 12V

Operating temperature range -40 to +60 °C (full rated output up to 40 °C)

Humidity Max 98%

Charge current in low current mode 10A
