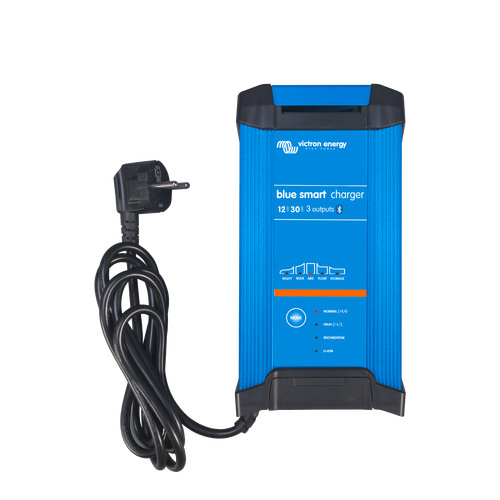

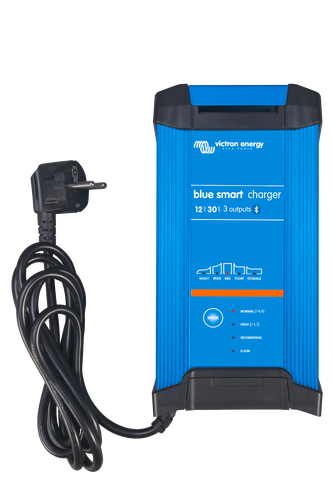

Victron Blue Smart IP22 Charger 12/30 (3)

Specifications

SKU BPC123048012

Brand Victron

GTIN 8719076052418

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 30

Protection category IP22

Charger Voltage 12V

Net Weight (kg) 1.3

Charge current in low current mode 15A

No load power consumption 0.5W

Charge voltage 'storage' Normal: 13.2 V | High: 13.2 V | Li-ion: 13.5 V

Charge voltage 'absorption' Normal: 14.4 V | High: 14.7 V | Li-ion: 14.2 V

Charge Voltage Float - Wet (25 degrees)** Normal: 13.8 V | High: 13.8 V | Li-ion: 13.5 V

Dimensions 235 x 108 x65 mm (H x W x D)

Efficiency 93%

Charge current 30A

Output System Voltage 12V

Output 3 Outputs

Input Voltage 180 - 265 VAC

Operating temperature range -20 to +50°C

Battery-connection Screw terminals 13 mm2 / AWG6

Protection Battery reverse polarity (fuse), Output Short circuit and Over Temperature

Humidity Max 98%

Product Q&A

• Hi, may I ask if one output can be used to charge the 2x120amp parallel linked Lithium house batteries, and another to charge the wet chassis battery? Thanks for your help

  Hi There,

  Yes, the three outputs do allow you to use the charger in that situation.

  The charger can only run one charge algorithm, so you do need to pick one that is suitable for both battery types, which may not be ideal for both batteries.

  In this case we would set the charger up as required for the Lithium batteries. If the wet chassis battery is not charged periodically with another source, such as an alternator, then we would recommend periodically charging it separately. They typically required higher voltage charging.



• HII have the IP22 12/30 {3} charger used for charging lithium and lead acid batteries.The lithium battery can be charged at up to 50A. If I use only one of the 3 outputs does it charge at 10A or 30A. If each output charges at only 10A , can I parallel

  When using a three-output charger, all three of the outputs are capable of delivering 30A (with a maximum combined total of 30A).



  • If only one output is connected, it can deliver the full 30A.
  • If two outputs are connected with batteries that are equally flat, then they would deliver 15A each. Etc.
