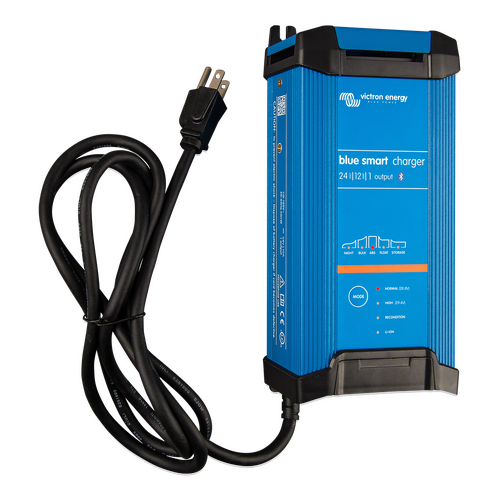

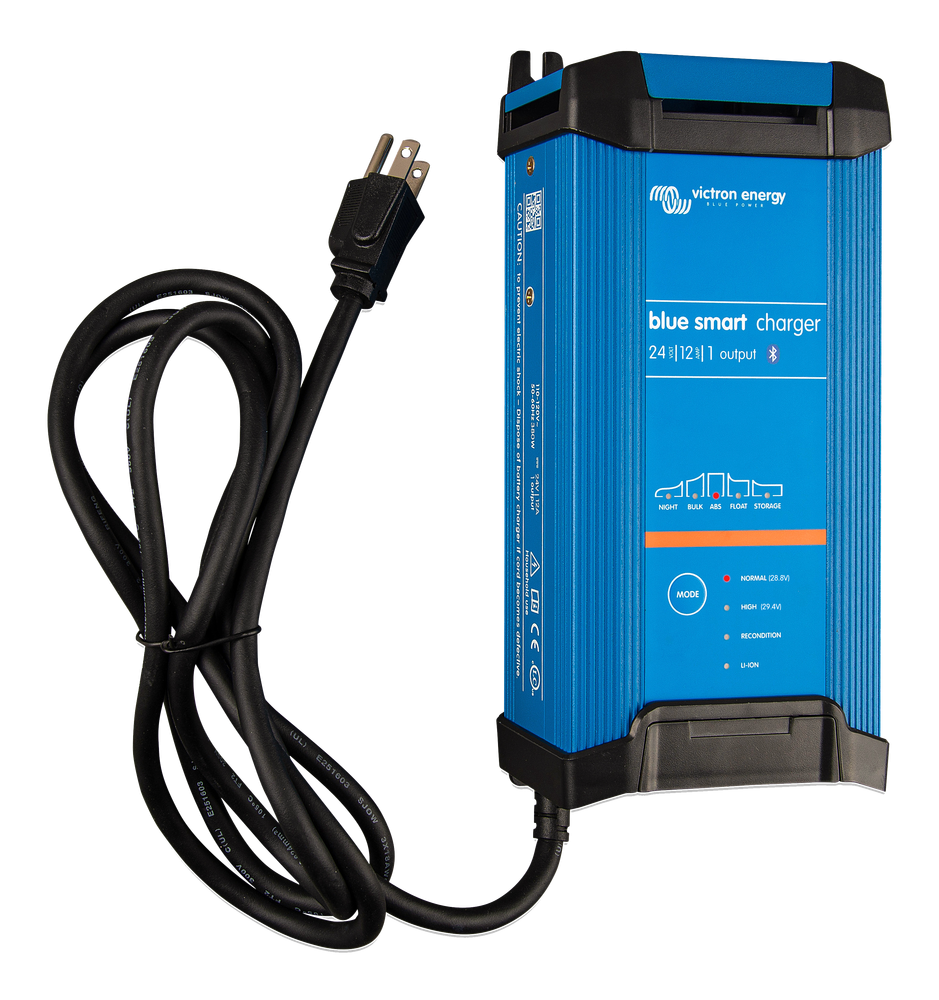

Victron Blue Smart IP22 Charger 24/16 (1) 240V

Specifications

SKU BPC241647012

Brand Victron

GTIN 8719076052487

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 16

Model BPC241644012

Charge Voltage Float - Wet (25 degrees)** Normal: 27.6V | High: 27.6V | Li-ion: 27.0V

Charger Voltage 24V

Net Weight (kg) 1.3

Charge current in low current mode 8 A

No load power consumption 0.5 W

Charge Algorithm 6-stage adaptive

Can be used as power supply Yes

Charge voltage 'storage' Normal: 26.4V | High: 26.4V | Li-ion: 27.0V

Charge voltage 'absorption' Normal: 28.8V | High: 29.4V | Li-ion: 28.4V

Dimensions 235 x 108 x 65 mm

Protection category IP22

Efficiency 94%

Charge current 16 A

Output System Voltage 24V

Output 1 Output

Input Voltage 180 – 265 VAC

Operating temperature range -40 to +60 °C (full rated output up to 40 °C)

Battery-connection Screw terminals 16 mm² / AWG6

Protection Battery reverse polarity (fuse), Output short circuit, and Over temperature

Humidity Max 98%
