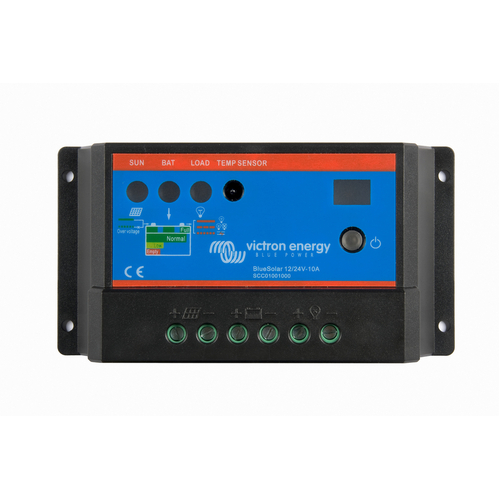

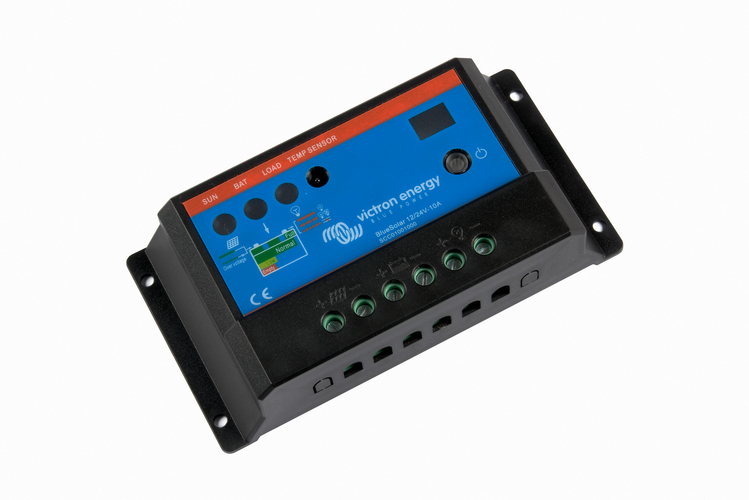

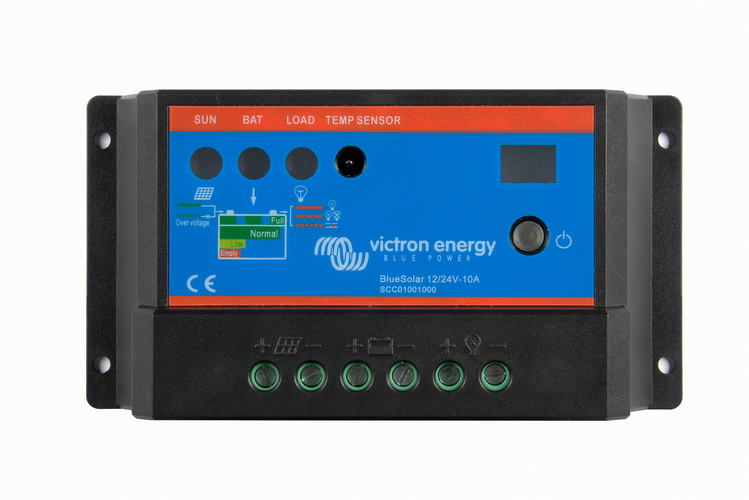

Victron BlueSolar PWM-Light Charge Controller 12/24V-10A
SKU: SCC010010000 Learn More»![](/assets/thumbL/SCC010010000.jpg?20240119084957)
![](/assets/alt_1/SCC010010000.jpg?20240119084957)
Product Description
Victron BlueSolar PWM-Light Charge Controller 12/24V-10A, 5 Years Warranty.
BlueSolar PWM-Light
- Load output with low battery voltage disconnect function.
- Lighting control function, one timer only.
- Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
- Three stage battery charging (bulk, absorption, float), not programmable.
- Load output protected against over load and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery.
- Day/night timing options: see manual for details
Features:
- Load output with low battery voltage disconnect function.
- Lighting control function, one timer only.
- Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
- Three stage battery charging (bulk, absorption, float), not programmable.
- Load output protected against over load and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery
Specifications
SKU SCC010010000
Brand Victron
GTIN 8719076025276
Warranty Period: 5 Years
Product Category Solar Charge Controllers
Charge Current (A) 10
Charge voltage 'absorption' 14.2V/28.4V
Humidity Max 95%
Voltage 12/24 V with automatic system voltage detection
Operating temperature range -20 to +50°C (full load)
Amps 10
Net Weight (kg) 0.15
Protection Battery reverse polarity (fuse), Output short circuit, and Over temperature
Dimensions 33.5 x 133 x 70 (D x W x H)
Product Q&A
Customer Reviews
Victron BlueSolar Charge Controller Review by Phil JonesGood Price the best one I have ever owned works great simple to connect and set up(Posted on 17 April 2021)
