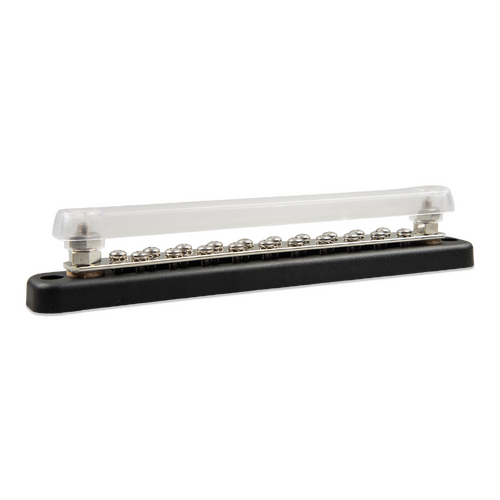

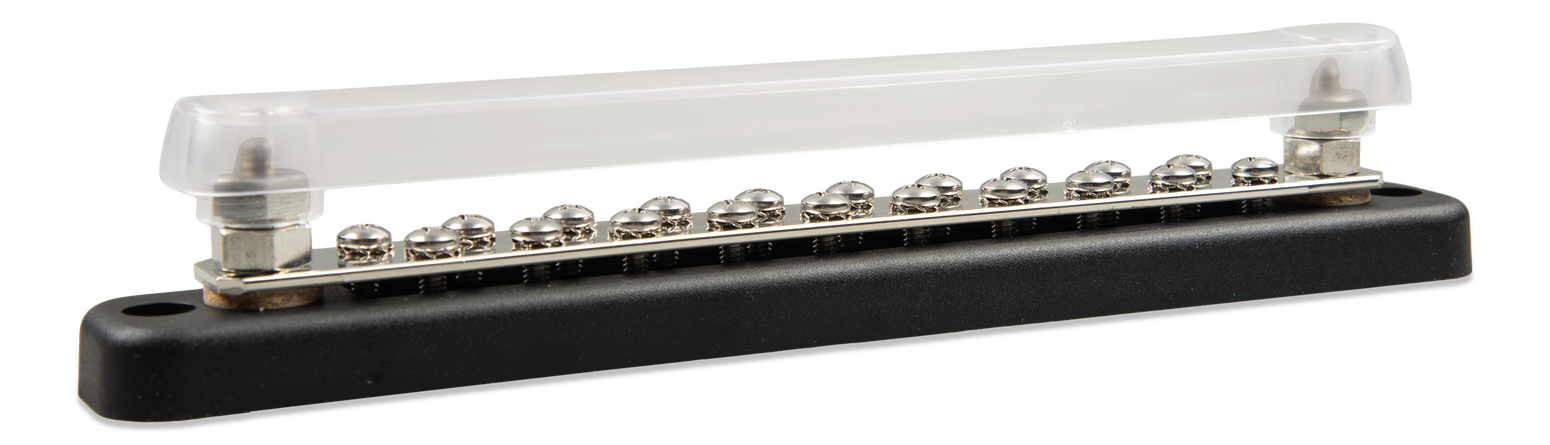

Victron Busbar 150A/70A 2P With 20 Screws + Cover
SKU: VBB115022020 Learn More»
Product Description
Victron Busbar 150A/70A 2P With 20 Screws + Cover, 5 Years Warranty. Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:
- 150A / 70V - 4 high current connections
- 150A / 70V - 6 high current connections
- 150A / 70A - 2P with 10 screws +cover
- 150A / 70A - 2P with 20 screws +cover
- 250A / 70V - 4 high current connections
- 250A / 70V - 6 high current connections
- 250A / 70A - 2P with 6 screws +cover
- 250A / 70A - 2P with 12 screws +cover
- 600A / 70V - 4 high current connections and 8 low current connections
- 600A / 70V - 8 high current connections and 8 low current connections
Specifications
SKU VBB115022020
Brand Victron
GTIN 8719076056379
Warranty Period: 5 Years
Product Category Electrical Accessories
Weight (kg) 1
Terminal material Stainless steel
Hex nut material Tin-plated copper
Terminal diameter 6.35 mm
Recommended Torque 7 N·m
Max. Current 150 A
Max. Voltage 70 VDC
Terminal height 17 mm
Terminal screws 4.2 mm
Busbar strip material Tin-plated copper (2.4 x 19 mm)
Cover material Clear Polycarbonate, UL 94 HB
Dimensions 10 screws (hxwxd) 45 x 232 x 32 mm (with cover)
Dimensions 20 screws (hxwxd) 45 x 232 x 32 mm (with cover)
