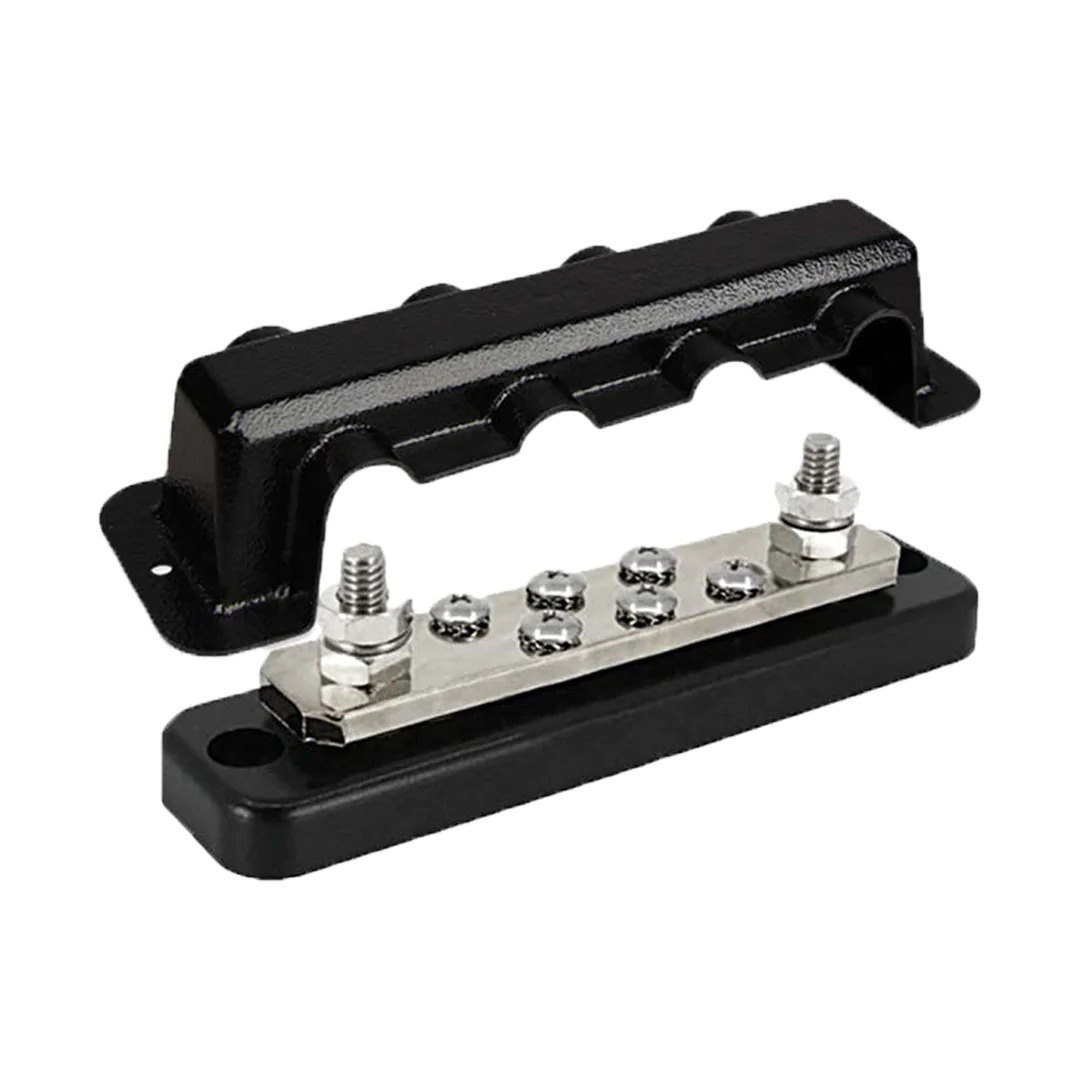

Victron Busbar 250A/70A 2P With 6 Screws + Cover
SKU: VBB125020620 Learn More»
Product Description
Victron Busbar 250A/70A 2P With 6 Screws + Cover, 5 Years Warranty.Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:
- 150A / 70V - 4 high current connections
- 150A / 70V - 6 high current connections
- 150A / 70A - 2P with 10 screws +cover
- 150A / 70A - 2P with 20 screws +cover
- 250A / 70V - 4 high current connections
- 250A / 70V - 6 high current connections
- 250A / 70A - 2P with 6 screws +cover
- 250A / 70A - 2P with 12 screws +cover
- 600A / 70V - 4 high current connections and 8 low current connections
- 600A / 70V - 8 high current connections and 8 low current connections
Specifications
SKU VBB125020620
Brand Victron
GTIN 8719076056386
Warranty Period: 5 Years
Product Category Electrical Accessories
Weight (kg) 0.25
Terminal material Stainless steel
Hex nut material Tin-plated copper
Terminal diameter 8 mm
Recommended Torque 13 N·m
Base material ABS, black, UL 94 V-0
Max. Current 250 A
Max. Voltage 70 VDC
Terminal height 17 mm
Terminal screws 4.8 mm
Busbar strip material Tin-plated copper (6.35 x 25Â mm)
Cover material ABS, black, UL 94 V-2
Dimensions 6 screws (hxwxd) 65 x 216 x 86 mm (with cover)
Videos
Victron Energy Busbars for Electrical Installations. 150, 250 and 600 Amp versions
