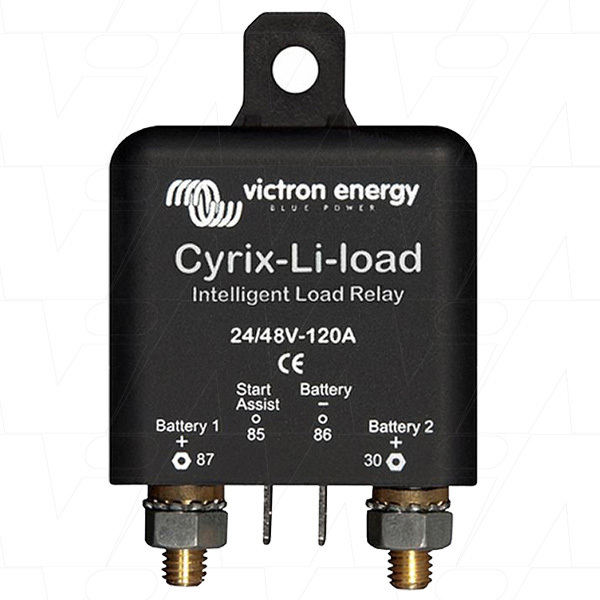

Victron Cyrix-li-load 24/48V-120A Intelligent Load Relay
SKU: CYR020120450 Learn More»
Product Description
Victron Cyrix-li-load 24/48V-120A Intelligent Load Relay, 5 Year Warranty. The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automaticaally connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
.png)
Specifications
SKU CYR020120450
Brand Victron
GTIN 8719076022275
Warranty Period: 5 Years
Product Category Electrical Accessories
Weight (kg) 0.11
Protection category IP54
Dimensions (H x W x D) 46mm x 46mm x 80mm
Current consumption when open <4 mA
Continuous current and breaking capacity at 24V 120A
Breaking capacity at 48V 40A
