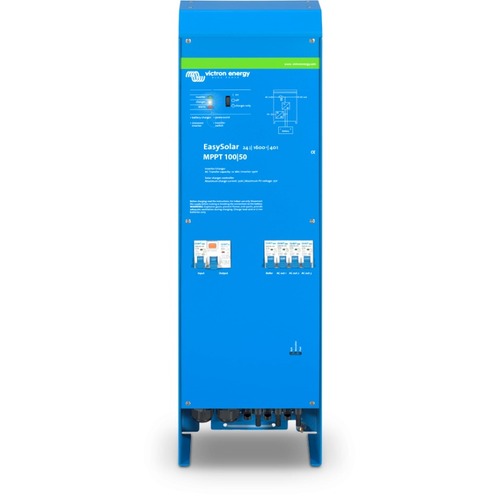

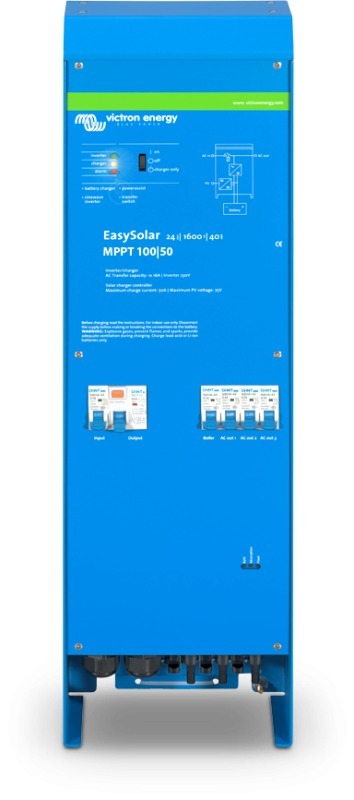

Victron Easysolar 24V / 1600VA / 40A - 16 MPPT 100/50 Inverter Charger System
SKU: CEP241621010 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Learn More»
Product Description
Victron EasySolar 24V / 1600VA / 40A, Battery Charger with 16A AC Transfer Switch + MPPT 100/50, 5 Year Warranty. The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
All-in-one solar power solution:
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution:
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist:
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software:
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
Specifications
SKU CEP241621010
Brand Victron
GTIN 8719076021605
Warranty Period: 5 Years
Product Category Power Inverter Chargers
Model CEP241621010
Wattage (W) 1300
Charge Voltage Float - Wet (25 degrees)** 27.6V
Output Voltage and Frequency 230 VAC ± 2% | 50 Hz ± 0,1%
Operating temperature range -20 to +50°C (fan assisted cooling)
Protection a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high
Dimensions 110 x 214 x 745
Net Weight (kg) 15
Charge voltage 'storage' 26.4V
Protection category IP 21
Peak power 3000W
Humidity Max 95%
No load power consumption 10W | 3W (in search mode)
Charge voltage 'absorption' 28.8V
Efficiency 98%
Input Voltage 19 -33V
Battery-connection Battery cables of 1.5 meter
AC Output 16A
