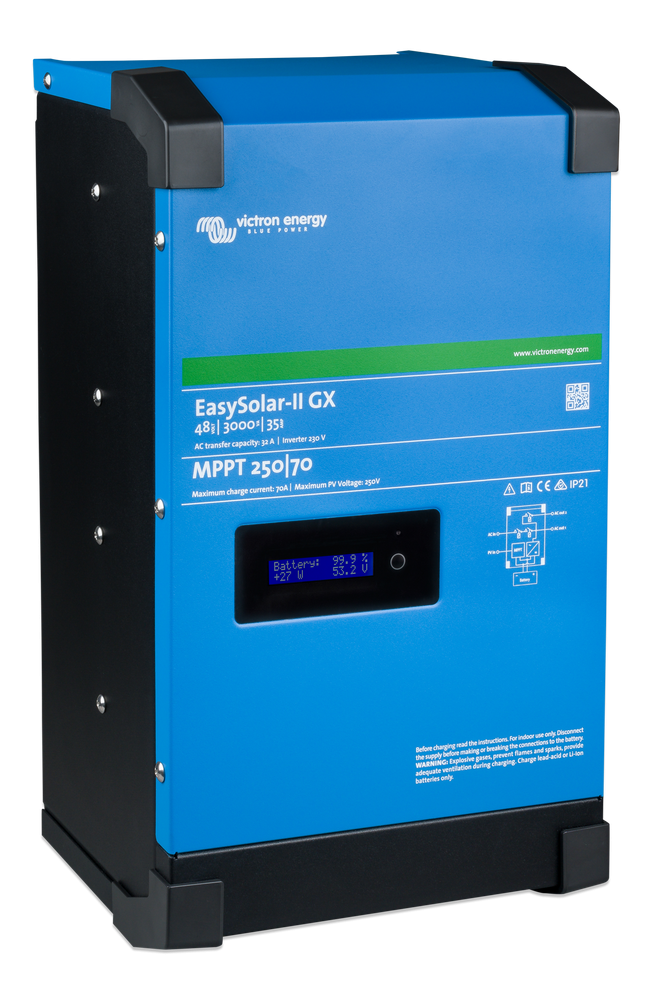

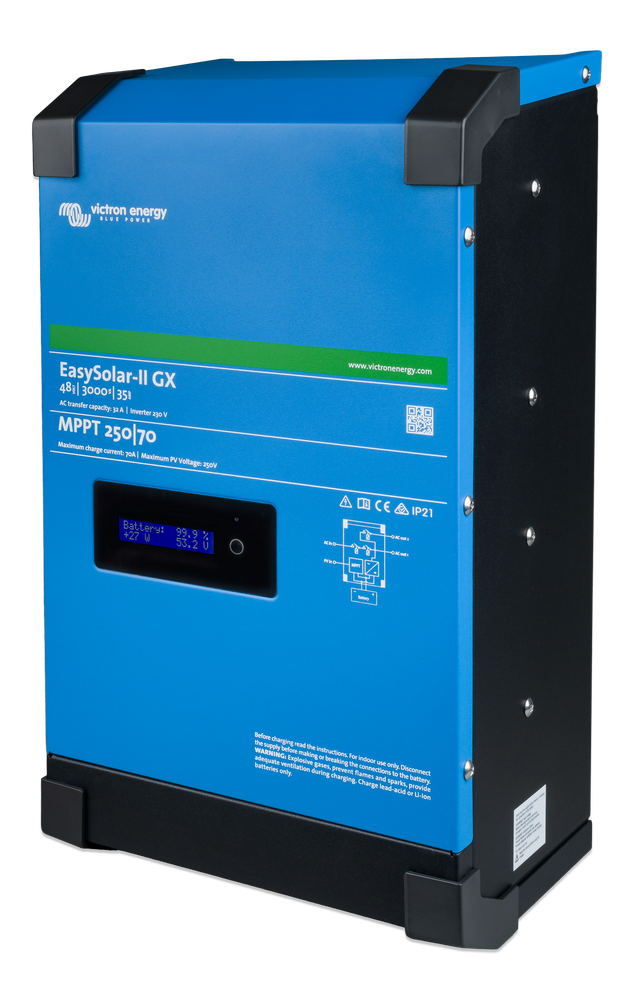

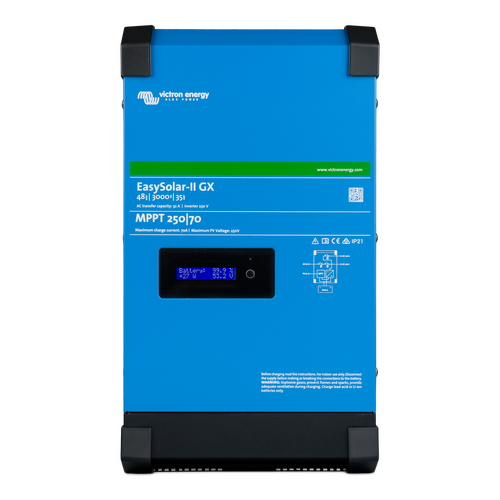

Victron EasySolar-II GX 24/3000/70-32 MPPT 250/70 GX
SKU: PMP242307010 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Learn More»
Product Description
Victron EasySolar-II GX 24/3000/70-32 MPPT 250/70 GX, 5 Year Warranty. The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
The Victron EasySolar-II GX integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT -Tr solar charge controller
- A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

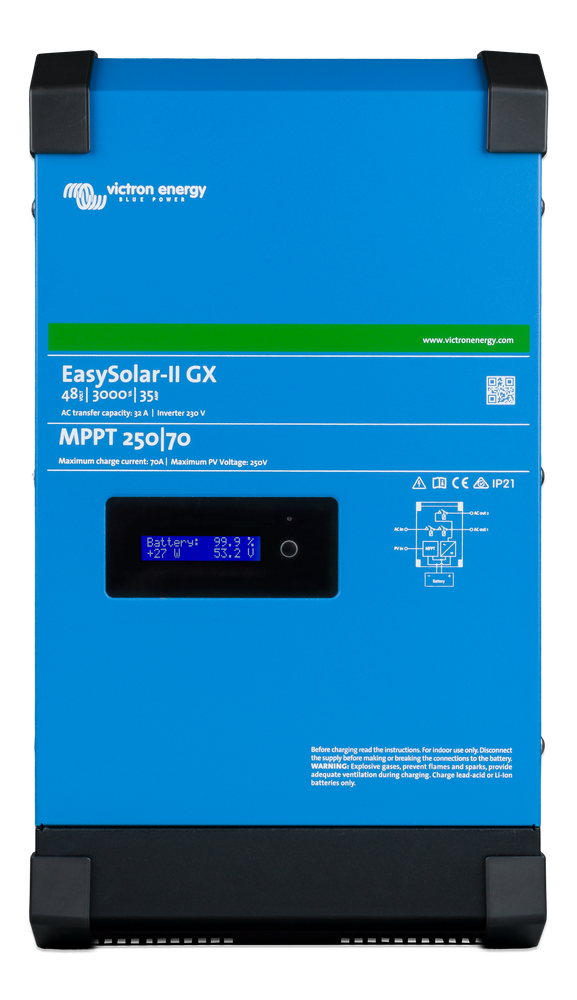

Display and Wi-Fi
- The display reads battery, inverter and solar charge controller parameters.
- The same parameters can be accessed with a smartphone or other Wi-Fi enabled
- device.
- In addition, Wi-Fi can be used to set up the system and to change settings.Â
Solar charge controller
- The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
- MultiPlus-II inverter/charger.
- The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

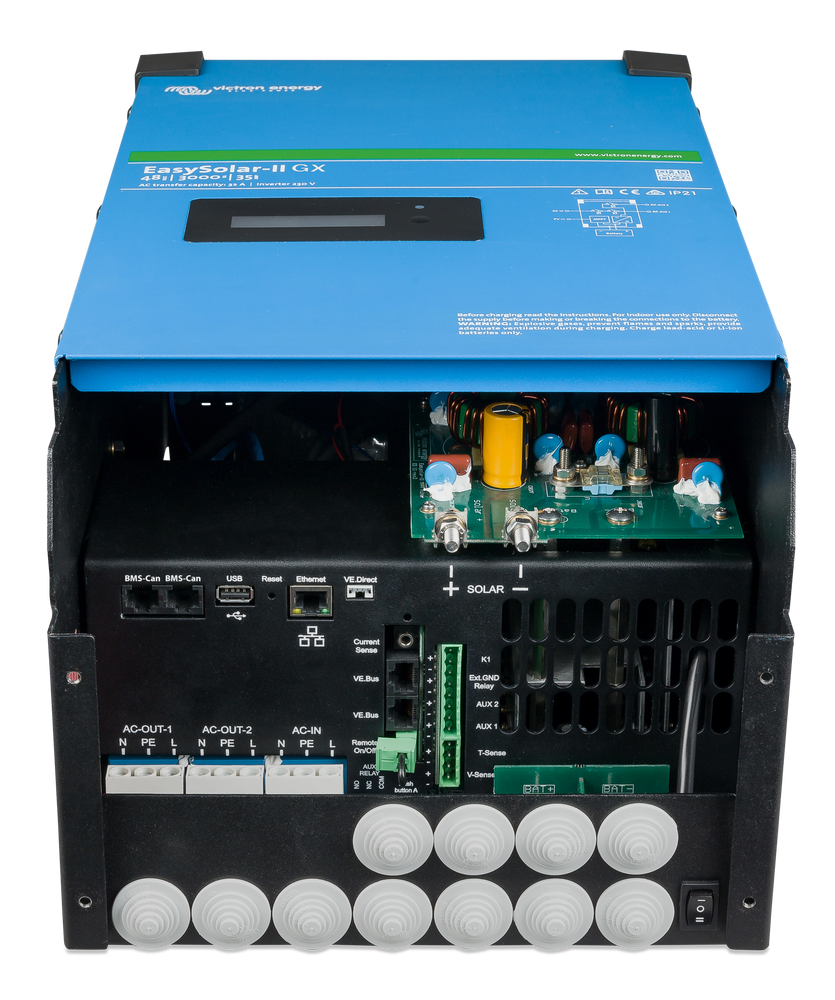

GX device:
The integrated GX device includes:
- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed
- battery. Note that this not a VE.Can compatible port.
- A USB port
- An Ethernet port
- A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Please Note: The display model is EasySolar-II GX 48V 3000VA
Specifications
SKU PMP242307010
Brand Victron
GTIN 8719076049265
Warranty Period: 5 Years
Product Category Solar Charge Controllers
Charge Current (A) 70
Model EasySolar 24/3000/70-30
Charge voltage 'storage' 26.4V
Peak power 5500W
Input Voltage 19-33V
Humidity Max. 95%
Product Dimensions (mm) LxWxH 499 x 268 x 237
Net Weight (kg) 26
Charge voltage 'absorption' 28.8V
Output Power 2400W (continuous output power at 25°C) | 2200W (continuous output power at 40°C) | 1700W (continuous output power at 65°C)
Operating temperature range -20 to +45 °C (fan assisted cooling) Max. altitude 2000 m
Amps 70
AC Input Frequency Range 45 – 65 Hz
Charge Voltage Float - Wet (25 degrees)** 27.6V
AC Input Voltage 187-265 VAC
NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab
Videos
Did You Know - Changing the logo on a GX device
Product Q&A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
