Victron "In Vehicle" Off Grid Charging Bundle With 30A DC to DC & 30A AC to DC Charger
SKU: BDL010 Learn More»
Product Description
Victron "In Vehicle" Off Grid Charging Bundle With 30A DC to DC & 30A AC to DC Charger, 5 Year Warranty. The Victron "in vehicle" off grid charging bundle with 30A DC to DC and 30A AC to DC Charger is the ultimate battery charging and monitoring solution for your 4 x 4, Caravan, RV or Camper Trailer. It brings together Victron's state-of-the-art innovations to offer you a complete answer for effective energy control, you can manage your power supply effectively while guaranteeing efficient charging, monitoring, and safeguarding of your batteries:
Bundle Includes:
- Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger - ORI121236140
- Victron Phoenix Smart IP43 12/30 (1+1) 230V Battery Charger - PSC123051085

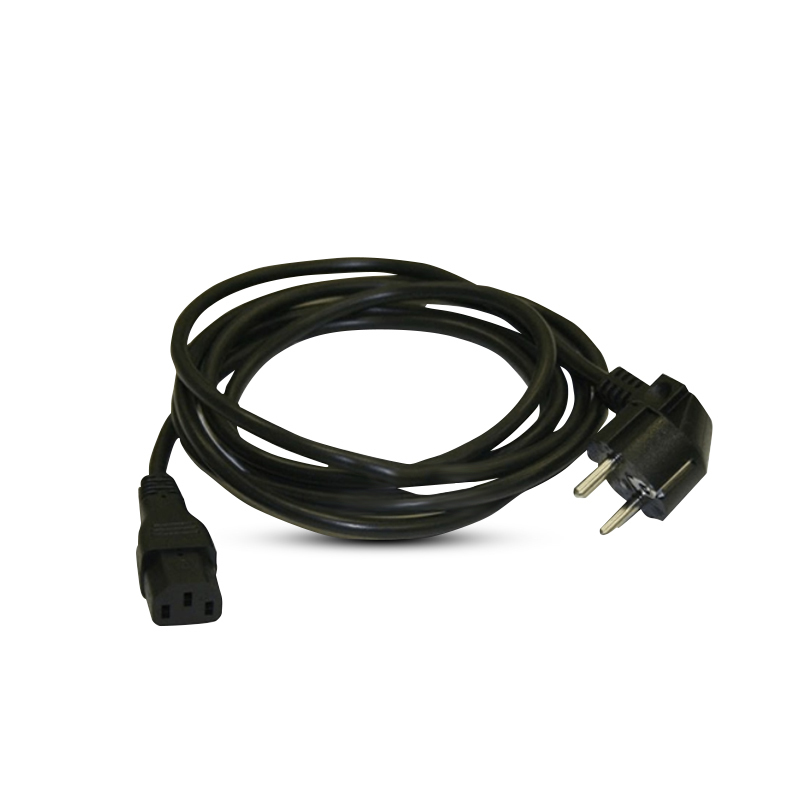

- Victron Phoenix Smart IP43 Charger Mains Power Cord AU/NZ (2m) - ADA010100300
- Victron Smart Battery Sense Long Range (up to 10m) - SBS050150200
- Victron SmartSolar MPPT 75/15 Charge Controller - SCC075015060R
- Victron Battery Monitor BMV-712 Smart - BAM030712000R
- Victron Temperature Sensor for BMV-702/712 - ASS000100000
- Victron Smart Battery Protect 12/24V-65A - BPR065022000
By having the Solar Charge Controller (Mppt) independent to the DC to DC charger it allows simultaneous charging from the alternator and the solar panels while driving. And every little bit of charge adds up when you are off grid and on the road.
The entire system is a Victron “Smart” system, which allows the user to connect all the components via the Victron Connect App on their Smart Phone or Device and monitor the Battery, Solar Input, Charging input from AC and DC.

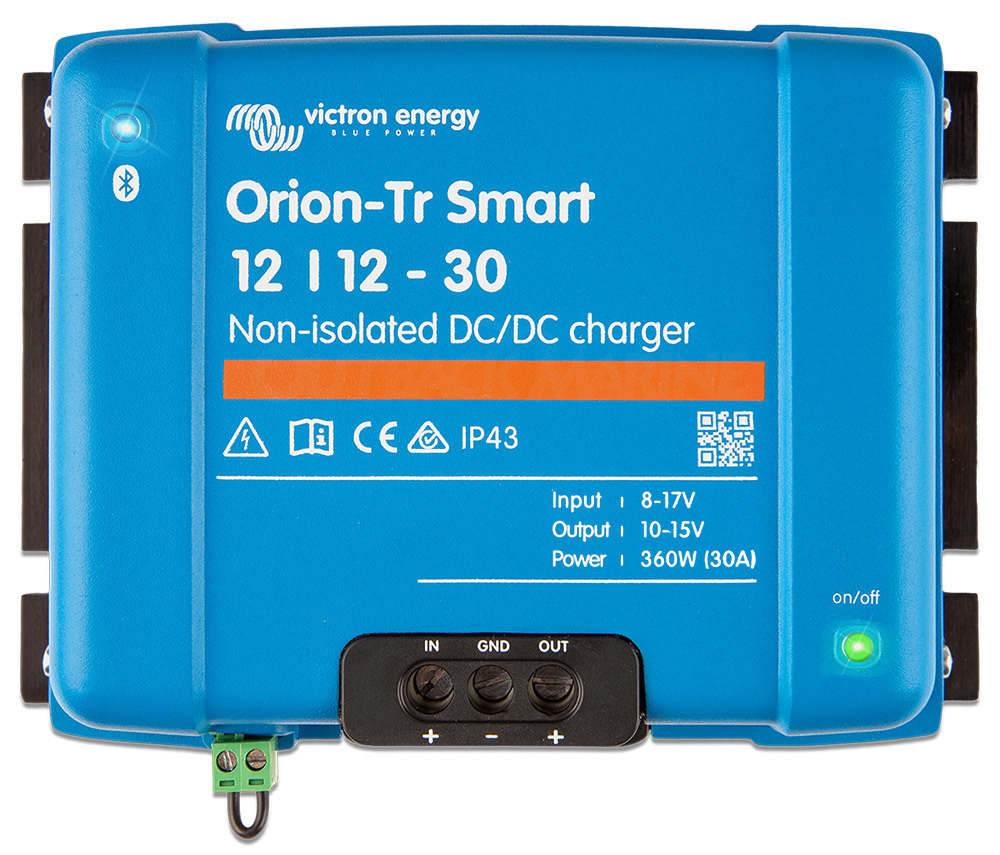

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger - ORI121236140
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. This Victron battery charger can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

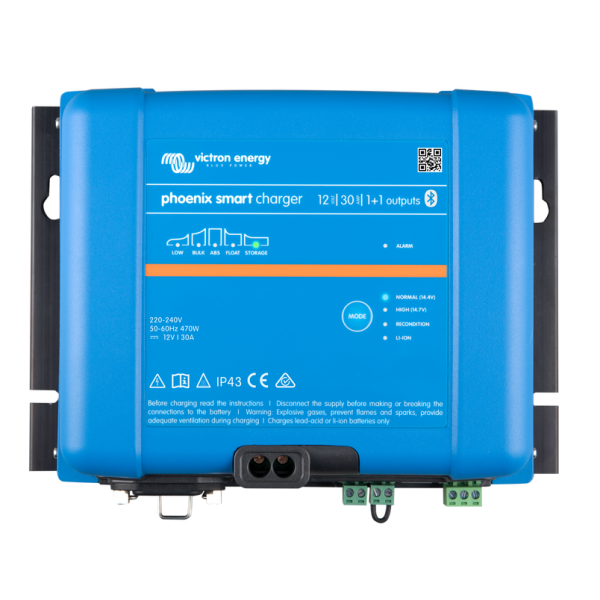

Victron Phoenix Smart IP43 12/30 (1+1) 230V Battery Charger - PSC123051085
With boat owners in mind this adaptive 5-step charger can provide either 30A of charge. The Phoenix 1+1 model provides 3A to the starter-battery and the rest to the ‘house’ bank. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.

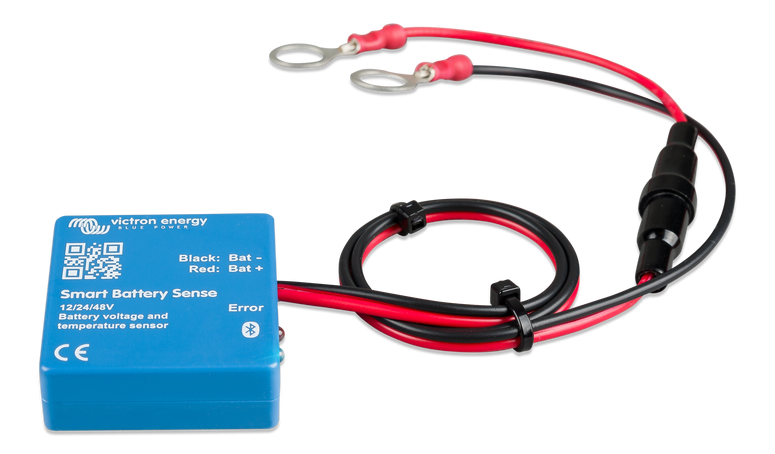

Victron Smart Battery Sense Long Range (up to 10m)
Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron MPPT Solar Chargers.With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life.

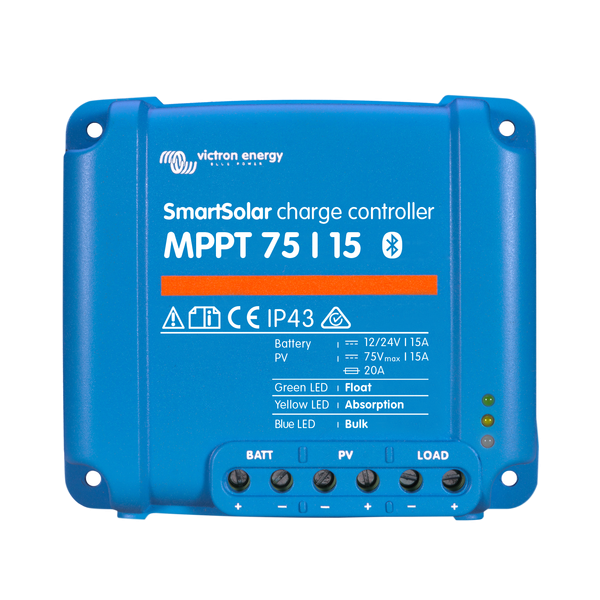

Victron SmartSolar MPPT 75/15 Charge Controller: SCC075015060R
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

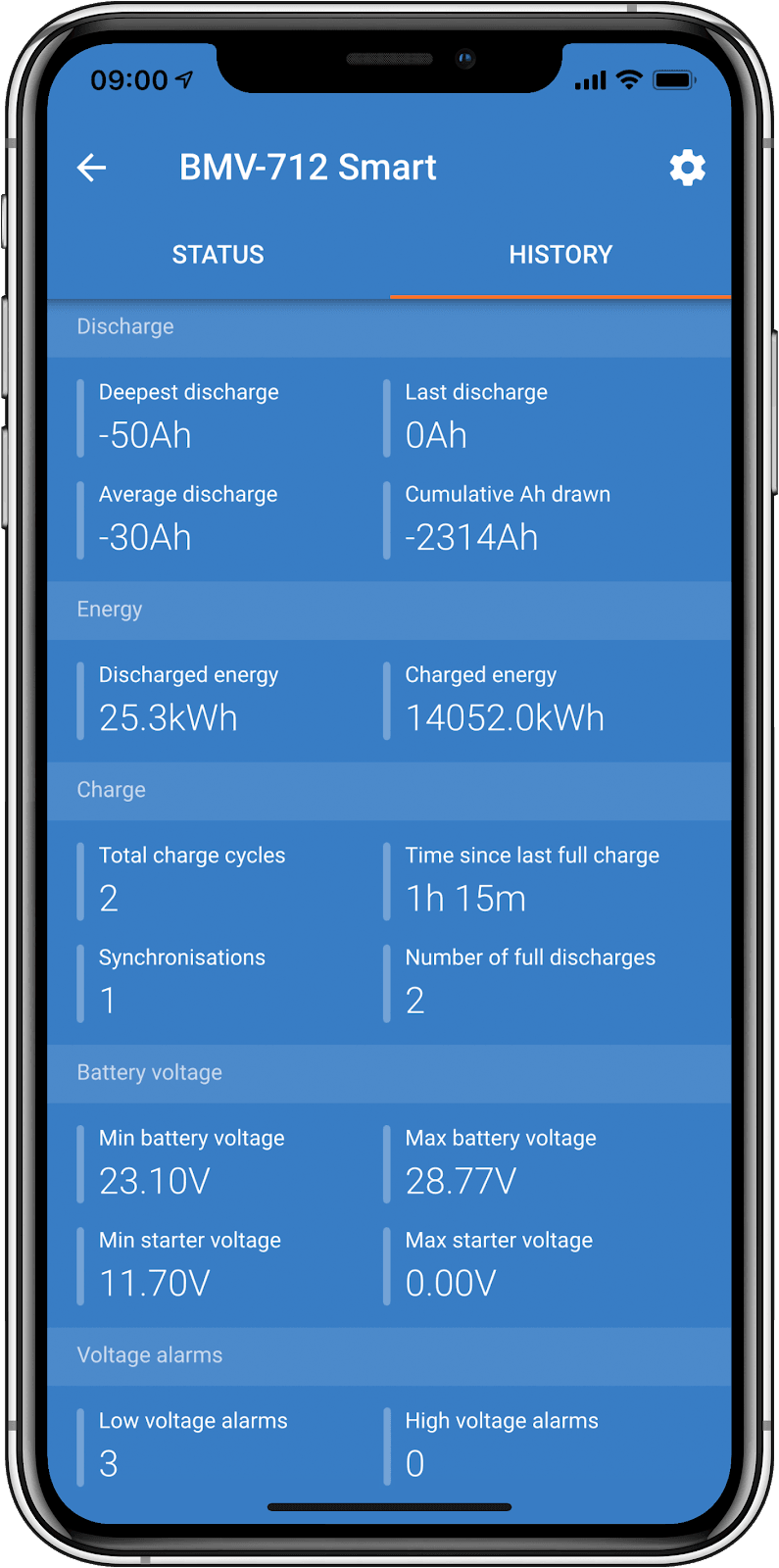

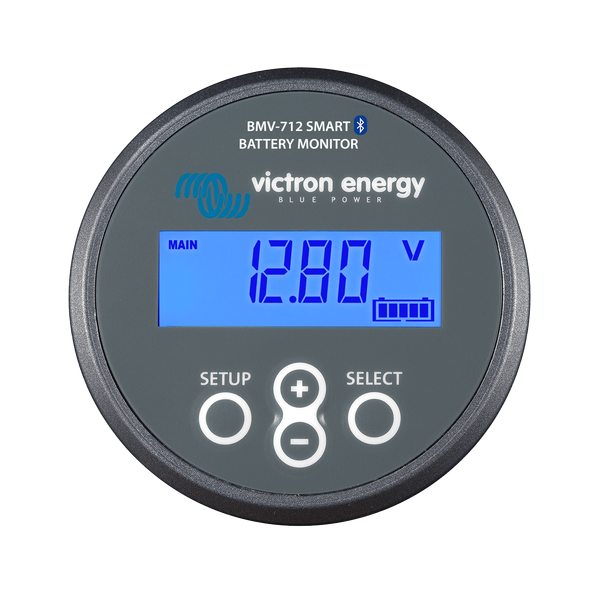

Victron Battery Monitor BMV-712 Smart - BAM030712000R
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. The BMV-712 Smart battery monitor provides comprehensive real-time information about your battery bank's status. Monitor essential data such as voltage, current, capacity, and state of charge, allowing you to make informed decisions and optimize battery usage.

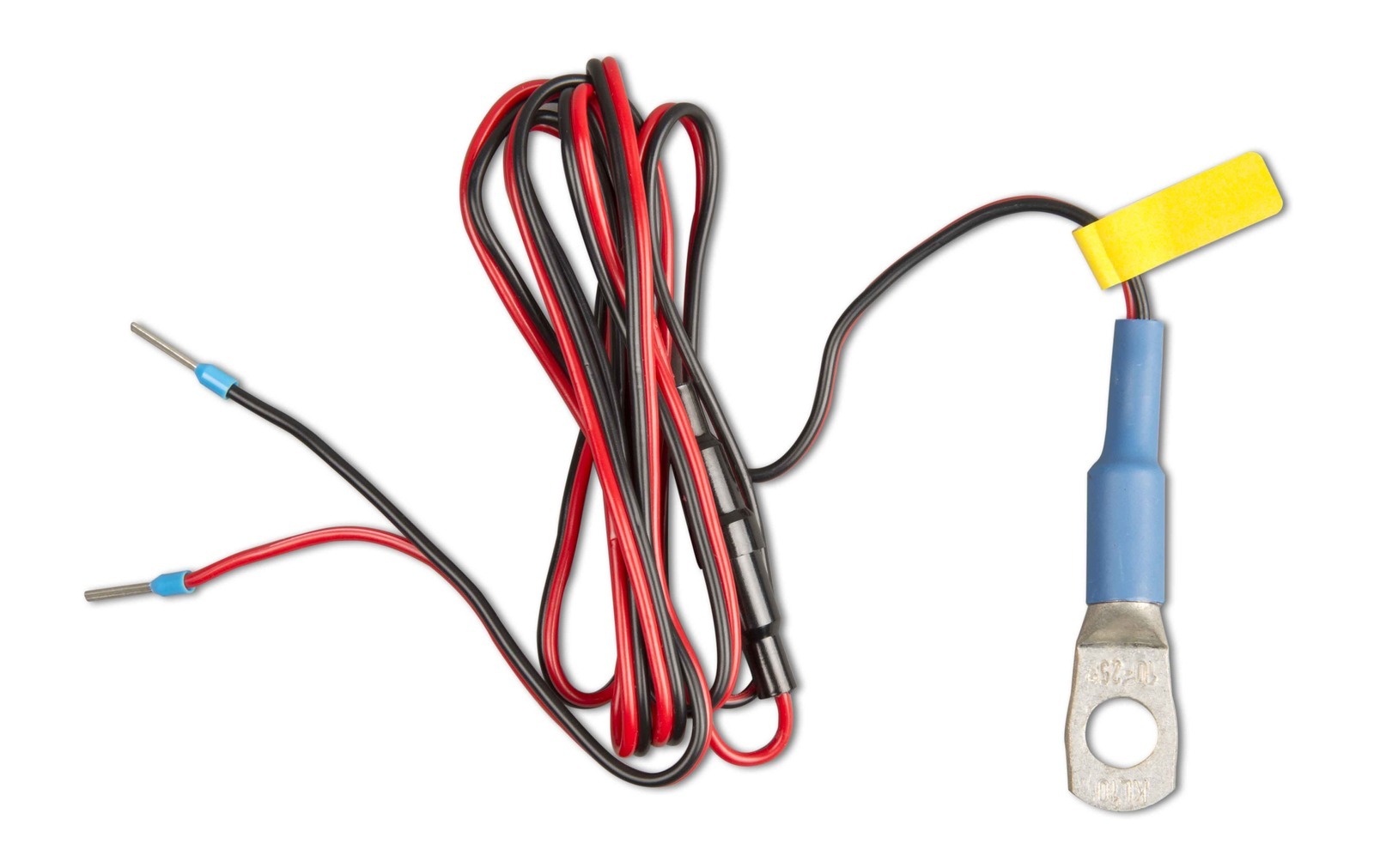

Victron Temperature Sensor for BMV-702/712
Temperature sensor for BMV-702 and BMV-712 Smart battery monitor. This sensor will only work with the BMV-702 and BMV-712 battery monitors.

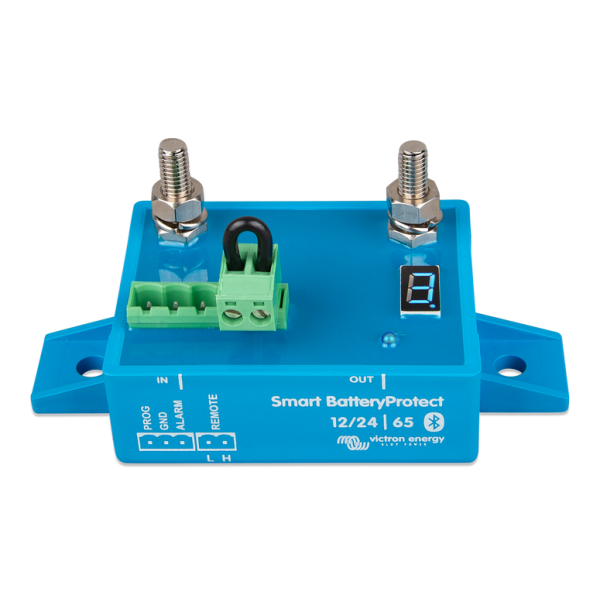

Victron Smart Battery Protect 12/24V-65A
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin.
Specifications
SKU BDL010
Brand Victron
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 30
Model ORI121236140 (DC Charger) | PSC123051085 (AC Charger) | SCC075015060R (Solar Charge Controller) | BAM030712000R (Battery Monitor) | BPR065022000 (Batt
Maximum Charge Current 40A (DC Charger)
Protection category IP43 (electronic components), IP22 (connection area) (AC Charger)
Charge current 30 A (AC Charger)
Charge Voltage Float - Wet (25 degrees)** Normal: 13,8V High: 13,8V Li-ion: 13,5V (AC Charger)
Charge voltage 'absorption' Normal: 14,4V High: 14,7V Li-ion: 14,2V (AC Charger) | 14.4V / 28.8V (adjustable) (Solar Charge Controller)
Charge voltage 'storage' Normal: 13,2V High: 13,2V Li-ion: 13,5V (AC Charger)
Charge Algorithm 5 stage adaptive (AC Charger)
Power 12V - 220W | 24V - 440W (Nominal PV Power) (Solar Charge Controller)
Under Voltage Shutdown 7V (DC Charger)
AC Input Connection IEC 320 C14 inlet with retainer clip (AC cord with country specific plug must be ordered separately) (AC Charger)
No load power consumption <80 mA (DC Charger)
Net Weight (kg) 8.5
Charger Voltage 12V
Efficiency 87% (DC Charger) | 94% (AC Charger) | 98% (Peak) (Solar Charge Controller)
Voltage ± 0,01V (Battery Monitor) | 6-35V (Battery Protect)
Standby Current Less than 1 mA (DC Charger)
DC Output Voltage 12,2V (DC Charger)
DC Input Voltage 10-17V (DC Charger)
Output System Voltage 12V (DC Charger) | 12V (AC Charger) | 12/24V Auto Select
Battery Capacity 1 - 9999 Ah (Battery Monitor)
Input Voltage 230 VAC (range: 210 – 250 V (AC Charger) | 6,5 - 70 VDC (Battery Monitor)
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C) (DC Charger) | -20 to 60°C (0 - 140°F) (AC Charger) | -30 to +60°C (full rated output up to 40°C) (Solar Ch
Battery-connection Screw terminals 16 mm² (AWG6) (AC Charger)
Protection Battery reverse polarity (fuse), Output short circuit and Over temperature (Solar Charge Controller)
Humidity Max. 95% non-condensing (DC Charger) | Max 95% (AC Charger) | 95%, non-condensing (Solar Charge Controller)
Short Circuit Current Isc(A) 60 (DC Charger)
Dimensions 130 x 186 x 80 mm (L x W x H) (DC Charger) | 180 x 249 x 100 mm (L x W x H) (AC Charger) | 40 x 113 x 100 mm (Solar Charge Controller) | Front: 63 mm
