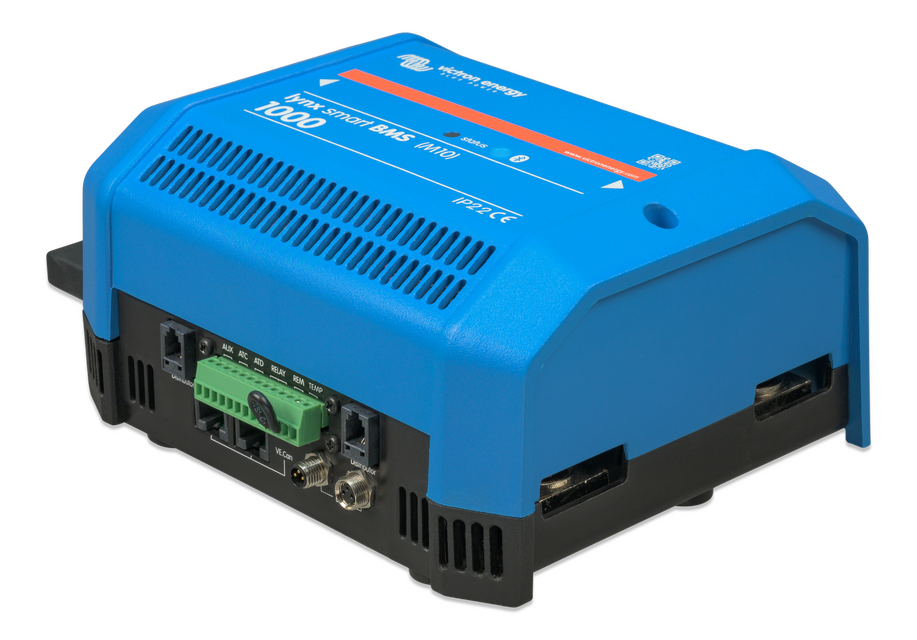

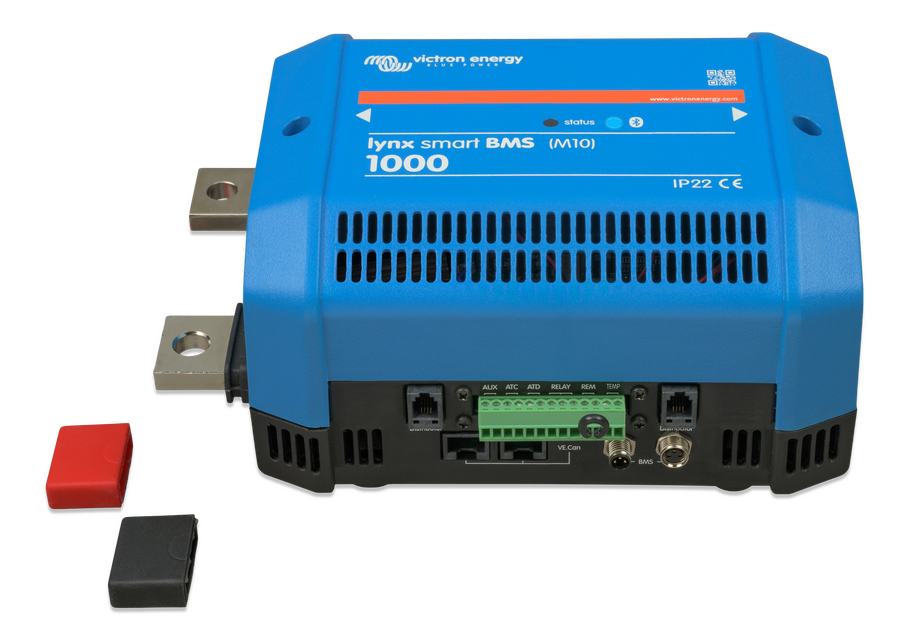

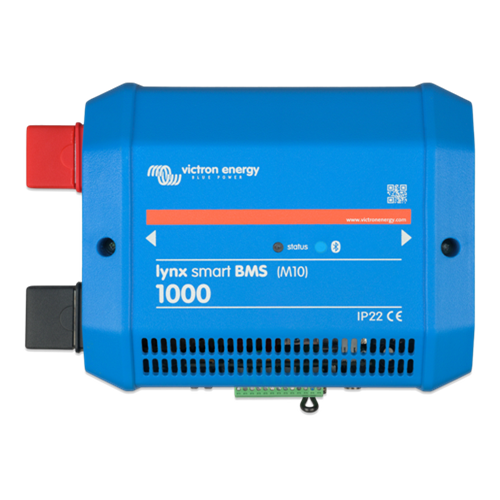

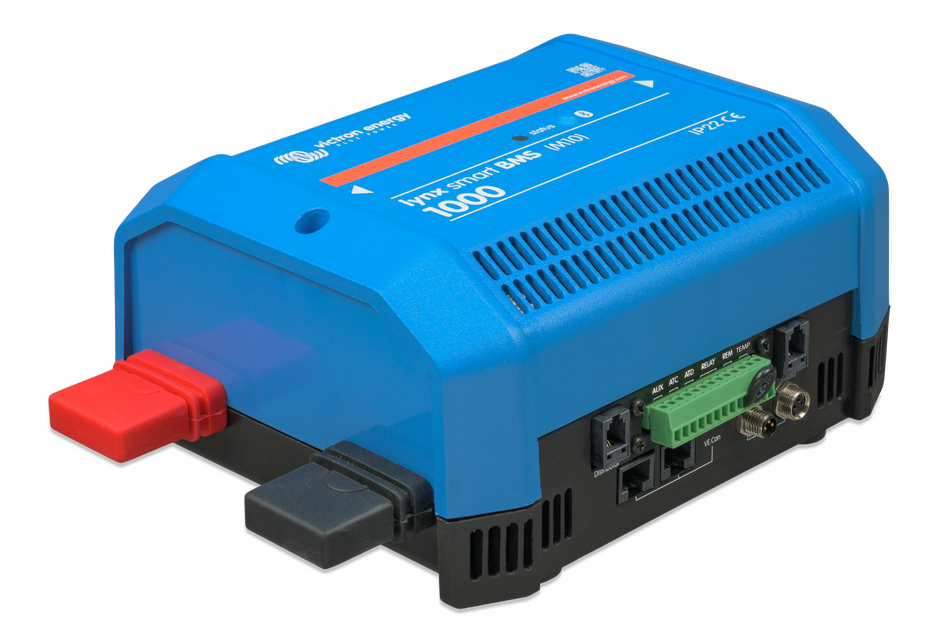

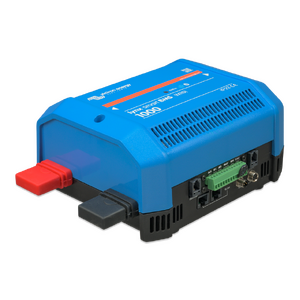

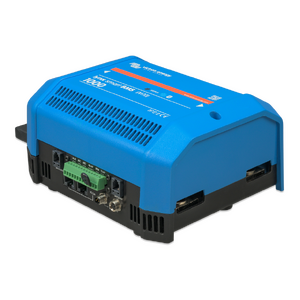

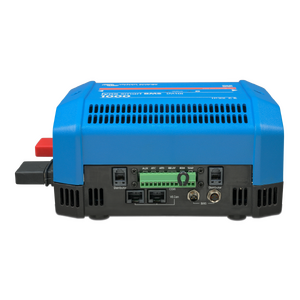

Victron Lynx Smart BMS 1000 (M10)

SKU: LYN034170210 Learn More»
Victron Lynx Smart BMS 1000 (M10)
Free Shipping
$1,999
$2,356

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Lynx Smart BMS 1000 (M10), 5 Year Warranty. The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A (with M8 busbar connections) and 1000A (with M10 busbar connections).

The main features are:

  • Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
  • Battery monitor, indicating state of charge percentage and more data.
  • Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
  • Bluetooth for use with our VictronConnect App, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.
  • Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.
  • The Lynx Smart BMS is part of the modular Lynx Distribution system.

Specifications

SKU LYN034170210

Brand Victron

GTIN 8719076057604

Warranty Period: 5 Years

Product Category Batteries Other

Dimensions 230 x 180 x 100 mm

Humidity max 95 %

Weight (kg) 2.7

Operating temperature range -40 to +60 °C
