Victron MultiPlus-II Inverter Charger 48/10000/140-100/100 230V

SKU: PMP483105000 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

Victron Current Transformer 100A:50mA for MultiPlus-II (1m) Wire-end

$65

Victron Current Transformer 100A:50mA for MultiPlus-II (5m) Wire-end

$74

Victron Current Transformer 100A:50mA for MultiPlus-II (20m) Wire-end

$129

Click '+' to show more accessories

Call 1300 400 122

Add To Wishlist

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Victron MultiPlus-II Inverter Charger 48/10000/140-100/100 230V, 5 Year Warranty.

The new inverter/charger:

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

Note: for a short period of time this product was called MultiGrid-II.

PowerAssist:

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems:

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function):

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control:

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…

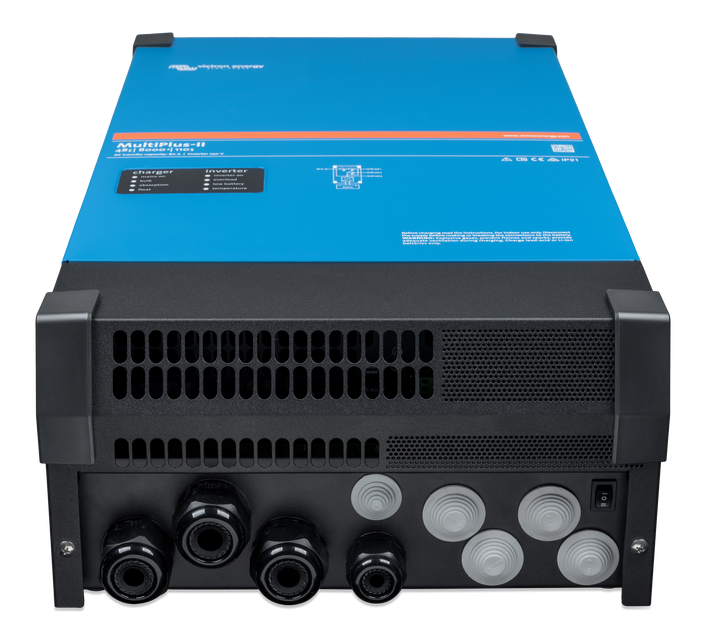

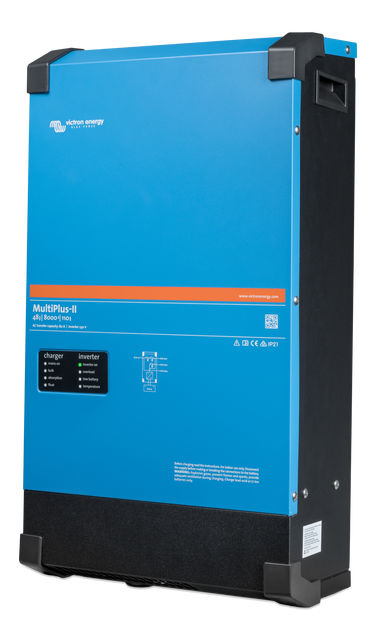

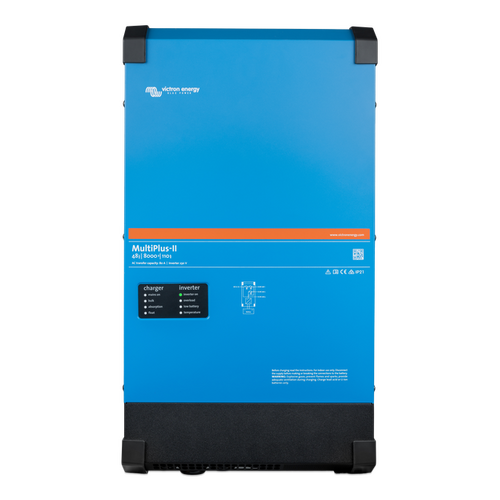

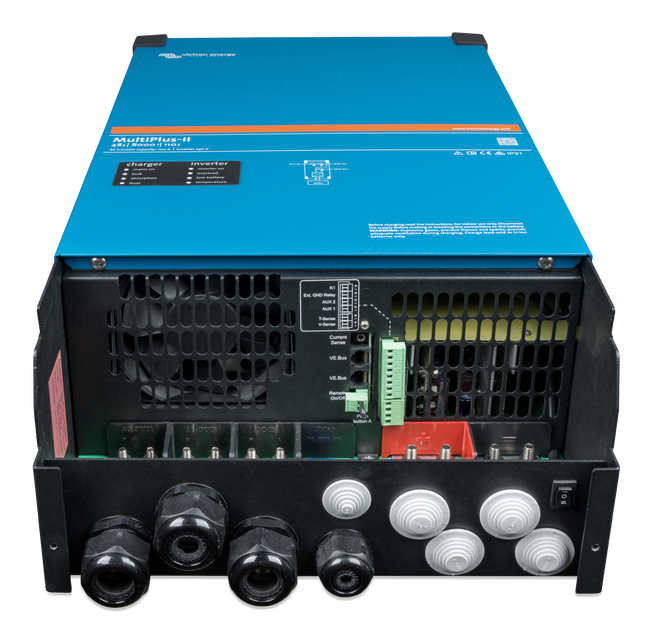

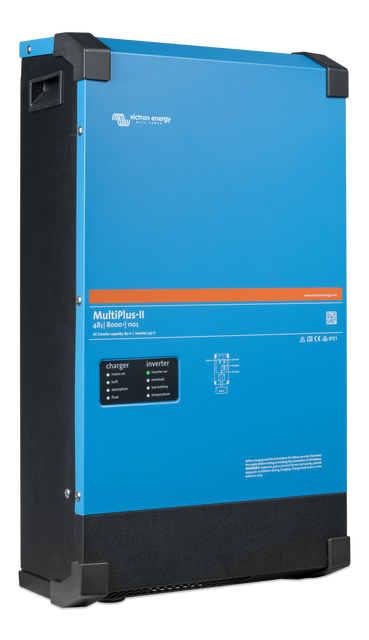

NOTE: The image does not display the correct version of this product.

Go to: Product Details

Go to: Videos

Specifications

SKU PMP483105000

Brand Victron

GTIN 8719076044956

Warranty Period: 5 Years

Product Category Power Inverter Chargers

Output Current Rating (Amps) 100

Model MultiPlus 48/10000/140-100

Product Type MultiPlus Inverter/Charger

Wattage (W) 10000

Charge voltage 'storage' 52.8V

Output Voltage and Frequency 230VAC ± 2% / 50Hz ± 0,1% (1)

Input Voltage 38– 66V

Product Dimensions (mm) LxWxH 677mm x 363mm x 206mm

Net Weight (kg) 49

Inverter Output Continuous Watts 8000W (continuous output power at 25°C)

Charge voltage 'absorption' 57.6V

Peak power 18000W

Operating temperature range -40 to +65°C (fan assisted cooling)

No load power consumption 27W | 4W in search mode

AC Input 187-265 VAC | 45 – 65 Hz

Charge Voltage Float - Wet (25 degrees)** 55.2V

Output Power 6400W (continuous output power at 25°C) | 5500W (continuous output power at 40°C) | 4000W (continuous output power at 65°C)

NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab

Inverter Output Nominal Efficiency 96% (maximum)

Go to: Specifications

Go to: Q & A

Videos

MultiPlus-II introduction

Did You Know - You can update a MultiPlus Firmware using an Android Phone?

How to set up BMV Battery Monitor for lead and lithium batteries

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Can these chargers take solar input?

No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.

What size Generator can I use with the Multiplus Inverter Chargers?

The below generators are the minimum recommend sizes based on an AVR generator:

Inverter Charger Size	Minimum Recommended Generator Size	240V AC Input Current Limit
800VA	2 kVa	5A
1200VA	2.5 kVa	7A
1600VA	3 kVa	10A
3000VA	5 kVa	16A
5000VA	8 kVa	25A

If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
