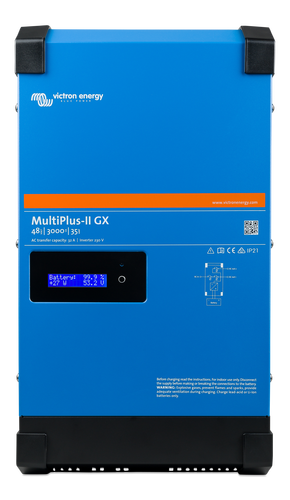

Victron MultiPlus-II Inverter Charger 48/3000/35-32 GX

SKU: PMP482306000 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

Victron Current Transformer 100A:50mA for MultiPlus-II (1m) Wire-end

$65

Victron Current Transformer 100A:50mA for MultiPlus-II (5m) Wire-end

$74

Victron Current Transformer 100A:50mA for MultiPlus-II (20m) Wire-end

$129

Click '+' to show more accessories

Call 1300 400 122

Add To Wishlist

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Victron MultiPlis-II Inverter Charger 48V / 3000VA / 35A, Battery Charger with 32A AC Transfer Switch GX, 5 Year Warranty.

Inverter/charger with GX inside:

An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for a three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

A MultiPlus-II with LCD and GX functionality:

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi:

The display reads battery, inverter, and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device:
The integrated GX device includes:

A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
A USB port.
An Ethernet port.
A VE.Direct port.

Applications:

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three-phase operation:

Only one GX unit is needed in the case of Parallel and three-phase operation.

Go to: Product Details

Go to: Videos

Specifications

SKU PMP482306000

Brand Victron

GTIN 8719076046448

Warranty Period: 5 Years

Product Category Power Inverter Chargers

Output Current Rating (Amps) 35

Model MultiPlus 48/3000/35

Product Type Inverter and charger in one package

Wattage (W) 2400

Charge voltage 'storage' 52.8V

Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%

Input Voltage 38-66V

Product Dimensions (mm) LxWxH 147 x275 x 506

Net Weight (kg) 19

Inverter Output Continuous Watts 2400W (continuous output power at 25°C)

Charge voltage 'absorption' 57.6V

Peak power 5500W

Operating temperature range -40 to +65°C

No load power consumption 11W | 2W in search mode

AC Input 187-265VAC | 45-65Hz

Charge Voltage Float - Wet (25 degrees)** 55.2V

Output Power 2400W (continuous output power at 25°C) | 2200W (continuous output power at 40°C) | 1700W (continuous output power at 65°C)

NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab

Inverter Output Nominal Efficiency 96% (maximum)

Go to: Specifications

Go to: Q & A

Videos

MultiPlus-II introduction

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Can these chargers take solar input?

No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.

What size Generator can I use with the Multiplus Inverter Chargers?

The below generators are the minimum recommend sizes based on an AVR generator:

Inverter Charger Size	Minimum Recommended Generator Size	240V AC Input Current Limit
800VA	2 kVa	5A
1200VA	2.5 kVa	7A
1600VA	3 kVa	10A
3000VA	5 kVa	16A
5000VA	8 kVa	25A

If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.

Go to: Q & A

Go to: Warranty
