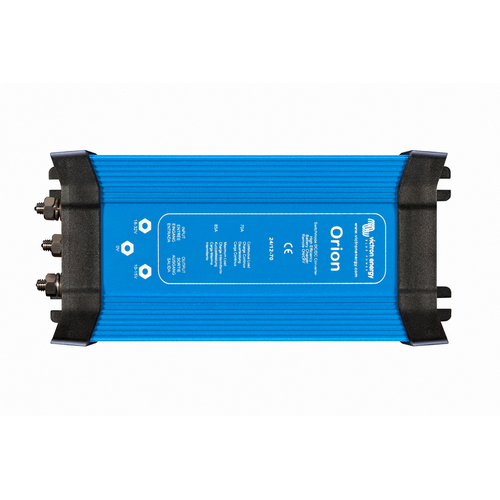

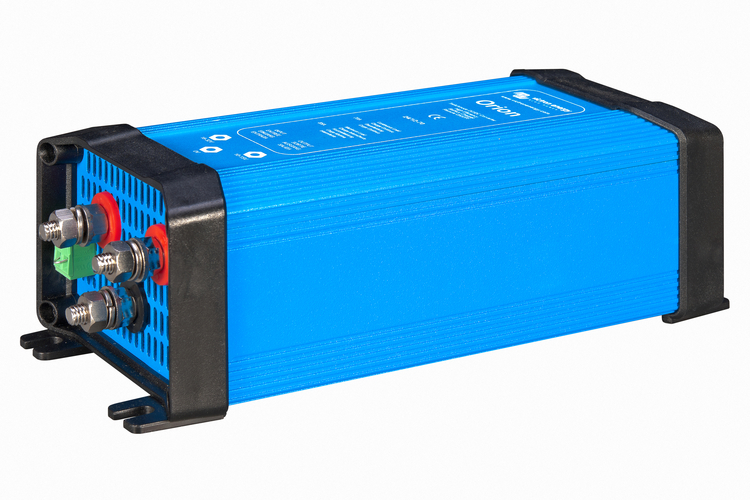

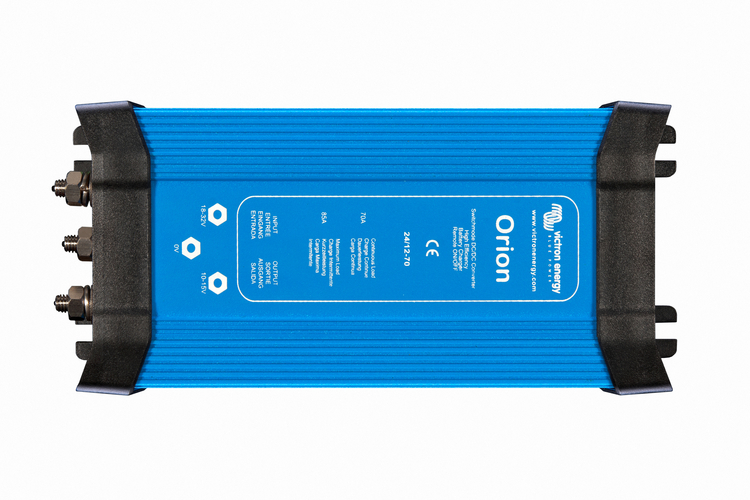

Victron Orion 24/12V 70A DC to DC Converter Non Isolated, High Power
SKU: ORI241270020 Learn More»
Product Description
Victron Orion 24/12V 70A DC to DC Converter Non Isolated, High Power, 5 Year Warranty.Â

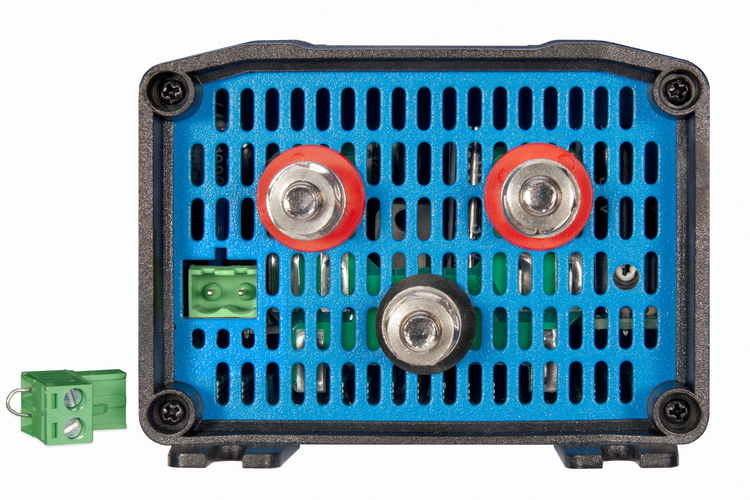

Remote on-off connector:
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).Â
All models with adjustable output can also be used as a battery charger:
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.Â
All models with adjustable output can be paralleled to increase output current:
Up to five units can be connected in parallel.
Â
Specifications
SKU ORI241270020
Brand Victron
GTIN 8719076023043
Warranty Period: 5 Years
Product Category Converters
Current (A) 70
Dimensions 195 x 88 x 65
Amps 70
Operating temperature range -20 to +55°C
DC Input Voltage 18-35V
DC Output Voltage Adjustable 10–15V F set 13,2V
Efficiency 92%
Rating (A) 70A
Net Weight (kg) 0.9
