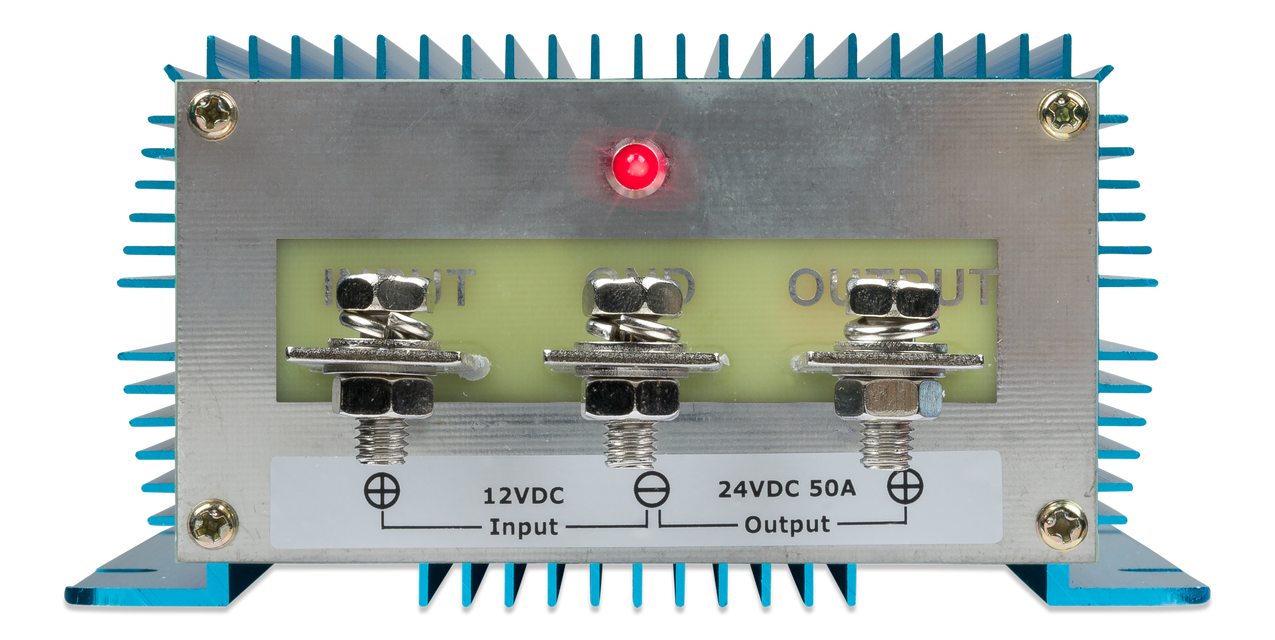

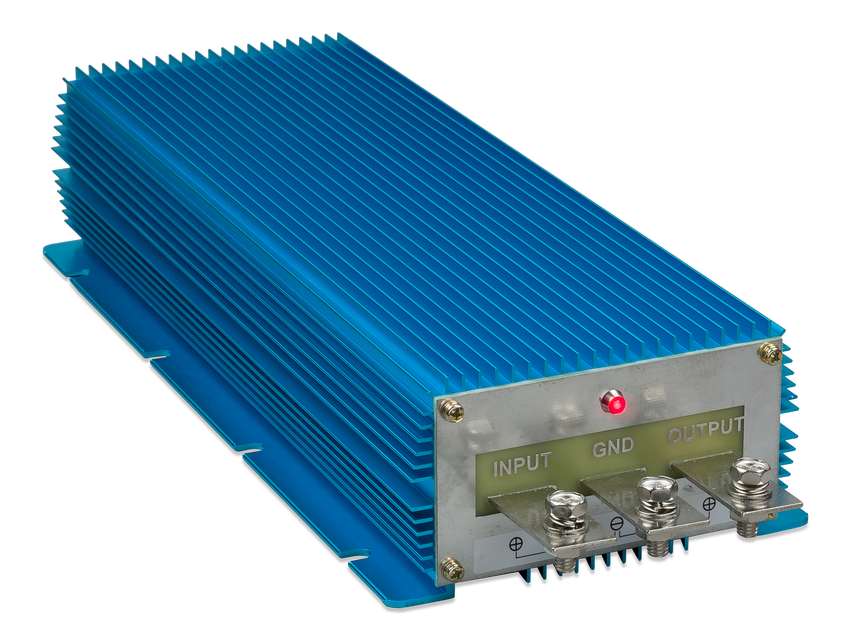

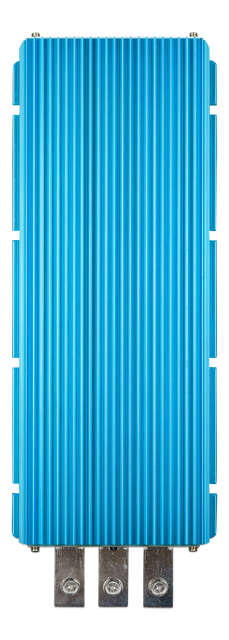

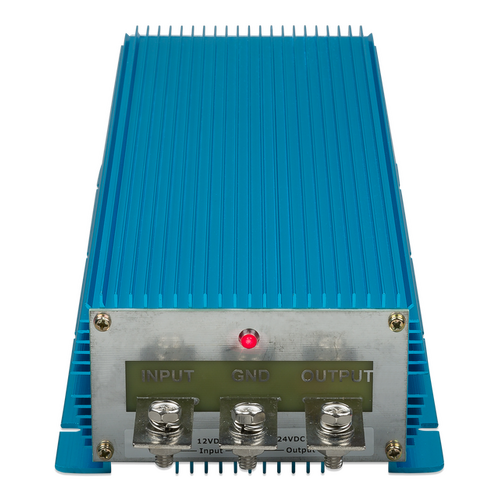

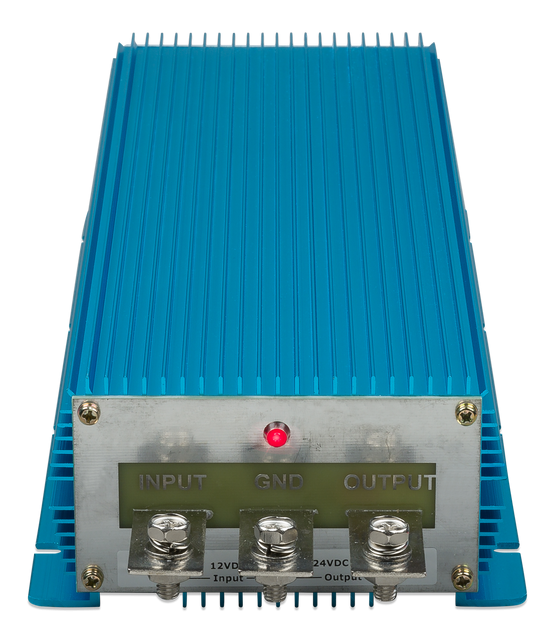

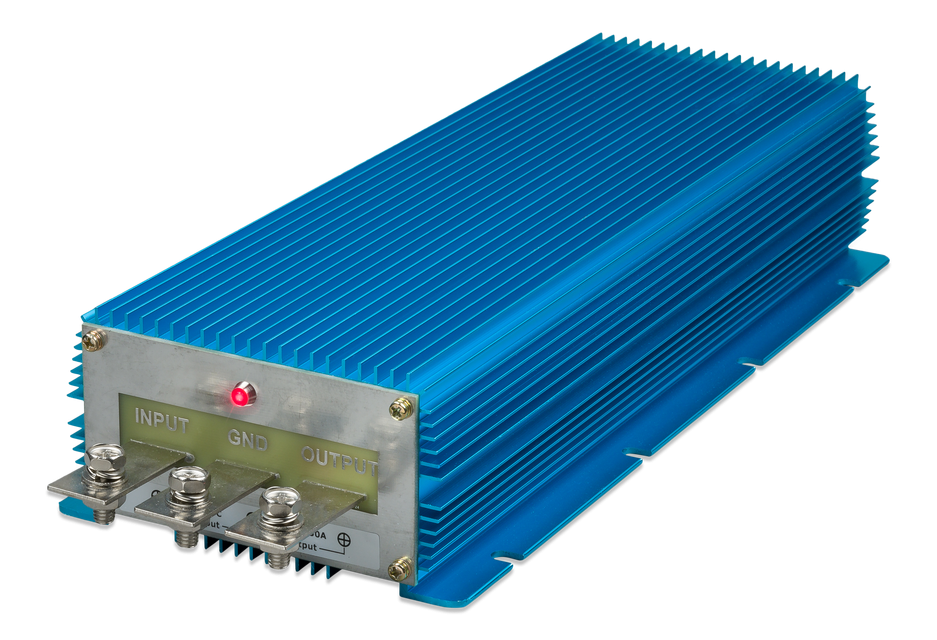

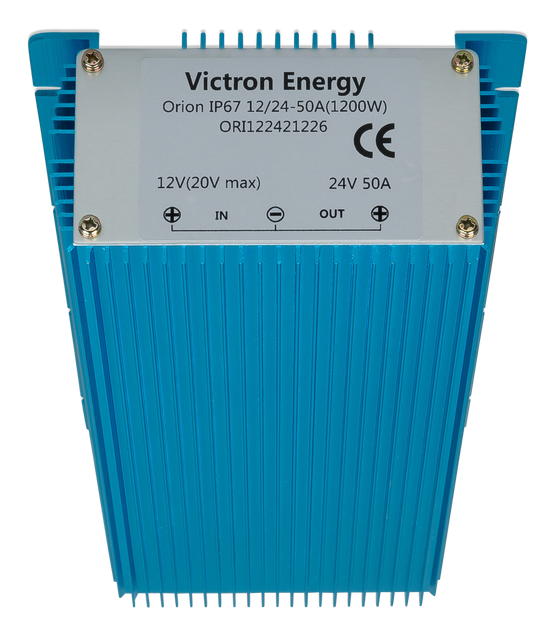

Victron Orion IP67 12/24-50A (1200W) DC to DC Converter Non Isolated
SKU: ORI122421226 Learn More»
Product Description
Victron Orion IP67 12/24-50A (1200W) DC to DC Converter Non Isolated, 5 Year Warranty. Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Completely encapsulated: waterproof, shockproof and ignition protected:
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Extra-long input and output cables:
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range:
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating:
It can be used in a hot environment such as a machine room.
Specifications
SKU ORI122421226
Brand Victron
GTIN 8719076048534
Warranty Period: 5 Years
Product Category Converters
Current (A) 50
Short Circuit Protection Yes
Dimensions 340mm x 127mm x 63mm
Amps 50
Operating temperature range -40 to +70°C (full rated output up to 40°C)
DC Input Voltage 10-15VDC
DC Output Voltage 24V +/- 3%
Efficiency 96%
Protection category IP67
Rating (A) 50A
Overload protection Hiccup mode, recovers automatically after fault condition is removed
Net Weight (kg) 3
