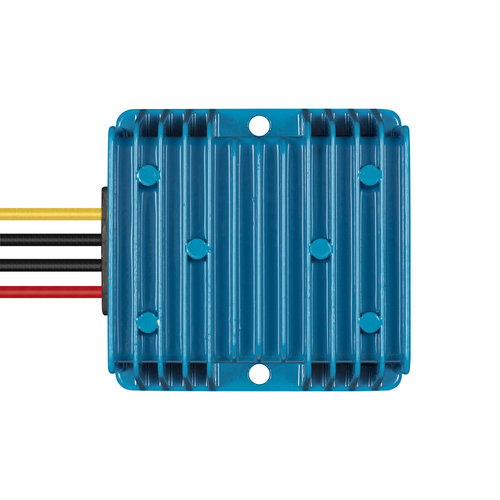

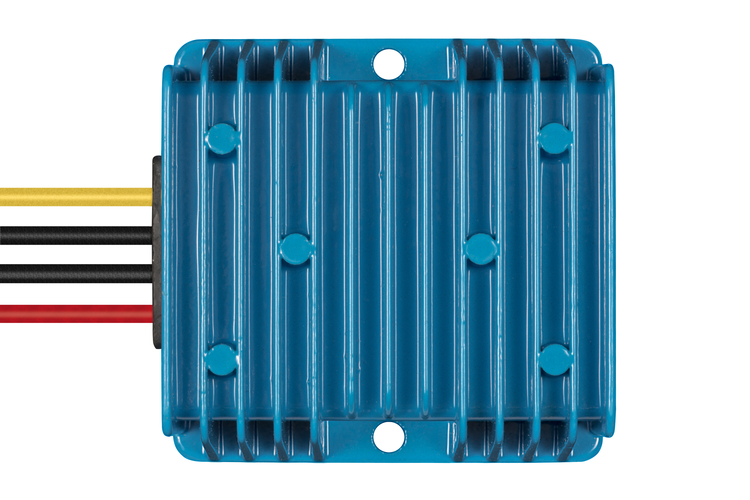

Victron Orion IP67 24/12V 20A (240W) DC to DC Converter Non Isolated
SKU: ORI241220260 Learn More»
Product Description
Victron Orion IP67 24/12V 20A DC to DC Converter Non Isolated 240W, 5 Year Warranty. Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Completely encapsulated: waterproof, shockproof and ignition protected:
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Extra-long input and output cables:
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range:
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating:
It can be used in a hot environment such as a machine room.
Â
Specifications
SKU ORI241220260
Brand Victron
GTIN 8719076048442
Warranty Period: 5 Years
Product Category Converters
Current (A) 20
Short Circuit Protection Yes
Dimensions 32 x 74 x 74
Amps 20
Operating temperature range -20 to +70°C (full rated output up to 40°C)
DC Input Voltage 15-40VDC
DC Output Voltage 12V +/- 3%
Efficiency 95%
Protection category IP67
Rating (A) 20A
Overload protection Hiccup mode, recovers automatically after fault condition is removed
Net Weight (kg) 0.3
