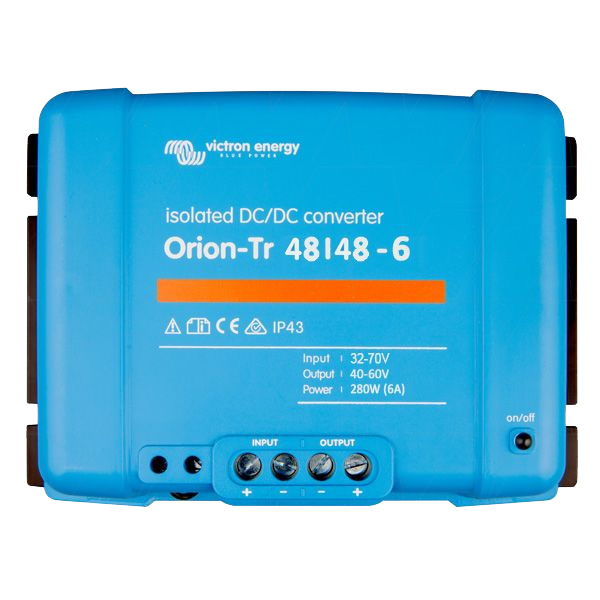

Victron Orion-Tr 48/48V 6A DC to DC Converter with Galvanic Isolation
SKU: ORI484828110 Learn More»
Product Description
Victron Orion-Tr 48/48V 6A DC to DC Converter with Galvanic Isolation 280W, 5 Year Warranty.Â
Remote on-off:
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).Â
Adjustable output voltage: can also be used as a battery charger:
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.Â
All models are short circuit proof and can be paralleled to increase output current:
An unlimited number of units can be connected in parallel.Â
IP43 protection:
When installed with the screw terminals oriented downwards.Â
Screw terminals:
No special tools needed for installation.
Input fuse:
On 12V and 24V input models only.Â
Specifications
SKU ORI484828110
Brand Victron
GTIN 8719076035305
Warranty Period: 5 Years
Product Category Converters
Current (A) 6
Dimensions 70 x 186 x 130
Amps 6
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
DC Input Voltage 32-70V
DC Output Voltage 40-60V +/- 0,2V
Efficiency 89%
Protection category IP43
Rating (A) 6A
Net Weight (kg) 1.3
