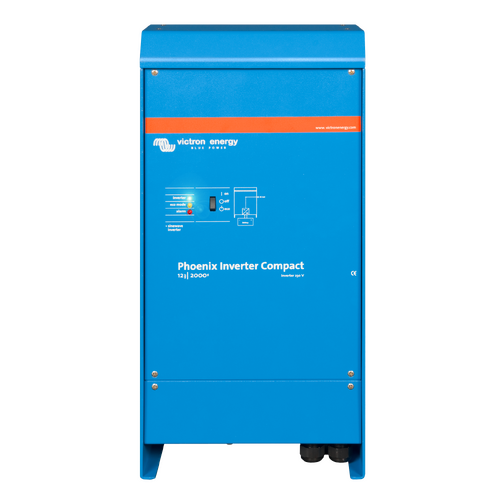

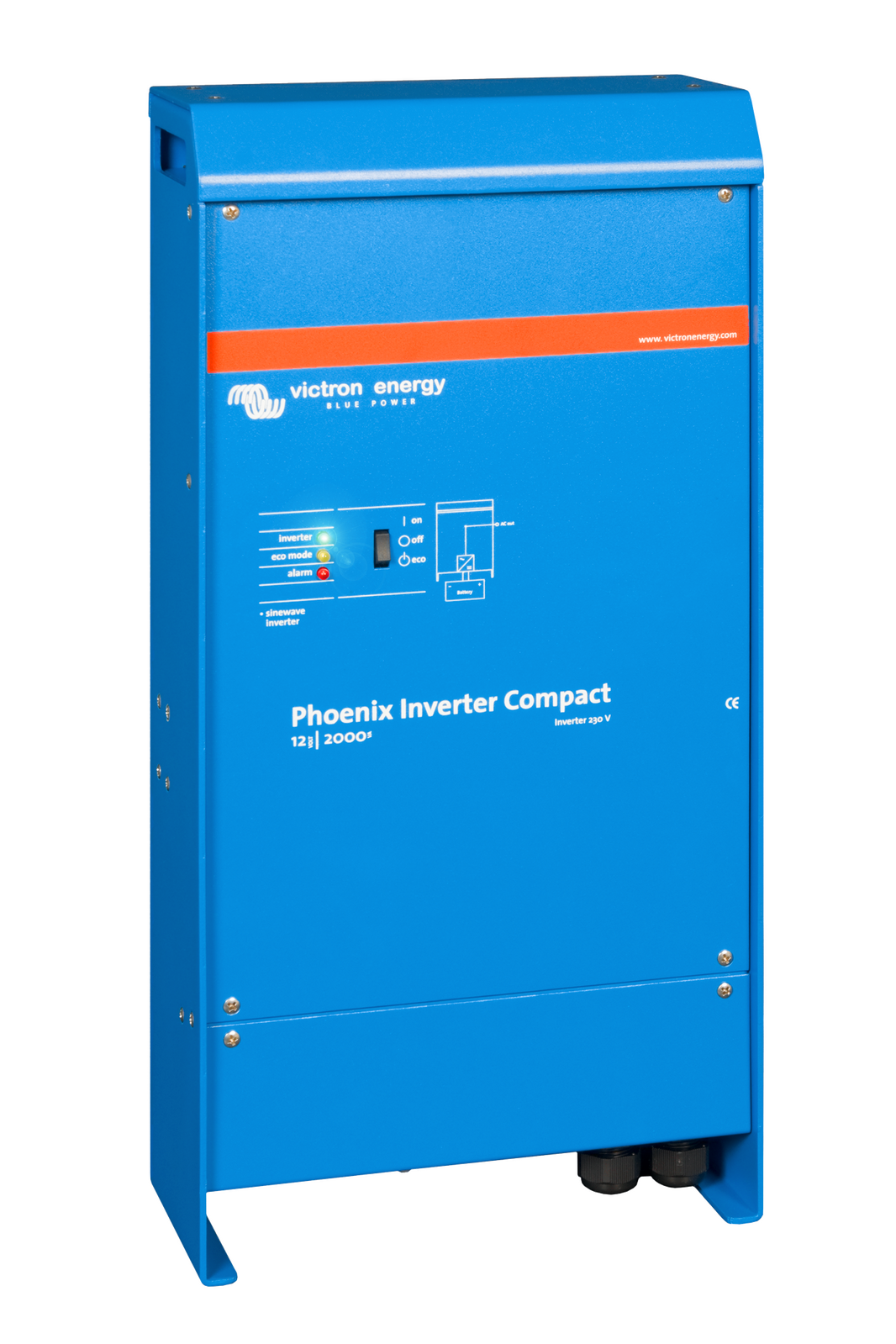

Victron Phoenix Inverter Compact 12V / 2000VA
SKU: CIN122200000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Victron Phoenix Inverter Compact 12V / 2000VA, 5 Year Warranty. The Phoenix Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications.
The Phoenix Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.
SinusMax - Superior engineering:
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power:
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability:
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3 phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch:
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
Computer interface:
All models have a RS-485 port. All you need to connect to your PC is Victron's MK3-USB VE.Bus to USB interface. Together with Victron's VEConfigure software, which can be downloaded free of charge from Victron's website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.
New applications of high power inverters:
The possibilities of paralleled high power inverters are truly amazing.
Specifications
SKU CIN122200000
Brand Victron
GTIN 8719076037514
Warranty Period: 5 Years
Product Category Power Inverters
Model CIN122200000
Wattage (W) 1600
Dimensions 125 x 255 x 520
Humidity Max 95%
Protection a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 V AC on inverter outpu
Battery-connection M8 bolts
Operating temperature range -40 to +65ºC (fan assisted cooling)
Input Voltage 9,5 – 17V 19 – 33V 38 – 66V
Peak power 4000
Output Voltage and Frequency 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1)
Efficiency 92
Protection category IP21
Net Weight (kg) 12
Product Q&A
-
Can I run an inverter from AGM or Gel batteries?
The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.
Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.
For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.
You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).
A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.
Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
-
What is the maximum output amps?Is it 10 or 15amps output?
Hi There,
The continuous output from this inverter is approx 7A (1600W) with a peak of approx 17A (4000W).
Customer Reviews
Heavy duty marine quality inverter Review by Chris JarvisThis was purchased to power a 1200w inverter/convection/microwave/grill and a 240v Rainman SWRO 140 L/hr water maker on my Bluewater Sailing yacht, not at the same time but individually and this unit does it with ease, excellent Victron product.(Posted on 17 November 2018)
